Siemens Power Contactor 3RT2016-2BB42 m01042

$89.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 3RT2016-2BB42
Stock #: 0326-01042

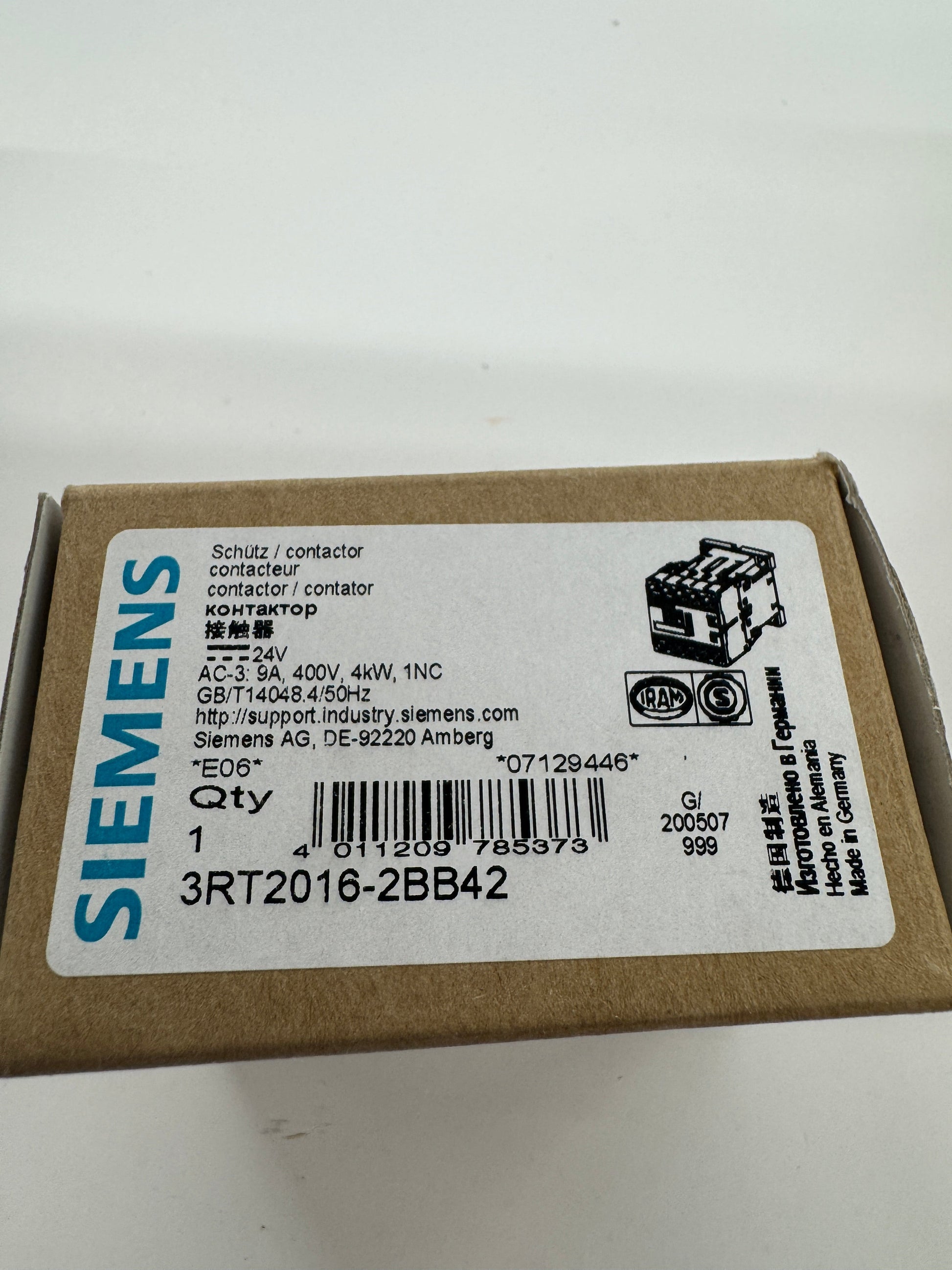

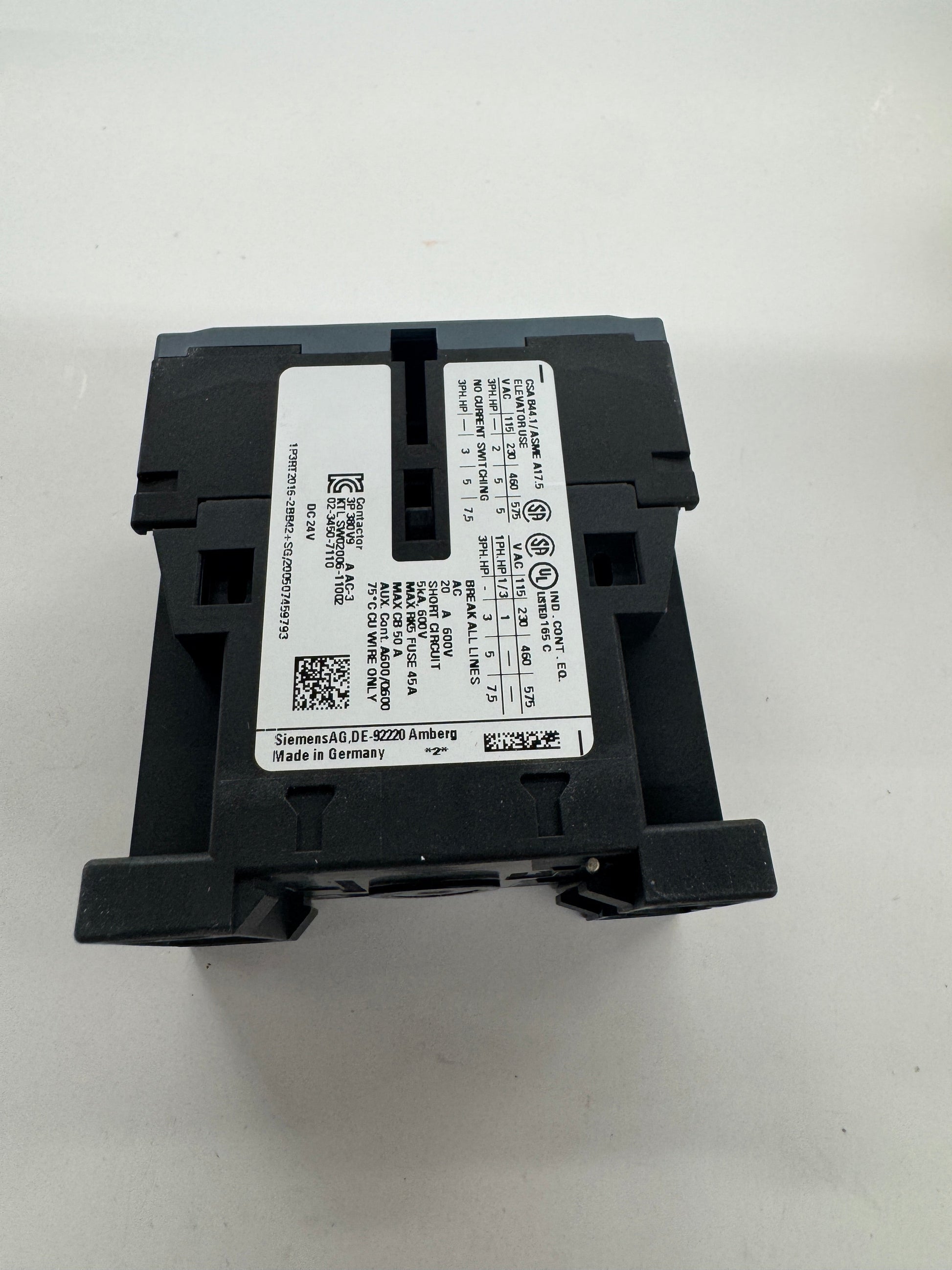

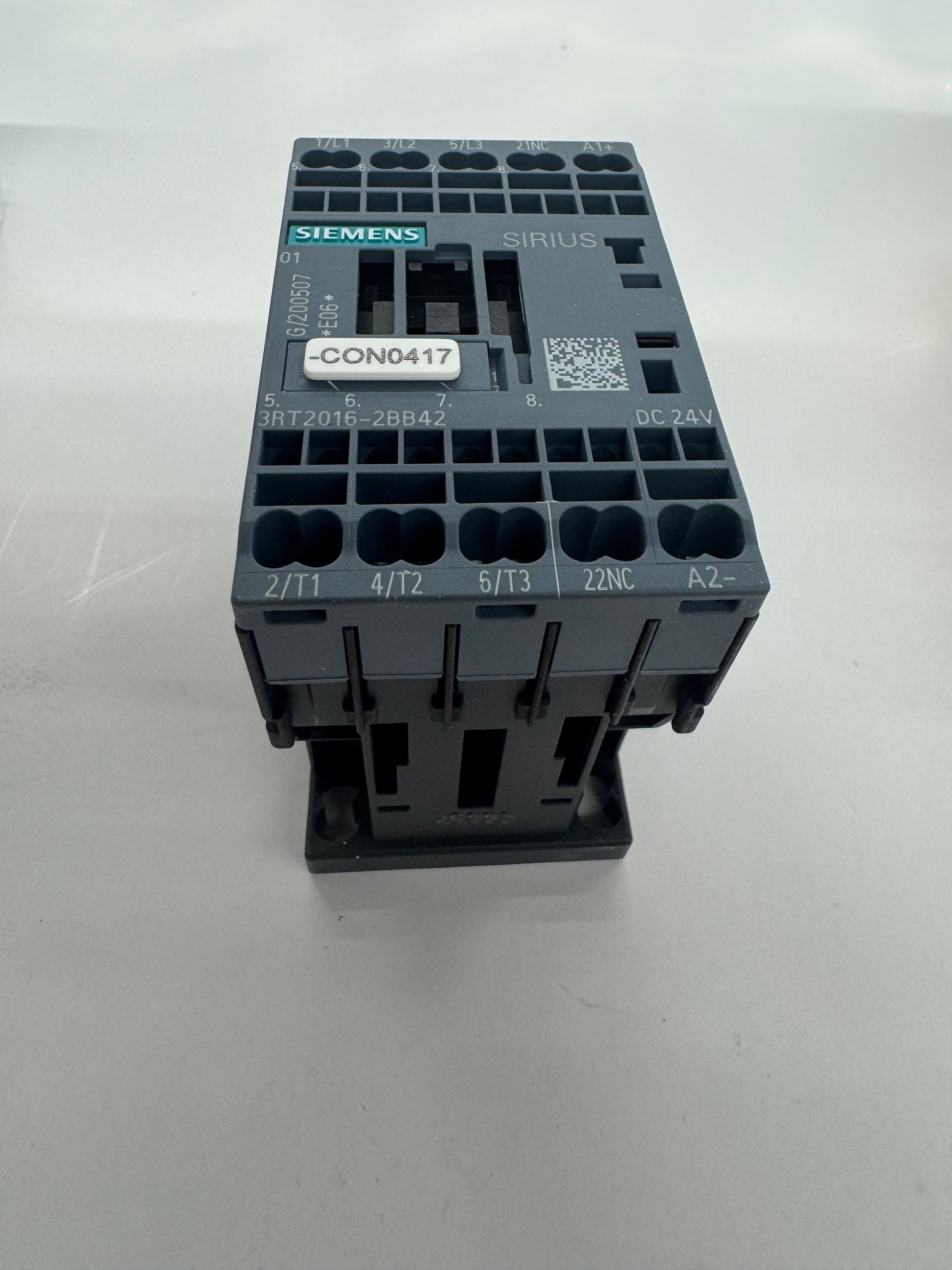

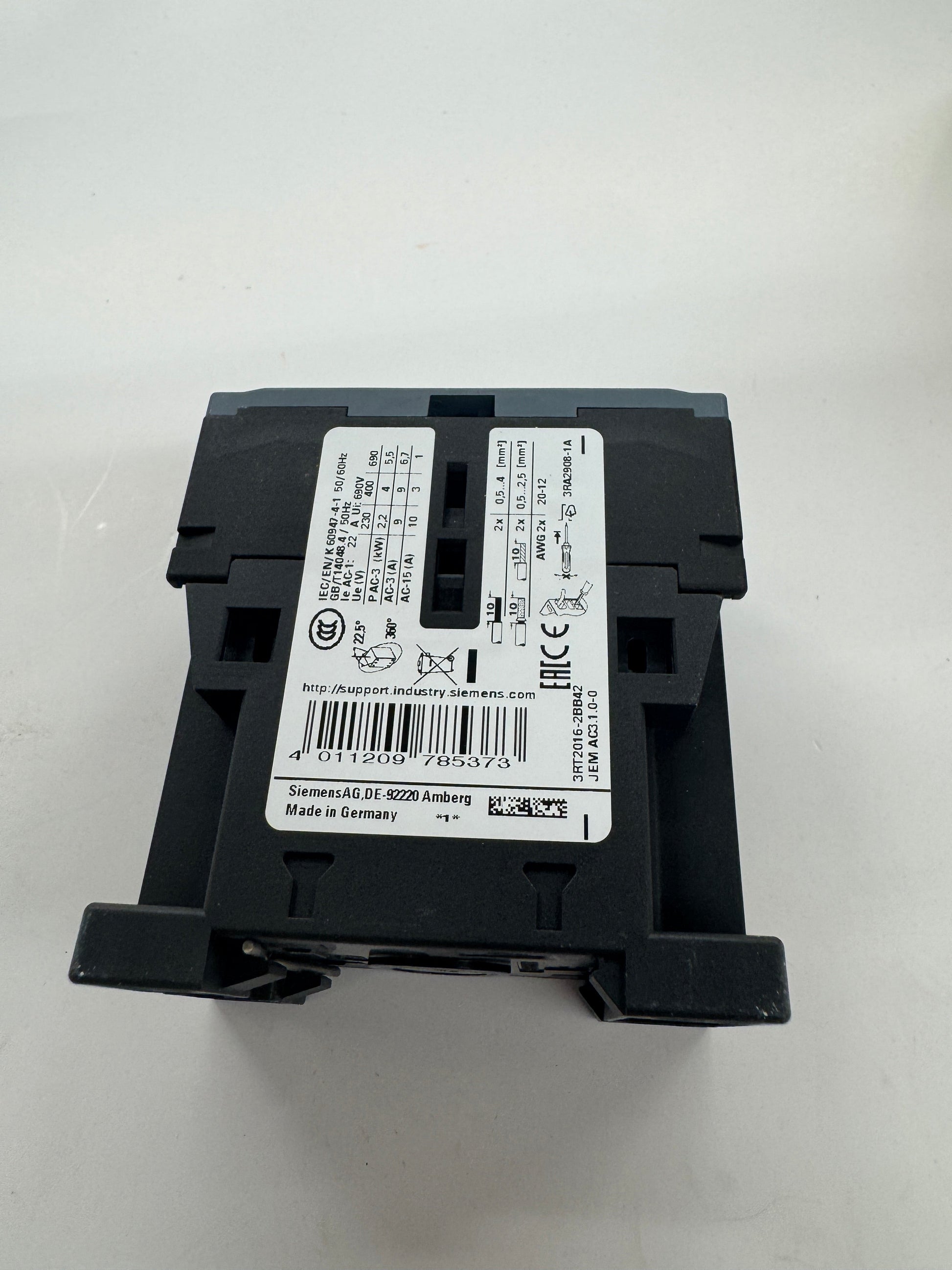

The Siemens 3RT2016-2BB42 is a SIRIUS 3RT2 series 3-pole power contactor rated for AC-3 duty at 9A and 400V, with a 24V DC control coil. Manufactured in Germany by Siemens AG, DE-92220 Amberg, this contactor carries IEC/EN/DIN EN 60947-4-1 certification and is also UL listed (E165C) per the nameplate label, making it suitable for both IEC and North American applications. The S00 frame size is compact and designed for DIN rail or panel mounting. Main contact configuration is 3NO for the power poles with 1NC auxiliary contact (21NC/22NC terminals confirmed on nameplate). The coil is rated DC 24V, confirmed on both the box label and the device face. AC-3 current rating is 9A at 400V, corresponding to 4kW motor load capacity at 400V. AC-15 rating is confirmed at 10A per the device nameplate. Short circuit protection requirement is max CB 50A, max fuse 45A per UL nameplate. Wire range is 0.5 to 4 mm² (20 to 12 AWG). Part number 3RT2016-2BB42 is confirmed on both the original factory carton and the device body. Date code G/200507 indicates manufacture in May 2007. Varistor suppression module port is present for optional accessory fitment. Compatible with Siemens 3RH and 3RT accessory modules.

Stock # 0326-1042
