Siemens Power Contactor 3RT2017-2BB41 m01041

$89.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 3RT2017-2BB41
Stock #: 0326-01041

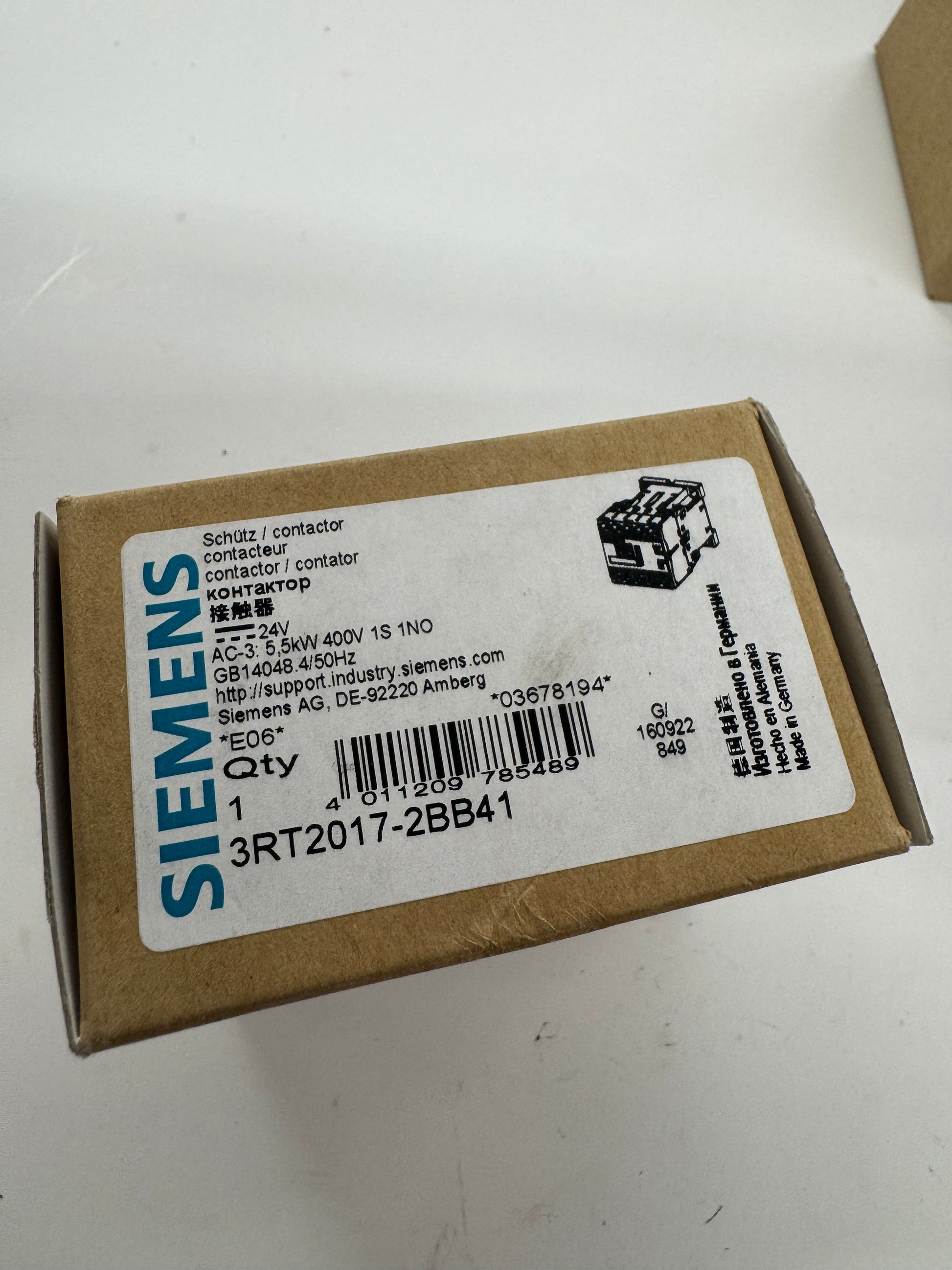

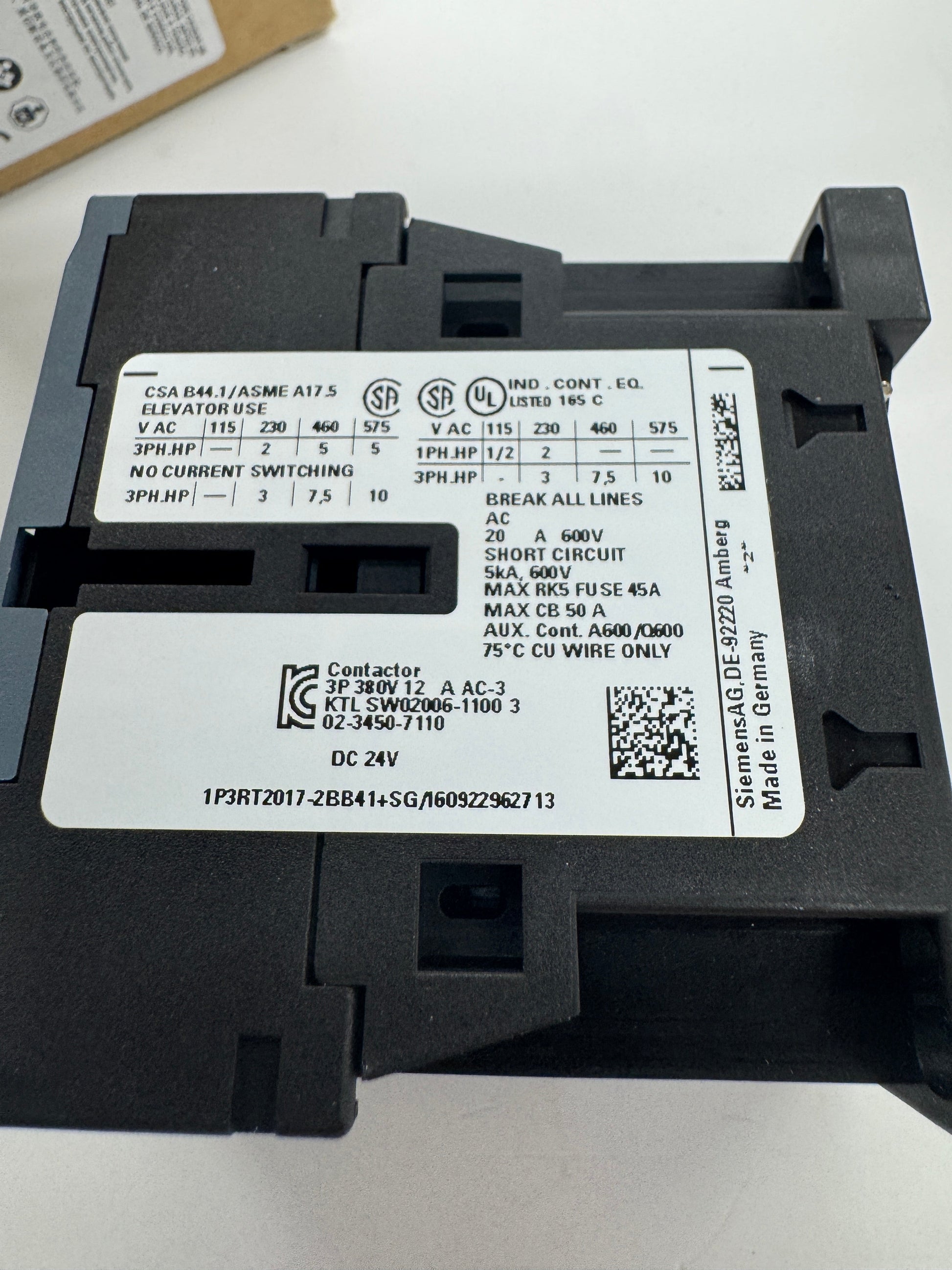

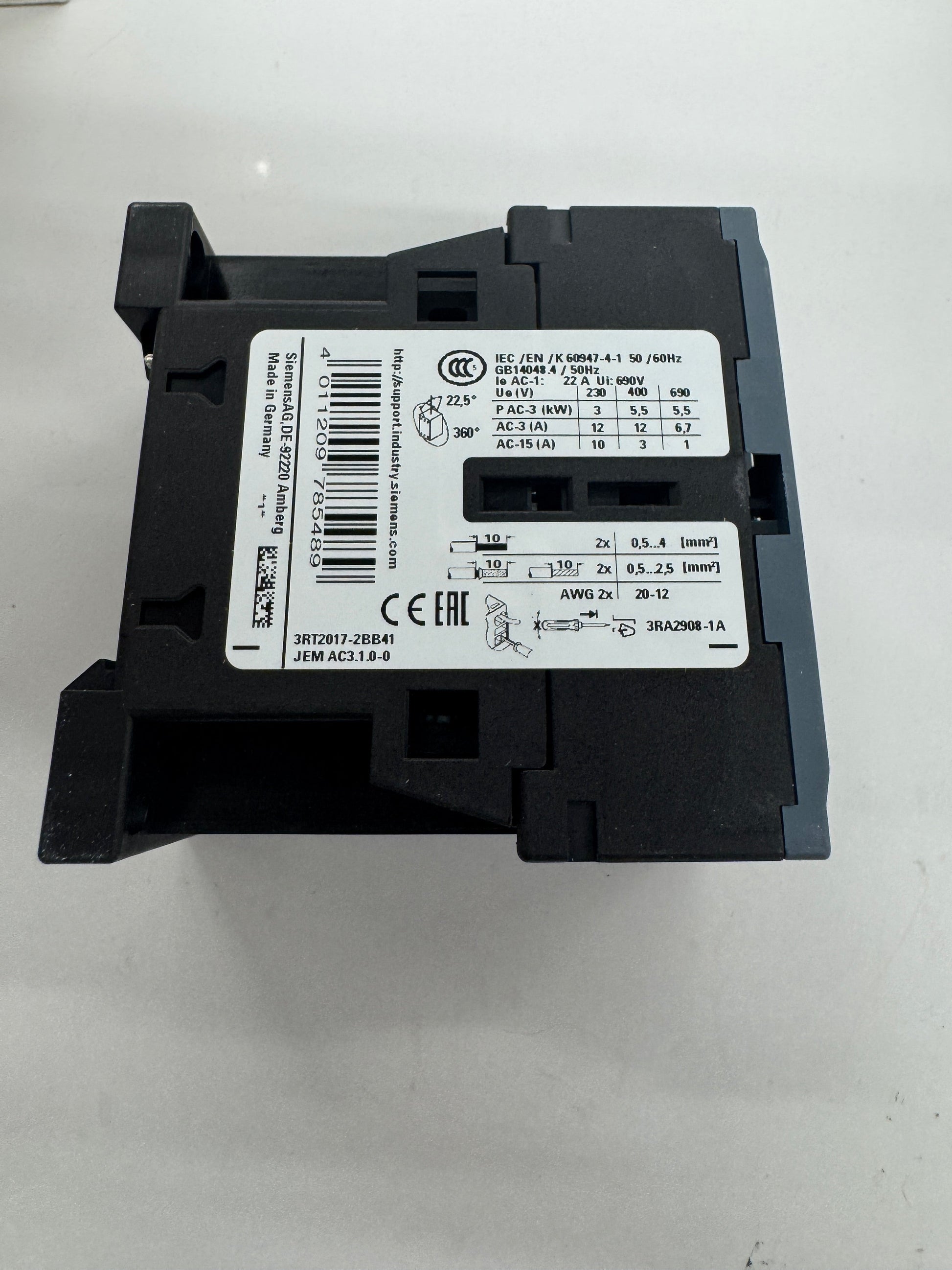

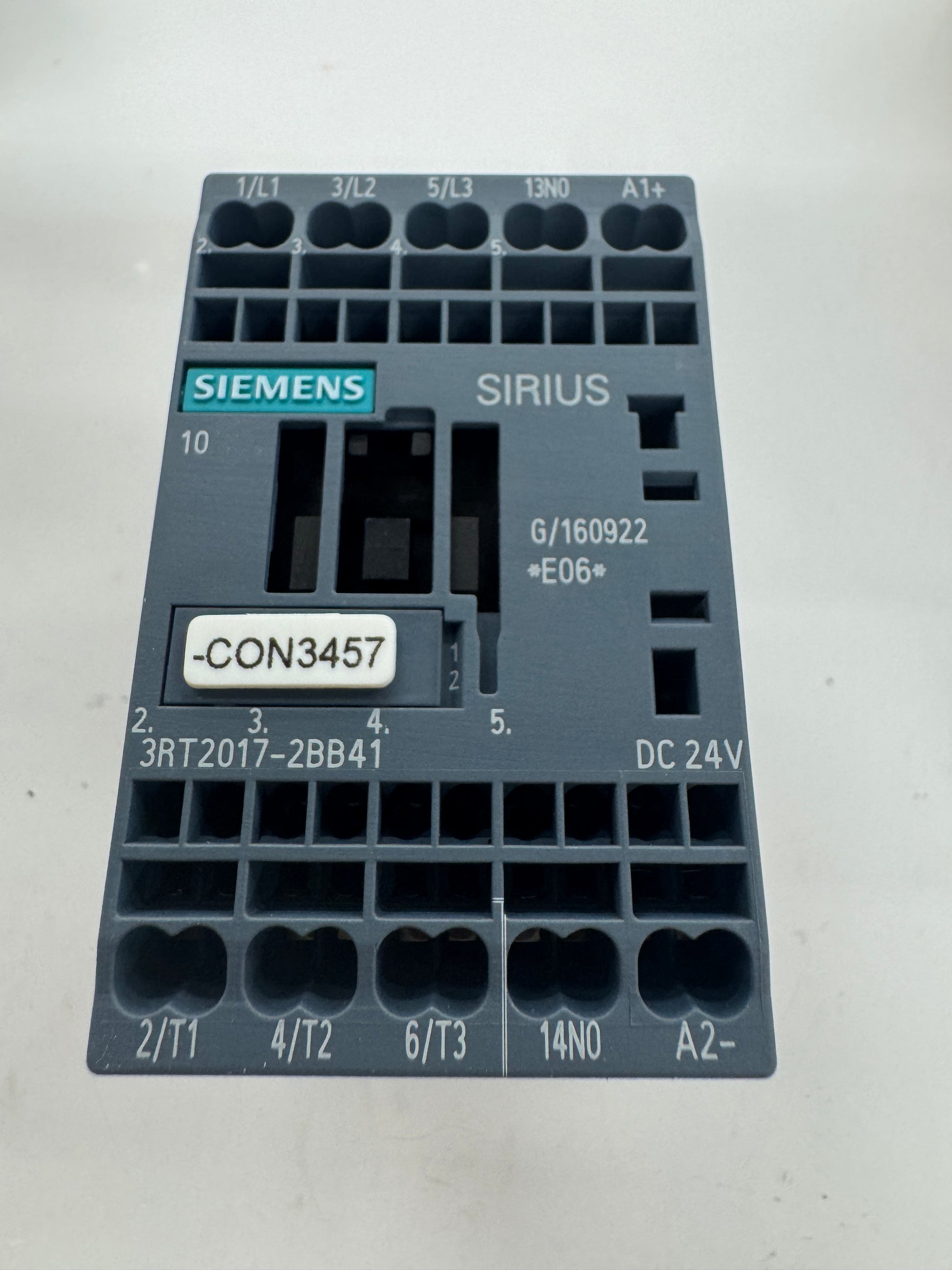

The Siemens 3RT2017-2BB41 is a 3-pole IEC power contactor from the SIRIUS 3RT2 series, rated for AC-3 duty at 12A and 5.5 kW at 400V. The control coil operates on 24V DC, making it compatible with standard PLC output modules and DC control circuits. Load-side ratings extend to 600V AC, with published HP ratings of 3 HP at 230V, 7.5 HP at 460V, and 10 HP at 575V per the UL/CSA nameplate. The contactor includes one integrated 1NO auxiliary contact and uses spring-type terminal connections for toolless wire termination. Terminal wire acceptance ranges from AWG 20 to AWG 12. Short-circuit rating is 5 kA at 600V, with a maximum RK5 fuse of 45A and maximum circuit breaker of 50A. The unit is size S00 and mounts on standard DIN rail or surface. Certifications confirmed visible on the nameplate include UL Listed (IND. CONT. EQ., Listed 165 C), CSA (B44.1/ASME A17.5 Elevator Use), CE, EAC, CCC, and IEC/EN/K 60947-4-1. Manufactured in Germany. Serial number 1P3RT2017-2BB41+SG/160922962713. Production lot G/160922, revision E06. The 3RT2017-2BB41 replaces the earlier 3RT1017-2BB41 and is compatible with 3RT series snap-on auxiliary switch blocks and suppressor accessories.

Stock # 0326-1041

View full details
