Siemens Power Contactor 3RT2017-2BB41
Siemens Power Contactor 3RT2017-2BB41
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3RT2017-2BB41
Stock #: 0326-01121

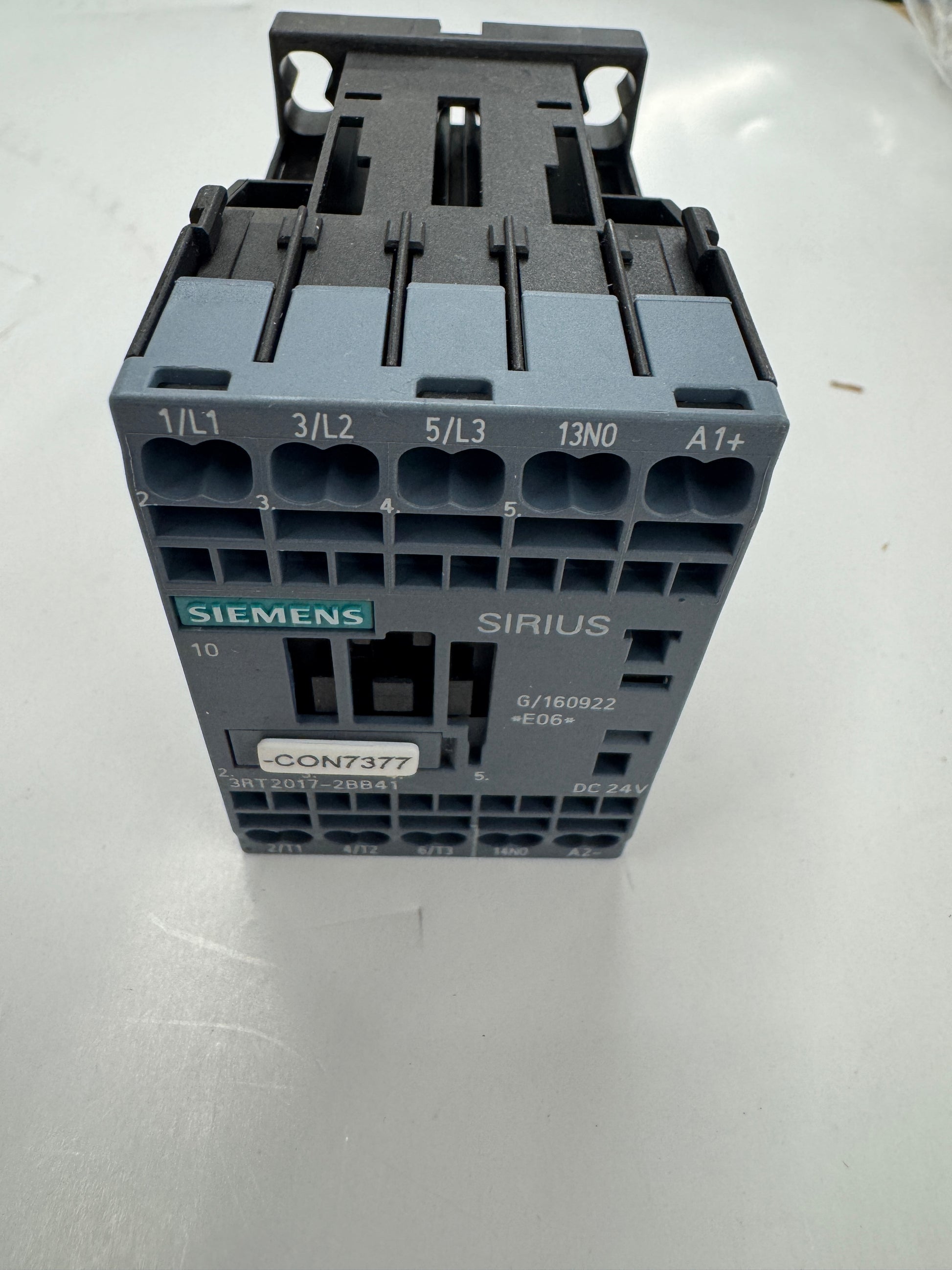

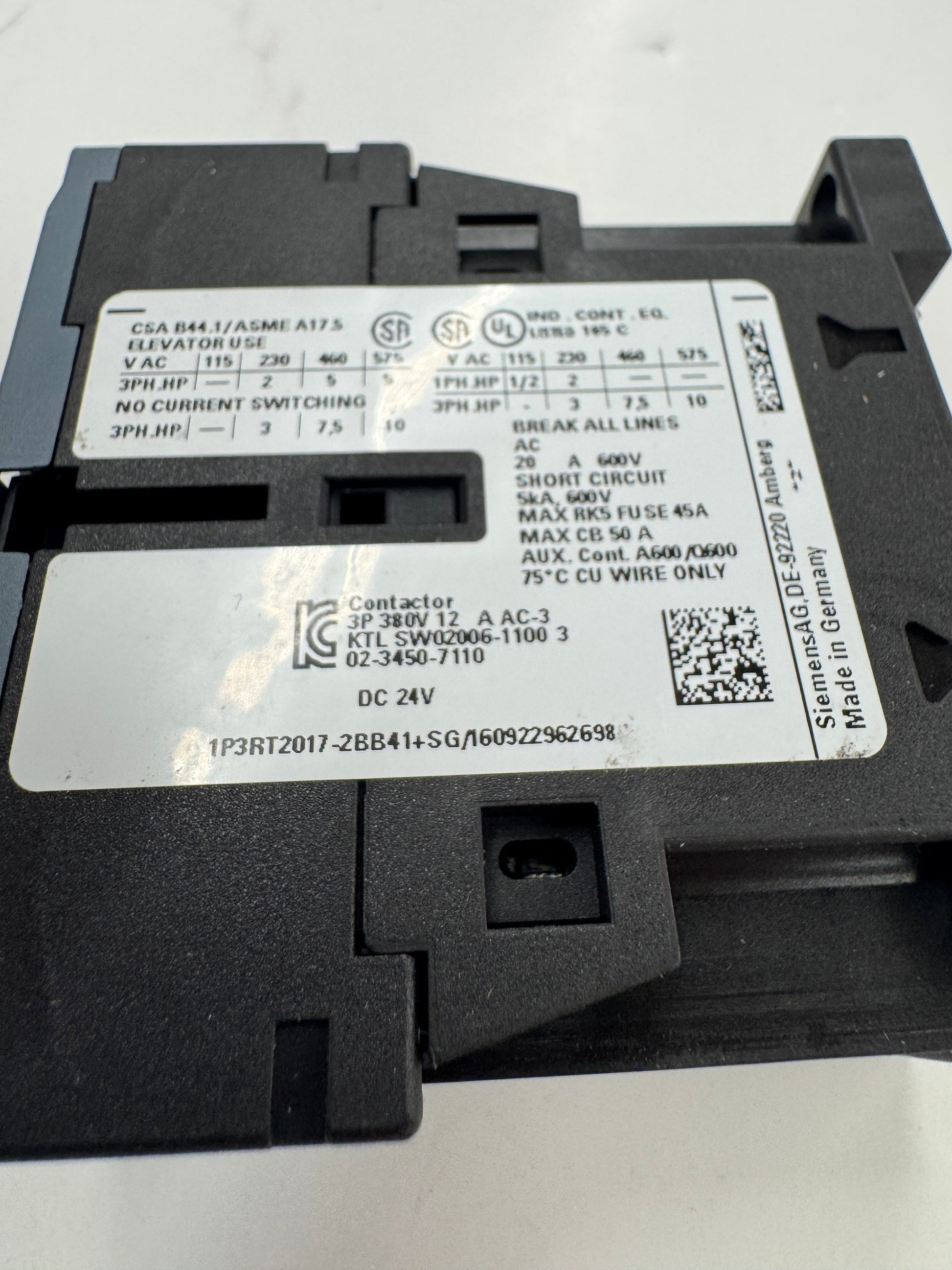

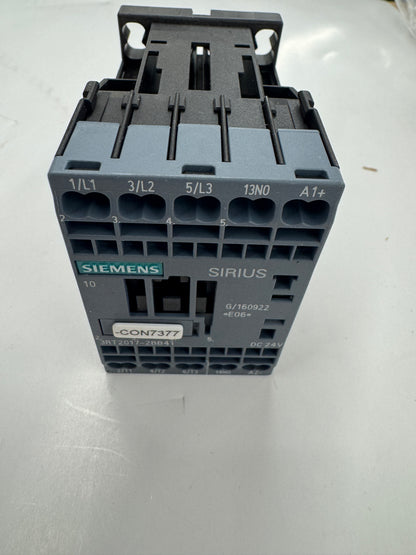

A power contactor from Siemens belonging to the SIRIUS 3RT2 series, the 3RT2017-2BB41 is a compact 3-pole device rated for AC-3 duty at 12A and 5.5 kW at 400V. The control coil operates on 24V DC, and the main circuit is rated to 600V AC per UL and CSA standards. The unit includes one integrated normally open (1NO) auxiliary contact and uses spring-type terminal connections throughout, eliminating the need for screw tightening tools during wiring. It is size S00, the smallest frame in the 3RT2 family, measuring approximately 45 x 70 x 73 mm, and mounts on standard DIN rail or surface. The nameplate confirms compliance with CSA B44.1 and ASME A17.5 for elevator use, and the UL mark is visible. Short circuit rating is 5 kA at 600V with a maximum RK5 fuse of 45A and maximum circuit breaker of 50A. Wiring is specified for 75 degrees C copper conductors only. The part number 3RT2017-2BB41 replaces the prior generation 3RT1017-2BB41. Manufactured by Siemens AG in Germany. The serial reference on the nameplate reads 1P3RT2017-2BB41+SG/160922962698, and the housing carries the date code G/160922 with revision E06.
Stock # 0326-1121
