Spirax Sarco Float and Thermostatic Steam Trap FT-200 | STK. NO. 66673 3/4 In. NPT 200 PSIG
Spirax Sarco Float and Thermostatic Steam Trap FT-200 | STK. NO. 66673 3/4 In. NPT 200 PSIG
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

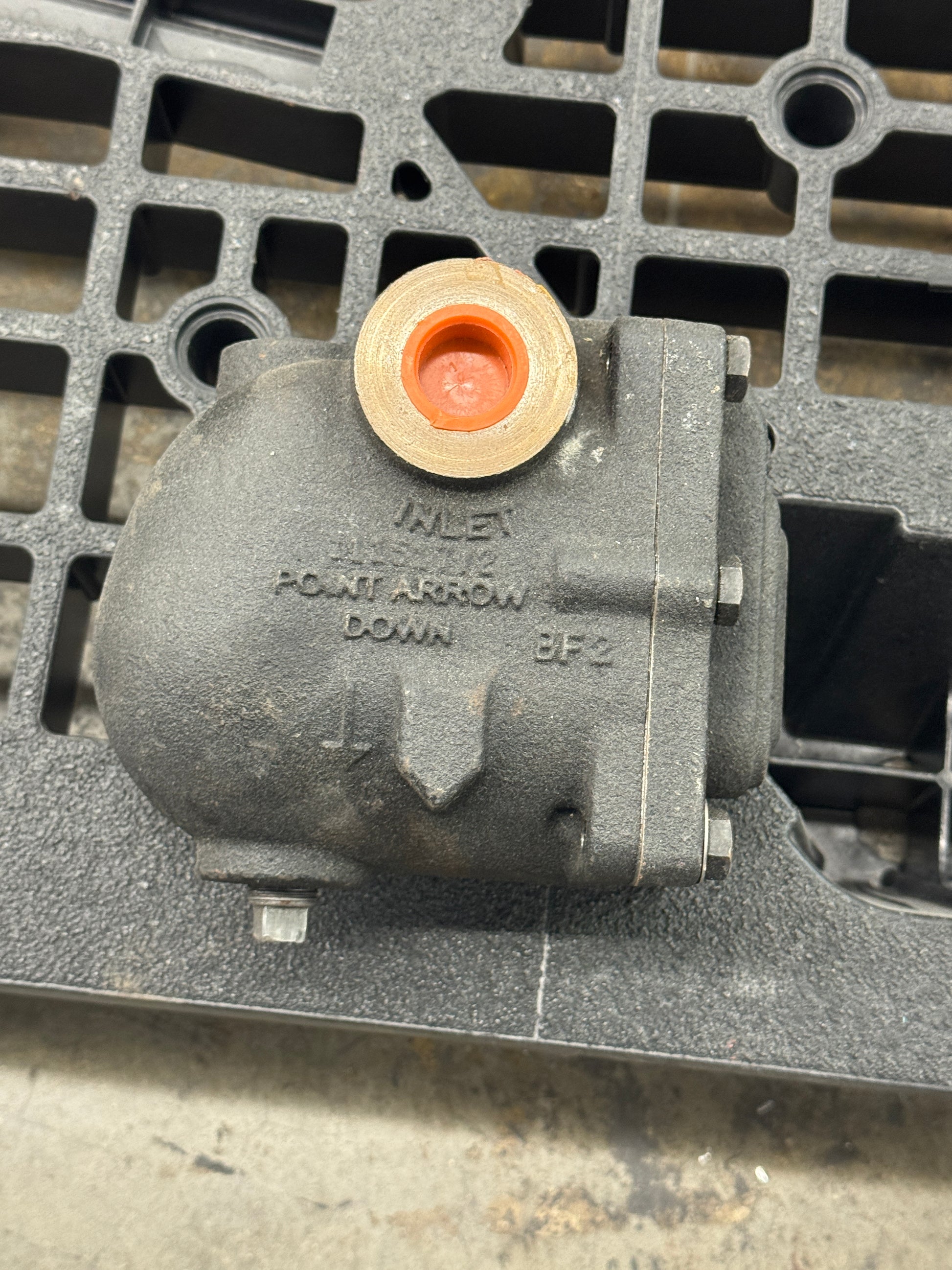

Used in steam heating and steam process equipment, the Spirax Sarco FT-200 is a cast iron float and thermostatic steam trap rated for a maximum operating pressure (PMO) of 200 PSIG and a maximum allowable pressure (PMA) of 200 PSIG at 450 degrees F. The TMA is 450 degrees F at 200 PSIG. Connection size is 3/4 in. NPT. The inlet port is marked with a directional arrow indicating installation orientation.

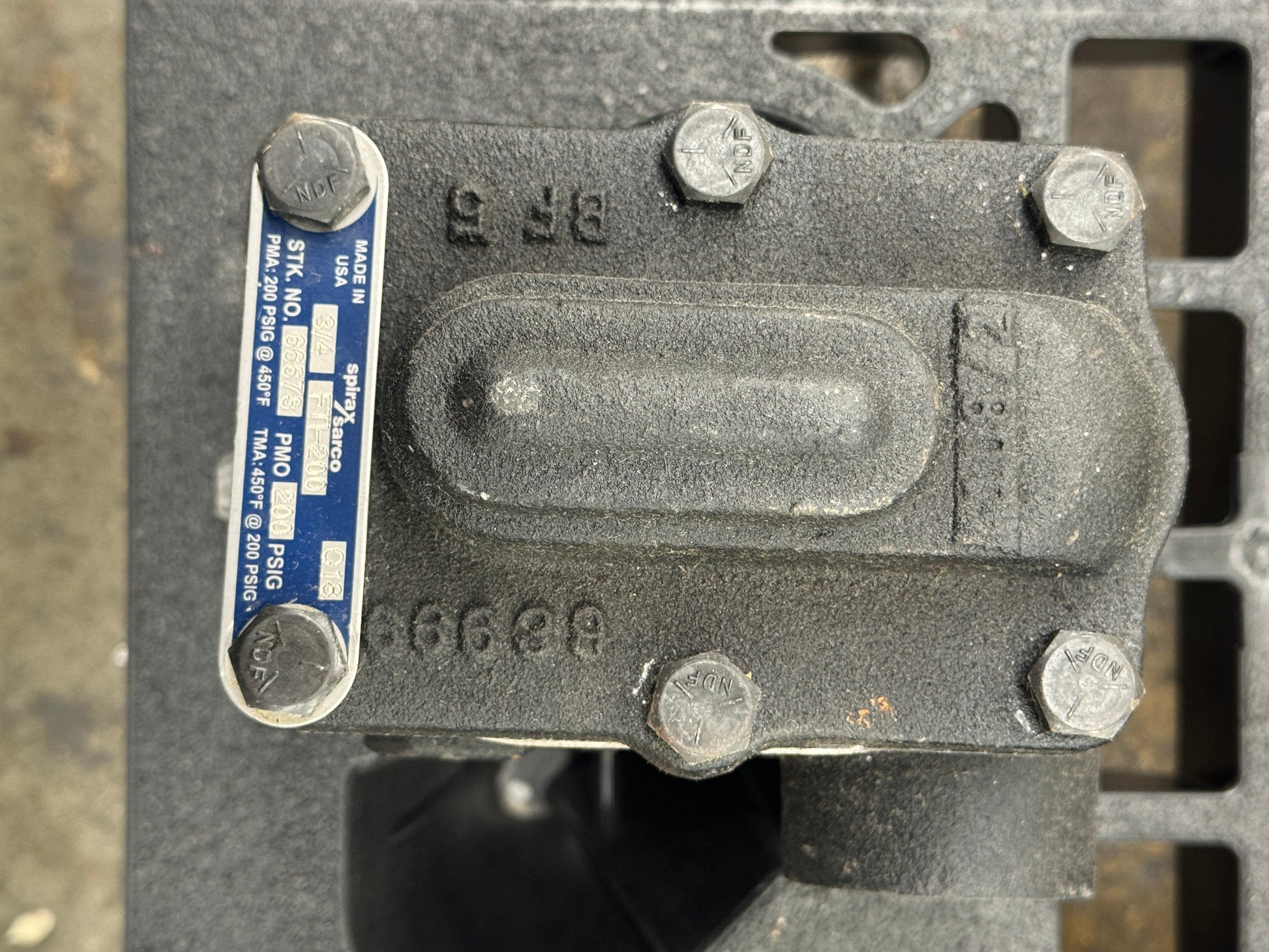

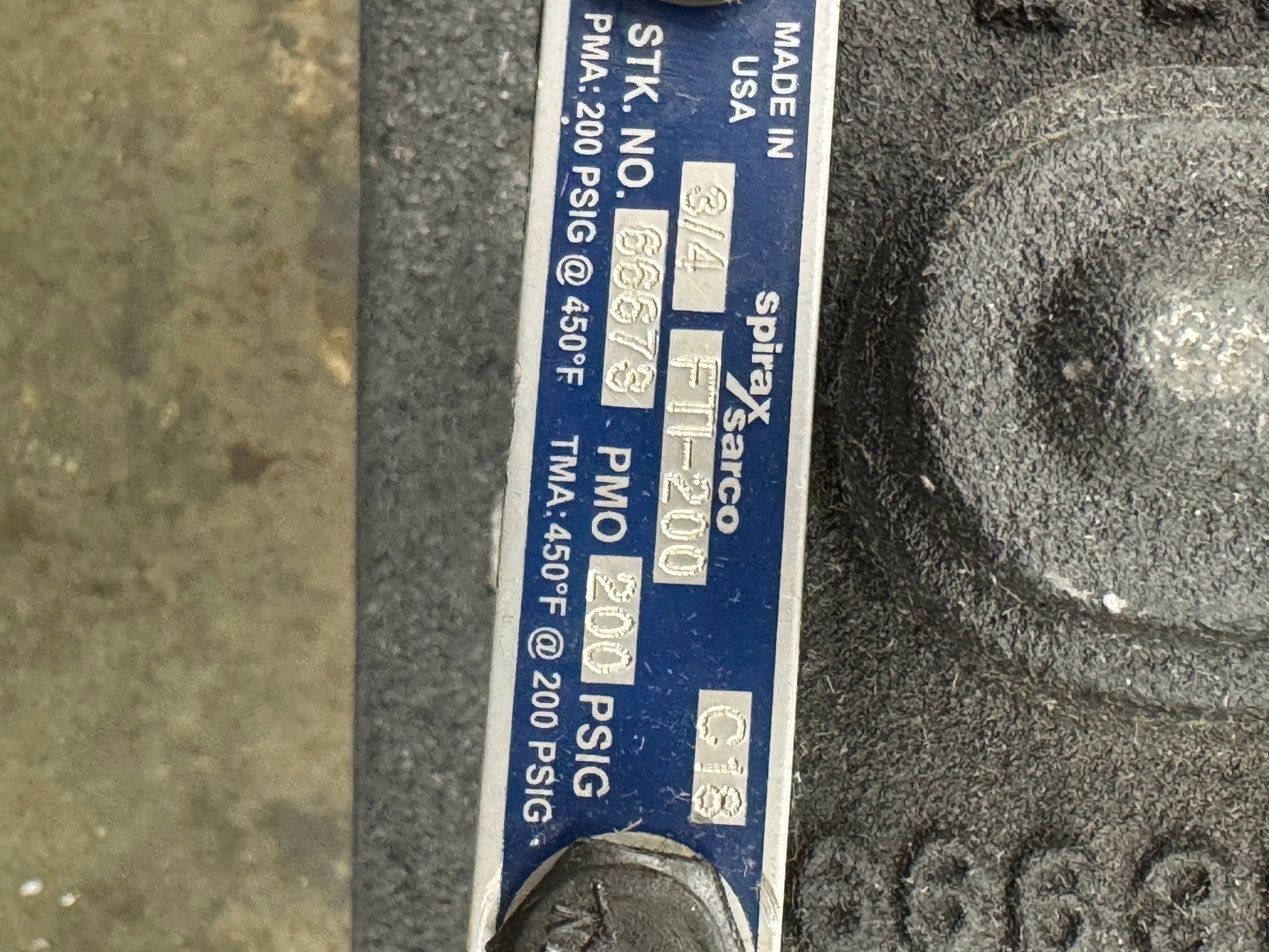

The internal mechanism includes a stainless steel float valve assembly and a balanced pressure thermostatic air vent for continuous condensate drainage and automatic venting of air and non-condensable gases. The cast iron body carries the marking BF2 and is manufactured in the USA. Stock number 66673 appears on the nameplate label.
This trap is suited for heat exchangers, unit heaters, air heating coils, steam main drip stations, and modulating temperature control valve applications. The float and thermostatic design allows the trap to modulate discharge in response to varying condensate loads, making it appropriate for systems subject to fluctuating steam demand.
Port caps are present on the inlet. No visible damage or deformation to the body or cover bolts. Spiral cap bolts are marked NDF. Sold as surplus and has not been tested.
Stock # 0326-1187
