Sprecher + Schuh Contactor CA7-60-00
Sprecher + Schuh Contactor CA7-60-00
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

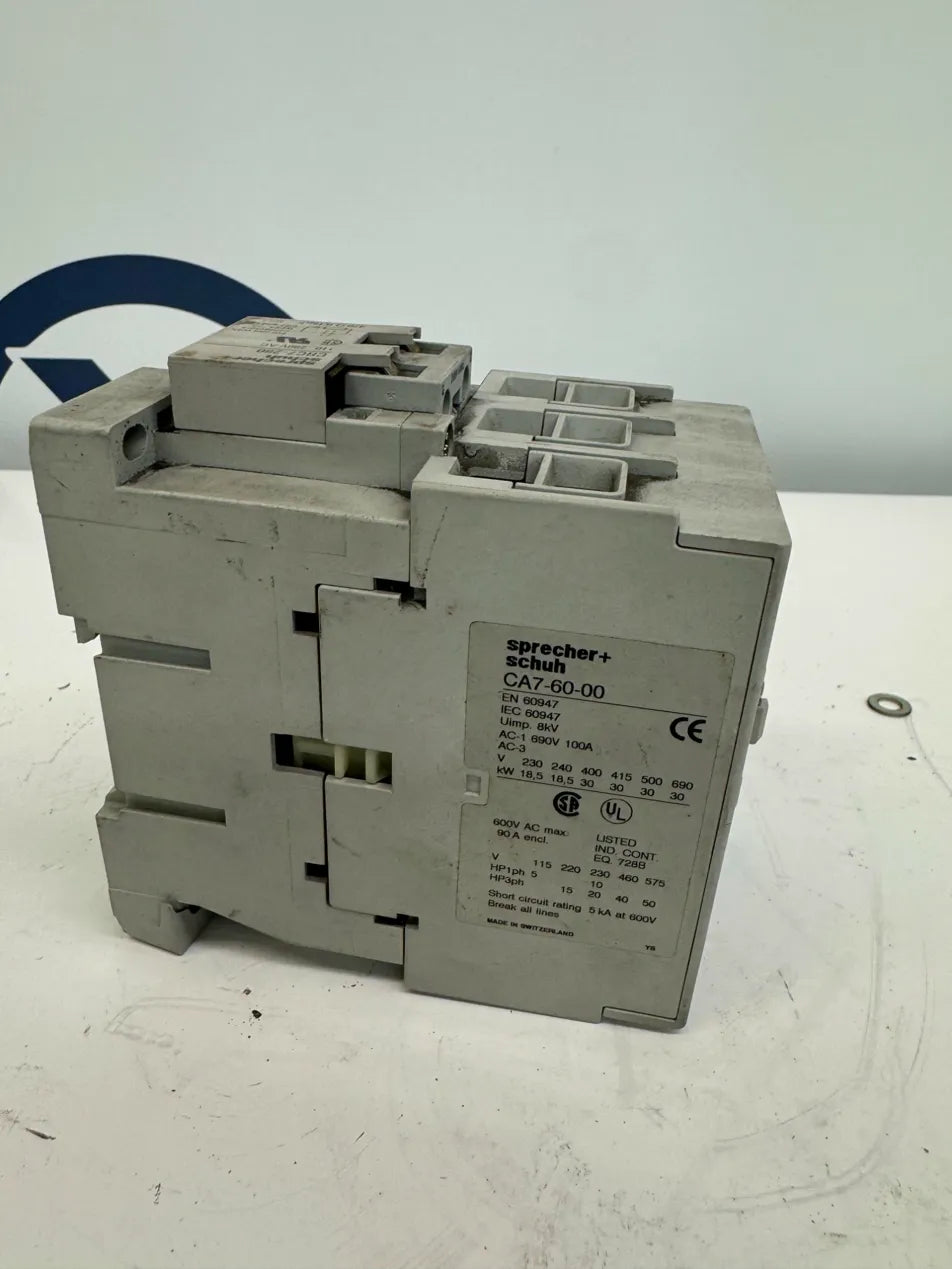

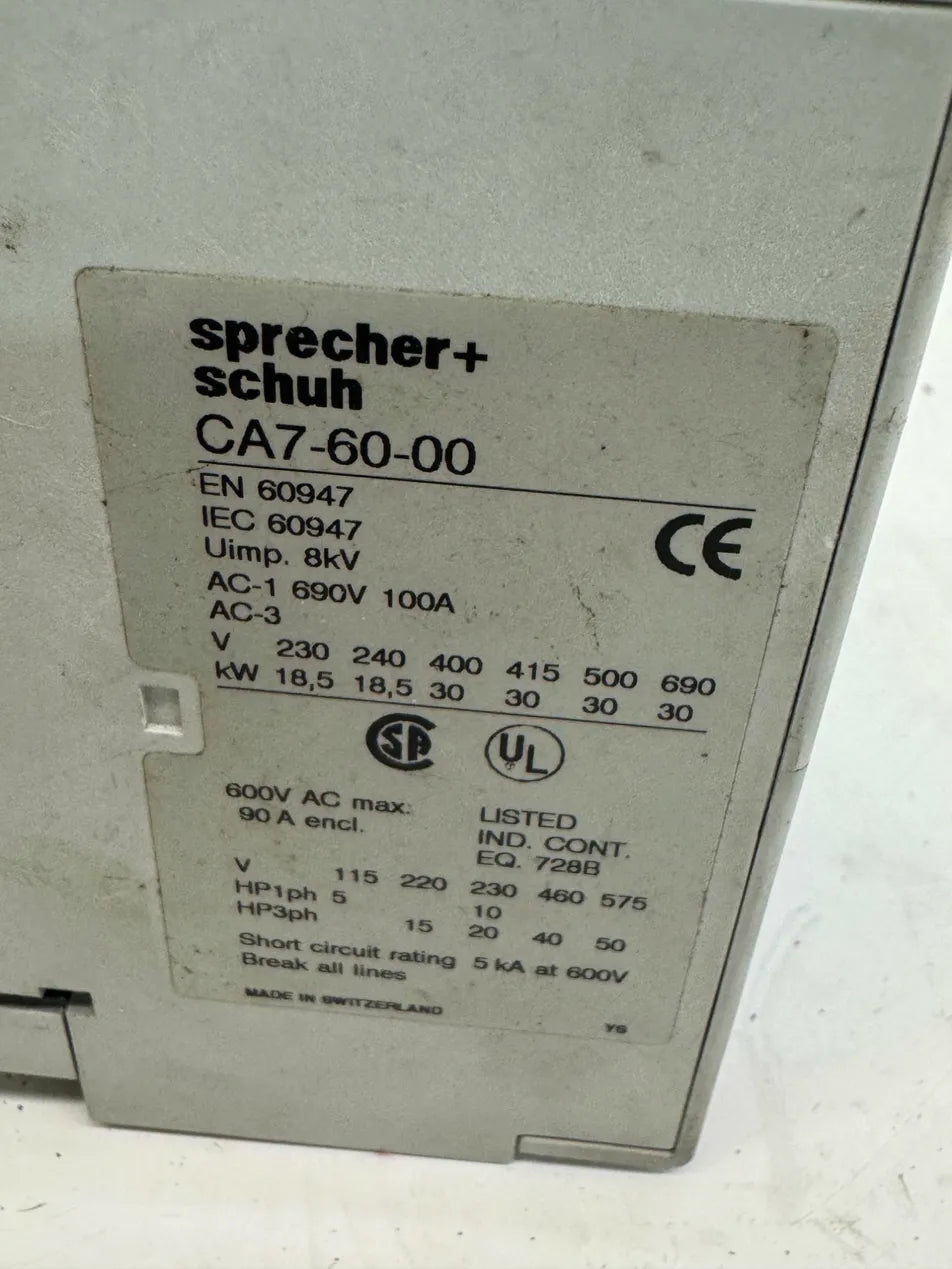

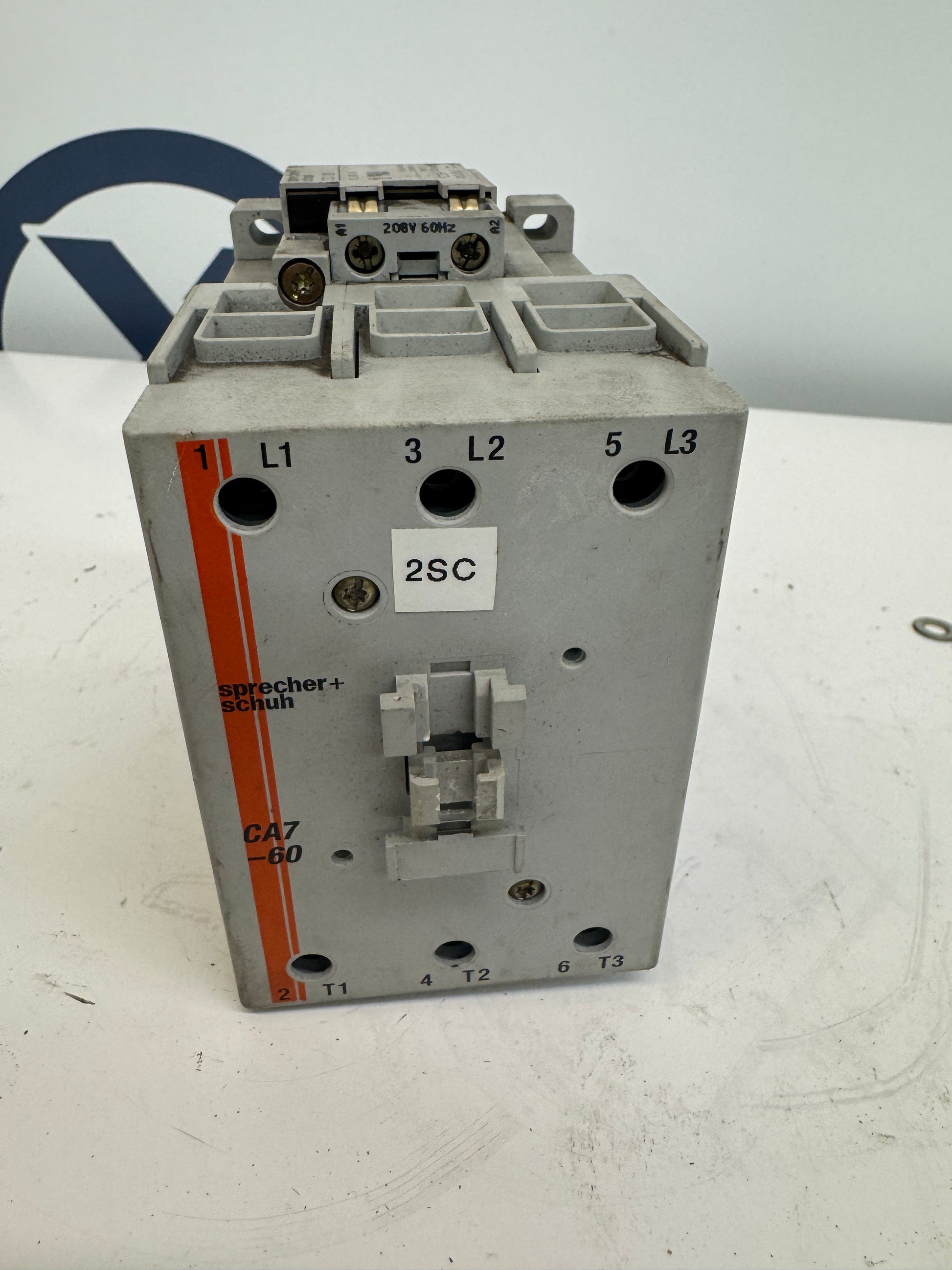

The Sprecher + Schuh CA7-60-00 is a 3-pole, non-reversing IEC motor contactor from the Series CA7 line, manufactured in Switzerland. The nameplate confirms an AC-1 rating of 690V at 100A and a 600V AC max rating of 90A enclosed per UL listing. Under AC-3 duty, the unit is rated 18.5 kW at 230V and 240V, and 30 kW at 400V, 415V, 500V, and 690V. For North American applications, UL/CSA horsepower ratings are listed as 5 HP single-phase at 115V, 15 HP three-phase at 200V, 20 HP three-phase at 230V, 40 HP three-phase at 460V, and 50 HP three-phase at 575V. Short circuit rating is 5 kA at 600V. The unit complies with EN 60947 and IEC 60947 standards and carries the CE, UL, and CSA marks. The installed coil module is marked 208V 60Hz; CA7 series coils are field-replaceable plug-in modules, allowing reconfiguration for other voltages. The CA7-60-00 designation indicates 0 normally open and 0 normally closed auxiliary contacts integral to the base contactor. Three main power poles are labeled L1, L2, L3 on the line side and T1, T2, T3 on the load side. The contactor is compatible with the full range of CA7 series accessory blocks and with CEP7 series overload relays for direct assembly.
Stock # 0226-711
