Square D AC Magnetic Motor Starter 8536SDO1V02S
Square D AC Magnetic Motor Starter 8536SDO1V02S
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

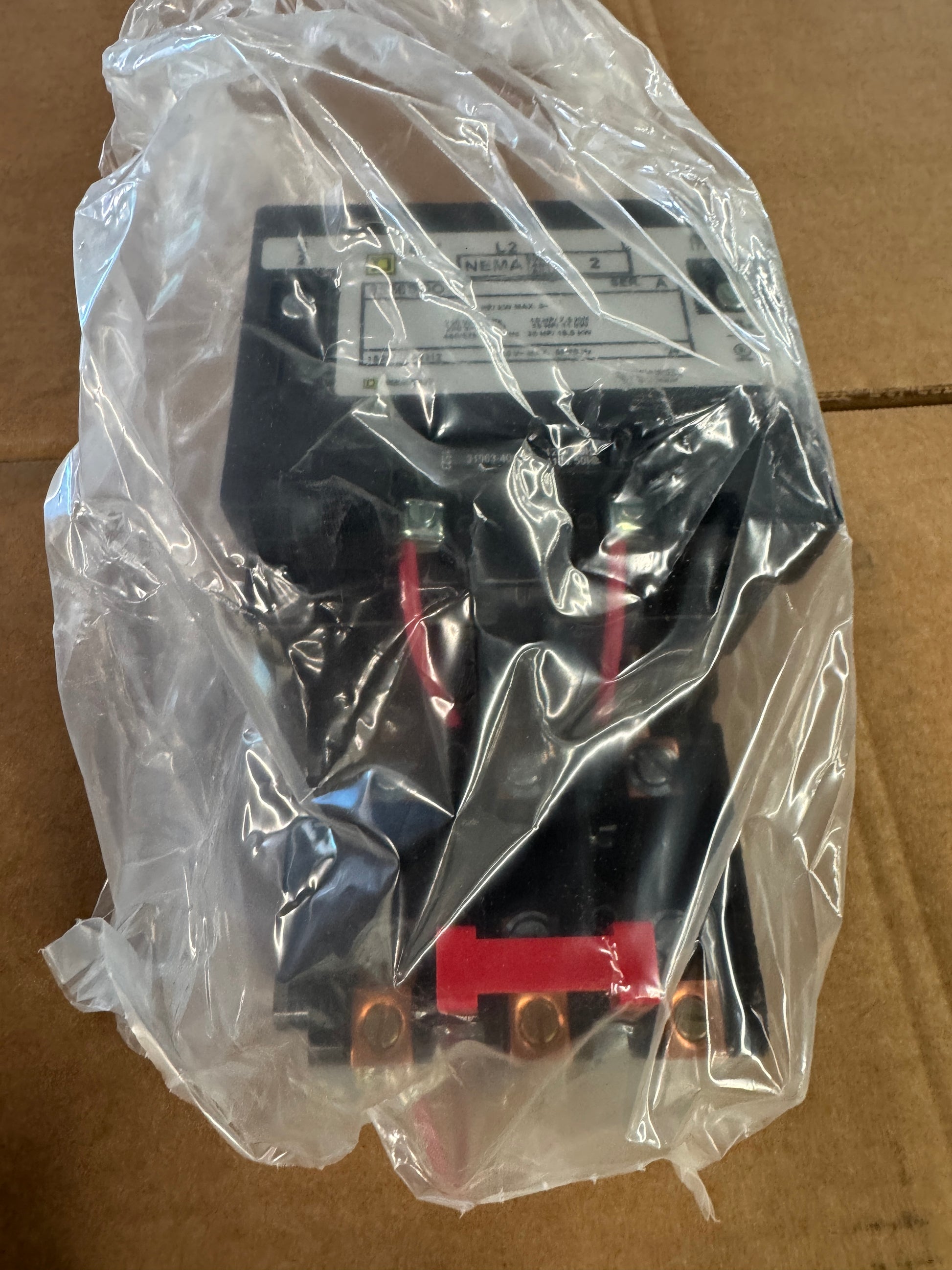

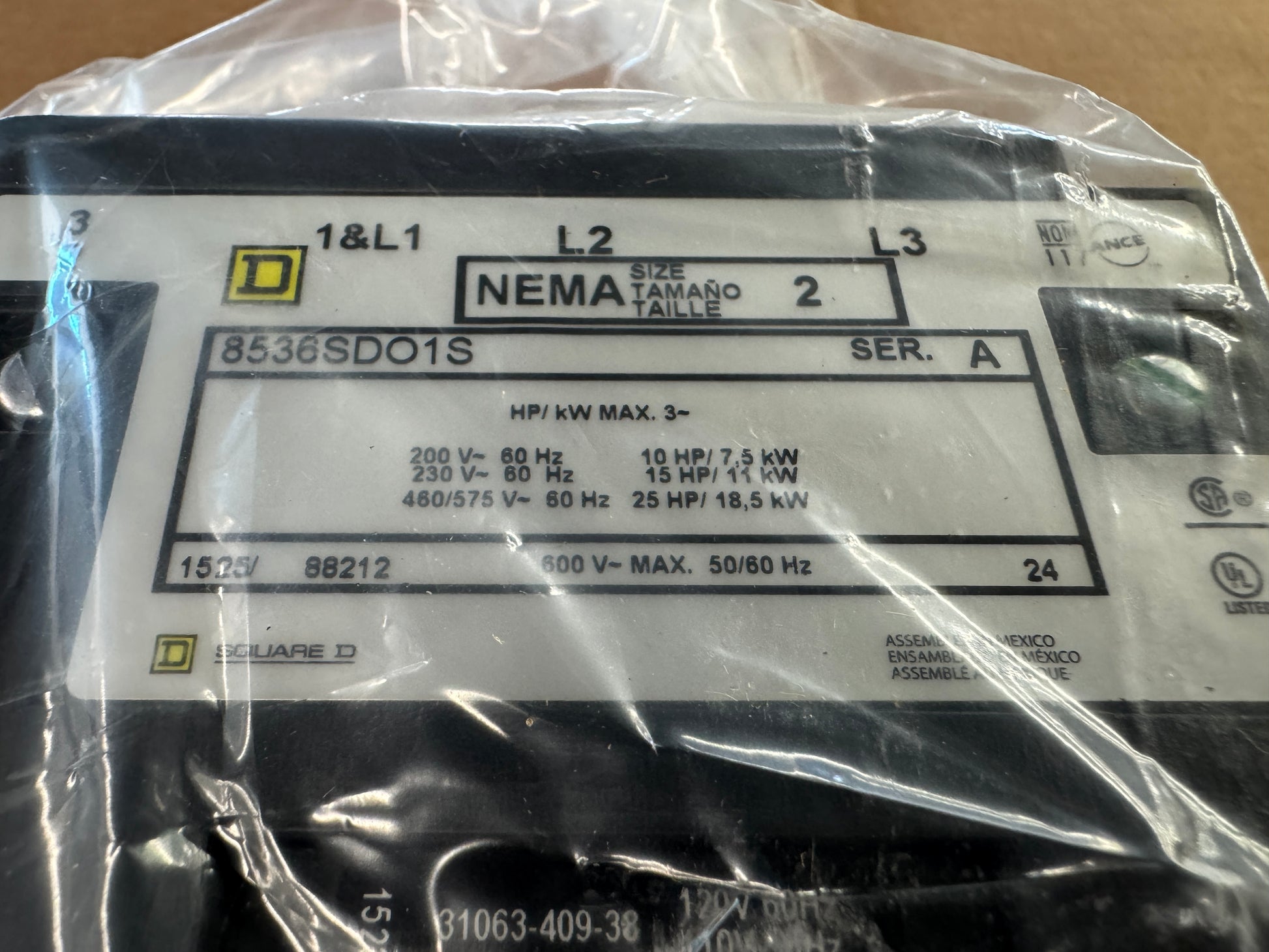

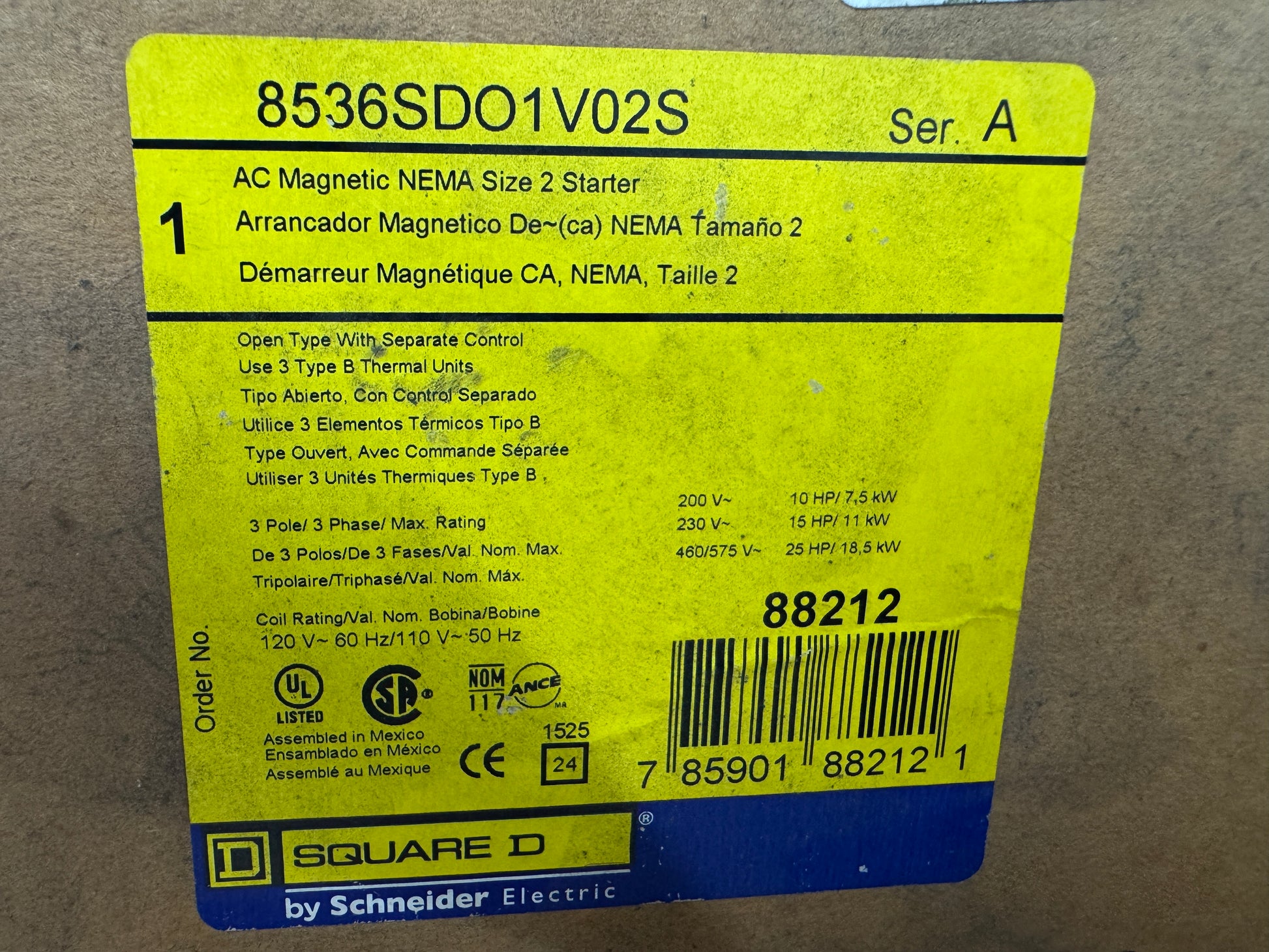

The Square D 8536SDO1V02S is a NEMA Size 2 AC magnetic motor starter manufactured by Schneider Electric under Class 8536, Type S, Series A. Designed for full voltage non reversing starting and stopping of three phase AC squirrel cage motors, this open style starter is rated for 45 amperes continuous duty across three poles at a maximum system voltage of 600V AC, 50/60 Hz. Horsepower ratings are 10 HP at 200V, 15 HP at 230V, and 25 HP at 460/575V three phase, corresponding to 7.5 kW, 11 kW, and 18.5 kW respectively. The operating coil is rated 120V AC at 60 Hz or 110V AC at 50 Hz and is wired for separate control. Overload protection is provided by a melting alloy thermal overload relay configured for three Type B thermal units, which are field installed based on motor full load amperage. The starter is UL Listed, CSA Certified, and bears NOM and CE markings, with assembly in Mexico. Order number 88212, UPC 785901882121. Typical applications include pumps, fans, conveyors, compressors, machine tools, and other industrial motor loads requiring NEMA rated control reliability. The open construction allows installation inside a customer supplied enclosure or motor control center. Direct OEM replacement for legacy 8536SDO1S configurations using a 120V control coil.
Stock # 0526-02317
