Square D Combination Motor Starter 8539SBG1V81C6FF4M309T 480V AC, 60 Hz
Square D Combination Motor Starter 8539SBG1V81C6FF4M309T 480V AC, 60 Hz
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 8539SBG1V81C6FF4M309T
Stock #: 0526-02189

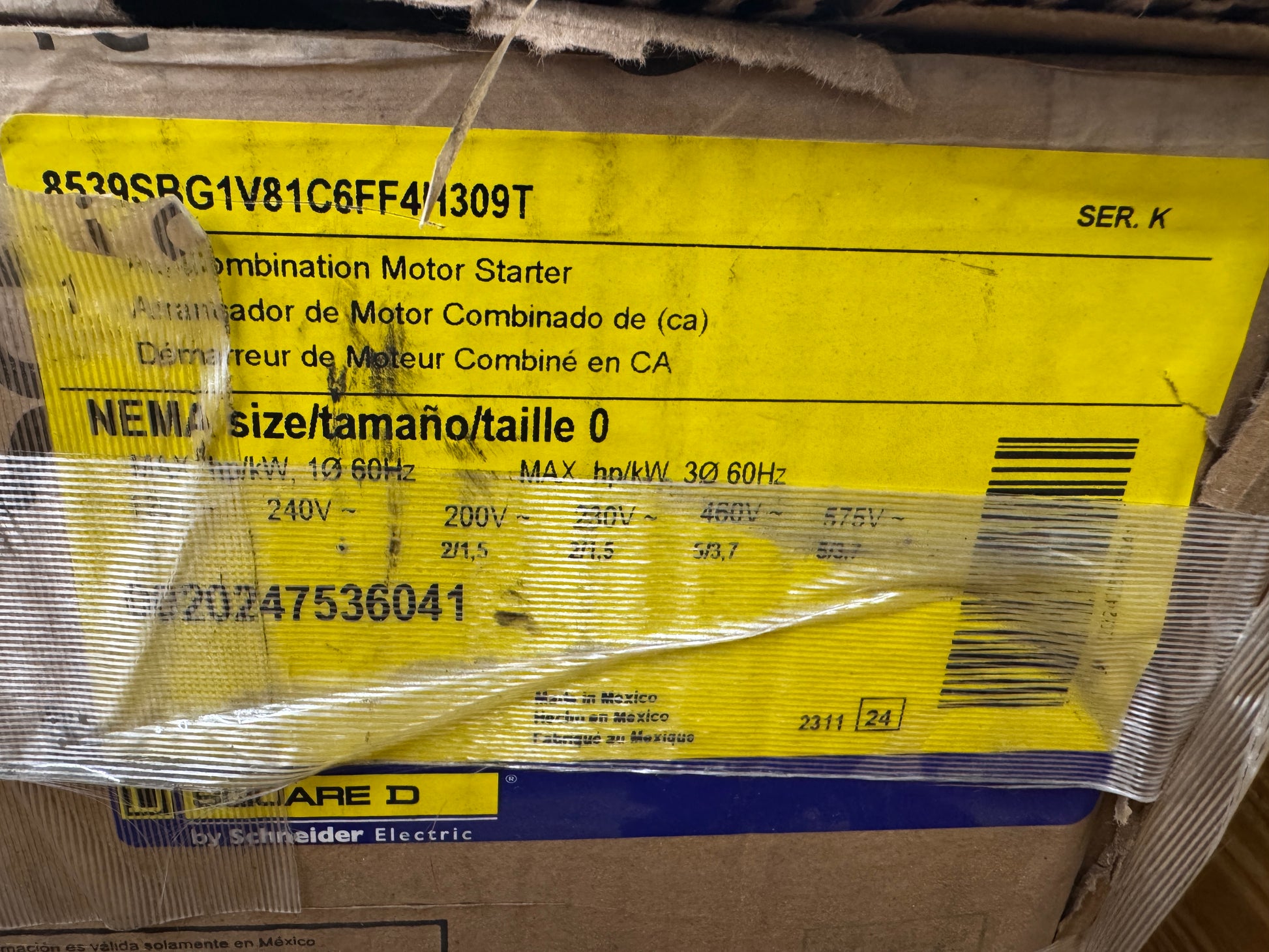

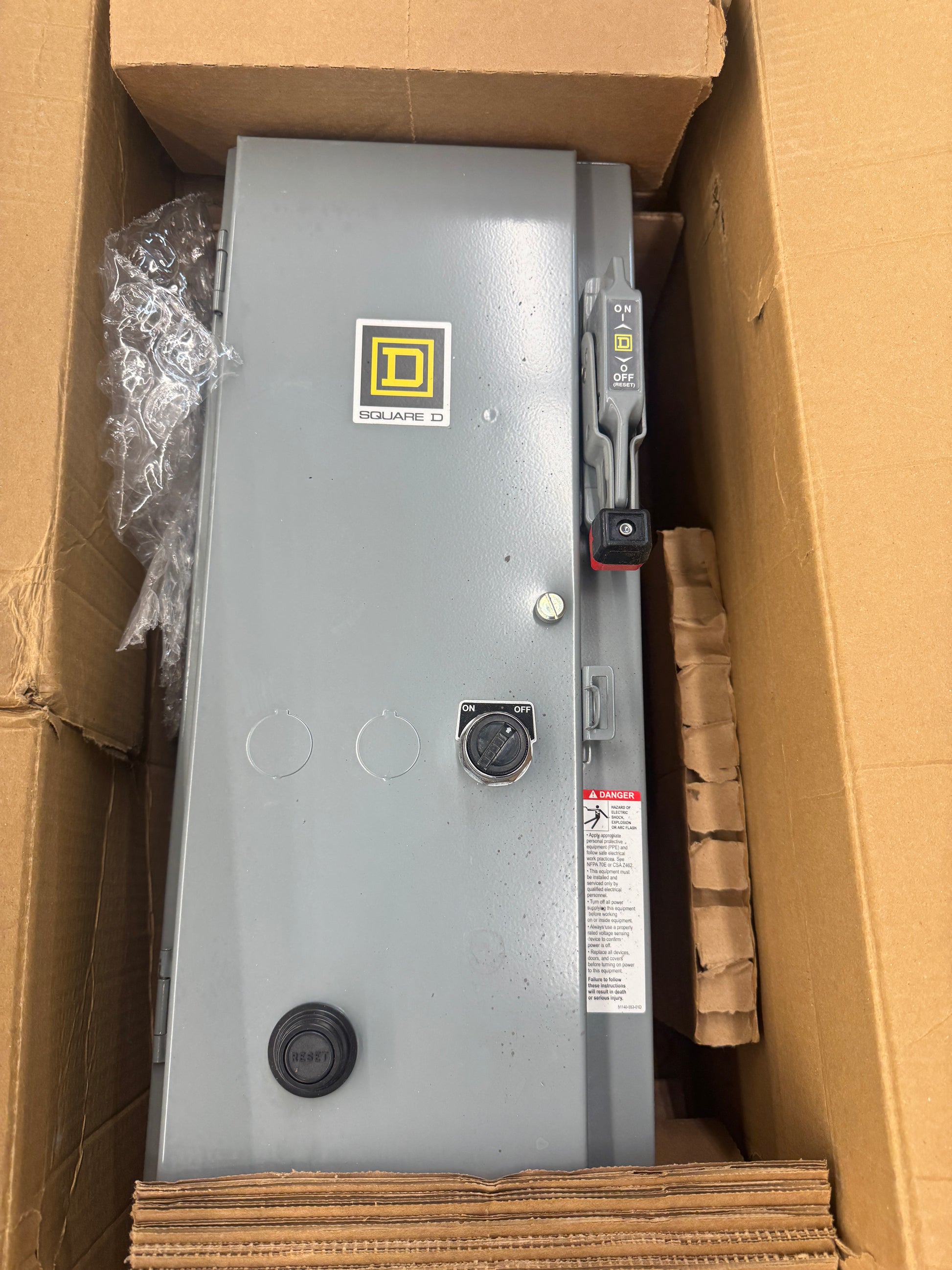

Used in industrial motor control applications, the Square D 8539SBG1V81C6FF4M309T is a NEMA Size 0 AC Combination Motor Starter from Schneider Electric's Class 8539 Type S series. The unit integrates a motor circuit protector disconnect, magnetic contactor, and solid state overload relay in a single NEMA Type 1 general purpose steel enclosure. The coil is rated 480V AC at 60 Hz (V81 designation). The C6 suffix indicates a 15A motor circuit protector, and the M309T designates the Motor Logic solid state overload relay. NEMA Size 0 ratings cover up to 2 HP at 200V and 230V single phase, and up to 5 HP at 460V and 575V three phase on a 60 Hz system. The Series K designation is visible on the original box label. The unit is new in original manufacturer packaging with a manufacture date of November 2023 per the date code on the carton. The 8539 Class combines short circuit protection and full voltage non-reversing motor starting in a space efficient package suited for machine tool, pump, fan, and conveyor applications. The box label identifies this as a standard NEMA 1 indoor enclosure rated unit. UL Listed and CSA certified per Square D Class 8539 product standards.
Stock # 0526-02189
