Square D Enclosed AC Magnetic Contactor 8502SDA2V02S
Square D Enclosed AC Magnetic Contactor 8502SDA2V02S
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

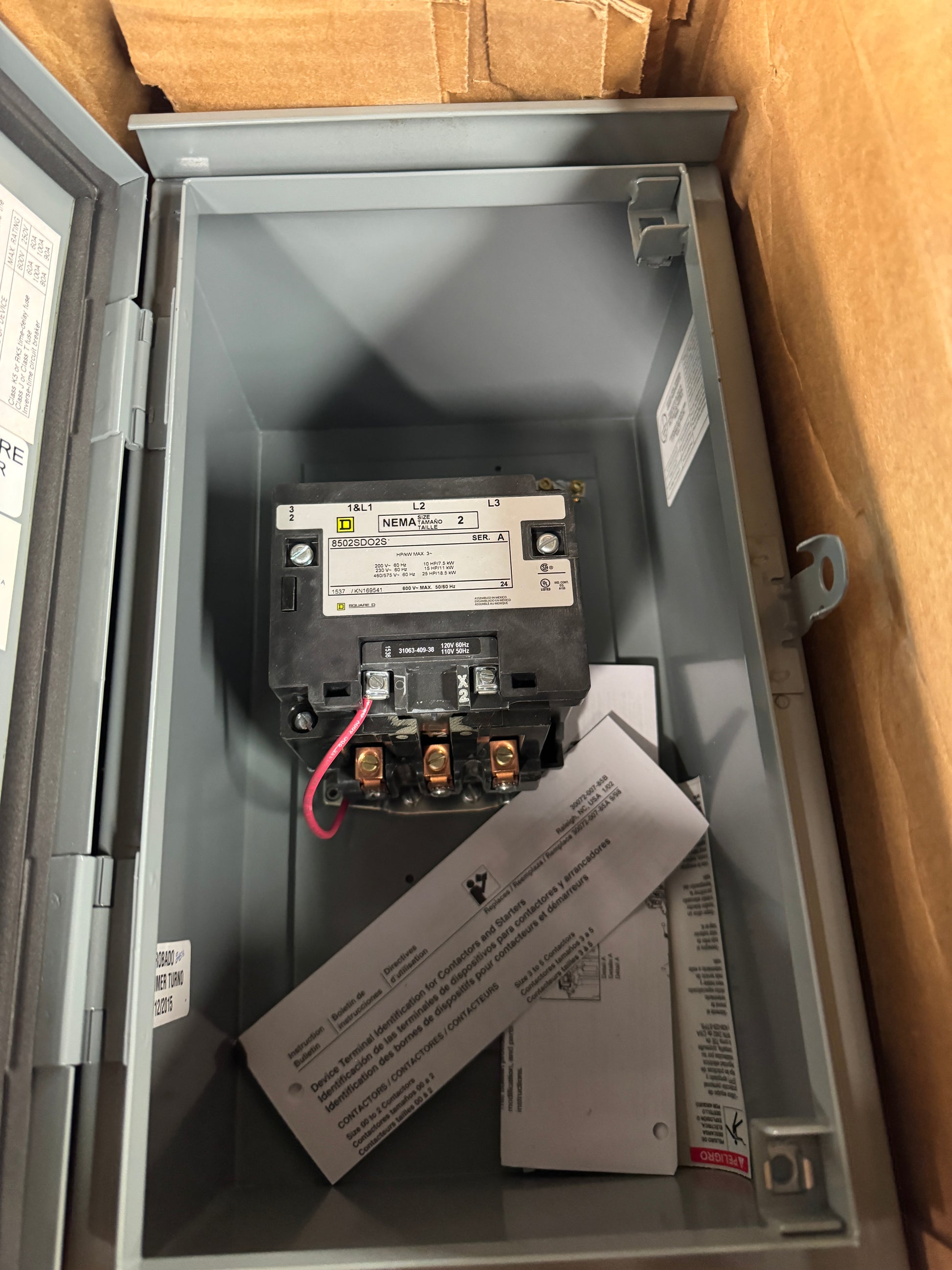

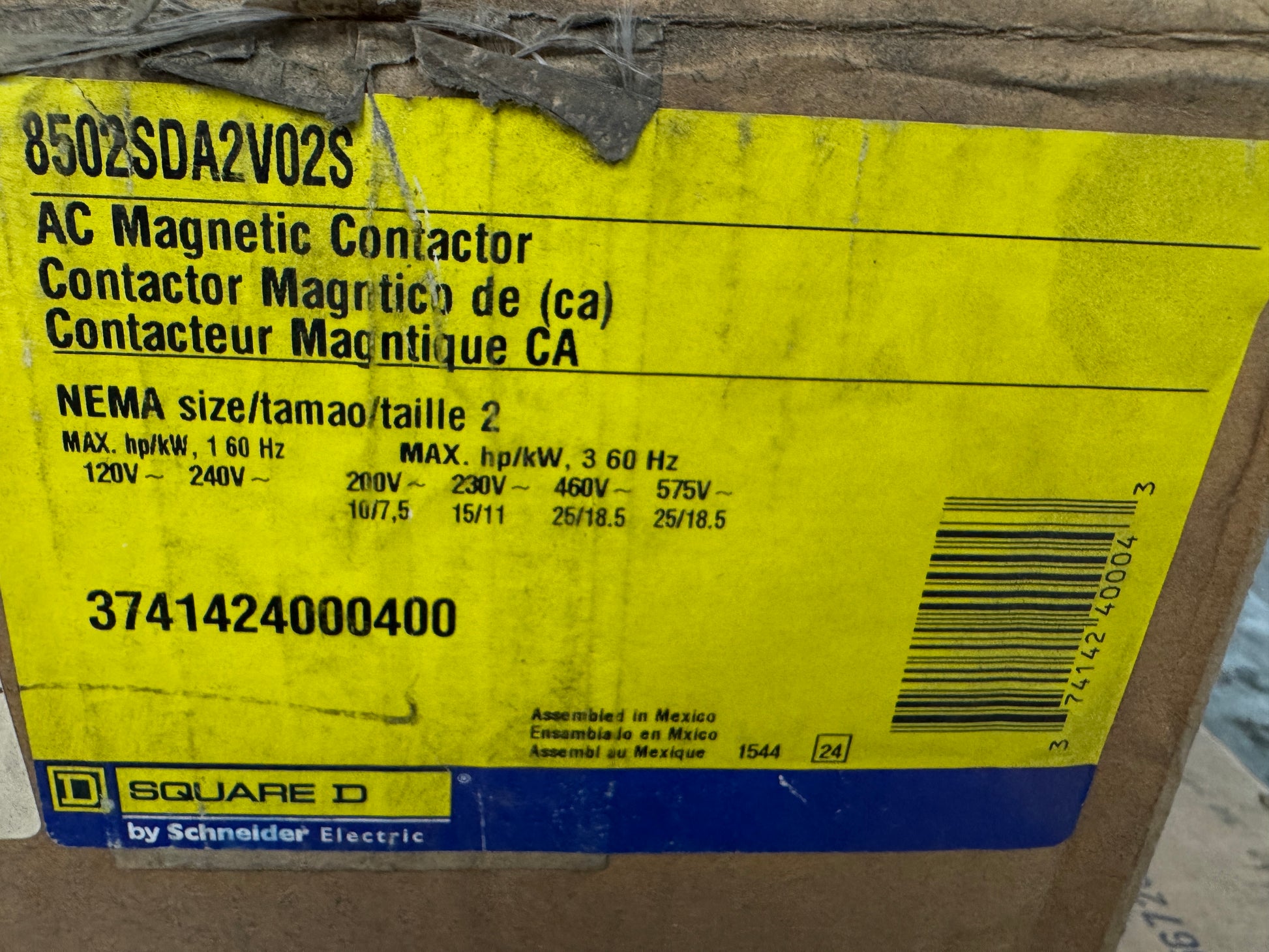

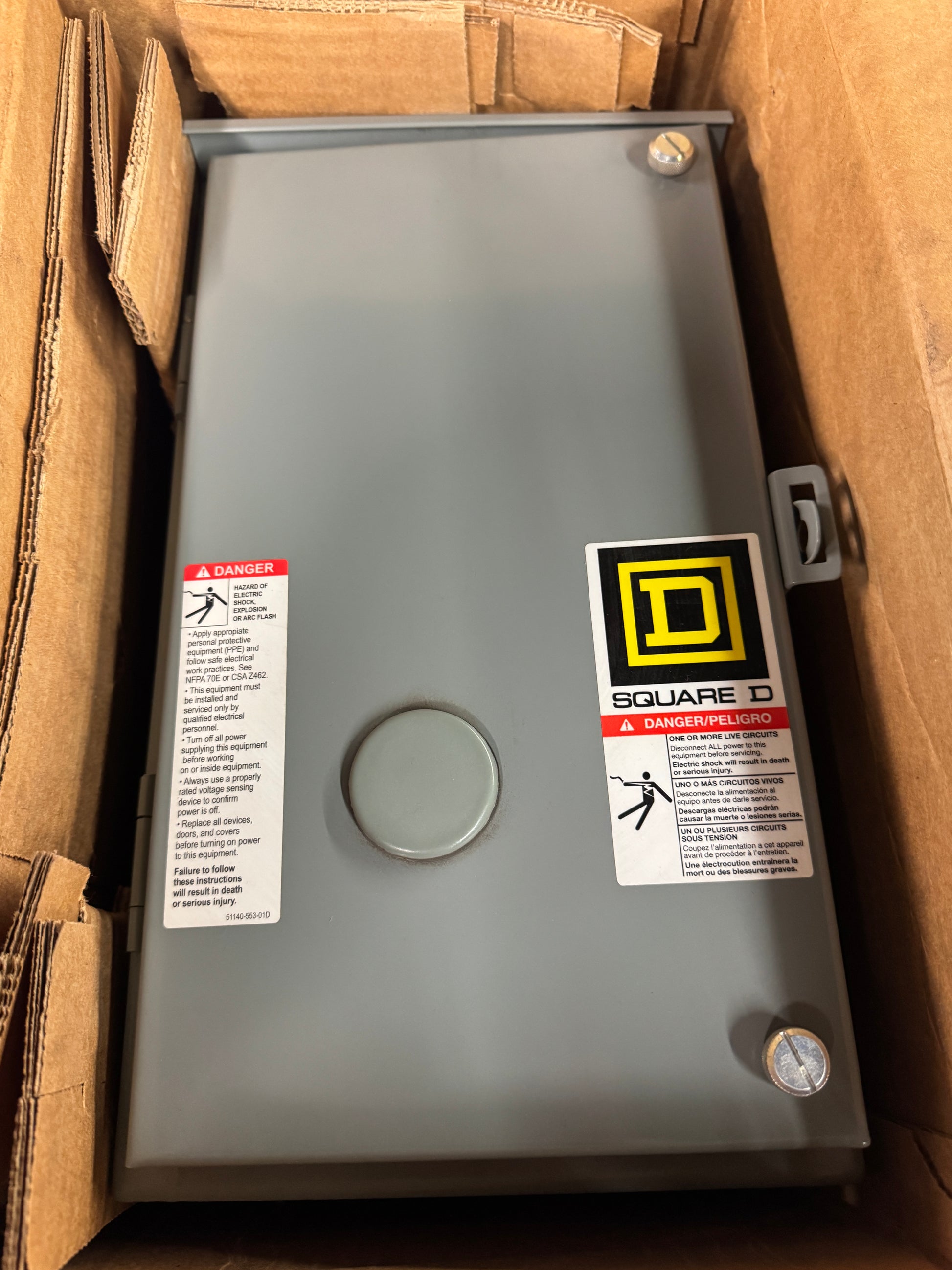

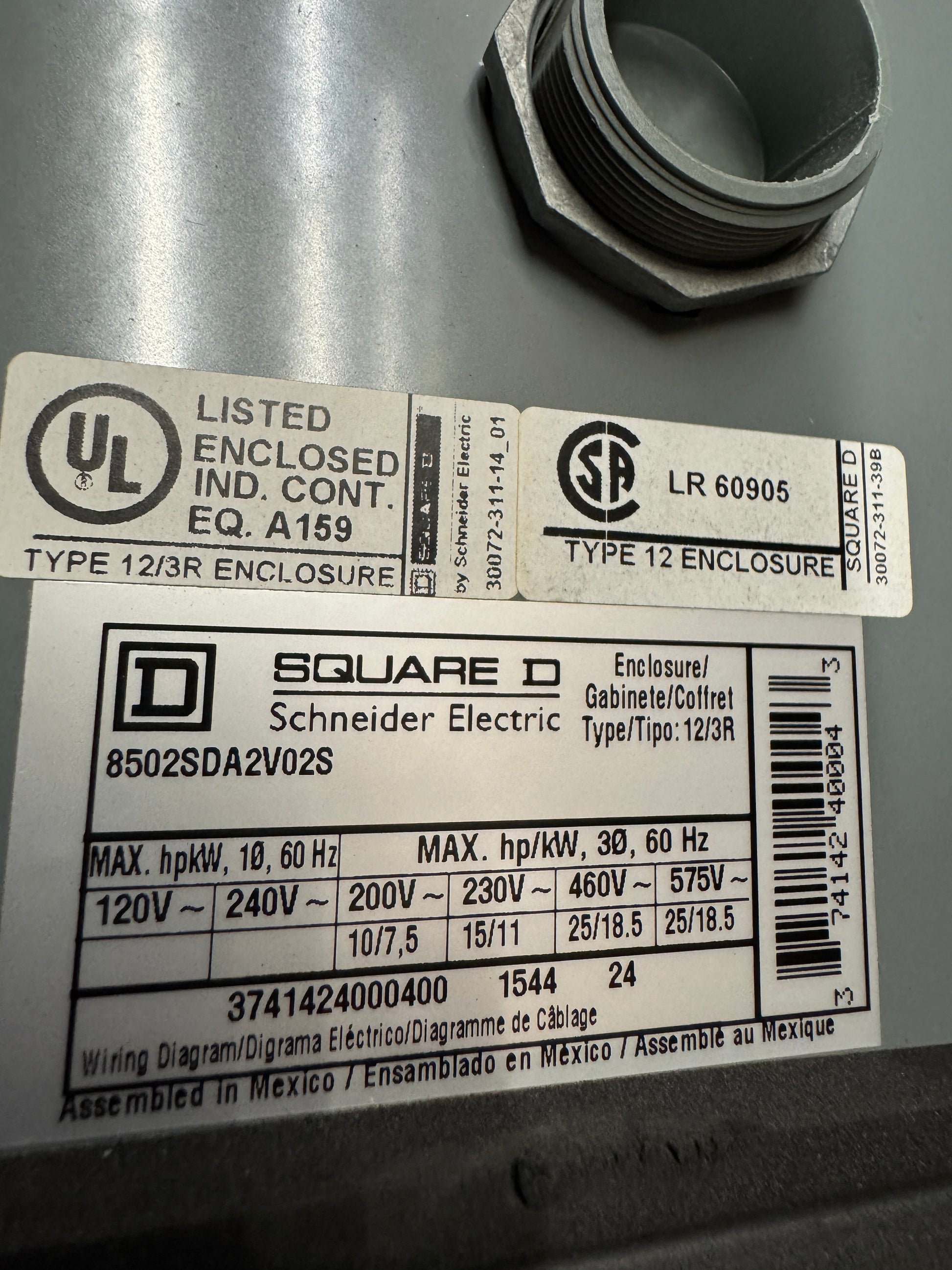

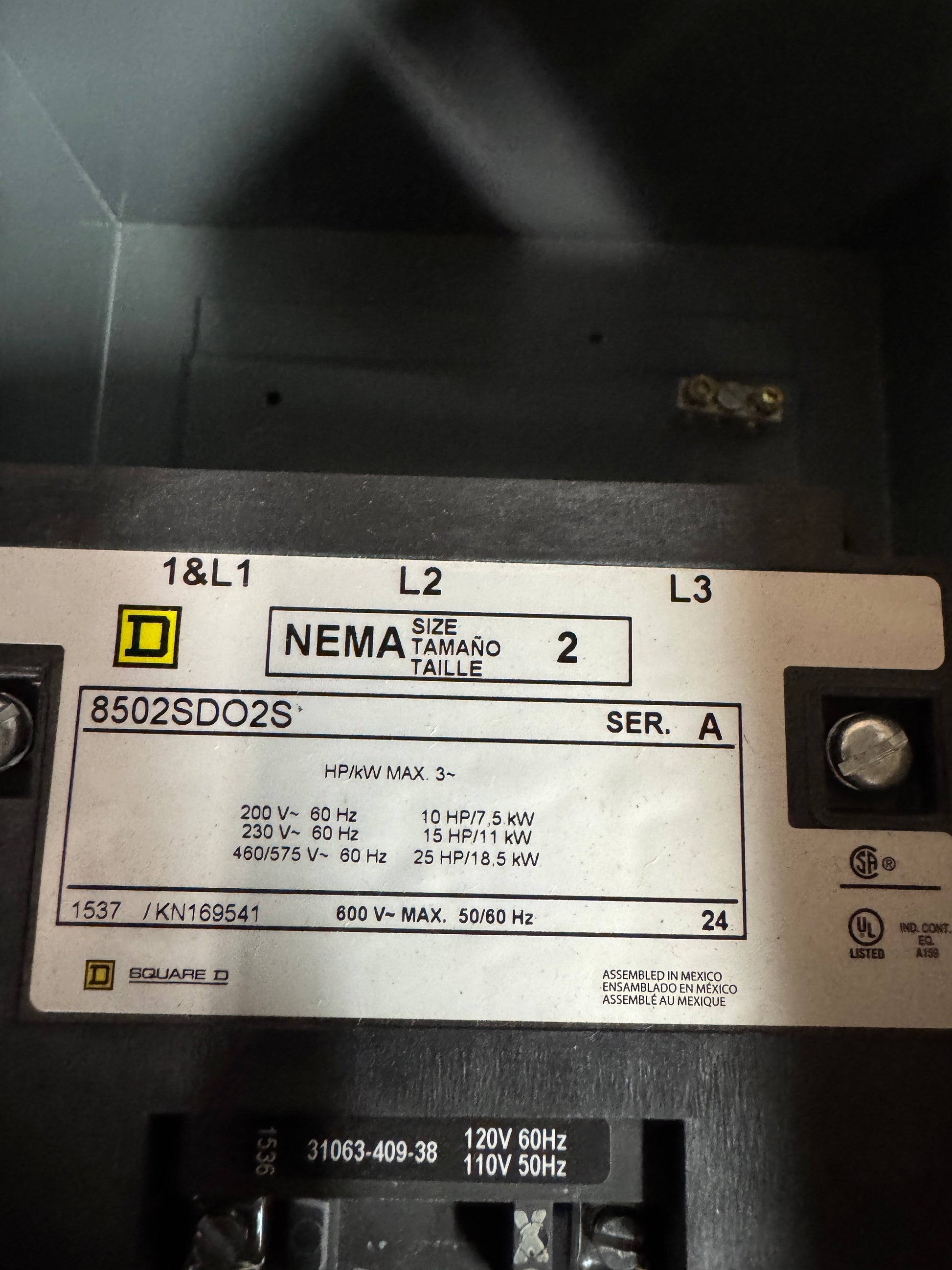

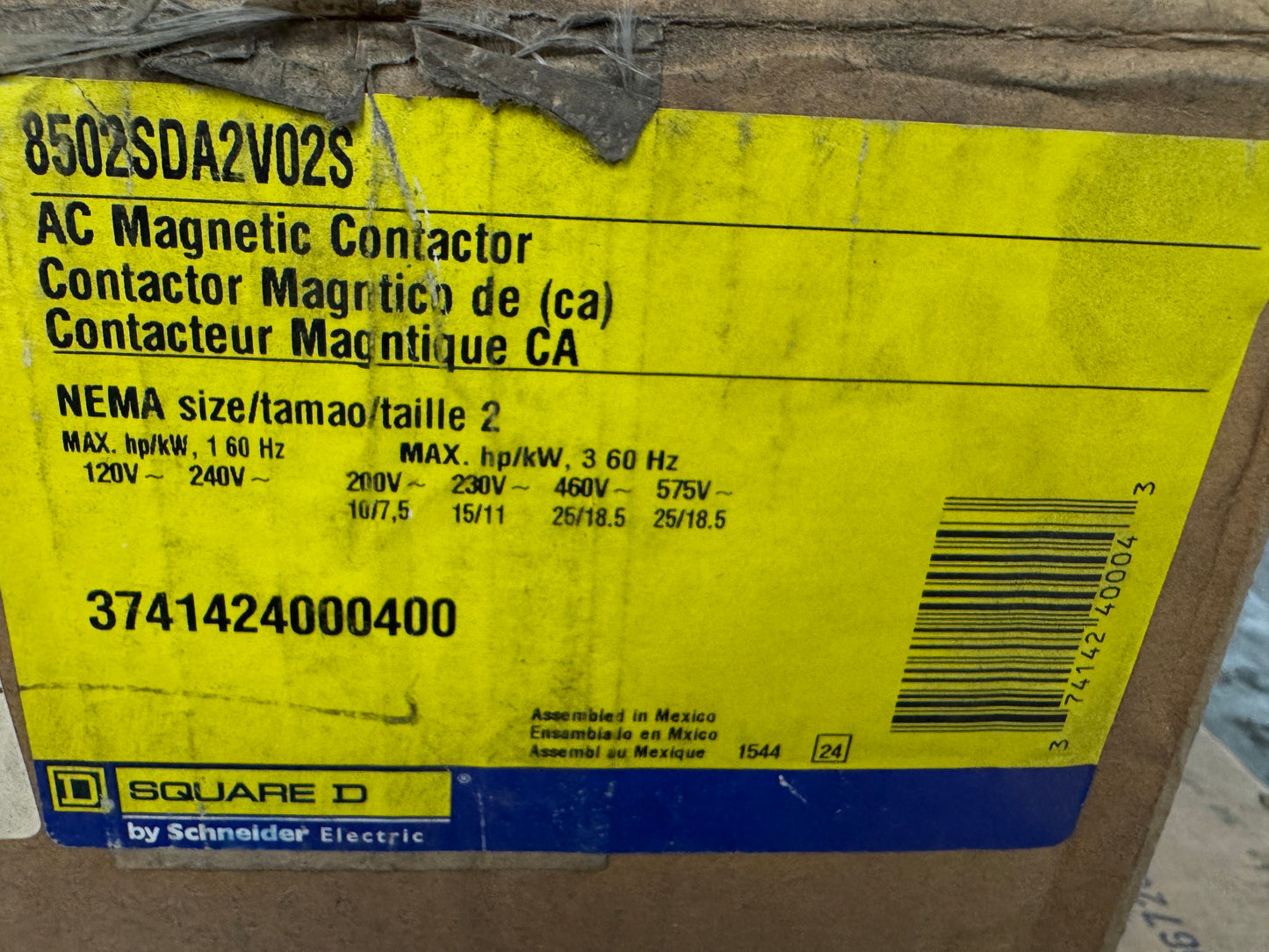

The Square D 8502SDA2V02S is a NEMA Size 2 enclosed AC magnetic contactor manufactured by Schneider Electric. This Class 8502 Type S non reversing contactor is rated for 45 amperes at 600 VAC maximum, three pole, three phase, and is housed in a NEMA Type 12/3R painted sheet steel enclosure suitable for indoor industrial environments and outdoor rainproof applications. Maximum horsepower ratings include 10 HP at 200V, 15 HP at 230V, and 25 HP at 460/575V on three phase 60 Hz service. The internal contactor carries the open device identifier 8502SDO2S with coil part number 31063,409,38 rated 120V 60 Hz / 110V 50 Hz. The unit is UL Listed under Industrial Control Equipment file A159 and CSA certified under LR 60905. Date code 1544 indicates assembly in week 44 of 2015, with the contactor module date code 1537. The barcode reads 3741424000400. Type S magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. A normally open holding circuit contact for three wire control is included as standard. The enclosure includes a hinged cover with quarter turn latches, Square D safety labeling, and a conduit hub on top. The carton, instruction bulletin 30072,007,85B, and Device Terminal Identification document are present.
Stock # 0526-02319
