Square D Foot Switch 9002AW132 600V AC/DC
Square D Foot Switch 9002AW132 600V AC/DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 9002AW132
Stock #: 0526-02500
Used in industrial automation and machine control applications, the Square D 9002AW132 is a heavy duty NEMA-rated foot switch from the 9002AW series, manufactured by Schneider Electric under the Square D brand. The unit features a single pole double throw (SPDT) snap switch contact rated at 5A resistive at 600 VAC and 600 VDC, with two double break contact elements consisting of one normally open and one normally closed contact. Both contacts must be used on circuits of the same polarity.
The 9002AW132 includes an oversized pedal shield and side shields, providing operator hand protection in press and similar industrial environments. It incorporates a spring return mechanism with mechanical latch. The enclosure carries a NEMA 2, 4, and 13 rating, making it suitable for watertight, dusttight, and oiltight indoor and outdoor installations. The conduit entry is a 0.75 inch NPT threaded opening. Certifications include UL Listed (File E42259, CCN NKCR), CSA Certified (File LR25490, Class 184 N 13.1U), and CE marking.

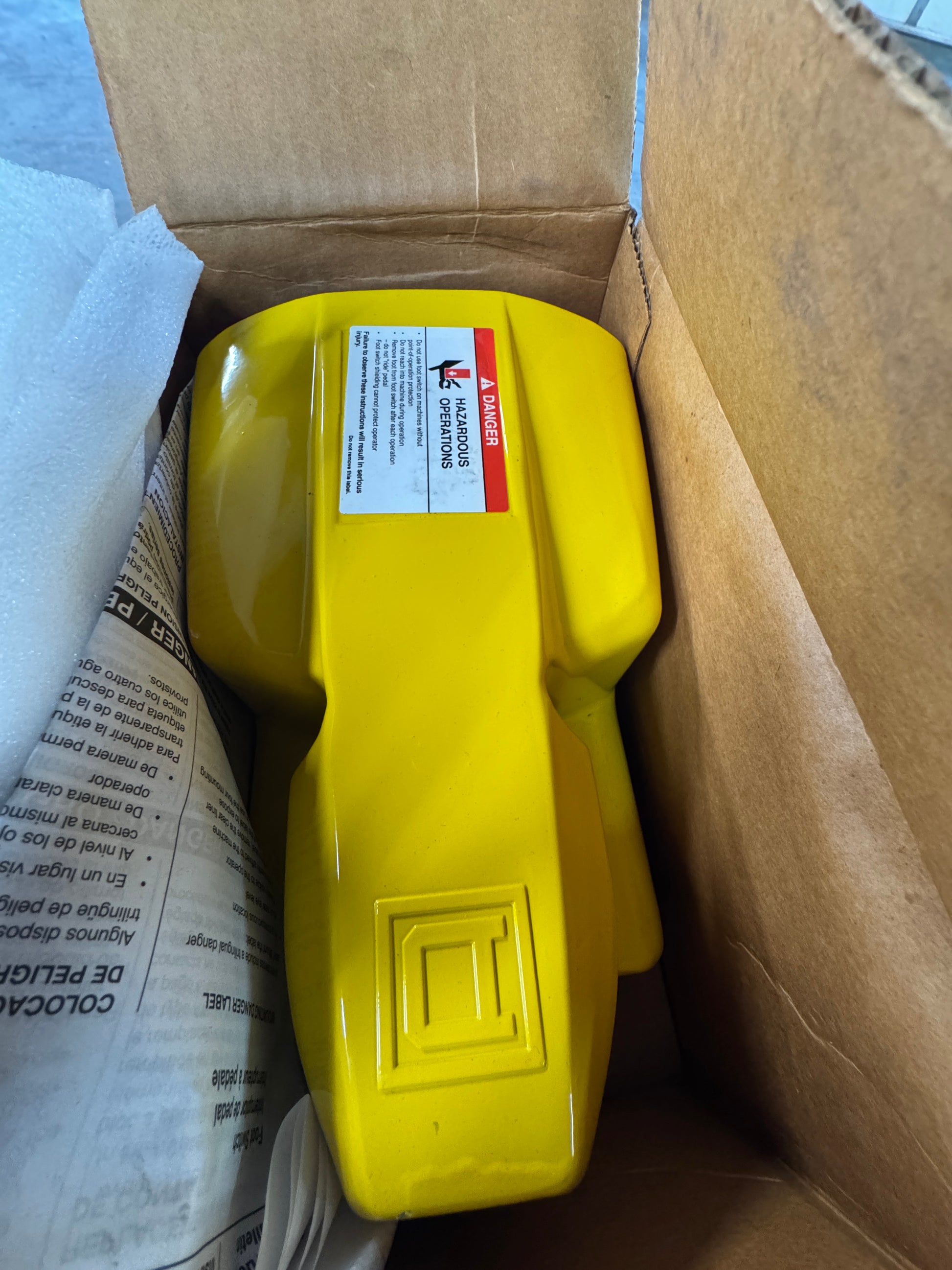

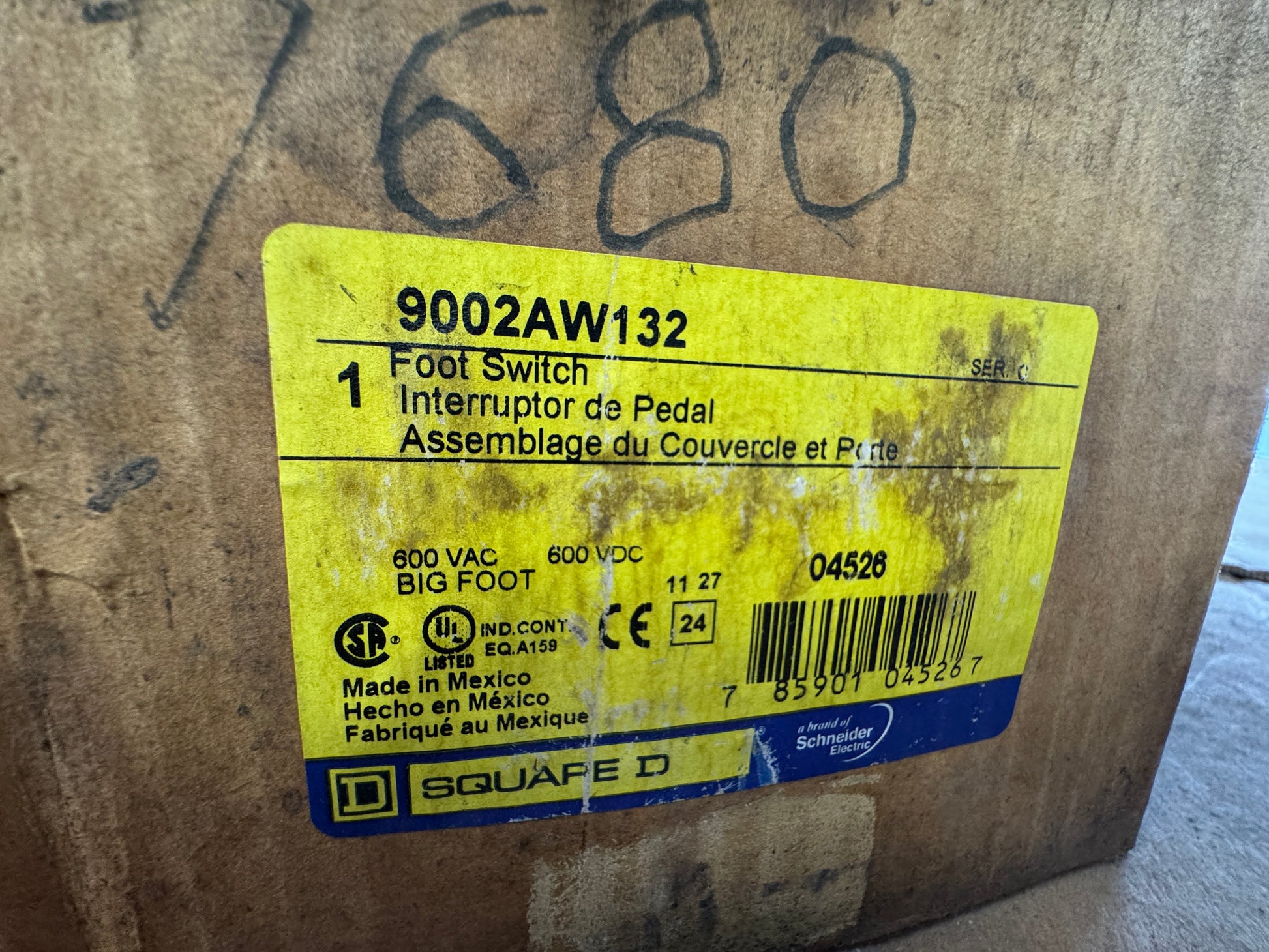

The unit is identified as Series C per the box label. Date code reads 11 27. UPC 78590104526. Manufactured in Mexico. The item is presented in its original Square D manufacturer box, which has been opened. The yellow cast aluminum housing with molded Square D logo is visible and consistent with factory production.
Stock # 0526-02500
