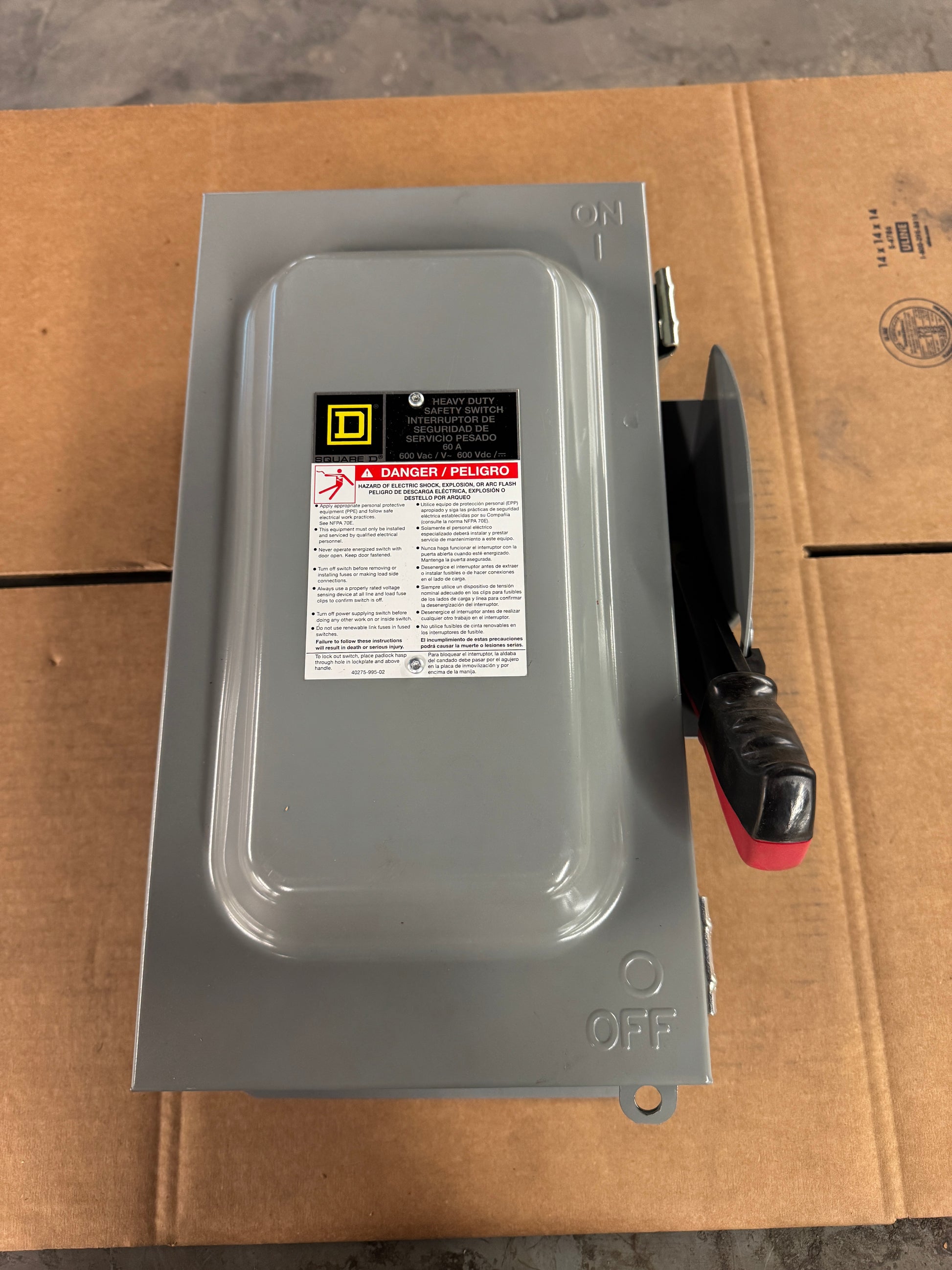

Square D Fusible Heavy Duty Safety Switch H362A 600 VAC / 600 VDC

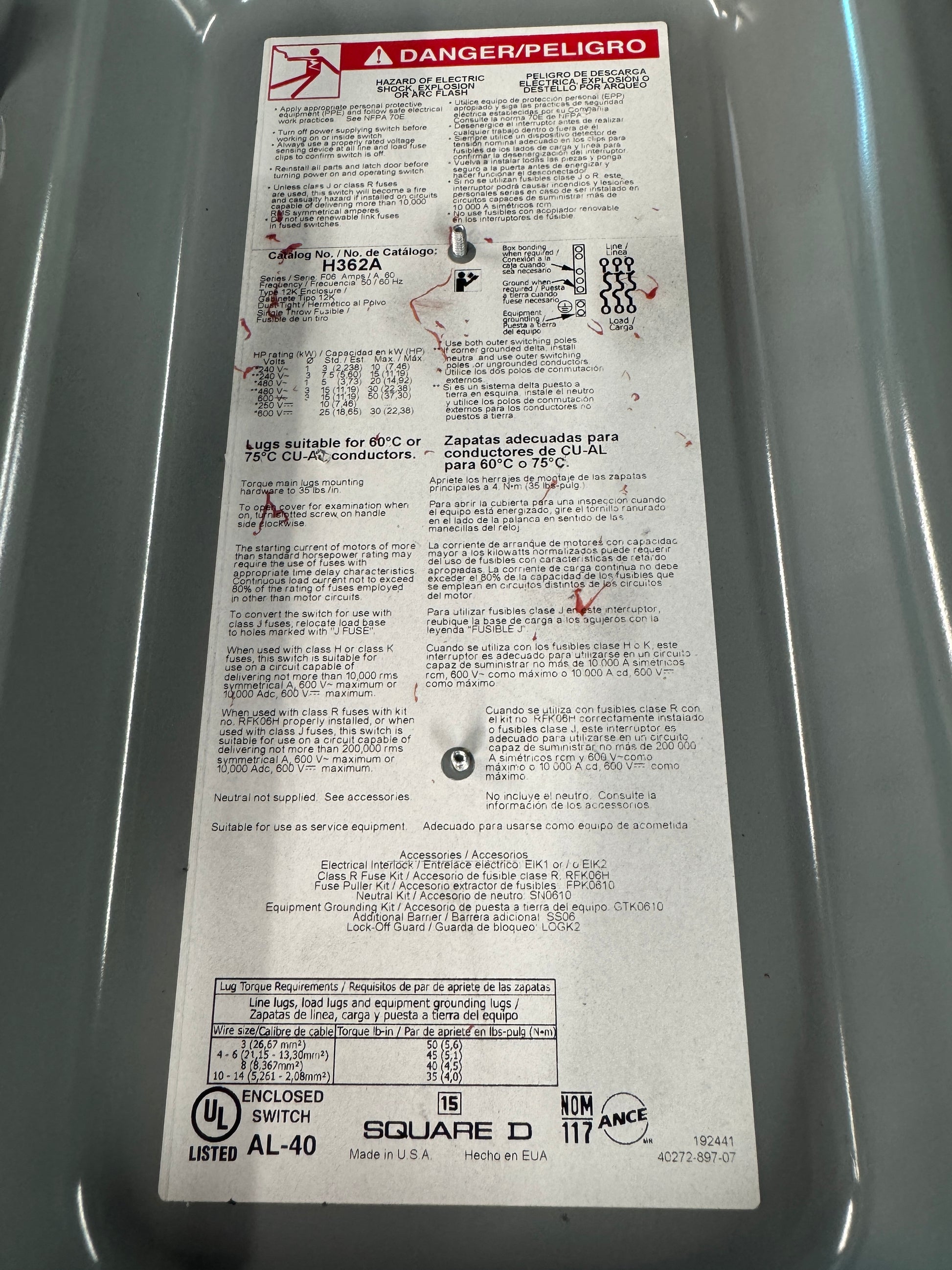

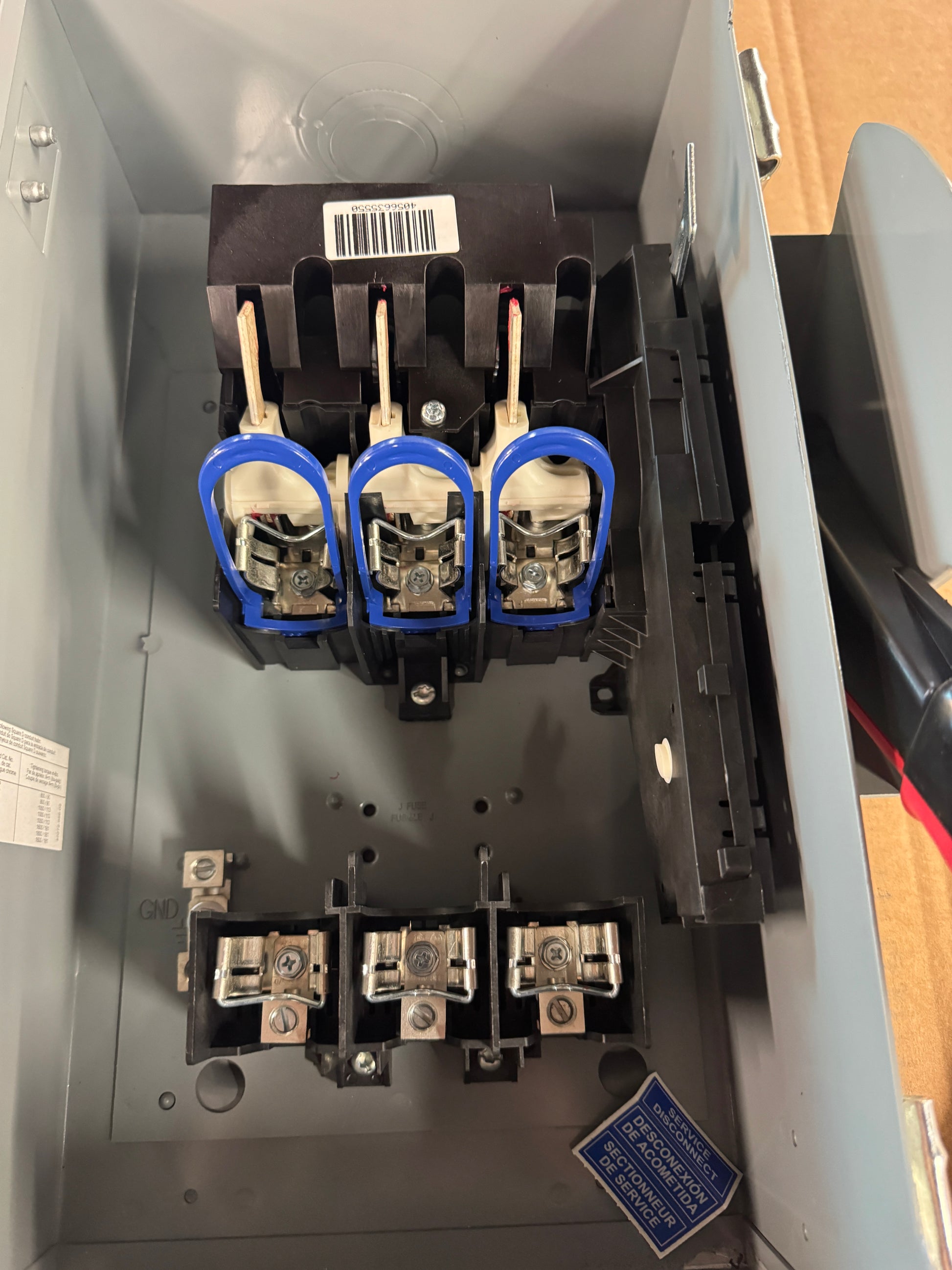

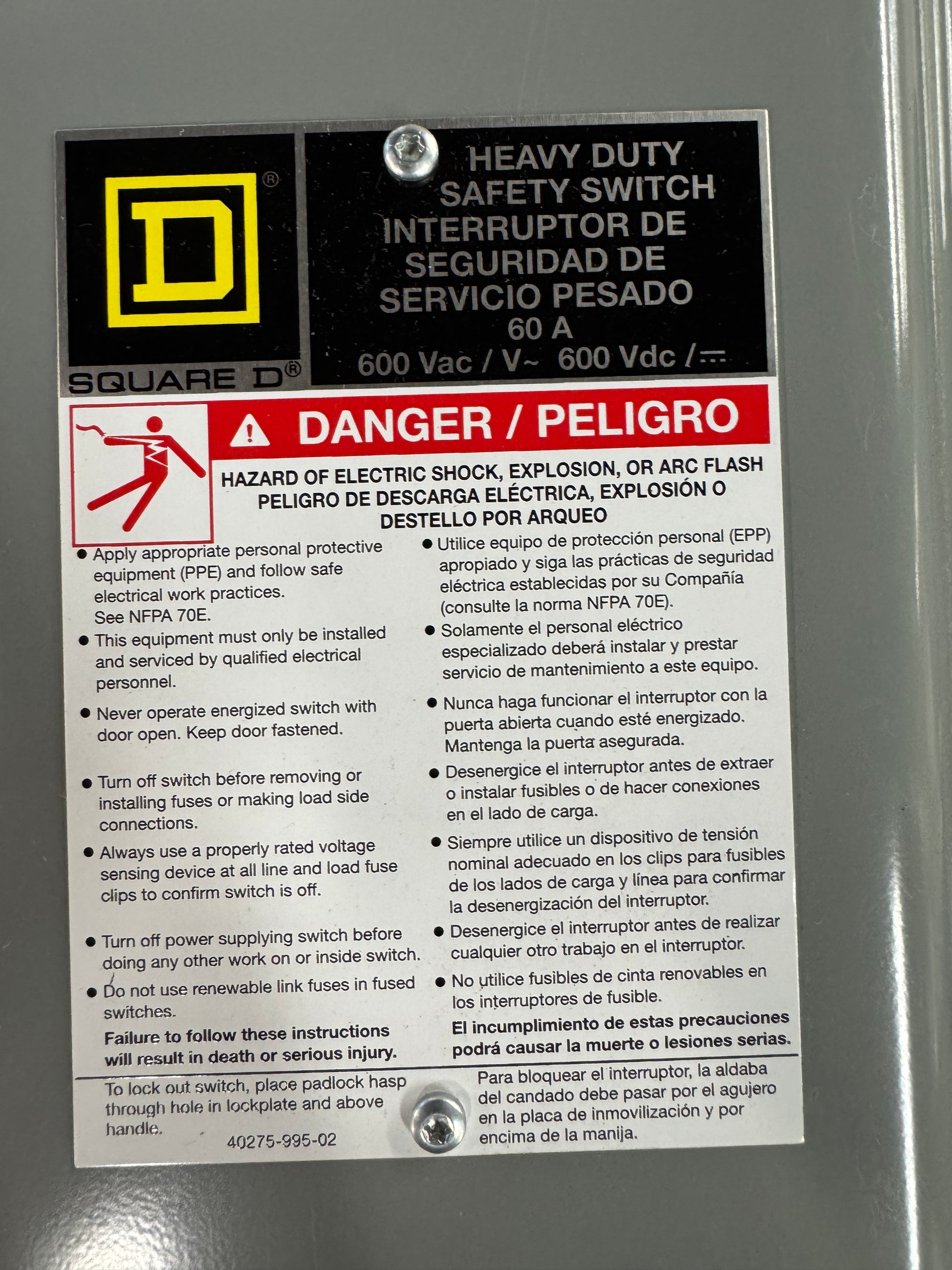

The Square D H362A is a heavy duty fusible safety switch rated for 60 amps at 600 volts AC or 600 volts DC. This Series F06 single throw disconnect uses a 3 pole configuration and is housed in a Type 12K dust tight enclosure suitable for industrial environments where airborne dust and dirt are present. The switch is UL listed (file AL 40) and NOM 117 certified, manufactured in the USA. Horsepower ratings include 7.5 hp standard and 15 hp maximum at 240V three phase, 15 hp standard and 30 hp maximum at 480V three phase, and 15 hp standard and 50 hp maximum at 600V three phase. DC ratings include 10 hp at 250V and 25 hp standard with 30 hp maximum at 600V. The unit accepts Class H or K fuses as shipped with a 10,000 RMS symmetrical amperes short circuit rating at 600V. When configured with Class J fuses or with Class R fuses using kit RFK06H, the short circuit rating increases to 200,000 RMS symmetrical amperes. Line and load lugs are suitable for 60 degree C or 75 degree C CU or AL conductors. The switch features a color coded operating handle with quick make, quick break action, a defeatable cover interlock, and provision for lockout in the off position. Neutral is not supplied. Catalog reference 40272 897 07. Compatible accessories include electrical interlocks EIK1 or EIK2, fuse puller kit FPK0610, neutral kit SN0610, equipment grounding kit GTK0610, and lock off guard LOGK2.

Stock # 0526-02287
