Square D Heavy Duty Foot Switch 9002AW132 600 VAC / 600 VDC

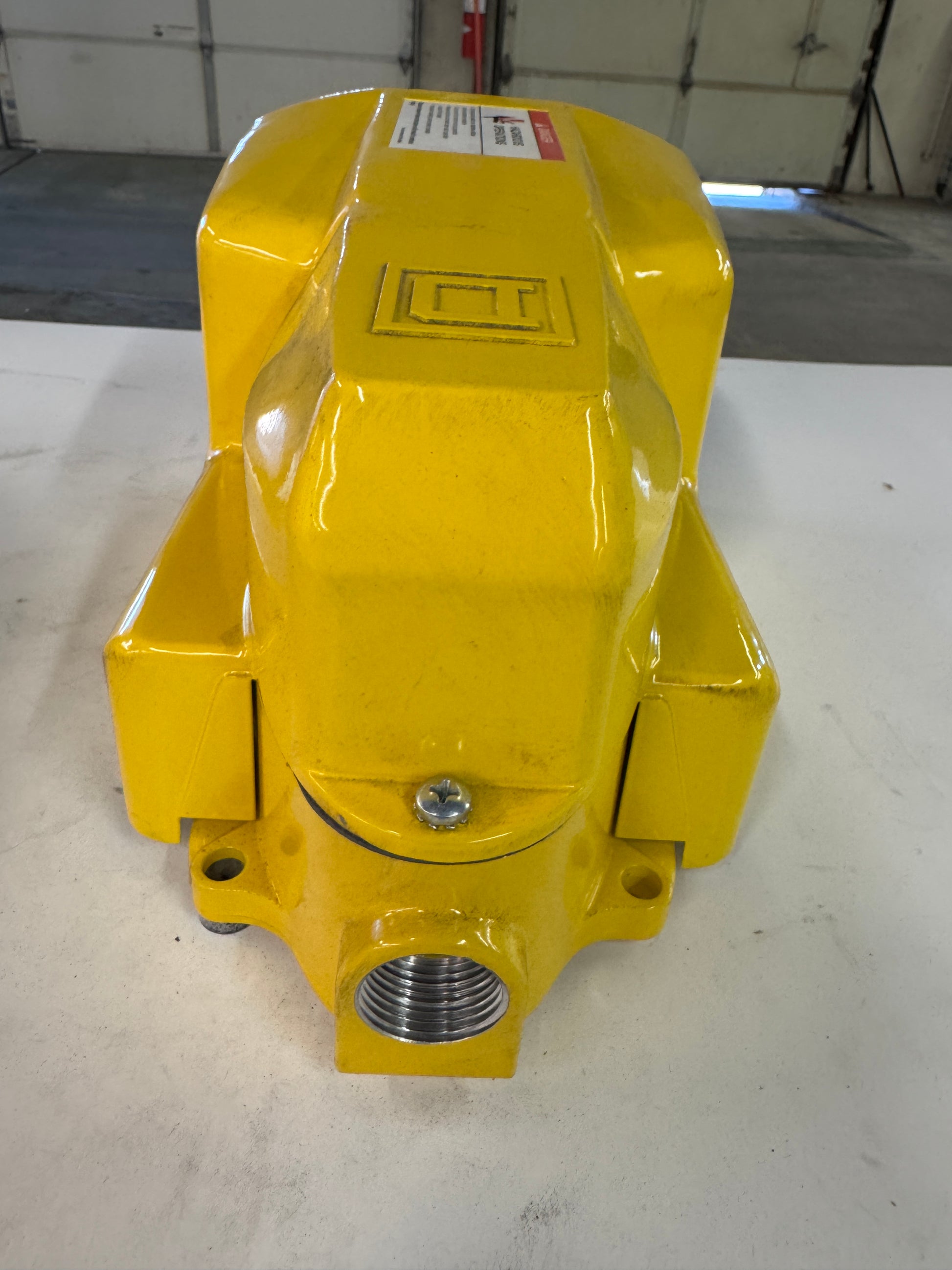

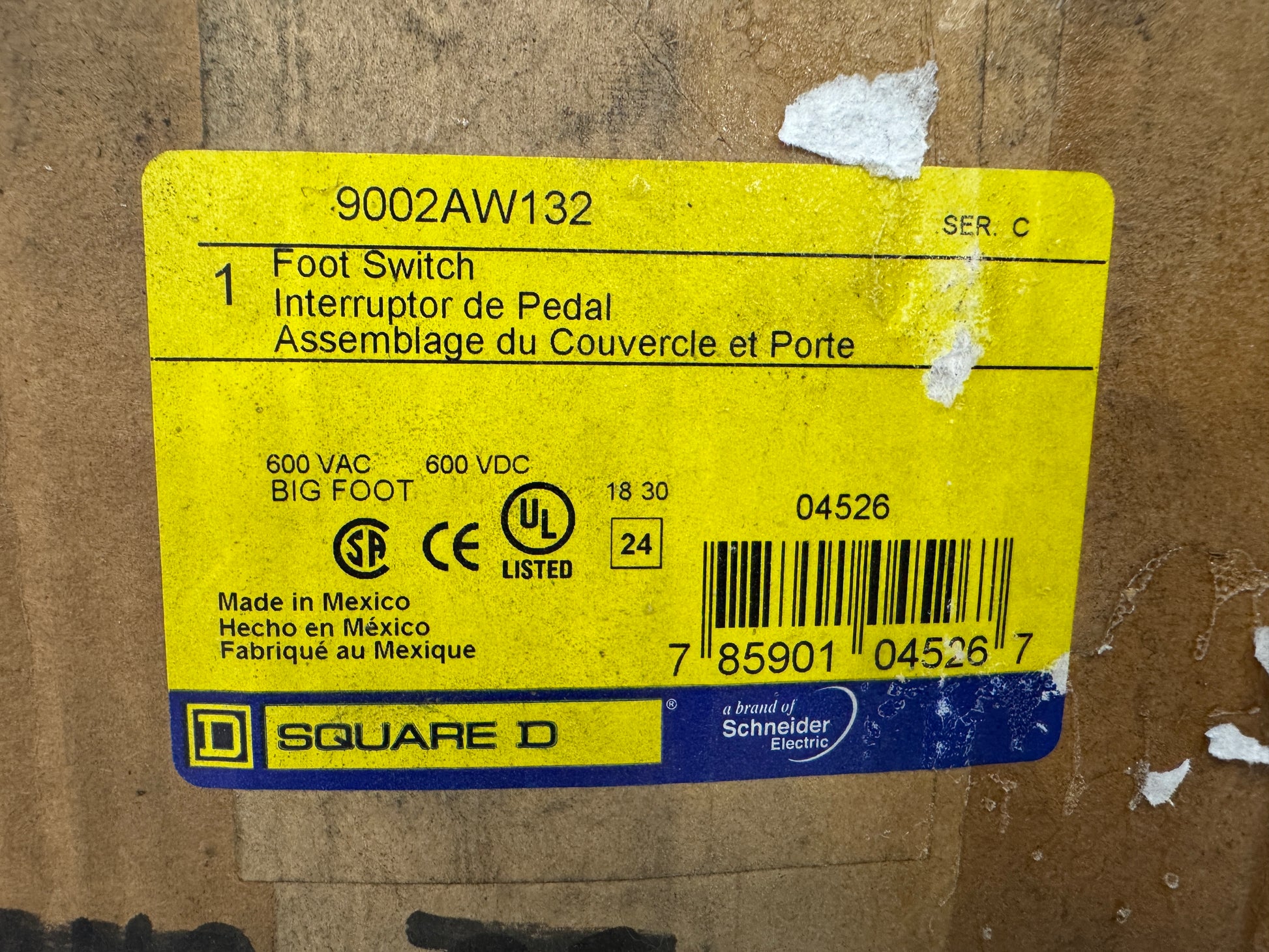

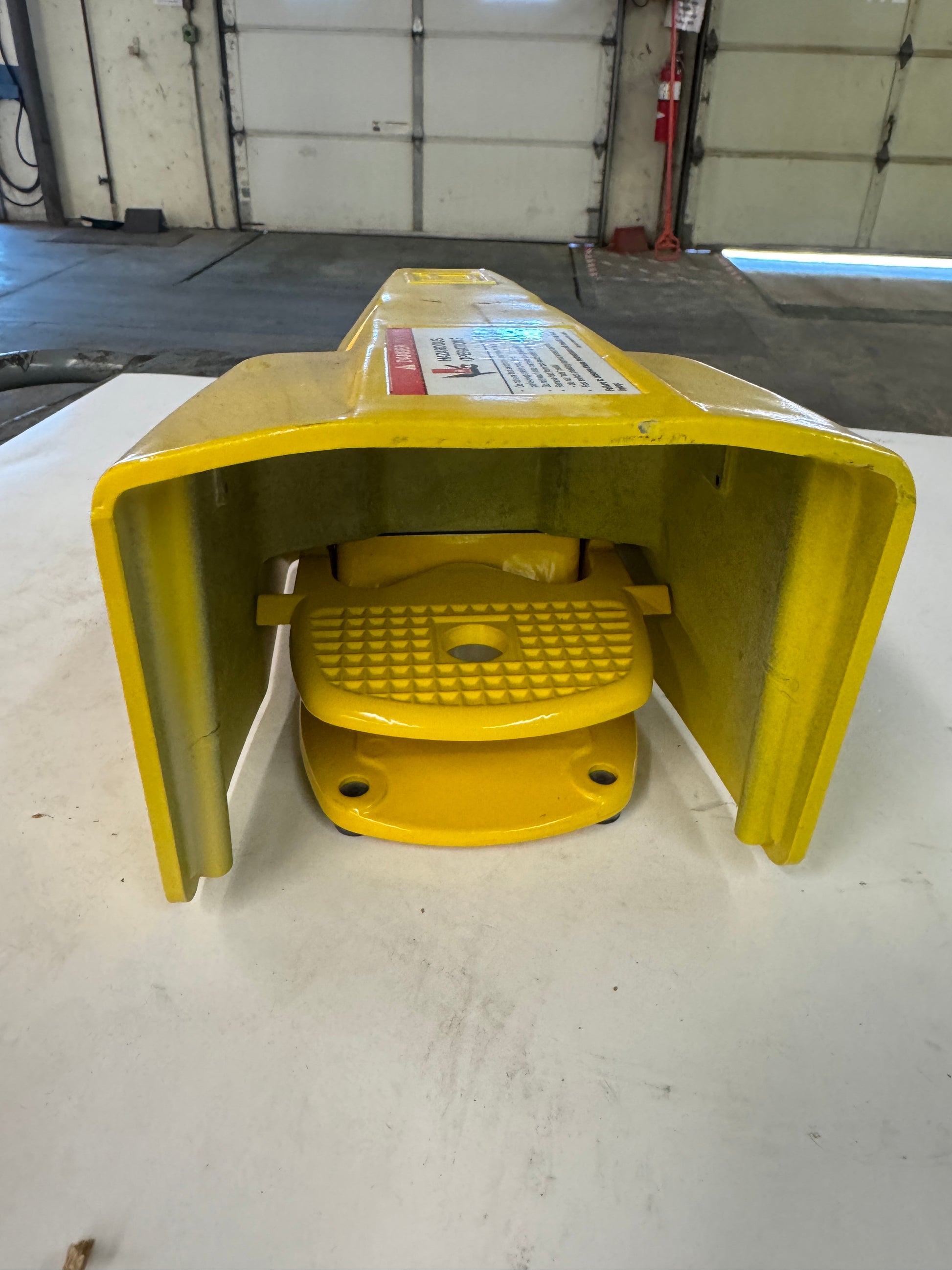

The Square D 9002AW132 is a heavy duty industrial foot switch from the Harmony 9002AW series, manufactured by Schneider Electric. This Series C unit is rated for 5A resistive at 600 VAC and 600 VDC, providing hands free control of industrial processes where the operator needs both hands available for other tasks. The single pole double throw (SPDT) snap switch contains two double break contact elements, one normally open and one normally closed, intended for use on circuits of the same polarity. The enclosure carries a NEMA 2, 4, and 13 rating, making it suitable for watertight, dust tight, and oil tight indoor or outdoor applications. Conduit entry is a 0.75 inch NPT thread. The unit includes an oversized pedal shield and side shields, spring return action with mechanical latch, and is identified as the "Big Foot" variant on the factory label. Approximate dimensions are 6.26 inches tall, 6.40 inches wide, and 8.56 inches deep. Certifications include UL Listed (File E42259, CCN NKCR) and CSA Certified (File LR25490, Class 184 N 13.1U). The 9002AW family is widely used on press brakes, punch presses, packaging machinery, conveyor systems, machine tools, and other production equipment requiring foot actuated control. Marked Series C with UPC 78590104526. Buyers should verify that point of operation and pinch point guarding devices are installed and used as intended for the application.

Stock # 0526-02262
