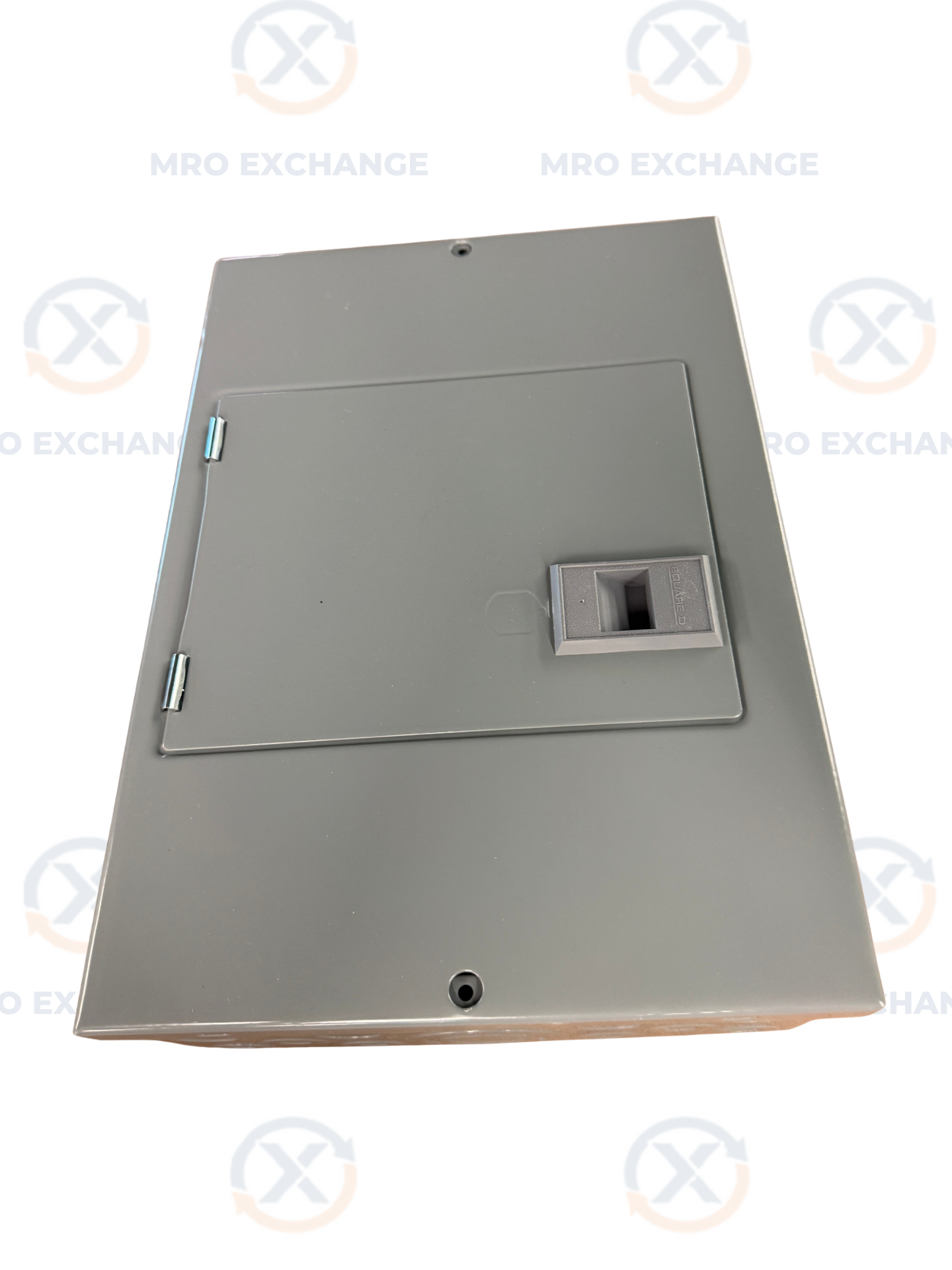

Square D Load Center QO612L100DS 120/240V
Square D Load Center QO612L100DS 120/240V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: QO612L100DS
Stock #: 0526-02291

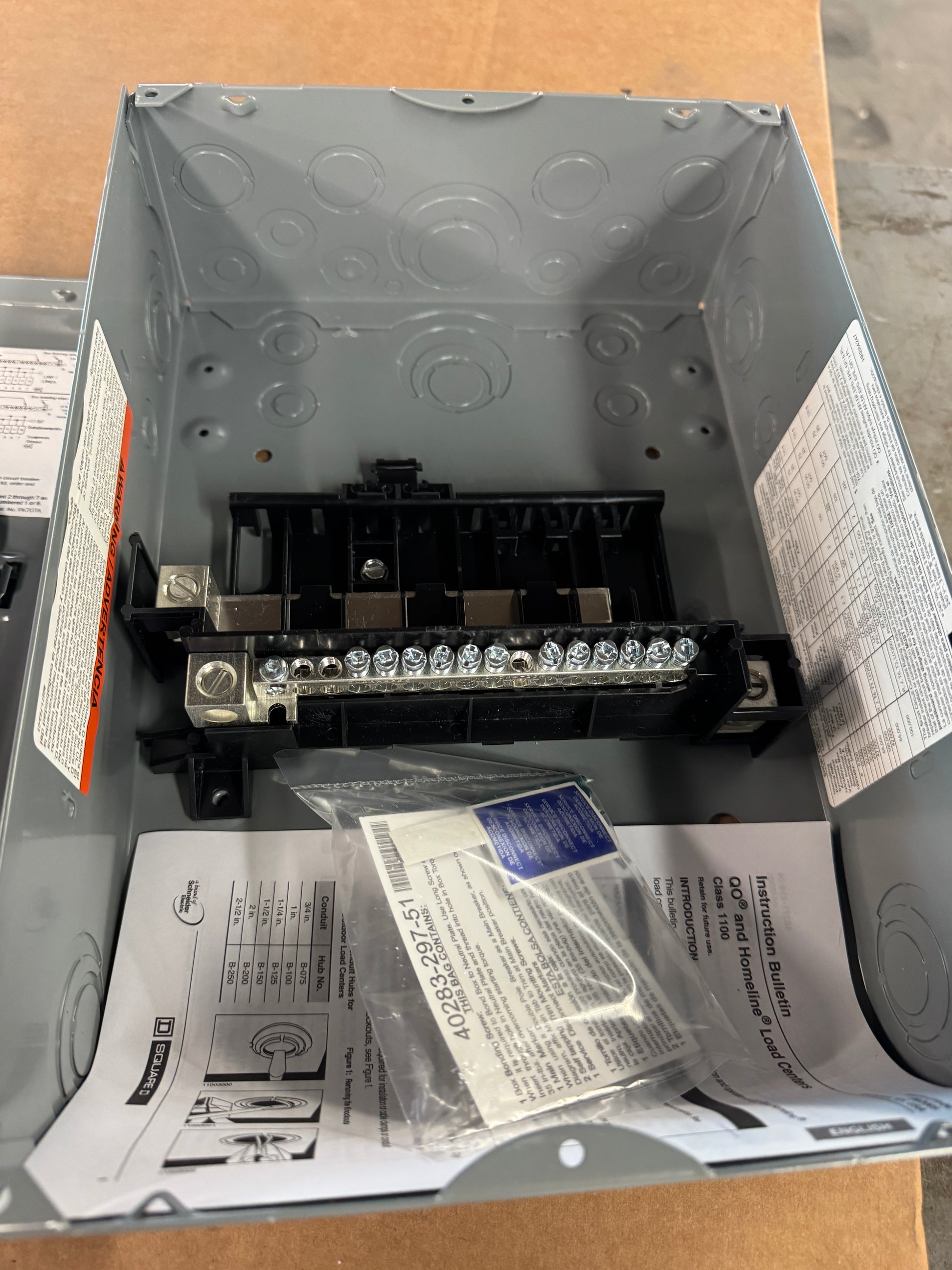

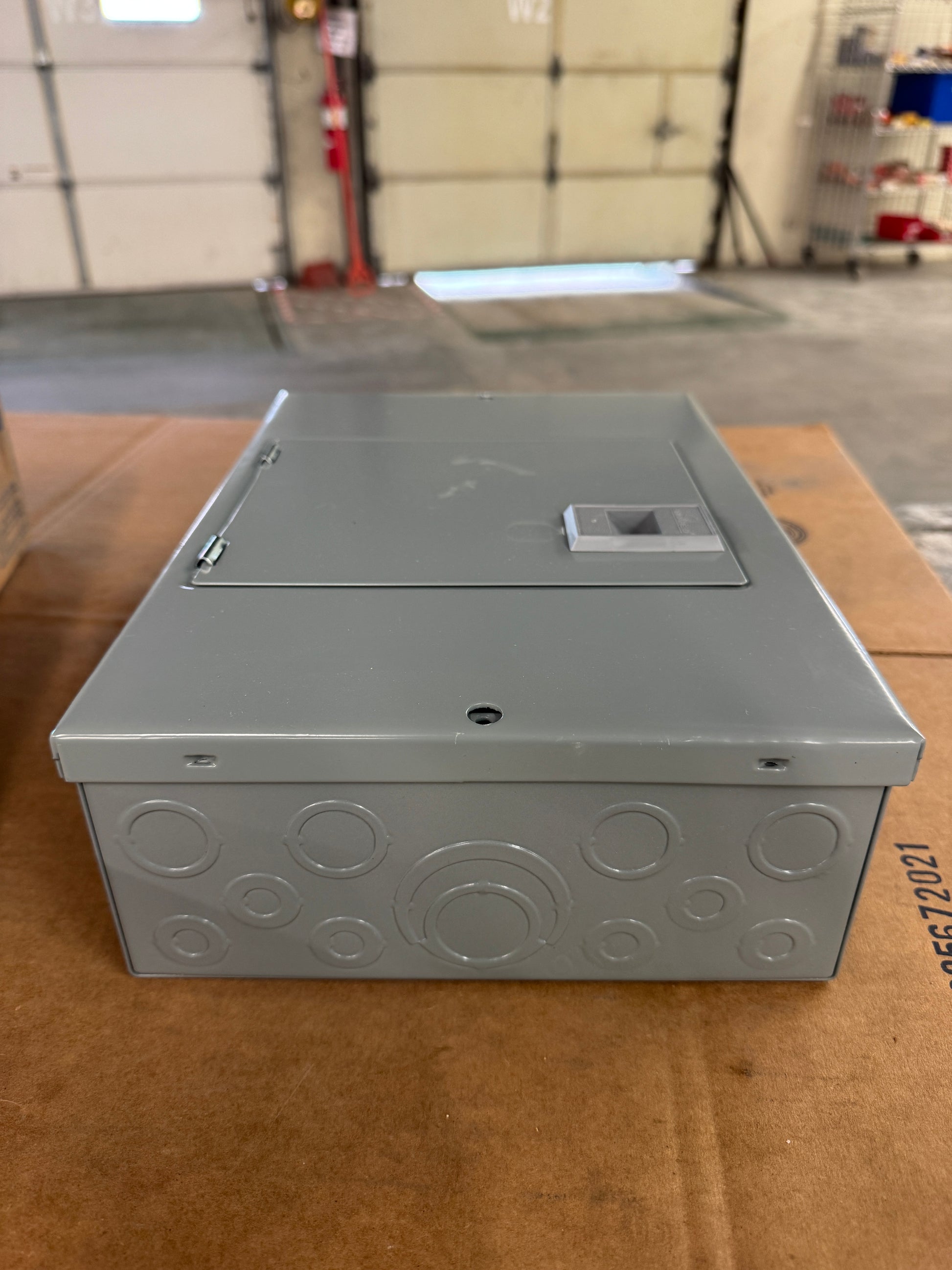

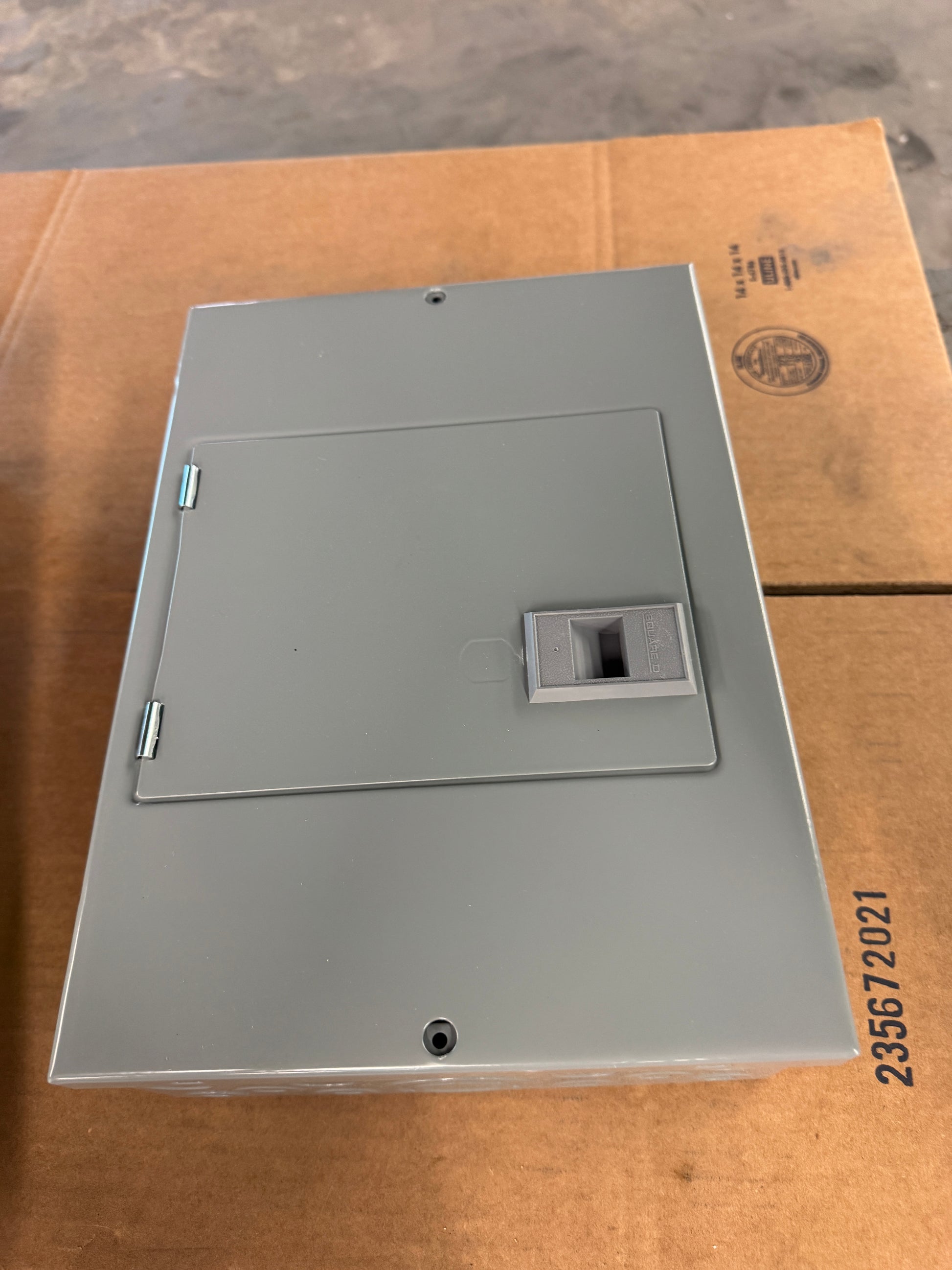

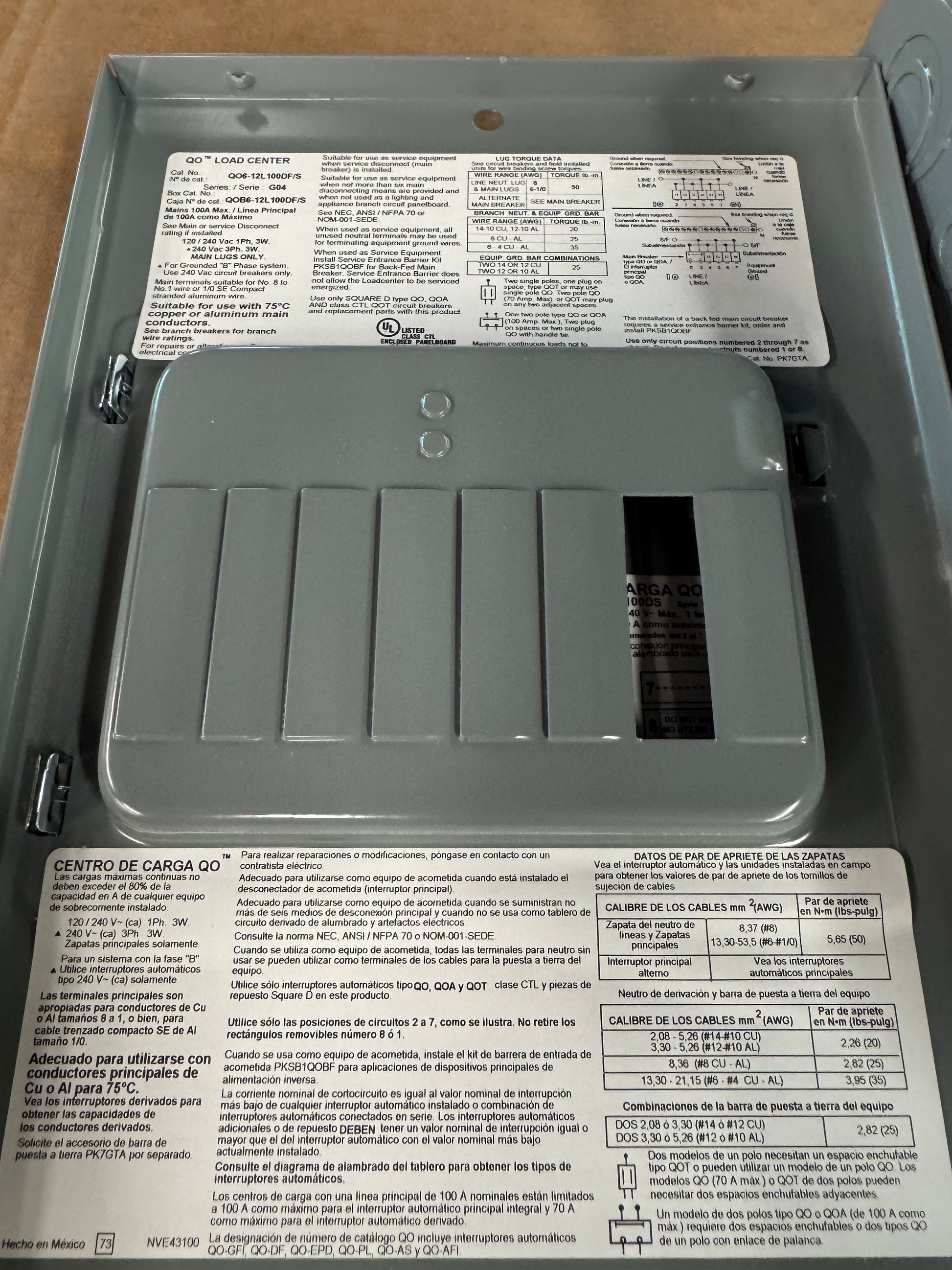

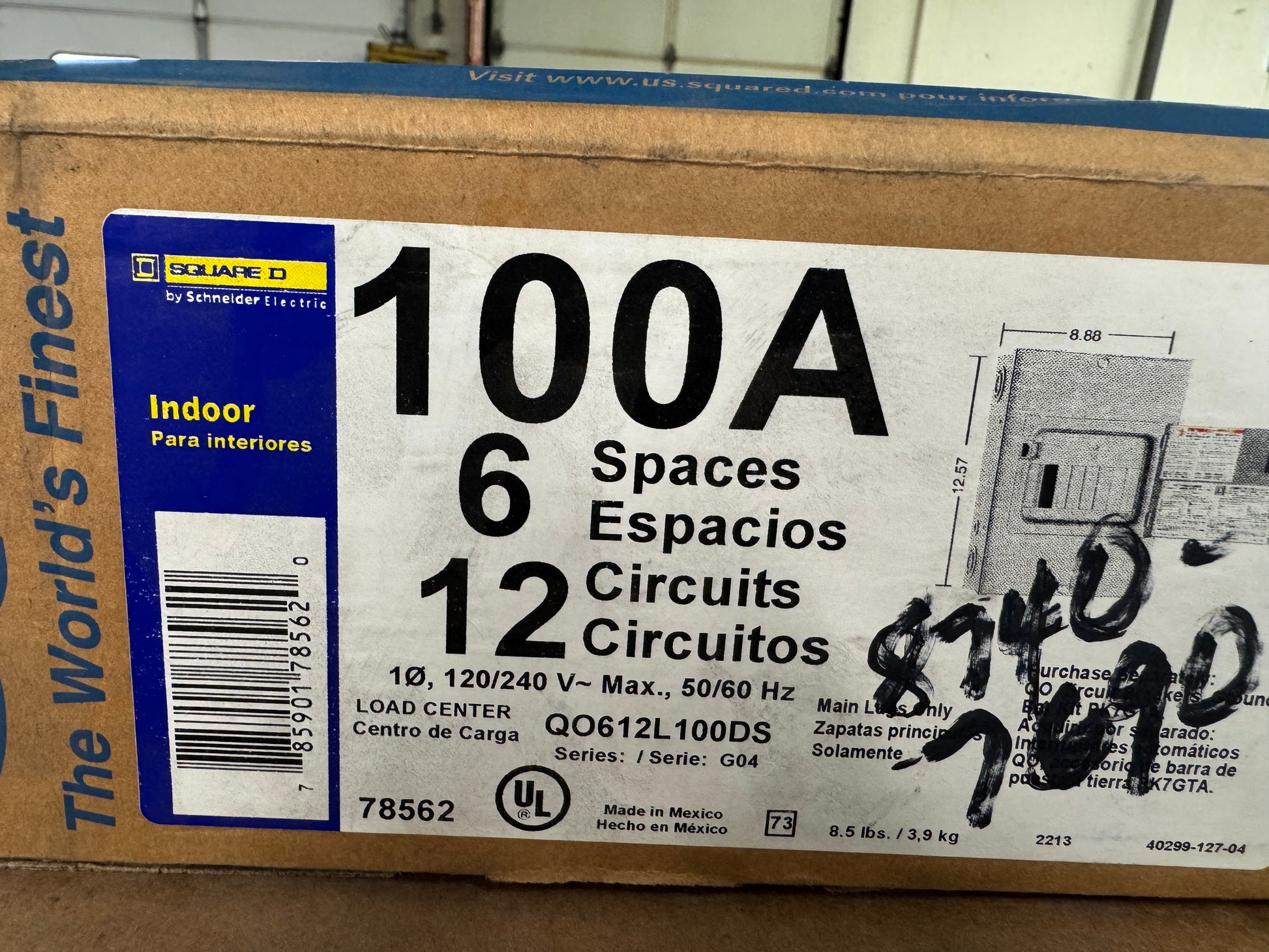

The Square D QO612L100DS is an indoor main lug load center rated for 100A maximum at 120/240V AC, single phase, 3 wire, 50/60 Hz. Manufactured by Schneider Electric under the Square D QO product family, this load center provides 6 spaces and accommodates up to 12 single pole circuits when configured with tandem QO breakers. The unit is supplied with a surface cover and door, NEMA 1 indoor enclosure constructed of welded sheet steel, and a tin plated aluminum busbar. Main lug terminals accept No. 8 to No. 1 copper or aluminum conductors, or 1/0 SE compact stranded aluminum, suitable for use with 75°C copper or aluminum main conductors. The unit carries a 10 kA short circuit current rating and is UL Listed and CSA rated for residential, commercial, and industrial branch circuit distribution. Compatible with Square D type QO, QOA, and class CTL QOT plug on circuit breakers. Enclosure dimensions are approximately 12.57 in. high by 8.88 in. wide. The catalog number on the inner label is QO6,12L100DF/S with box catalog QOB6,12L100DF/S, series G04. Suitable for use as service equipment when service disconnect is installed, or when not more than six main disconnecting means are provided. Includes instruction bulletin, hardware bag, and conduit hub reference sheet. Made in Mexico. Catalog reference 78562. MPN: QO612L100DS.
Stock # 0526-02291
