Square D Manual Motor Starter 2510MCG3 600 VAC
Square D Manual Motor Starter 2510MCG3 600 VAC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 2510MCG3
Stock #: 0526-02328

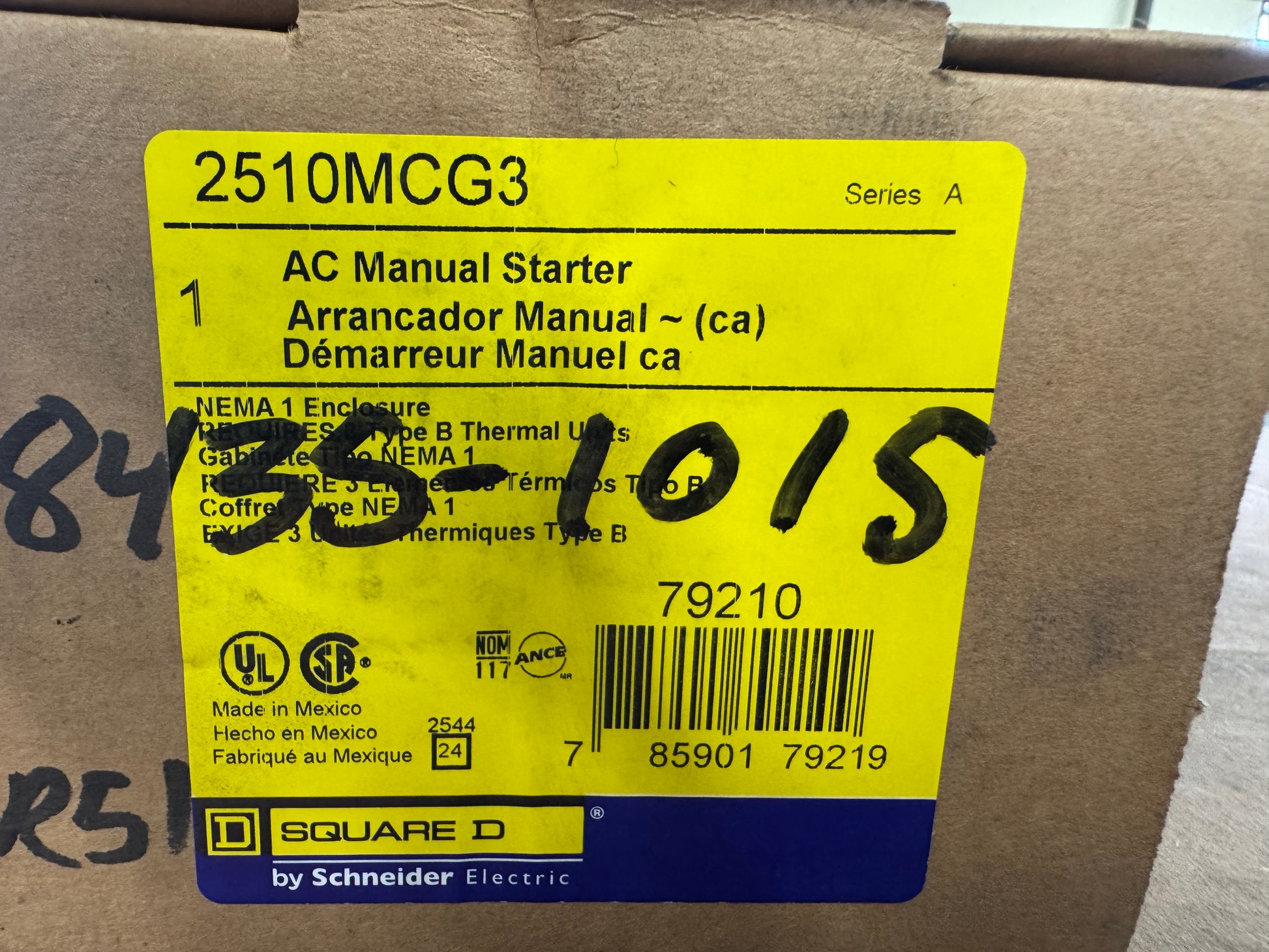

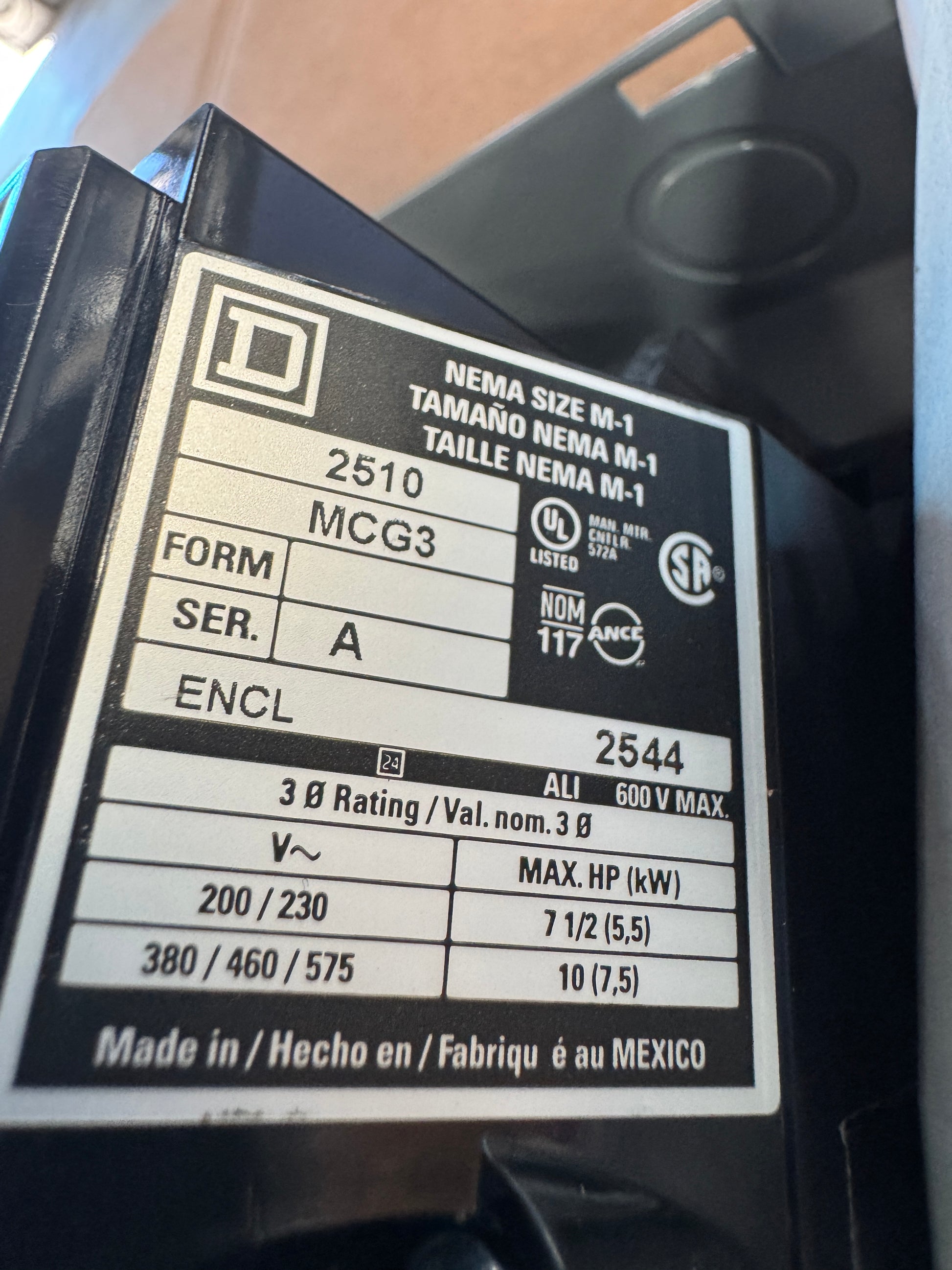

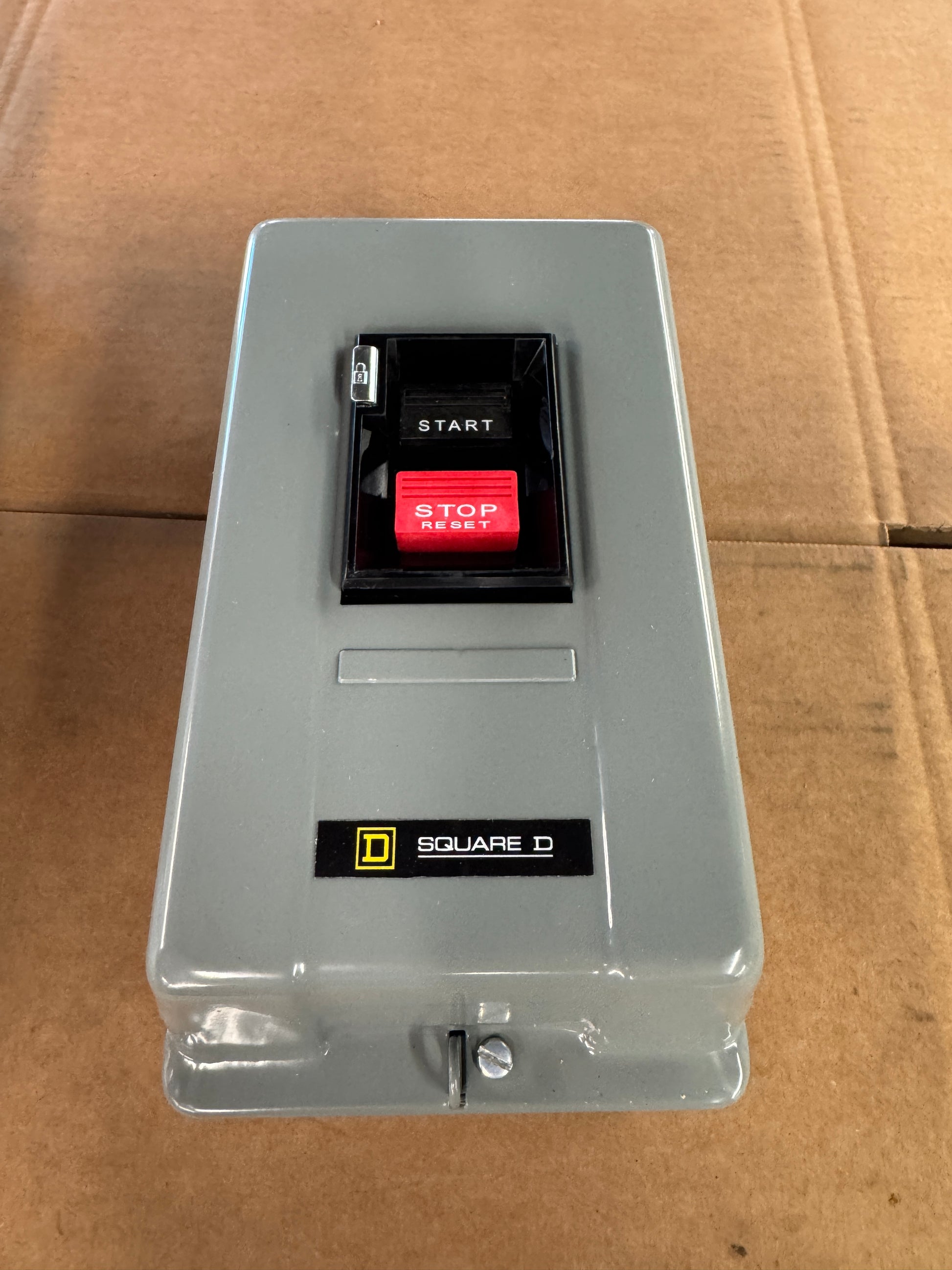

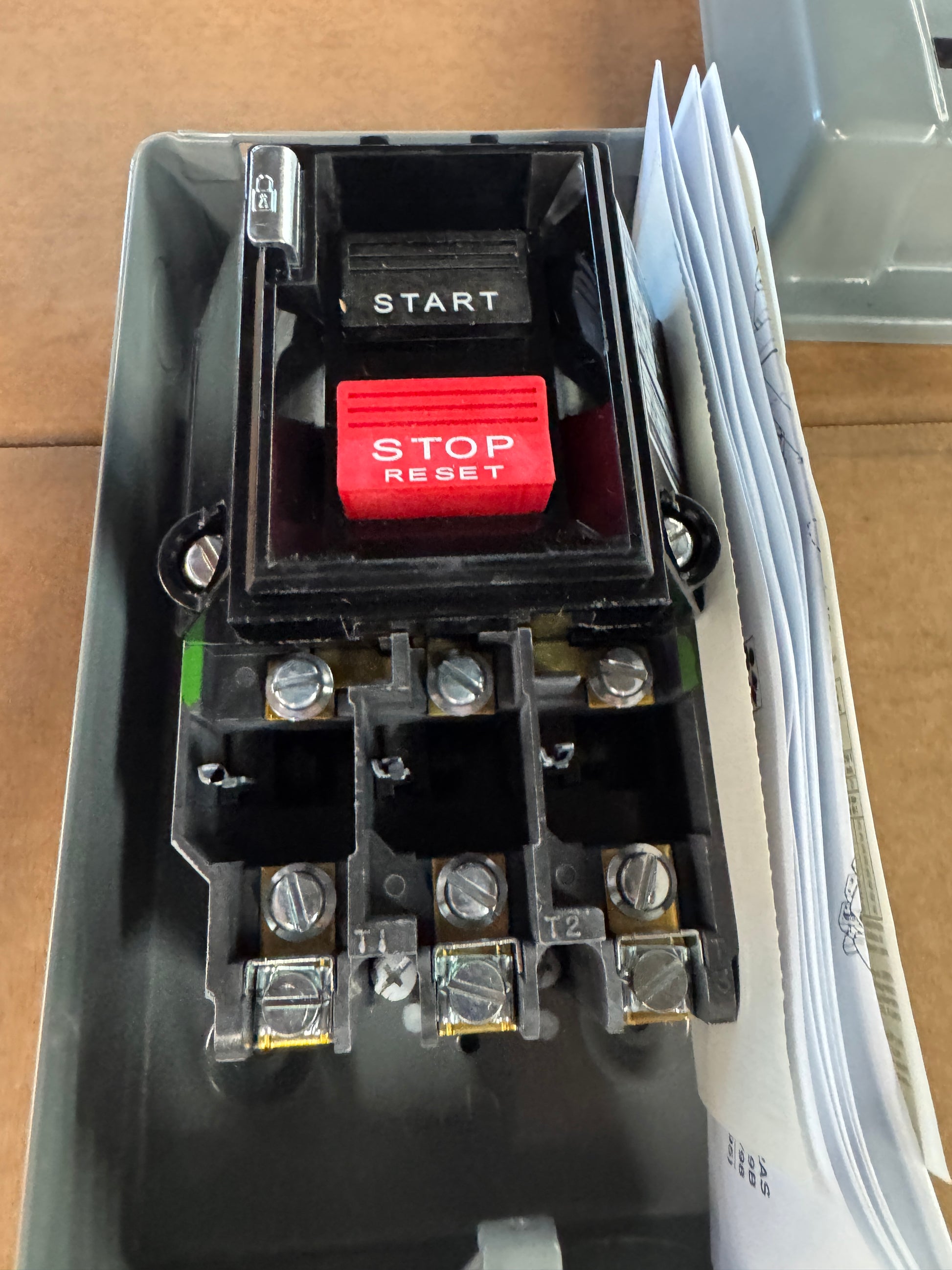

The Square D 2510MCG3 is an integral horsepower manual motor starter housed in a NEMA 1 general purpose surface mount enclosure. This unit is Series A, supplied new in original packaging with documentation, and identified by manufacturer label 2510MCG3, UPC 785901792109, part code 79210, and date code 2544. Nameplate data confirms a NEMA Size M-1 rating with a 3 phase, 3 pole configuration and a maximum voltage rating of 600 V AC. Horsepower ratings per the nameplate are 7.5 HP (5.5 kW) at 200 / 230 V AC and 10 HP (7.5 kW) at 380 / 460 / 575 V AC. The starter uses pressure wire clamp terminals that accept 14 to 8 AWG copper conductors and incorporates a melting alloy overload relay. Three Type B thermal units are required and are ordered separately to match motor full load current. Operation is via a front mounted START / STOP RESET pushbutton operator with a padlock provision on the cover for lockout in the off position. The unit carries UL Listed, CSA, and NOM 117 ANCE markings and was manufactured in Mexico. Typical applications include fans, pumps, conveyors, compressors, and small machine tools where local manual on / off control with overload protection is required. The painted sheet steel enclosure measures approximately 8.63 in H x 5.00 in W x 4.13 in D.
Stock # 0526-02328
