Square D NEMA Size 1 Motor Starter 8536SCG3V06
Square D NEMA Size 1 Motor Starter 8536SCG3V06
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 8536SCG3V06
Stock #: 0526-02332

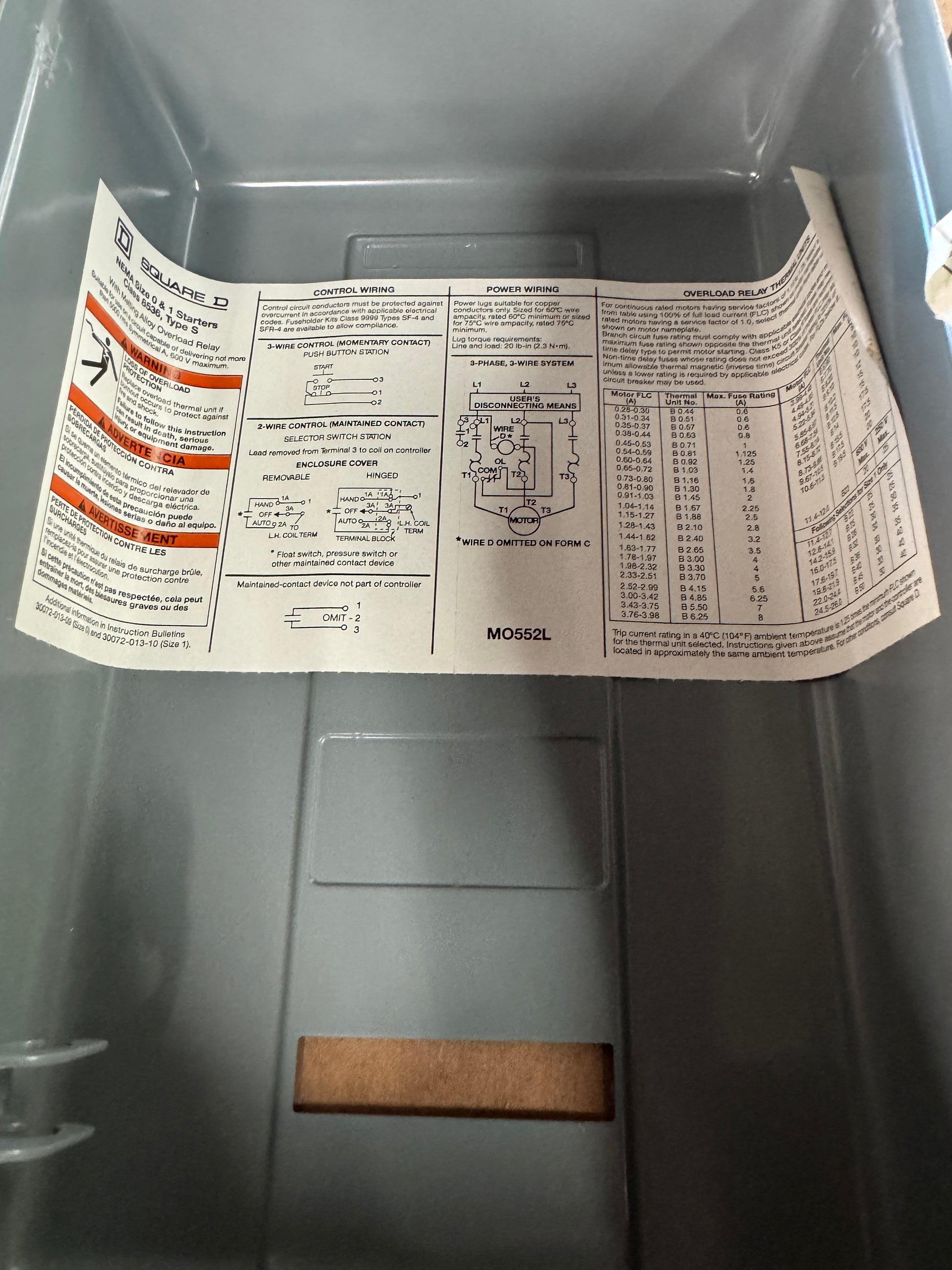

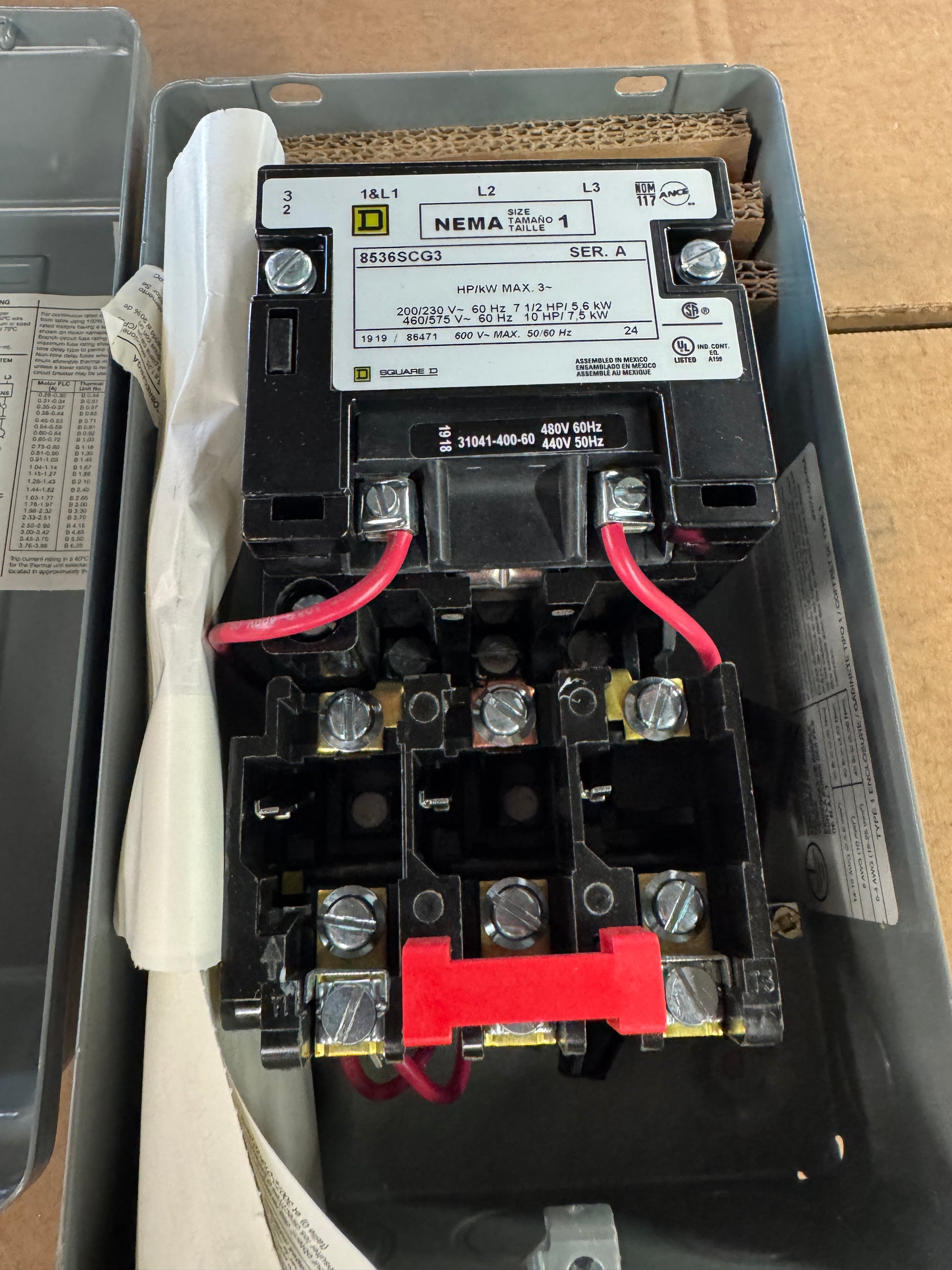

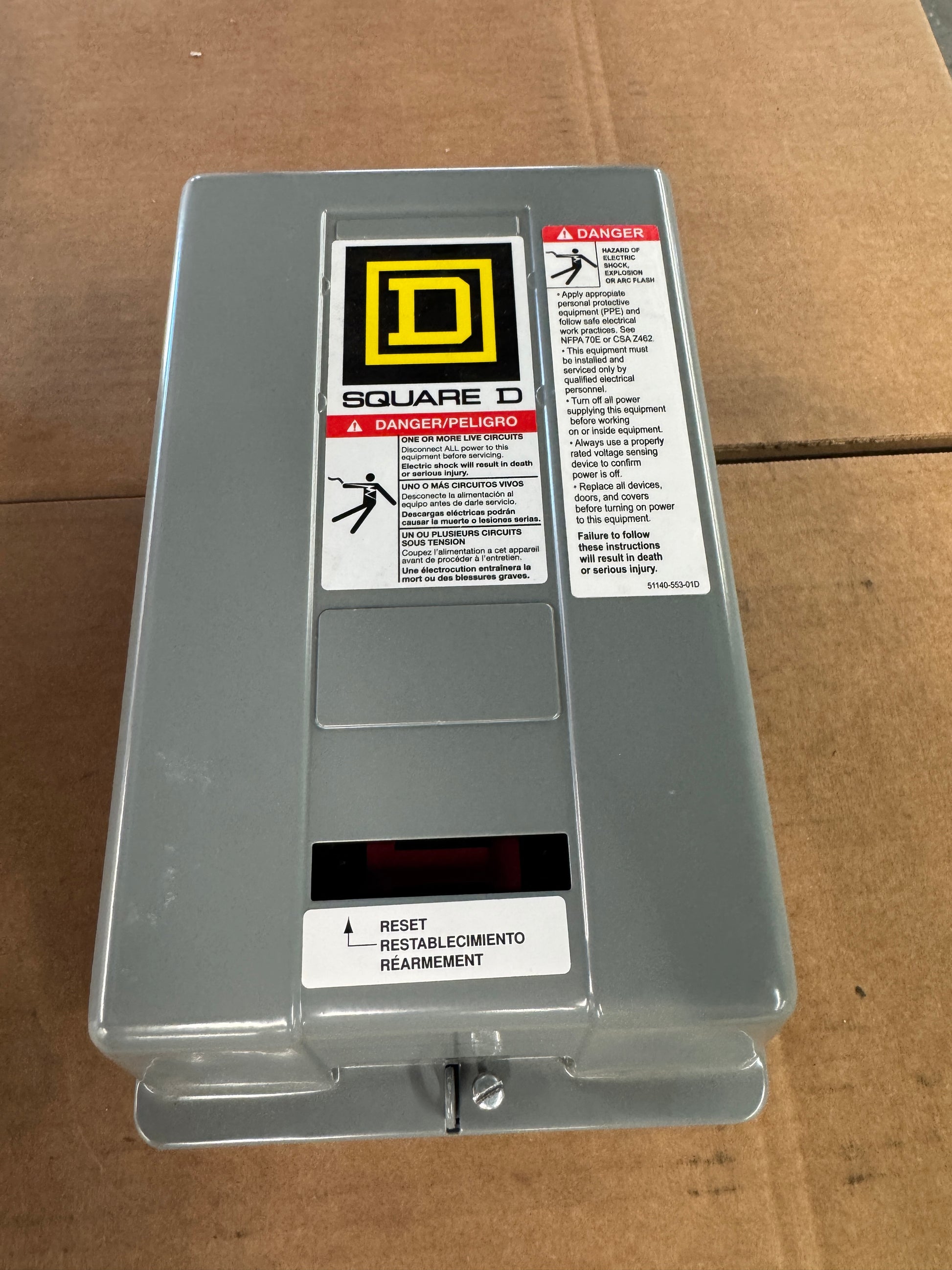

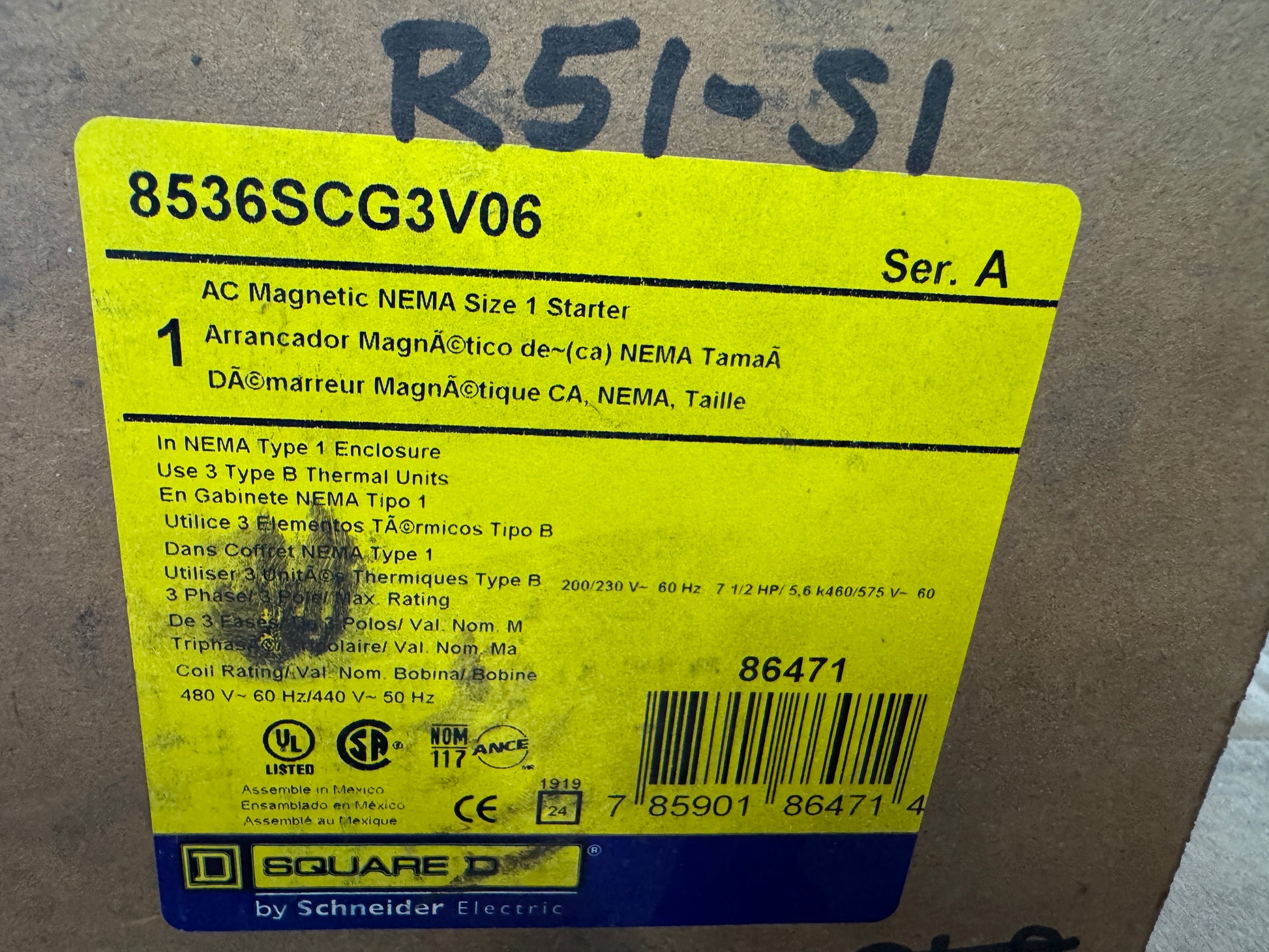

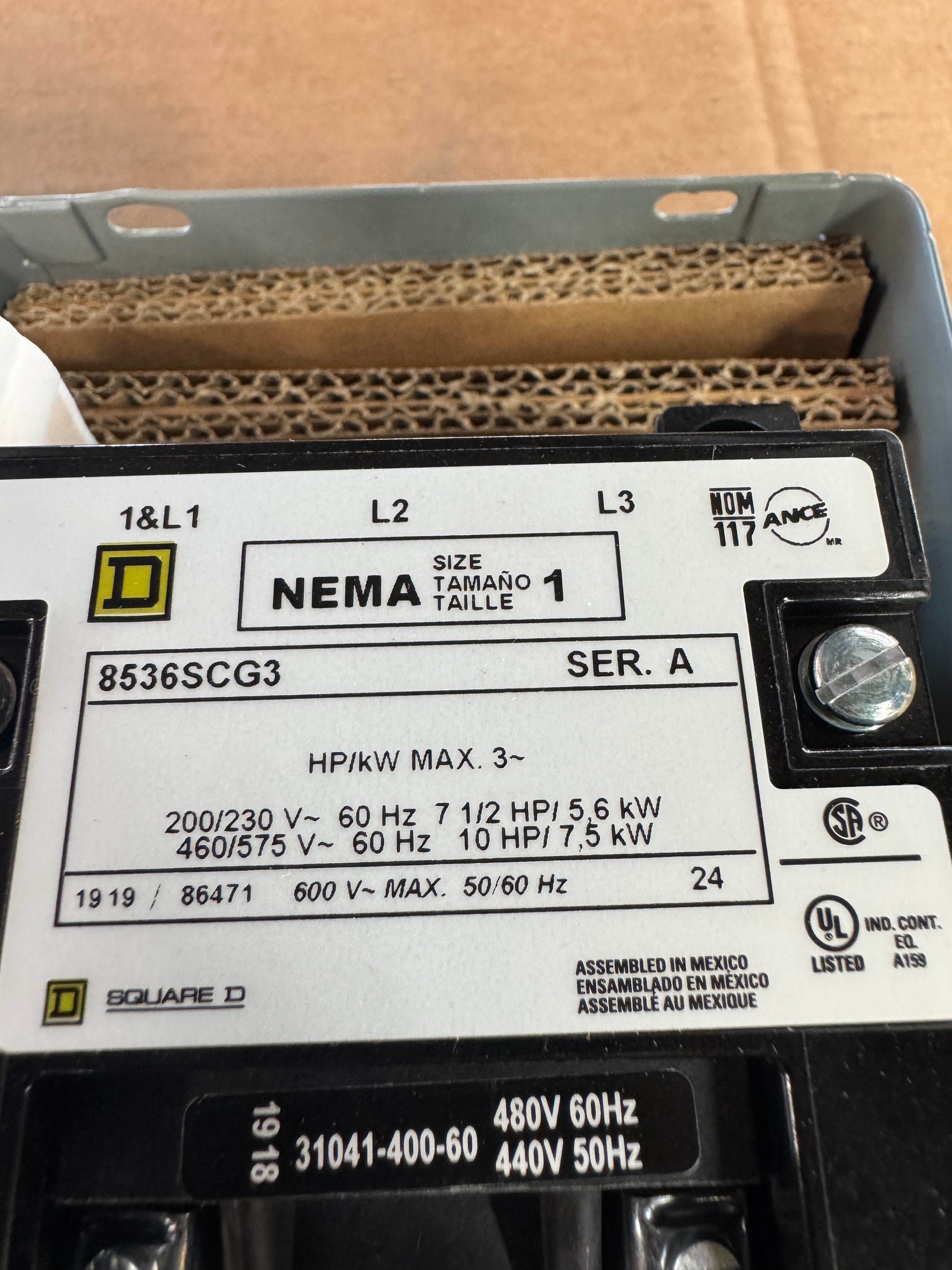

The Square D 8536SCG3V06 is an AC magnetic NEMA Size 1 motor starter manufactured by Schneider Electric and assembled in Mexico. This Class 8536 Type S full voltage non reversing starter is rated for 27 amperes and accepts three phase motor loads up to 7 1/2 HP at 200/230 VAC and 10 HP at 460/575 VAC, with a maximum system voltage of 600 VAC at 50/60 Hz. The unit ships in a painted sheet steel NEMA Type 1 general purpose enclosure measuring approximately 10 inches tall, 6 inches wide, and 5.56 inches deep, with a hinged cover featuring an external overload reset button. The starter coil is rated 480 VAC at 60 Hz and 440 VAC at 50 Hz, identified by coil part number 31041 400 60. Overload protection is provided by a three pole melting alloy thermal overload relay that accepts Type B thermal units, selected from the published trip chart based on motor full load current. Carries UL Listed and CSA certifications, NOM 117 marking, and a manufacturer date code of 2024. Applications include full voltage starting and stopping of three phase AC squirrel cage motors driving pumps, fans, conveyors, compressors, machine tools, and similar industrial loads where line voltage starting is acceptable. The Series A device ships in original Schneider Electric packaging with factory instruction sheet retained inside the enclosure.
