Square D Terminal Block 9080GD6 600V
Square D Terminal Block 9080GD6 600V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 9080GD6
Stock #: 0526-02414

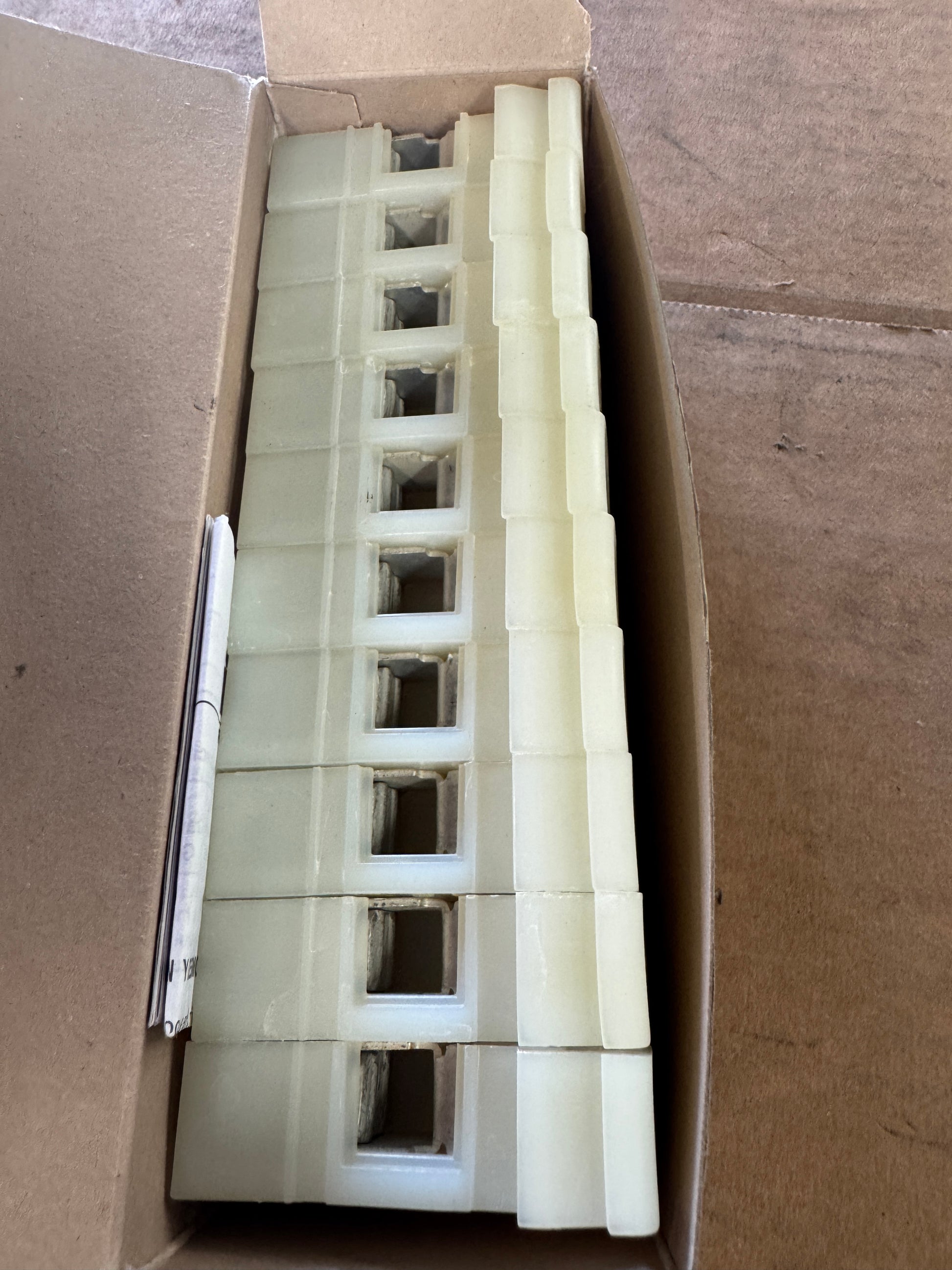

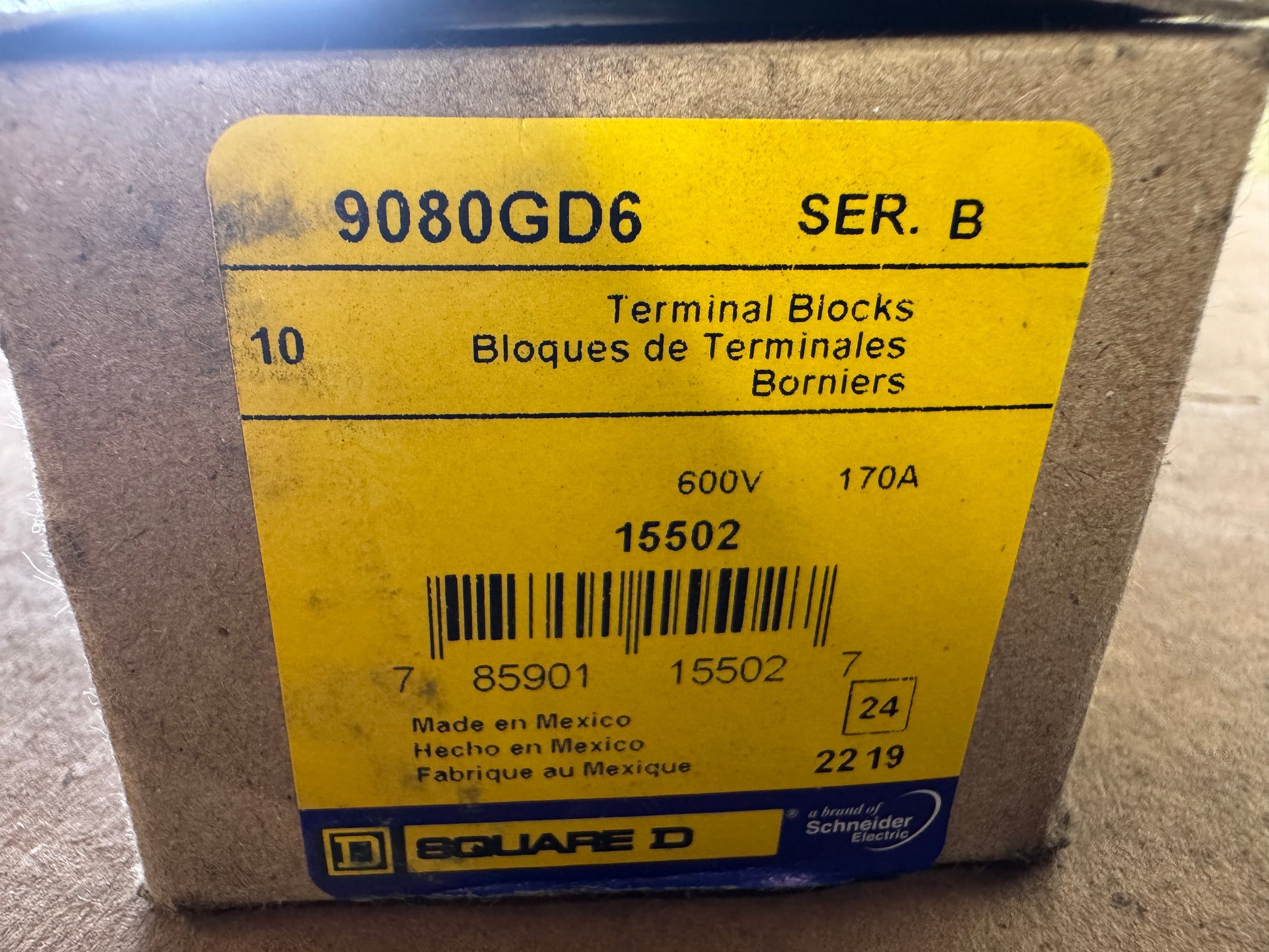

The Square D 9080GD6 is a Linergy NEMA sectional terminal block rated for 600 VAC/VDC and 180 A (UL) / 170 A (CSA). This listing covers a factory sealed box containing 10 individual blocks, Series B, part number 15502, manufactured in Mexico. Each block features a box lug tin plated steel connector that accepts solid or stranded copper wire from 12 AWG through 1/0 AWG, with multiple combinations supported per lug including a single 1/0 AWG conductor, up to two 4 AWG, up to three 6 AWG, up to five 8 AWG, up to six 10 AWG, or up to seven 12 AWG wires. The natural color nylon body measures approximately 2.12 in wide by 0.7 in deep by 2.71 in high. Mounting is on 35 mm DIN rail or 9080GH track. Recommended terminal torque is 5 to 5.6 N·m. The operating temperature range is 40 to 257 deg F. The 9080GD6 is UL component recognized under file E60616 (CCN XCFR2), CSA certified under file LR62144 Class 6228 01, and CE marked. Typical applications include industrial control panels, motor control centers, machine tool electrical enclosures, power distribution sections, and field wiring termination points where a high current sectional block is required. The 9080GD6 accepts standard 9080G series accessories including 9080GH jumpers, end barriers, and marking strips.
Stock # 0526-02414
