Timken Wide Inner Ring Insert Ball Bearing with Collar G1012KRRB+COL 3/4 In. Bore x 1.850 In. OD
Timken Wide Inner Ring Insert Ball Bearing with Collar G1012KRRB+COL 3/4 In. Bore x 1.850 In. OD
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: G1012KRRB+CO
Stock #: 0626-01445
Product Specifications
- Manufacturer: Timken
- MPN / Model: G1012KRRB+COL
- Product Type: Wide Inner Ring Insert Ball Bearing with Eccentric Locking Collar
- Series: Fafnir G-KRRB
- Product Line: Fafnir Farm
- Bore Diameter: 3/4 In. (19.05 mm)
- Outside Diameter: 1.850 In. (47 mm)
- Inner Ring Width: 1.344 In.
- Seal Type: Shroud-Style Double Seal
- Locking Method: Eccentric Locking Collar
- Set Screw Thread: 1/4-20, Two Set Screws at 90 Degrees
- Cage Material: Nylon
- Dynamic Load Rating: 3,190 Lbf
- Static Load Rating: 1,460 Lbf
- Maximum Operating Speed: 6,270 RPM
- Temperature Range: -50 to 120 degrees C
- Relubricatable: Yes
- Bearing Insert MPN: G1012KRRB
- Stock Number: 0526-01445
Product Description

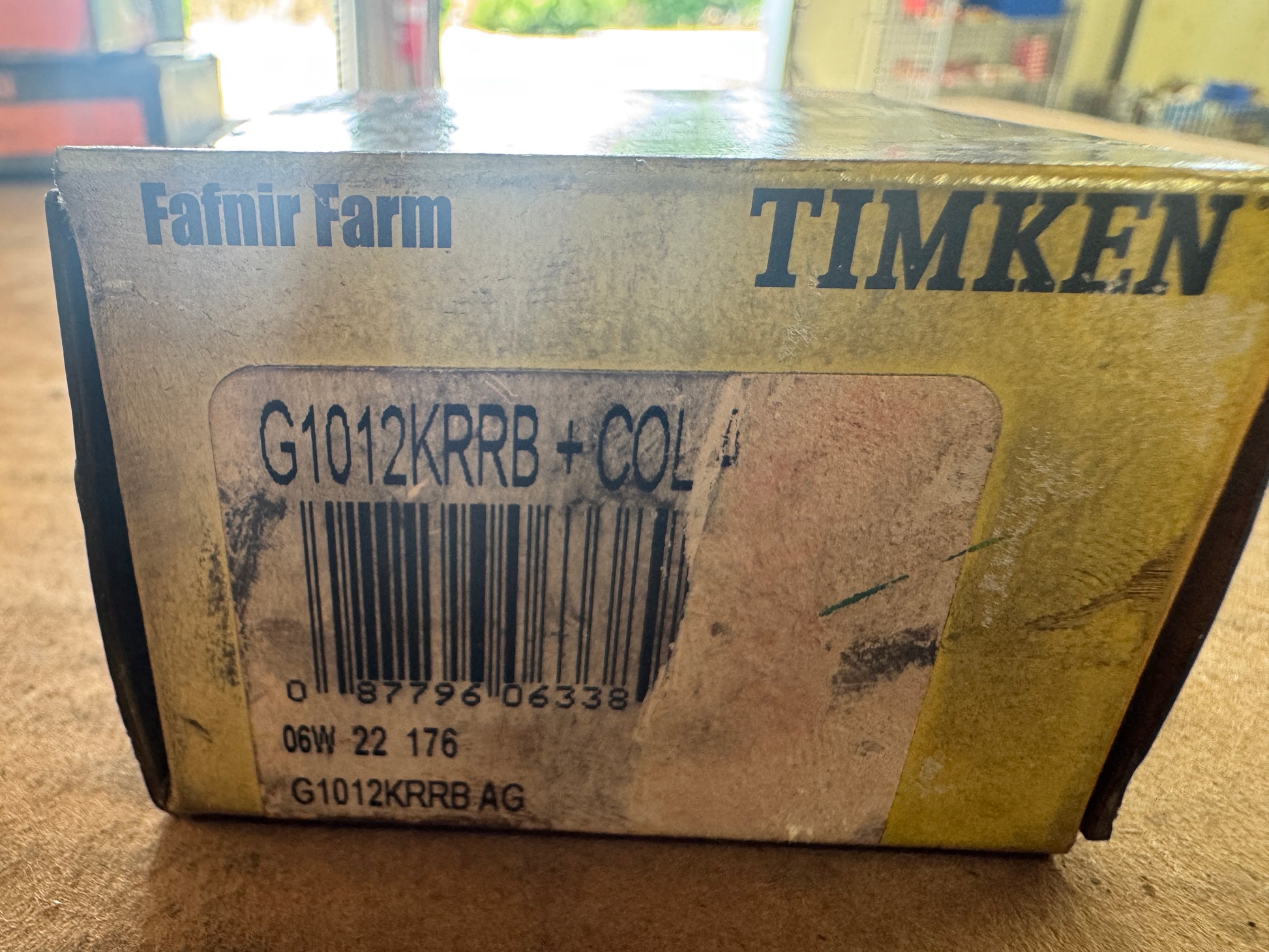

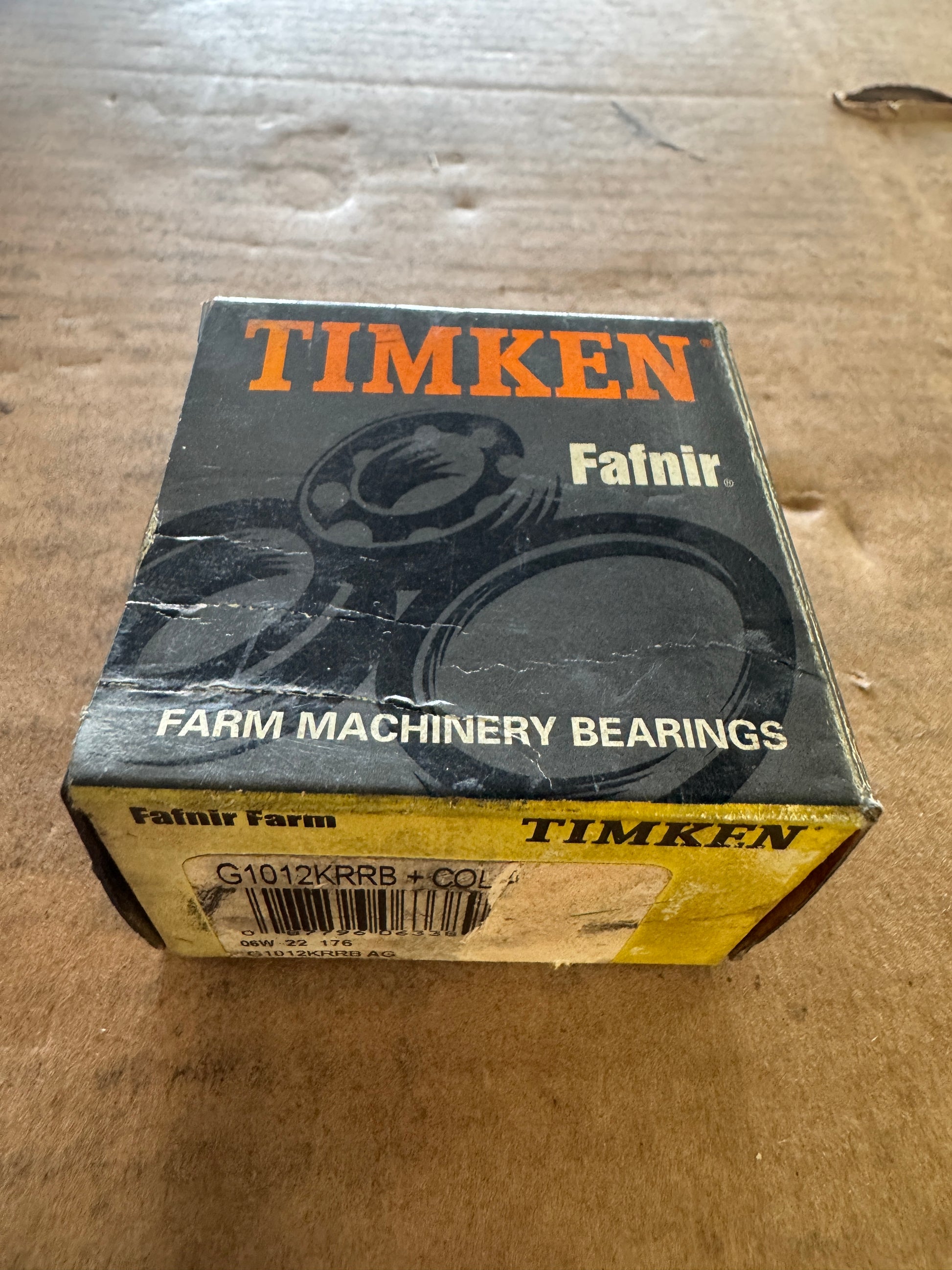

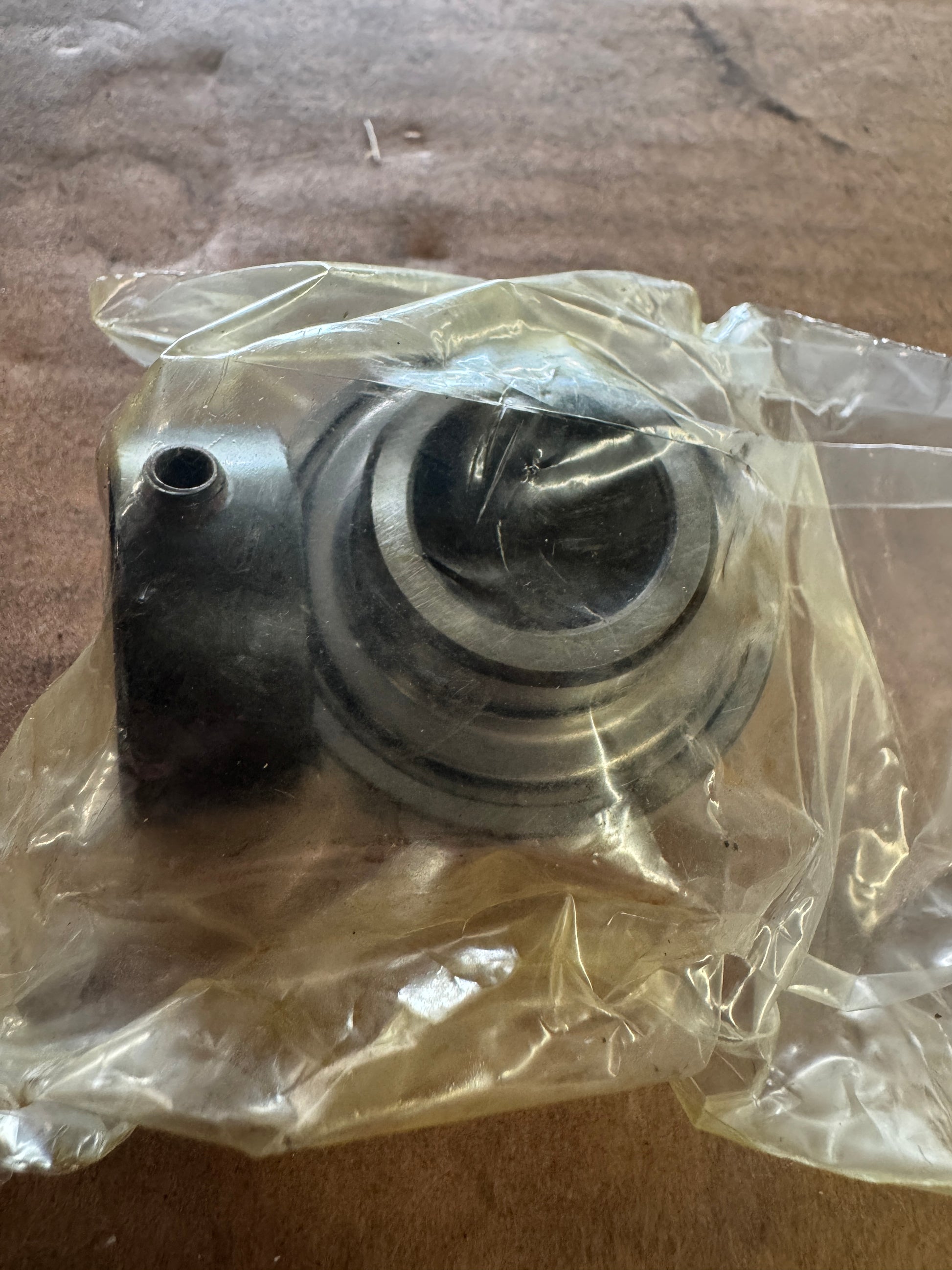

The Timken Fafnir G1012KRRB+COL is a wide inner ring insert ball bearing with eccentric locking collar from the G-KRRB series, designed for use in agricultural and farm machinery applications. Sold under the Fafnir Farm product line, this bearing features a 3/4 inch (19.05 mm) bore, 1.850 inch (47 mm) outside diameter, and a 1.344 inch wide inner ring. The spherical outer ring profile enables self-alignment, accommodating minor shaft misalignment in pillow block and flange mount housings. Sealing is provided by a shroud-style double seal for protection against contamination in field environments. The relubricatable design allows for periodic greasing via two set screws positioned 90 degrees apart, with a 1/4-20 set screw thread. Dynamic load rating is 3,190 lbf and static load rating is 1,460 lbf. Maximum operating speed is rated at 6,270 RPM. The bearing is constructed from bearing-grade steel with a nylon cage and is rated for operation from -50 to 120 degrees C. The locking collar is included. Part number G1012KRRB+COL is the full assembly designation; G1012KRRB refers to the bearing insert alone. The item is presented in original Fafnir Farm branded Timken packaging with the bearing in a protective poly bag.
