Yaskawa Electric Magnetic Contactor HV-75AP2 600V MAX
Yaskawa Electric Magnetic Contactor HV-75AP2 600V MAX
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

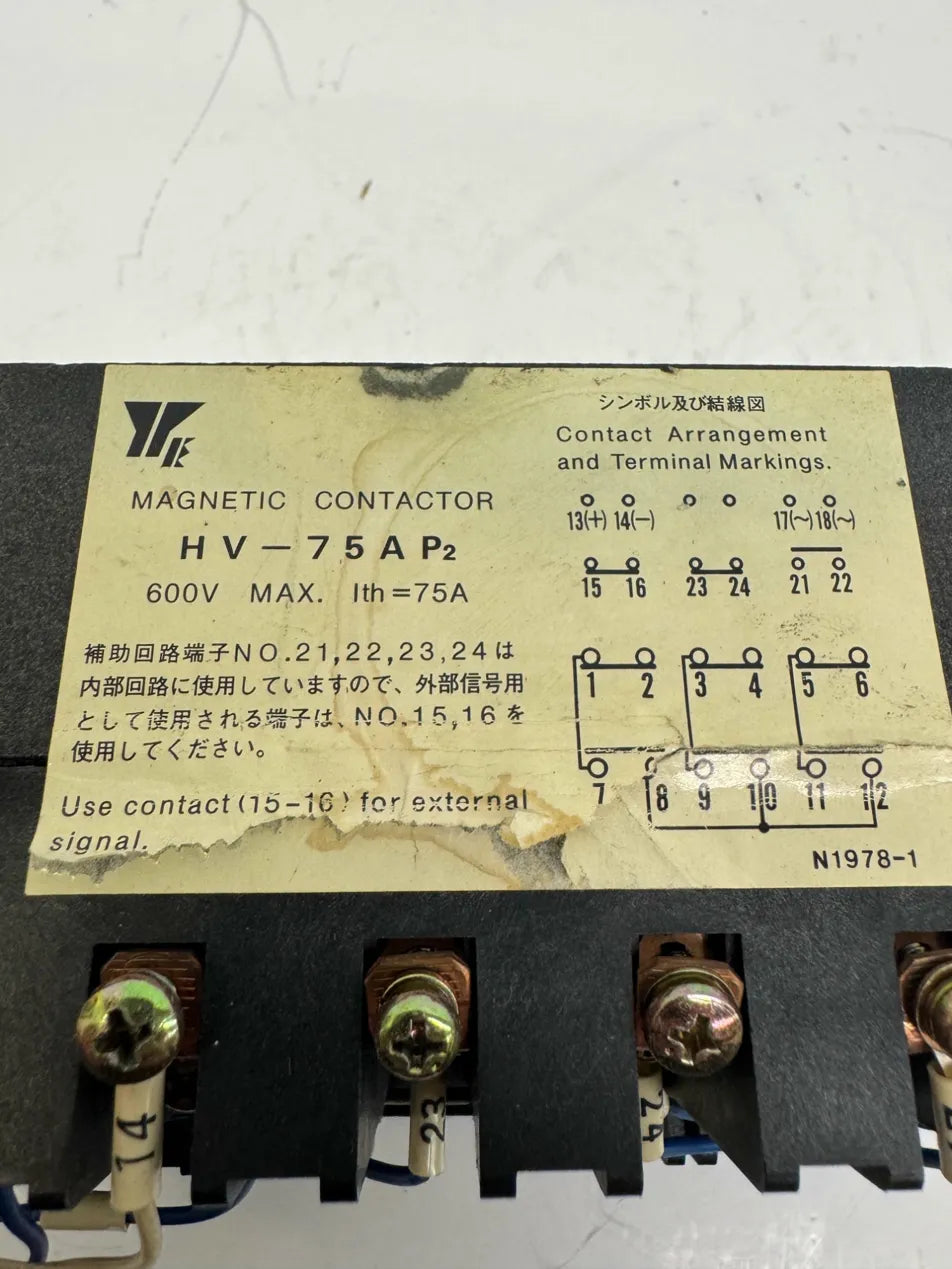

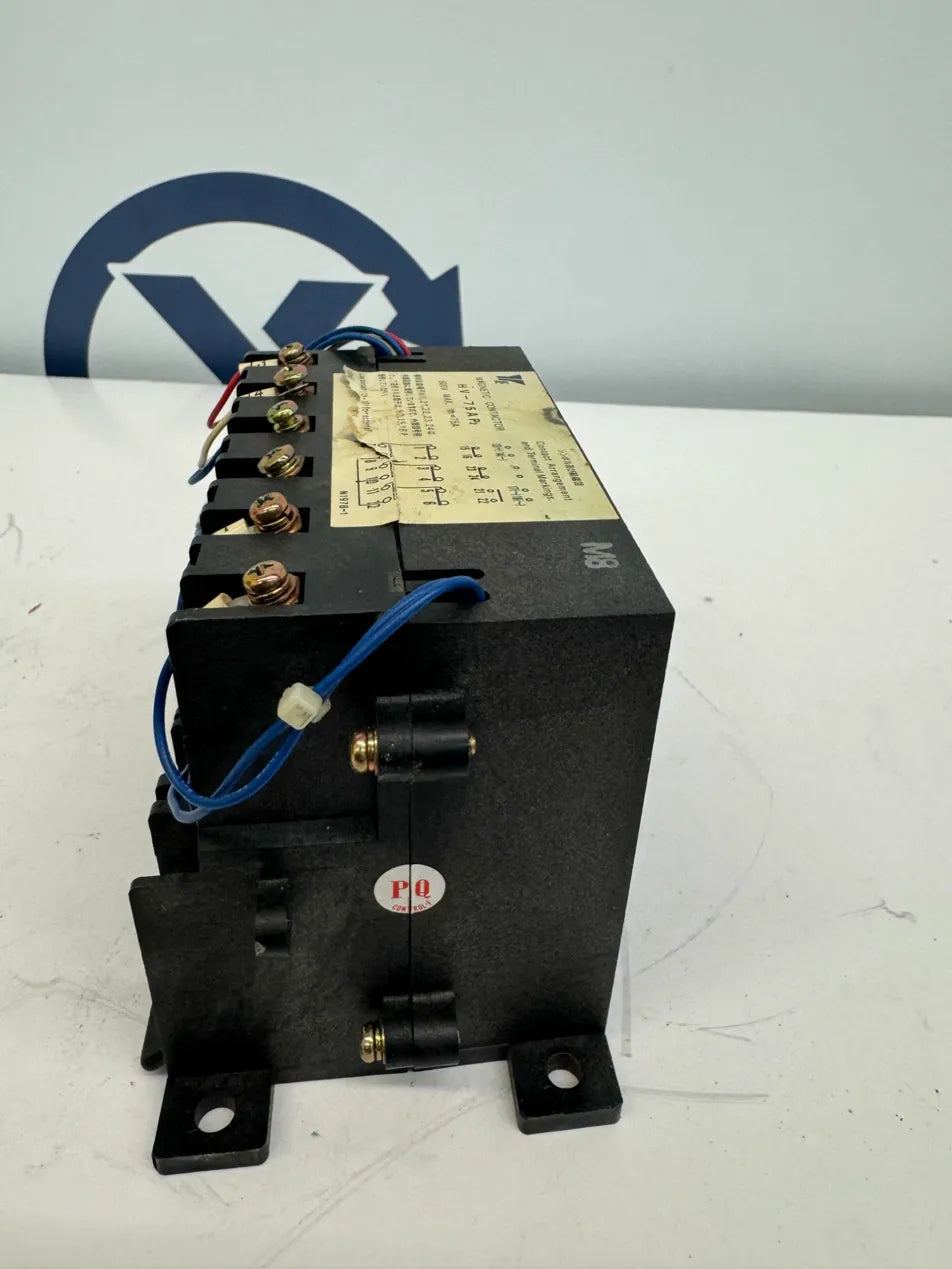

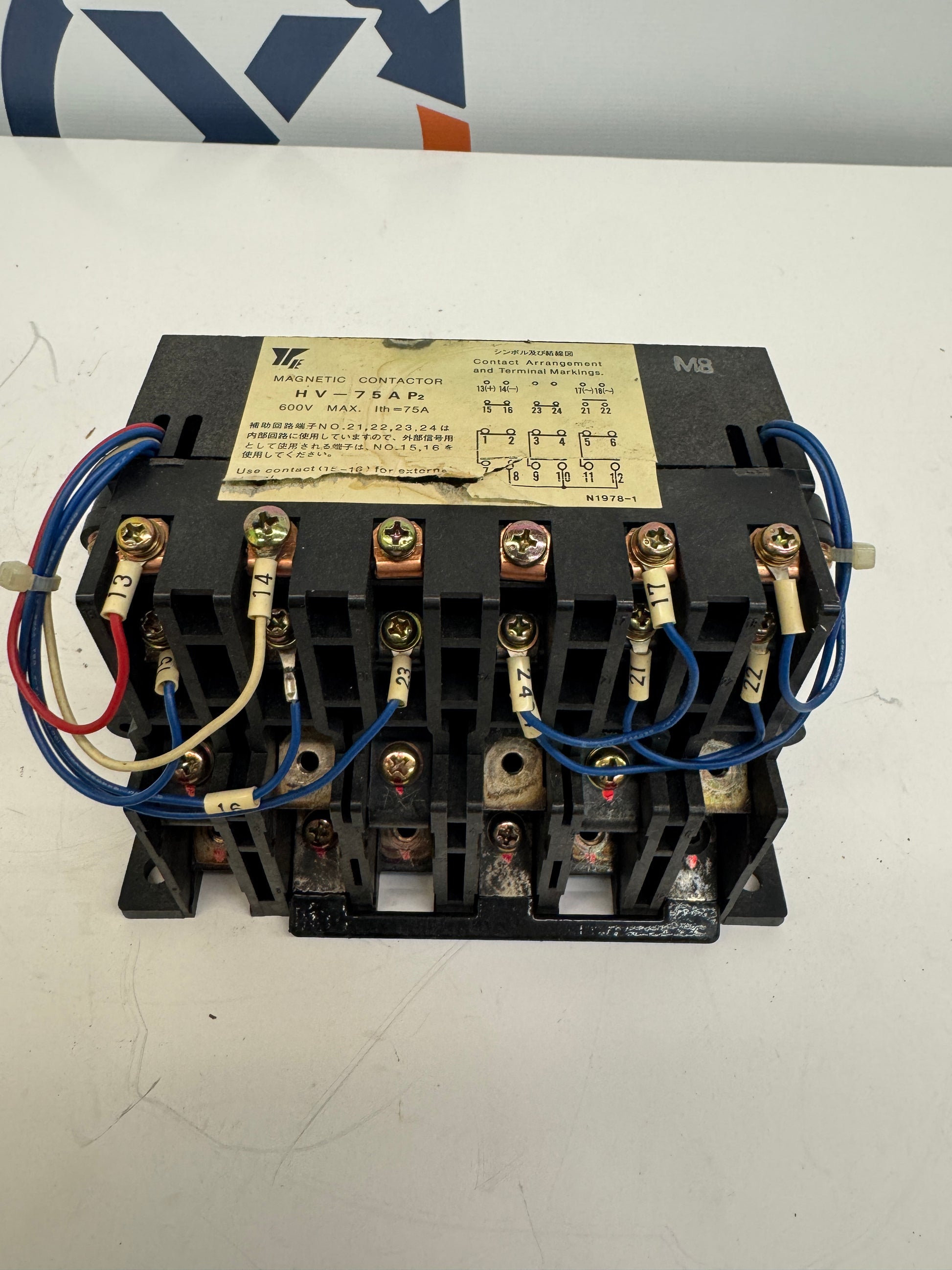

Used in motor control and automation systems throughout industrial machine tool and CNC environments, the Yaskawa HV-75AP2 is a 2-pole magnetic contactor rated at 75 amperes and 600V maximum. The nameplate identifies the model as HV-75AP2 with a thermal current rating of Ith = 75A. This contactor belongs to the Yaskawa HV-75AP series, which was widely specified for use with Yaskawa YASNAC and VS series drive systems, including the VS-616 and VS-626 inverter families. The contact arrangement label indicates auxiliary contacts at terminals 13(+)/14(-) and 17/18, with additional contacts at terminals 15/16, 21/22, 23, and 24. Per the nameplate notation, terminals 21, 22, 23, and 24 are used for internal circuit functions; terminals 15 and 16 are designated for external signal use. Main power terminals are accessible on both faces of the housing, with six screw-type load terminals visible. The unit carries document reference N1978-1 and is marked M8 on the housing. The contactor is mounted on an integrated foot-mount base with two bolt-down slots. A PQ Controls service label is affixed to the side of the housing. The MPN HV-75AP2 is confirmed on the nameplate label, manufactured by Yaskawa Electric, Japan.
Stock # 0226-725
