BIG Daishowa Right Angle Head BCV50-AG90/NBS10-215 | CAT50 | NBS10 Collet Chuck Output, 6,000 RPM Max | Orientation: Radial | Coolant Through

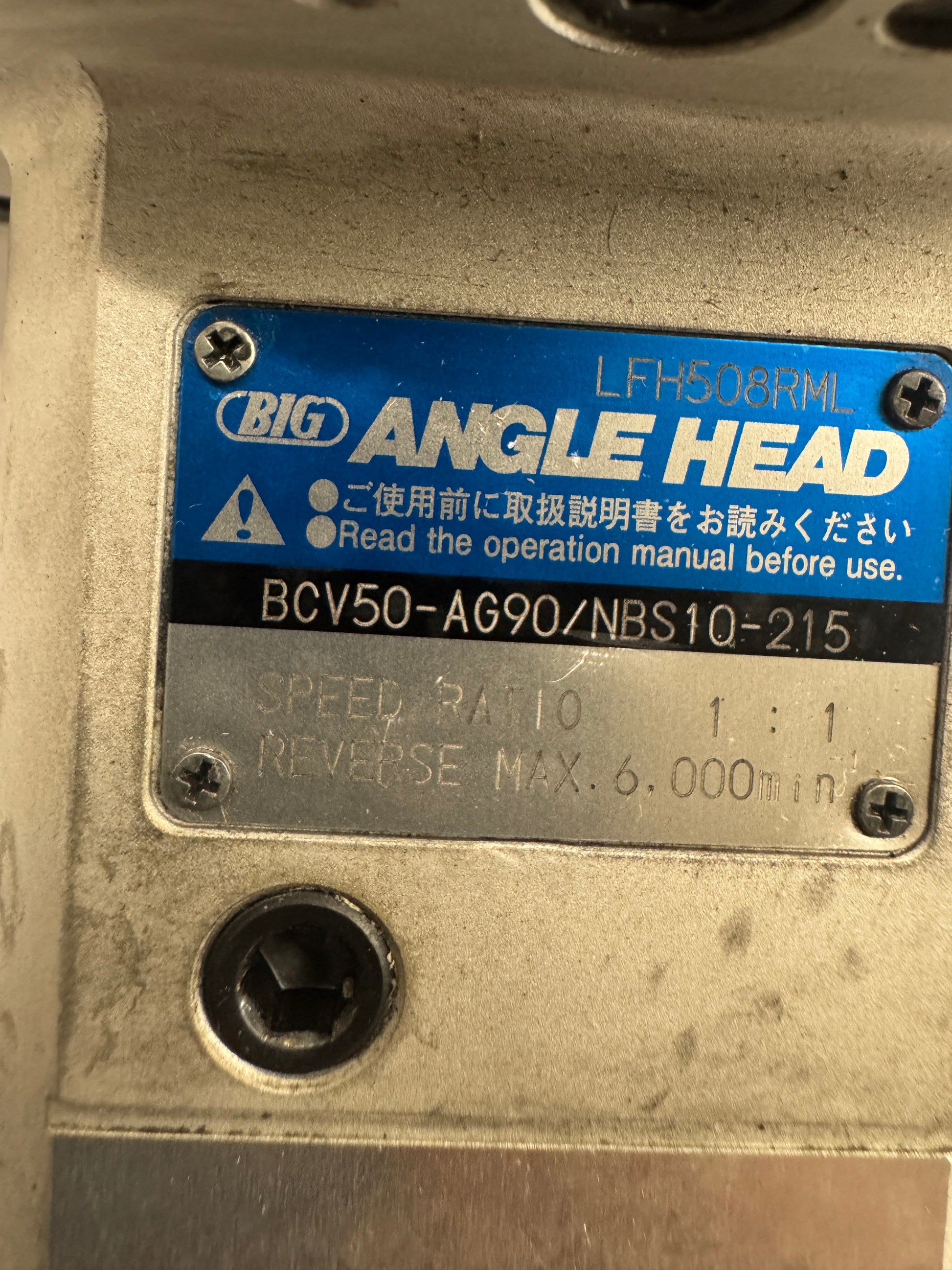

BIG Daishowa BCV50-AG90/NBS10-215 is a 90-degree right angle head with a BIG-PLUS CAT50 shank interface, designed for use in vertical and horizontal machining centers where access to angled or perpendicular features is required without repositioning the workpiece. The nameplate confirms model number BCV50-AG90/NBS10-215 and internal reference LFH508RML. Speed ratio is 1:1 with a maximum reverse speed of 6,000 RPM as stamped on the nameplate. The output spindle accepts NBS10 New Baby System collets, providing a clamping range of up to approximately 10mm per BIG Daishowa published specifications. Construction features hardened and ground spiral bevel gears and high-precision angular contact ball bearings per manufacturer documentation for the AG90 NBS series. Coolant supply through the locating pin is supported per published specifications for this series. The BCV50 shank designation indicates BIG-PLUS dual-contact CAT50 taper compatibility for enhanced rigidity and reduced runout. The 215mm gauge length is indicated in the model designation. Serial or internal reference LFH508RML is visible on the nameplate and is preserved here for buyer traceability. The BIG-PLUS CAT50 interface is compatible with standard CAT50 spindles as well as BIG-PLUS dual-contact spindles.

Stock # 0426-02117
