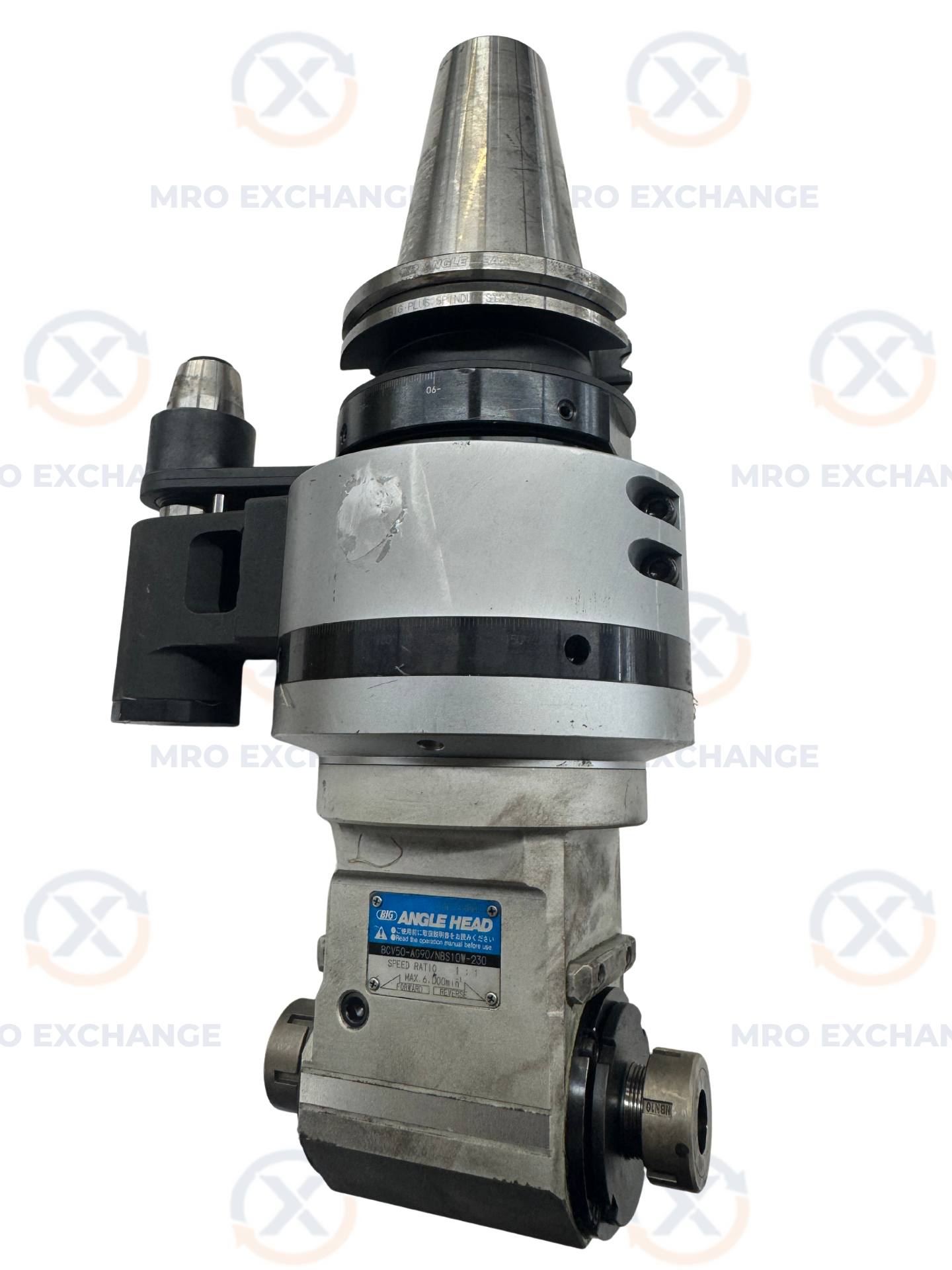

BIG Daishowa Right Angle Head BCV50-AG90/NBS10W-230 | CAT50 | NBS10W Collet Chuck Output, 230 Mm Gauge Length | Orientation: Radial
BIG Daishowa Right Angle Head BCV50-AG90/NBS10W-230 | CAT50 | NBS10W Collet Chuck Output, 230 Mm Gauge Length | Orientation: Radial
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: BCV50-AG90
Stock #: 0426-02116

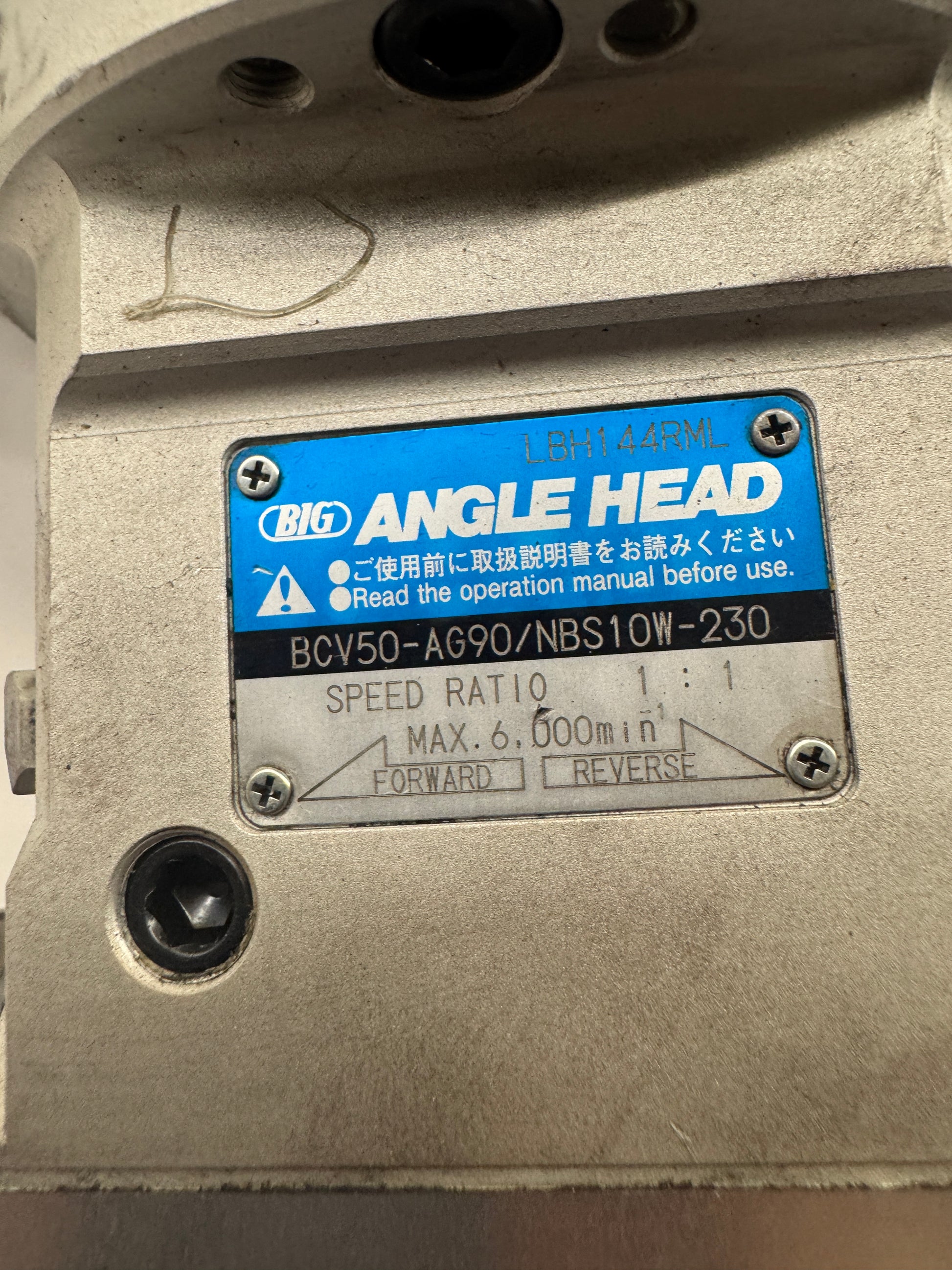

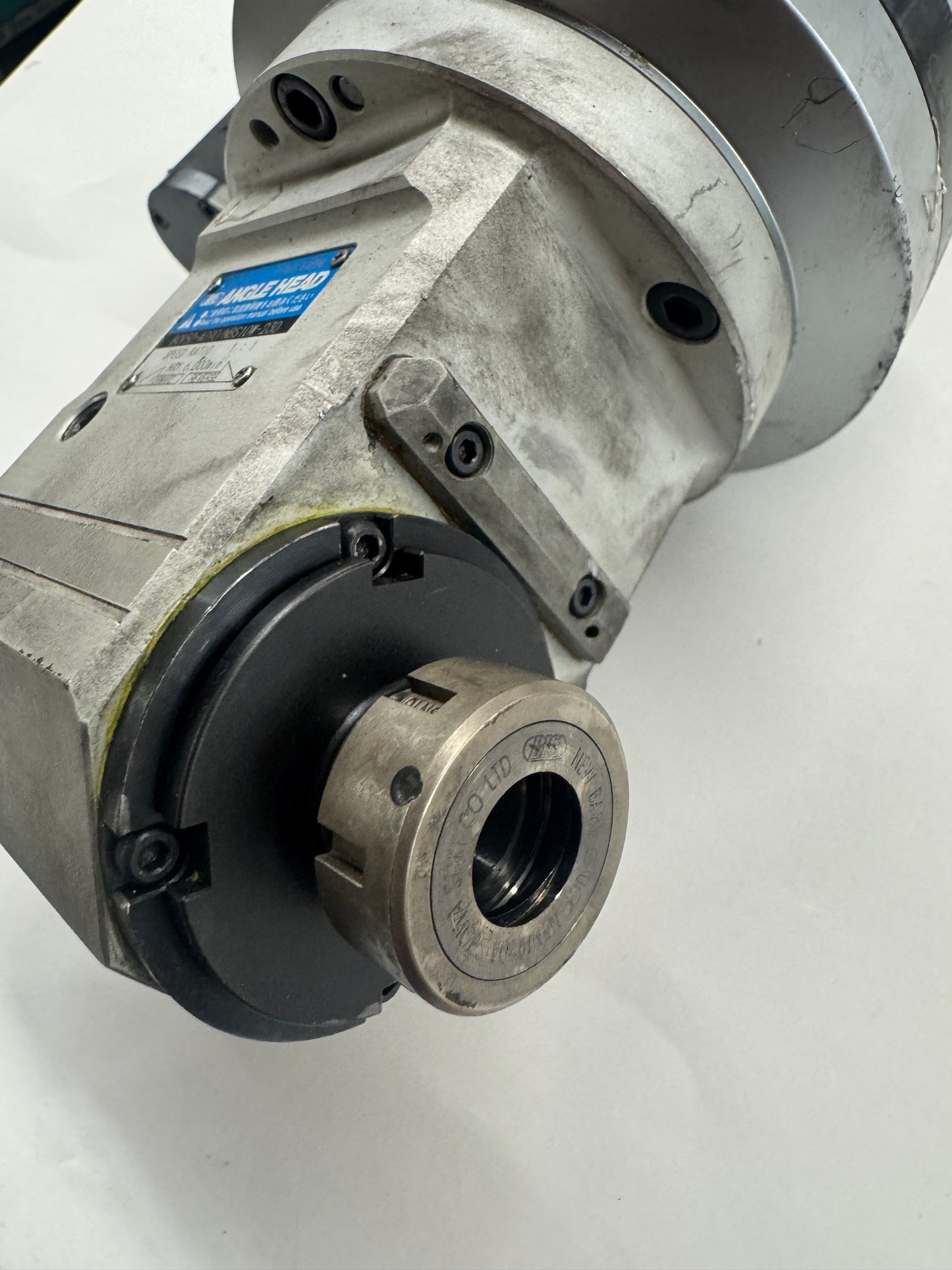

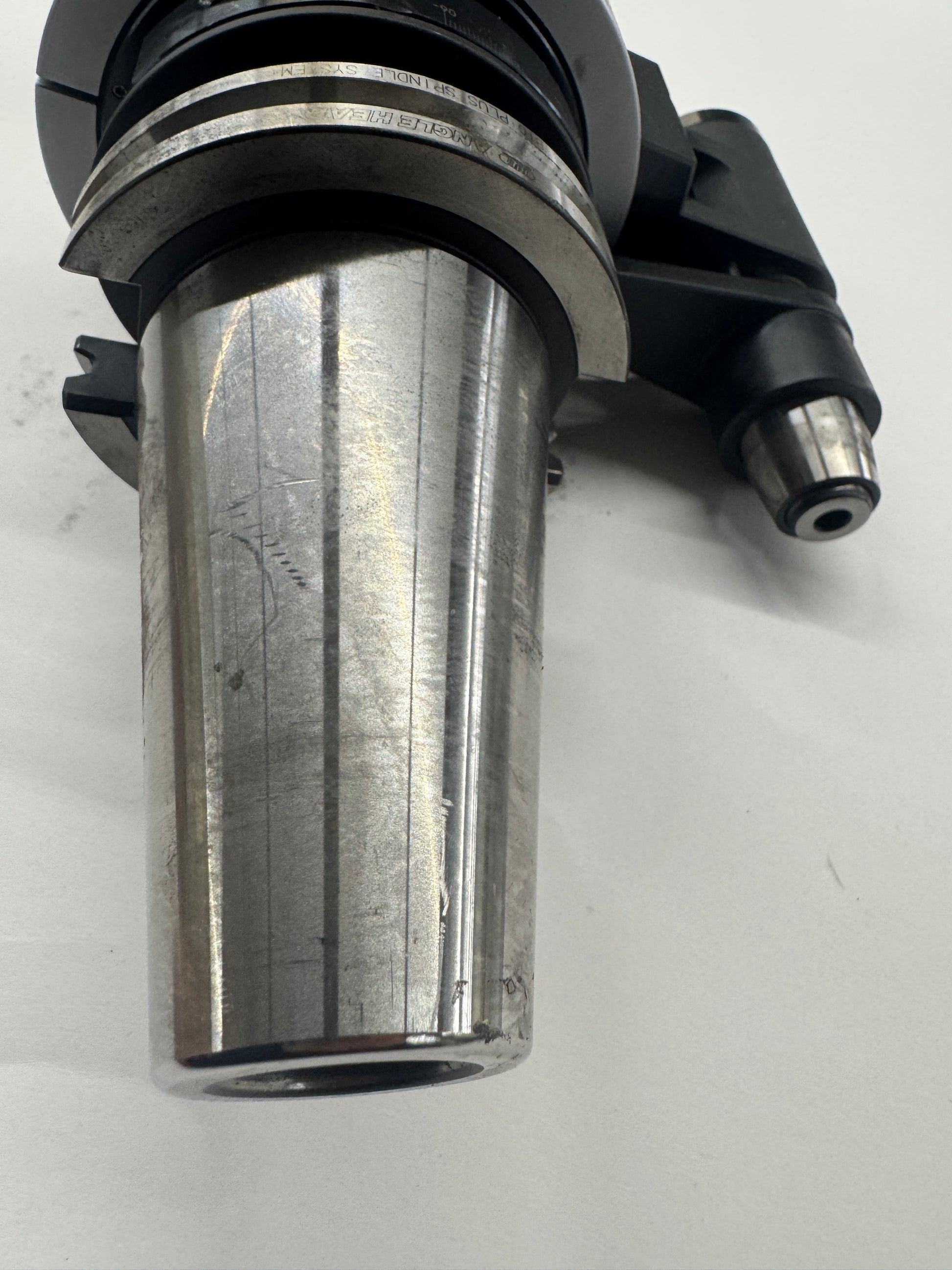

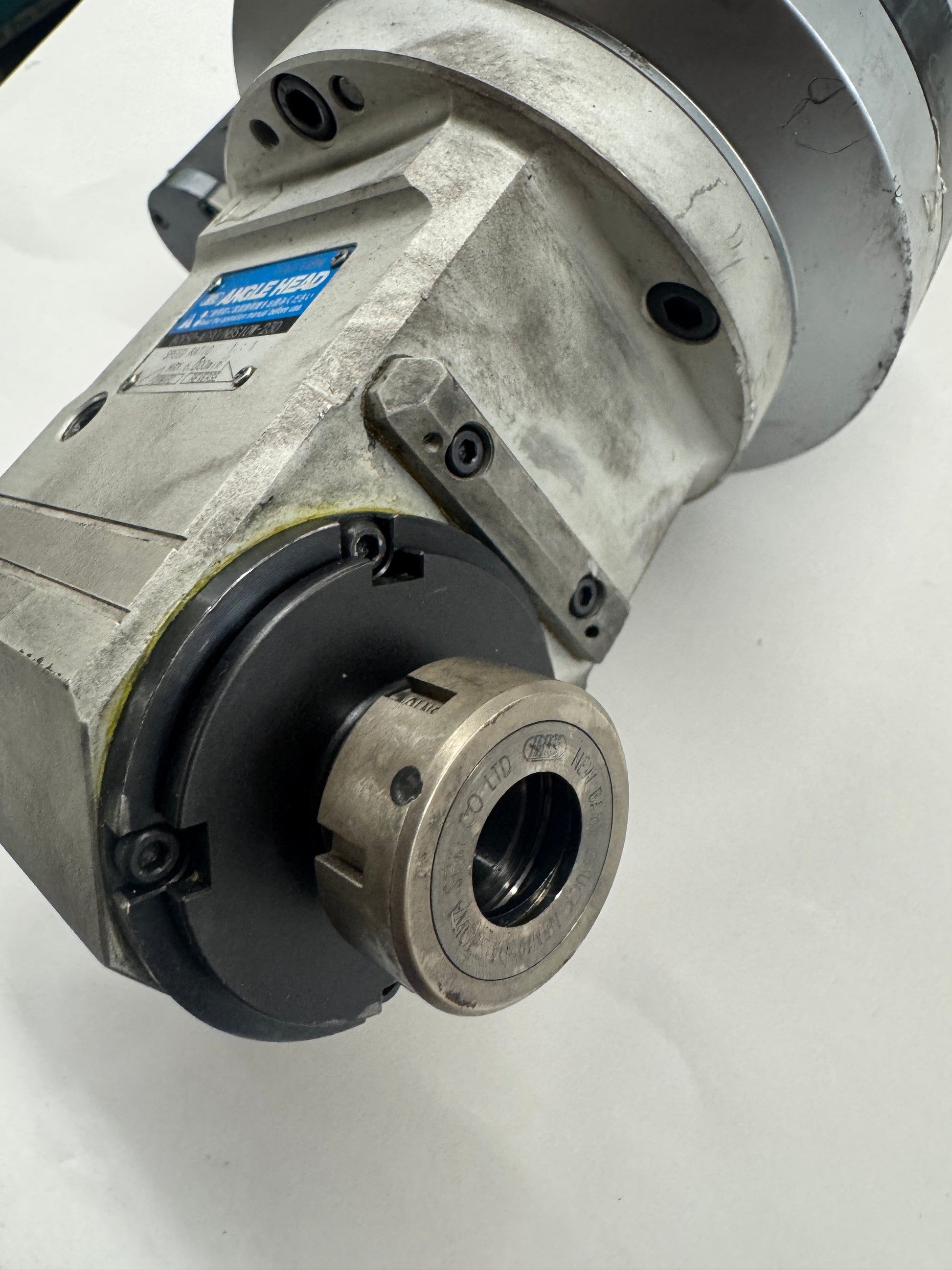

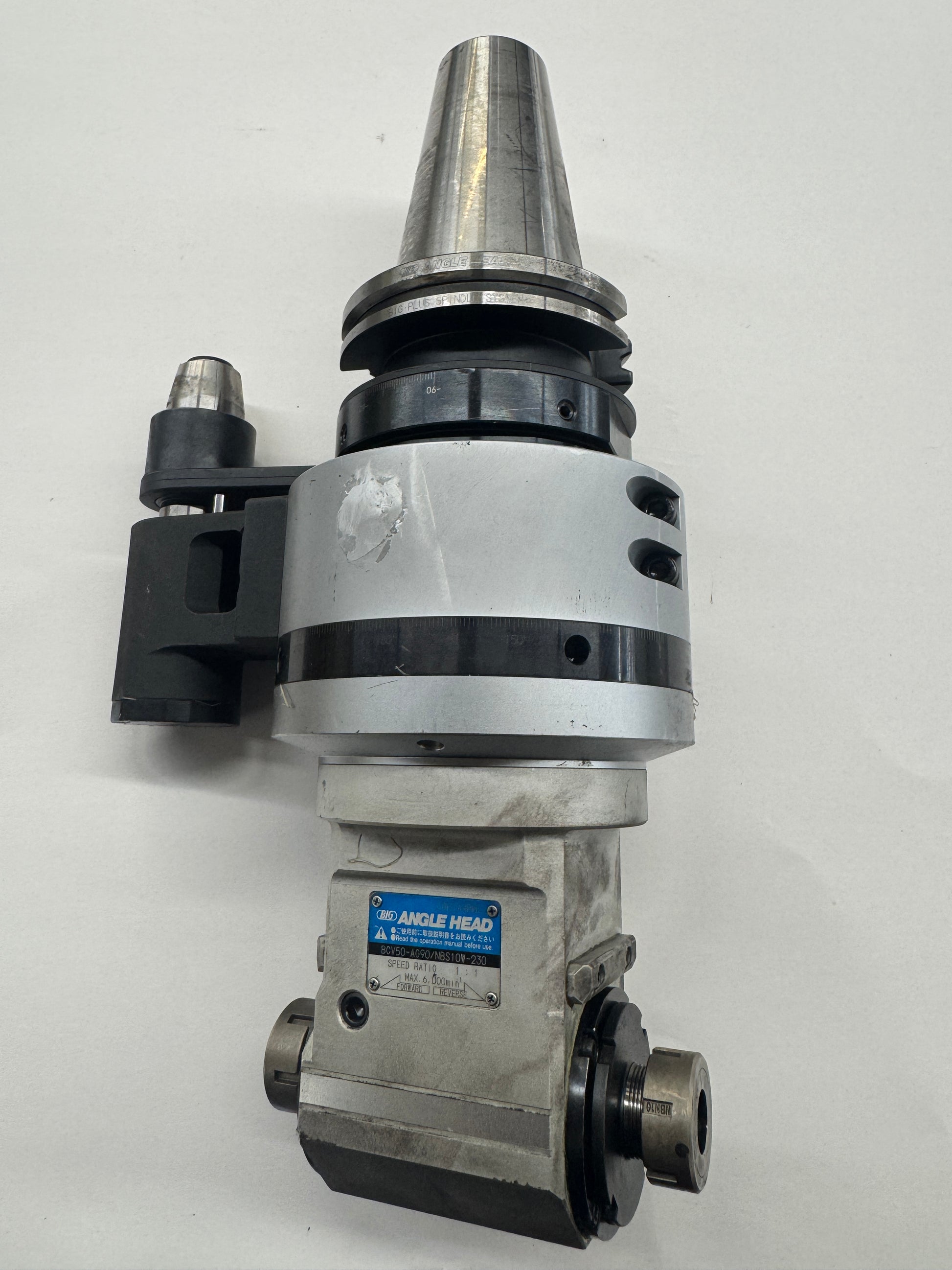

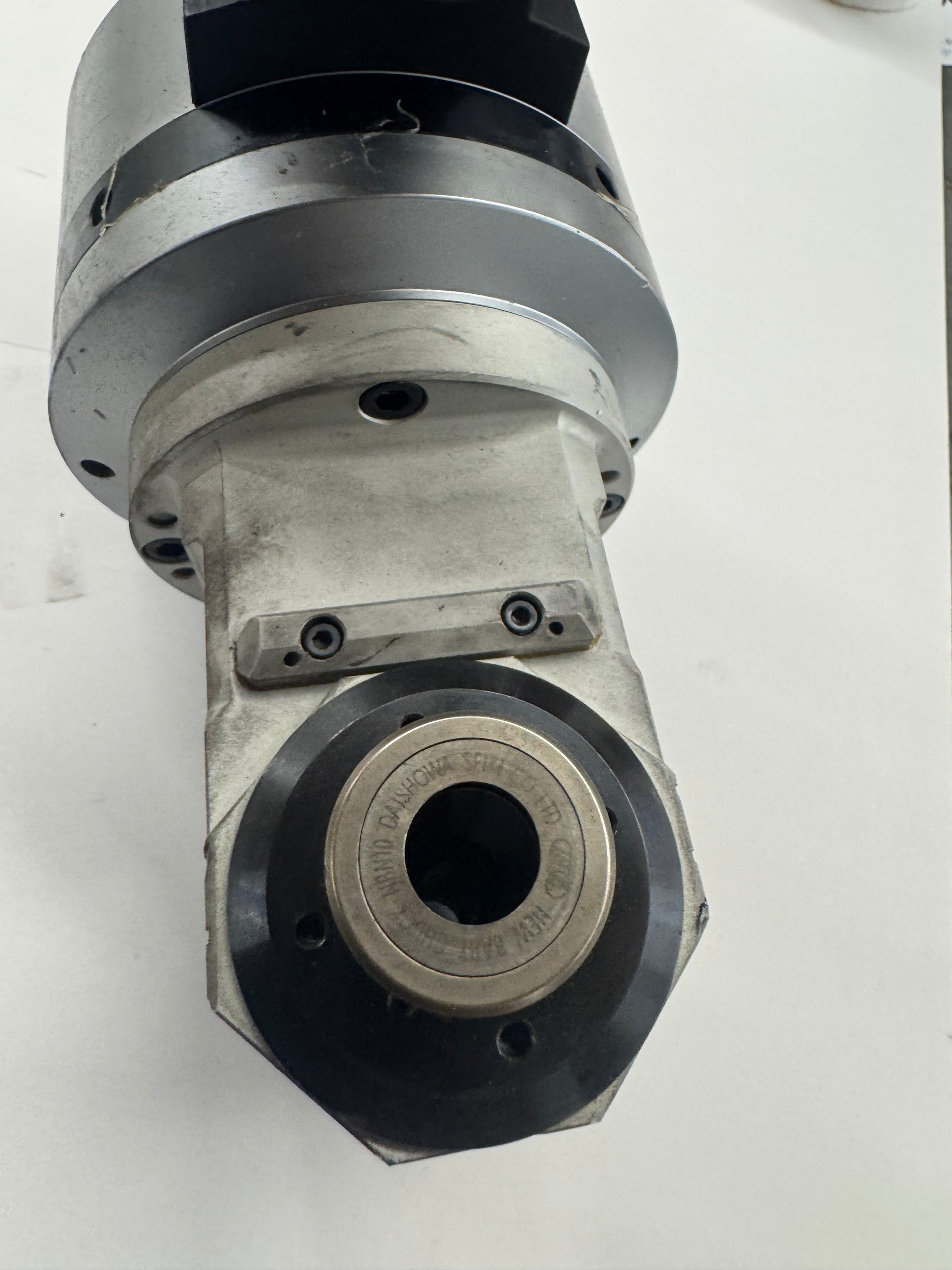

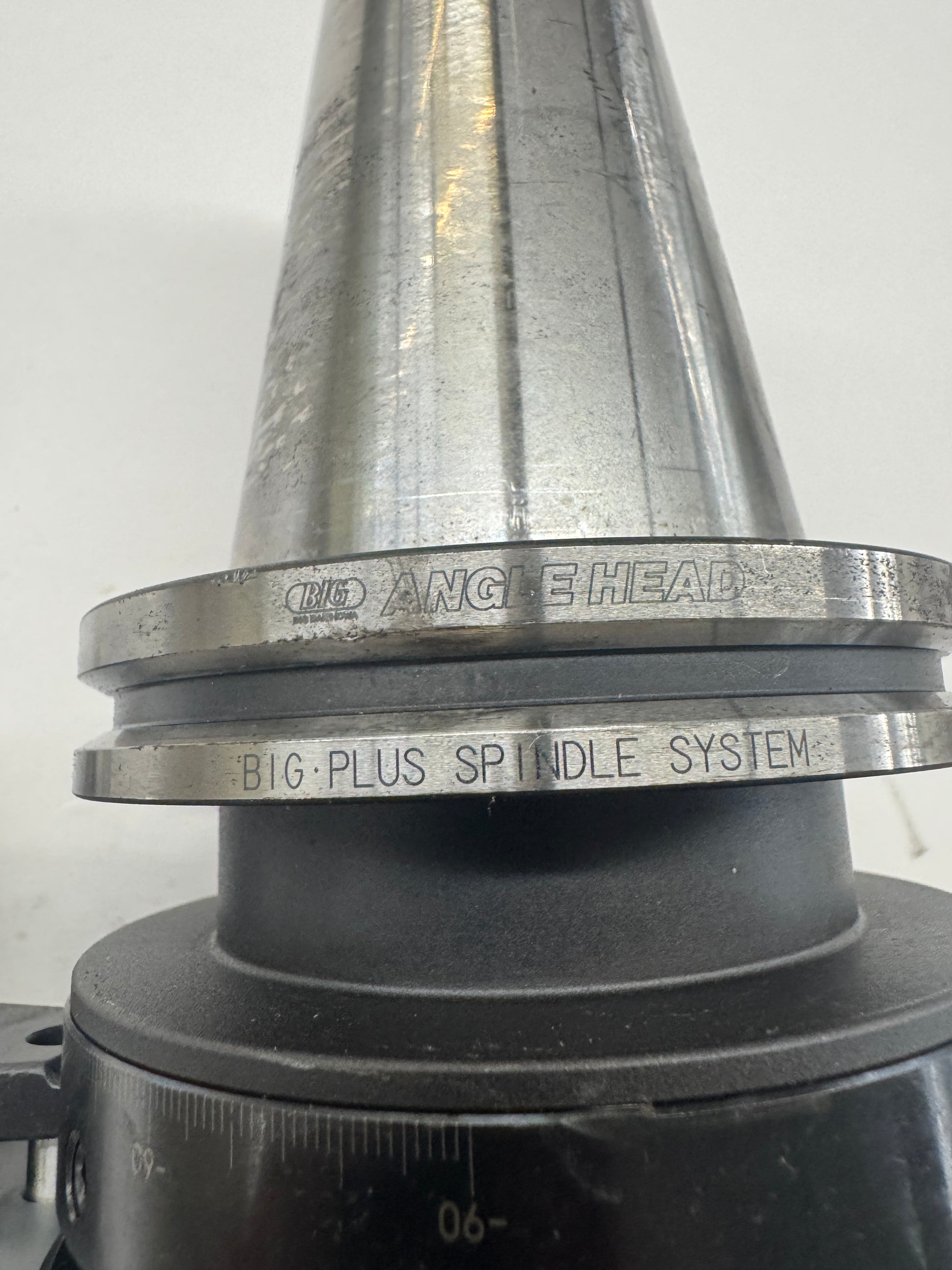

A BIG-PLUS CAT50 right angle head from BIG Daishowa, model BCV50-AG90/NBS10W-230. The unit uses BIG Daishowa's BIG-PLUS dual-contact spindle interface, which provides simultaneous taper and flange contact for improved rigidity and reduced runout compared to standard CAT50 tooling. The output chuck is a New Baby Super (NBS10W) collet system, offering high-precision clamping for small-diameter tooling. The nameplate confirms a 1:1 speed ratio and a maximum rotational speed of 6,000 RPM in both forward and reverse directions. The 90-degree output orientation allows machining of features on faces perpendicular to the main spindle axis without repositioning the workpiece. Gauge length is 230 mm. The body housing carries the internal reference LBH144RML and bears BIG Daishowa's "BIG PLUS SPINDLE SYSTEM" engraving on the shank collar. Output end carries a Daishowa-marked New Baby collet nut assembly. BIG Daishowa angle heads in the AG90 series are widely used in horizontal and vertical machining centers for cross-drilling, tapping, milling, and key slotting in hard-to-reach workpiece geometry.
Stock # 0426-02116
