D'Andrea Modular Boring System 41.6.80.01.050.49 | CAT50 | 68-90mm Boring Range

$729.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 41.6.80.01.050.49
Stock #: 0426-01237

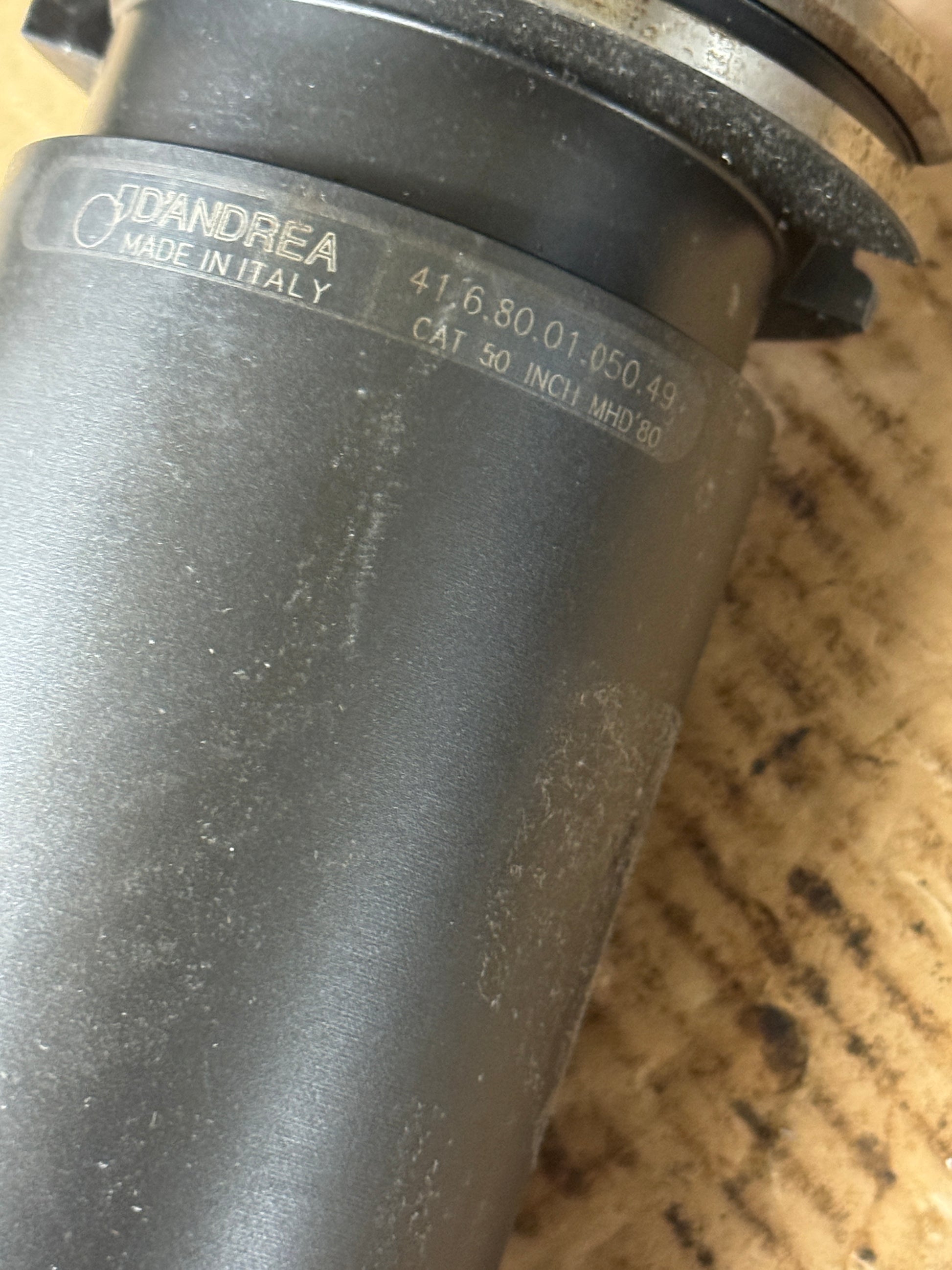

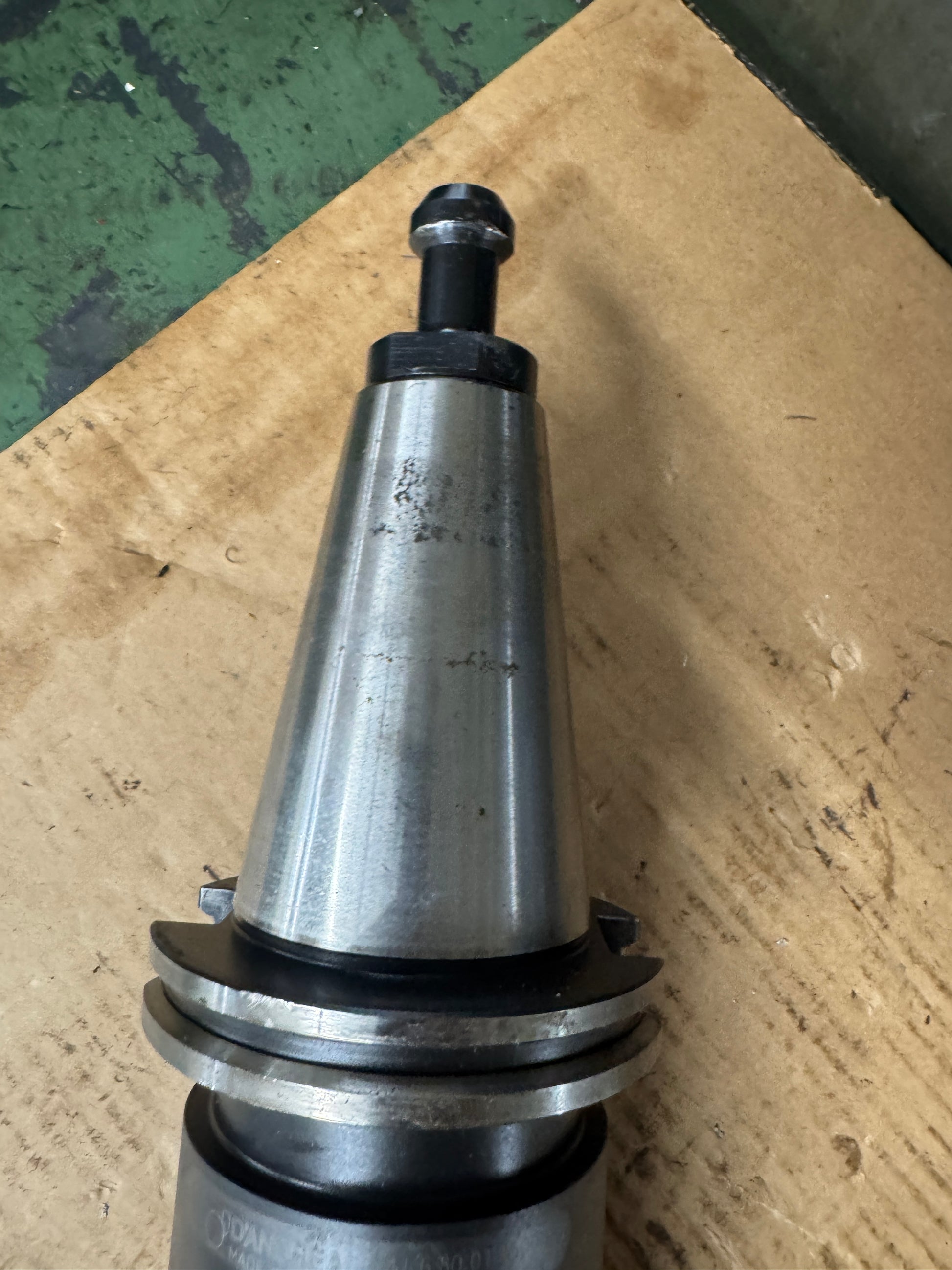

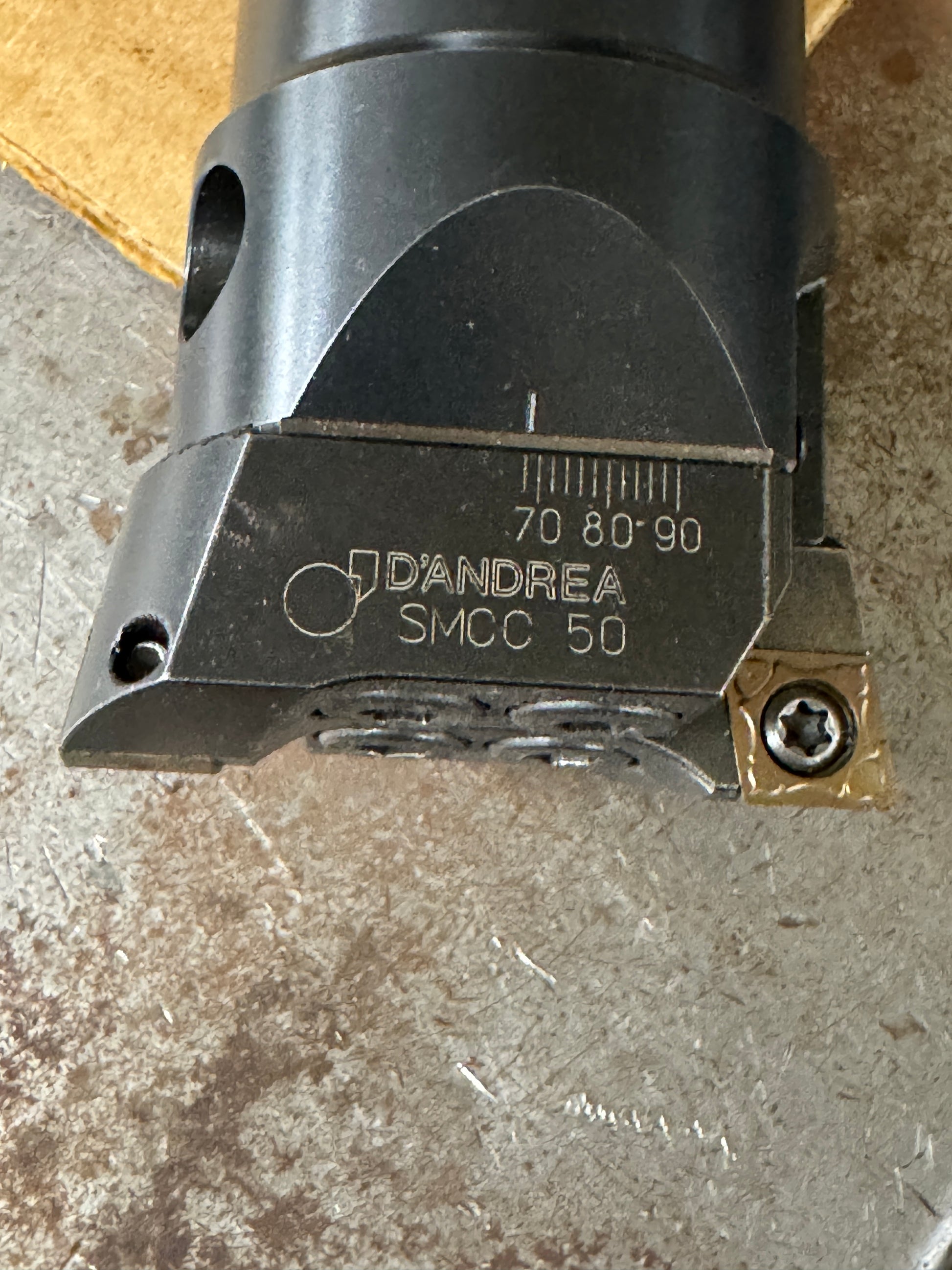

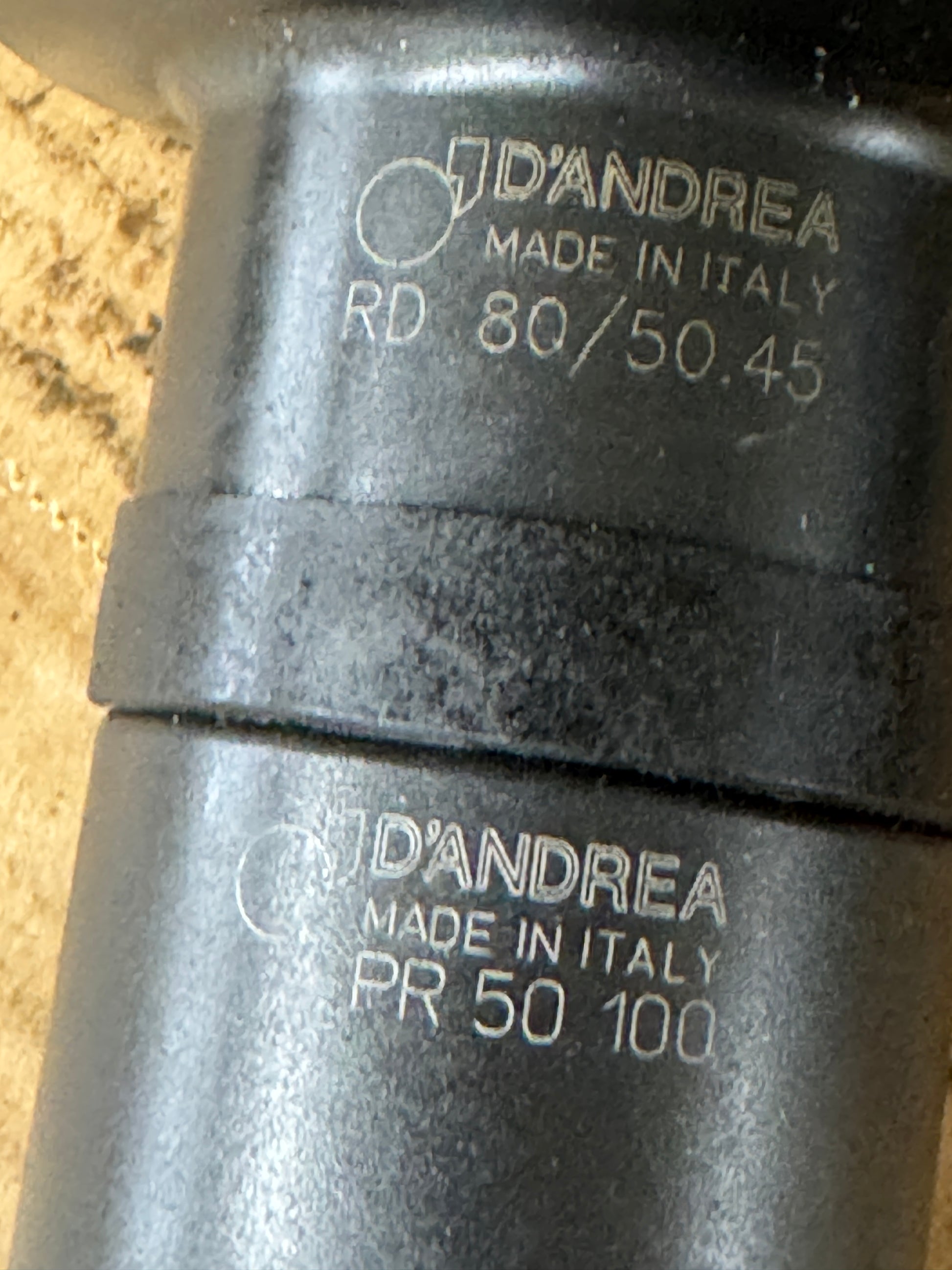

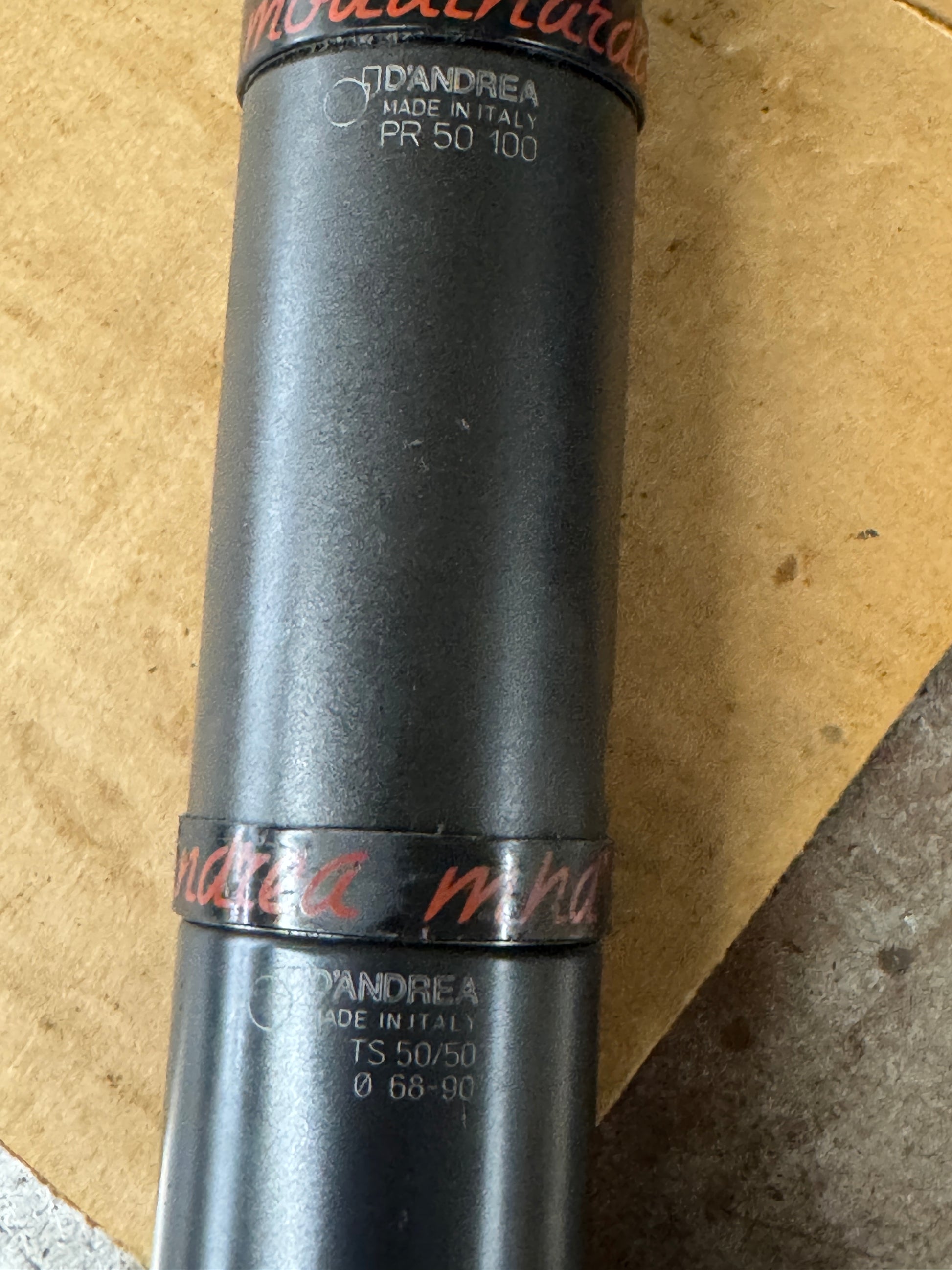

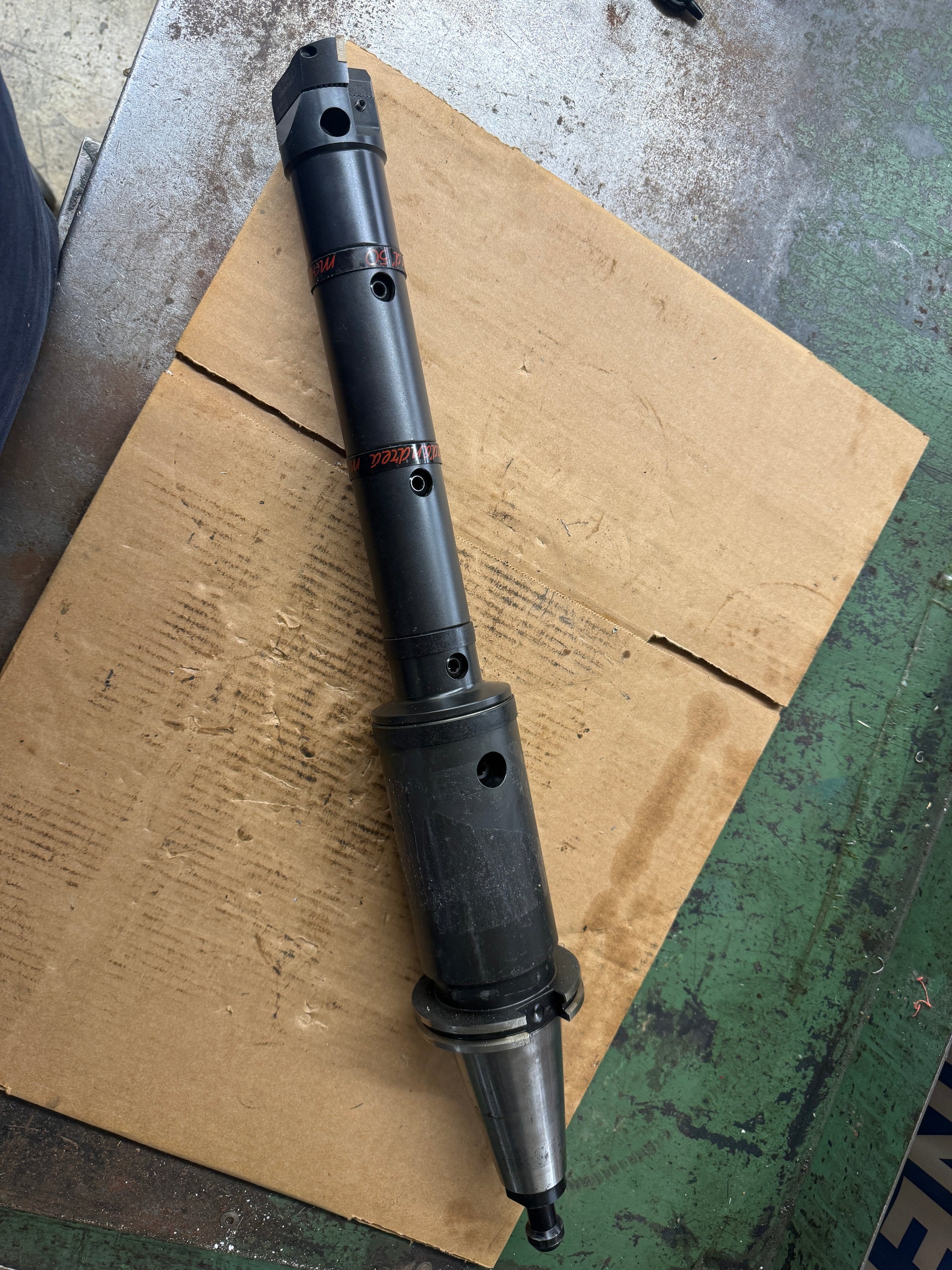

A complete D'Andrea modular boring system assembled on a CAT50 (ANSI) spindle interface, made in Italy. The arbor is identified by part number 41.6.80.01.050.49, an MB80 modular connection tool holder with 180mm gauge length. Assembled to the arbor is a D'Andrea RD 80/50.45 reducing adapter and a PR 50 100 extension tube, both marked D'Andrea Made in Italy. The working end carries a D'Andrea TS 50/50 rough boring head with a confirmed boring range of 68 to 90mm (approximately 2.68 to 3.54 inches). A D'Andrea SMCC 50 shell mill cutter body is also present in the assembly, fitted with one carbide insert. All components are D'Andrea brand and interconnect via the D'Andrea Pro modular system using MB-series connections. The full assembled length is substantial, making this system suited to deep-bore applications in horizontal machining centers or large vertical machining centers equipped with CAT50 spindles. D'Andrea is an Italian precision tooling manufacturer whose modular boring systems are used across aerospace, die-mold, and general machining production environments. All component markings are confirmed from nameplate data visible in photographs. Assembly is sold as pictured and includes all components shown.

Stock # 0426-01237
