Dayton Centrifugal Pump 2ZXL7 1-1/4 in NPT Inlet, 1 in NPT Discharge 82 ft Max Head
Dayton Centrifugal Pump 2ZXL7 1-1/4 in NPT Inlet, 1 in NPT Discharge 82 ft Max Head
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

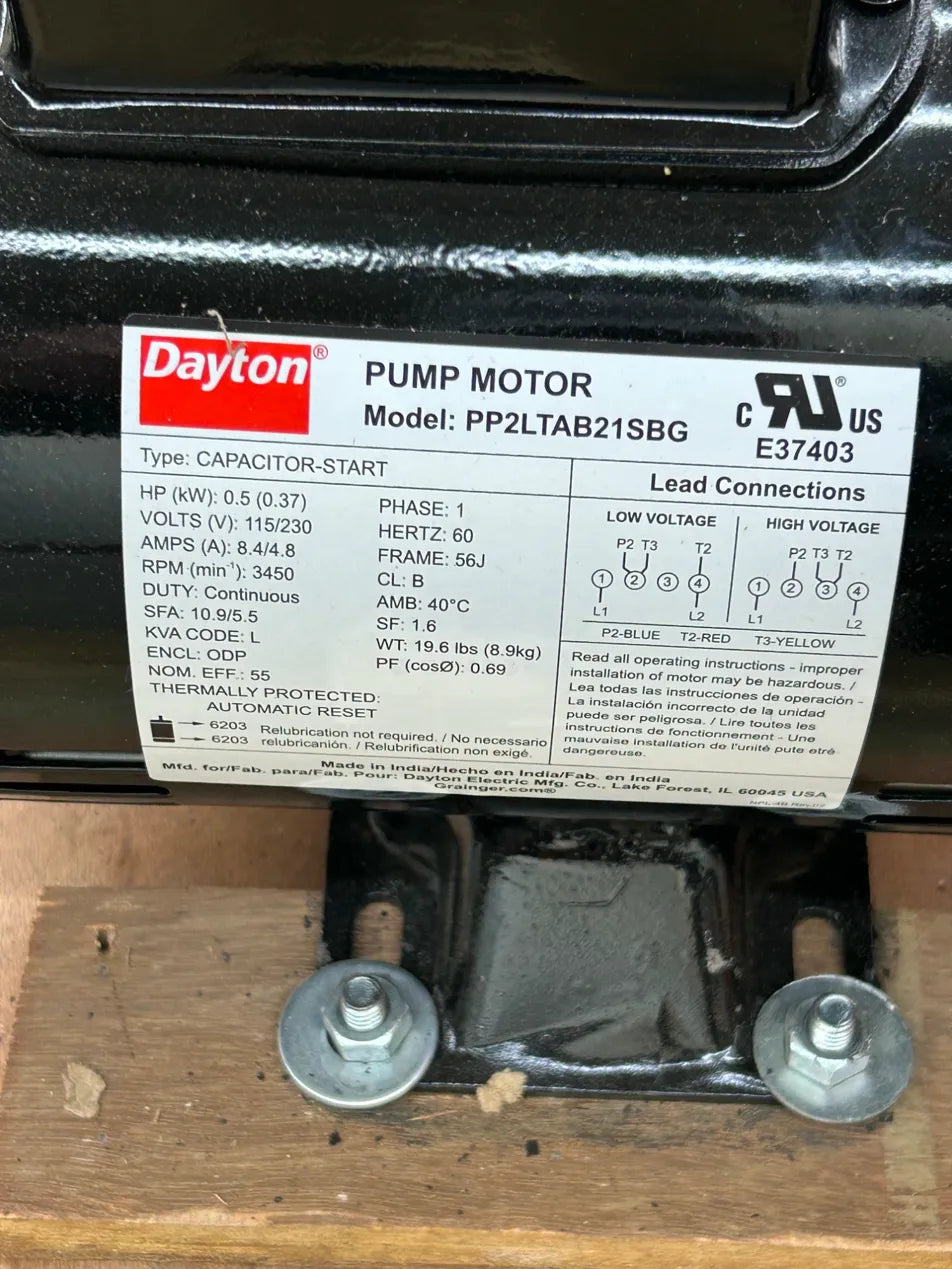

Used in water circulation, irrigation, cooling tower, filtration, and general fluid transfer applications, the Dayton 2ZXL7 is a cast iron high head centrifugal pump rated at 1/2 HP and 115/230V AC single phase. The integrated motor carries model number PP2LTAB21SBG, operating at 3,450 RPM with a 56J frame, capacitor-start type, and ODP enclosure. Nameplate data confirms 8.4/4.8 amps, 60 Hz, Service Factor 1.6, and continuous duty rating.

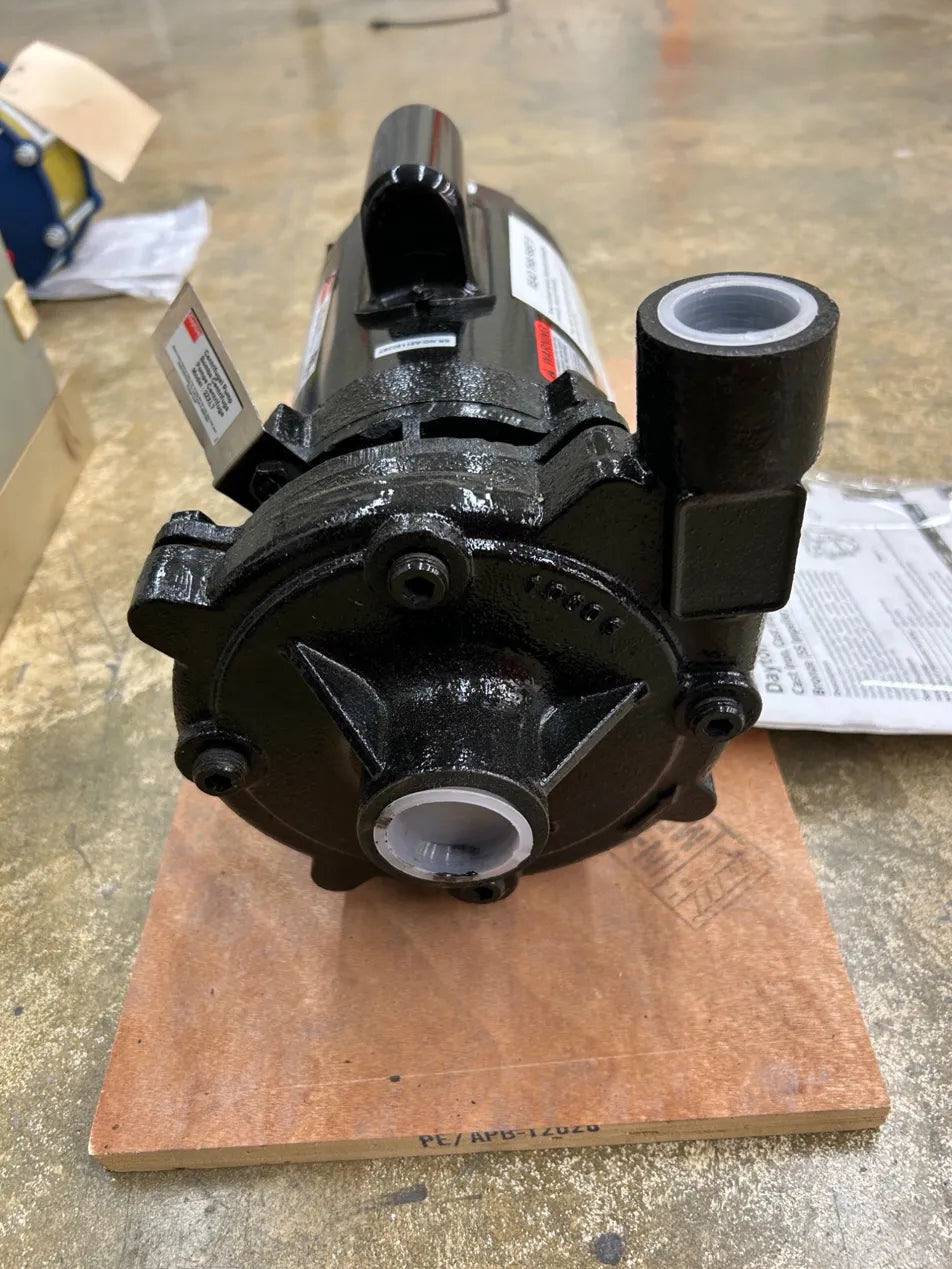

Published specifications for MPN 2ZXL7 indicate a maximum head of 82 ft, a flow rate of up to 42 gpm at 10 ft of head, 32 gpm at 40 ft of head, and 21 gpm at 60 ft of head. The 1-1/4 in NPT inlet and 1 in NPT discharge connections are standard configurations for this pump family. Impeller material is brass with a cast iron volute and stainless steel shaft. A brass impeller with a maximum solids diameter of 5/16 in is confirmed in published OEM data.

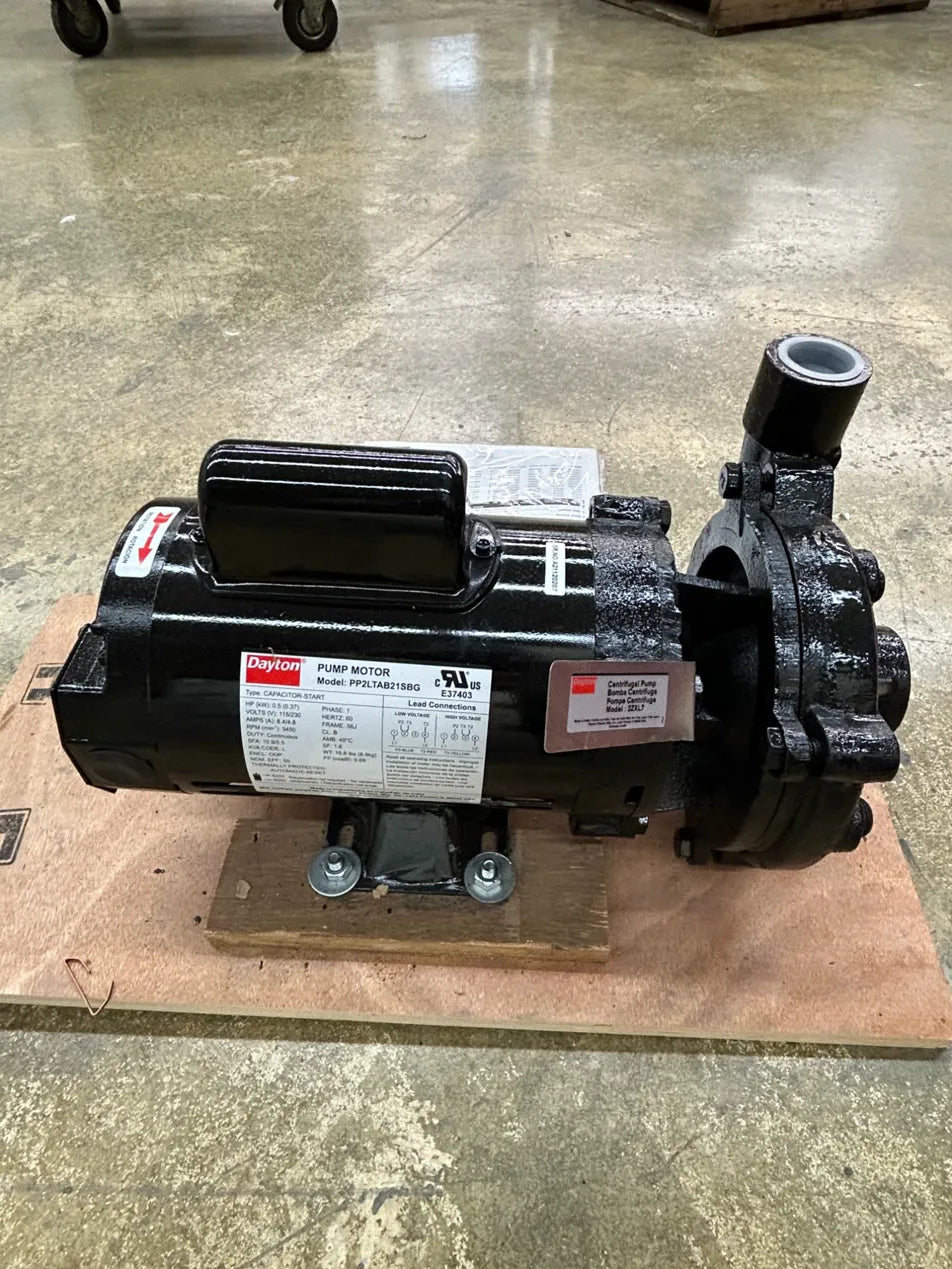

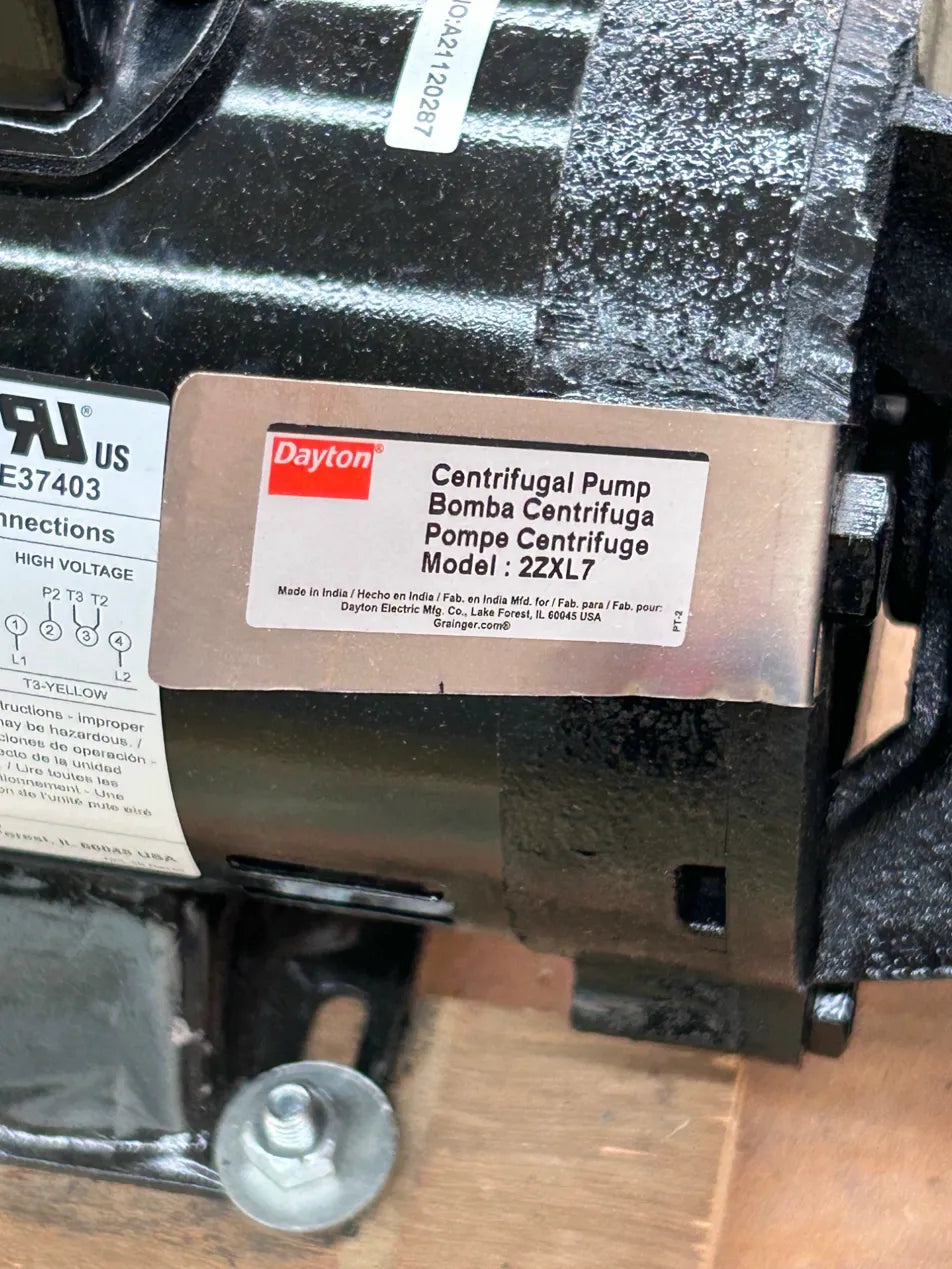

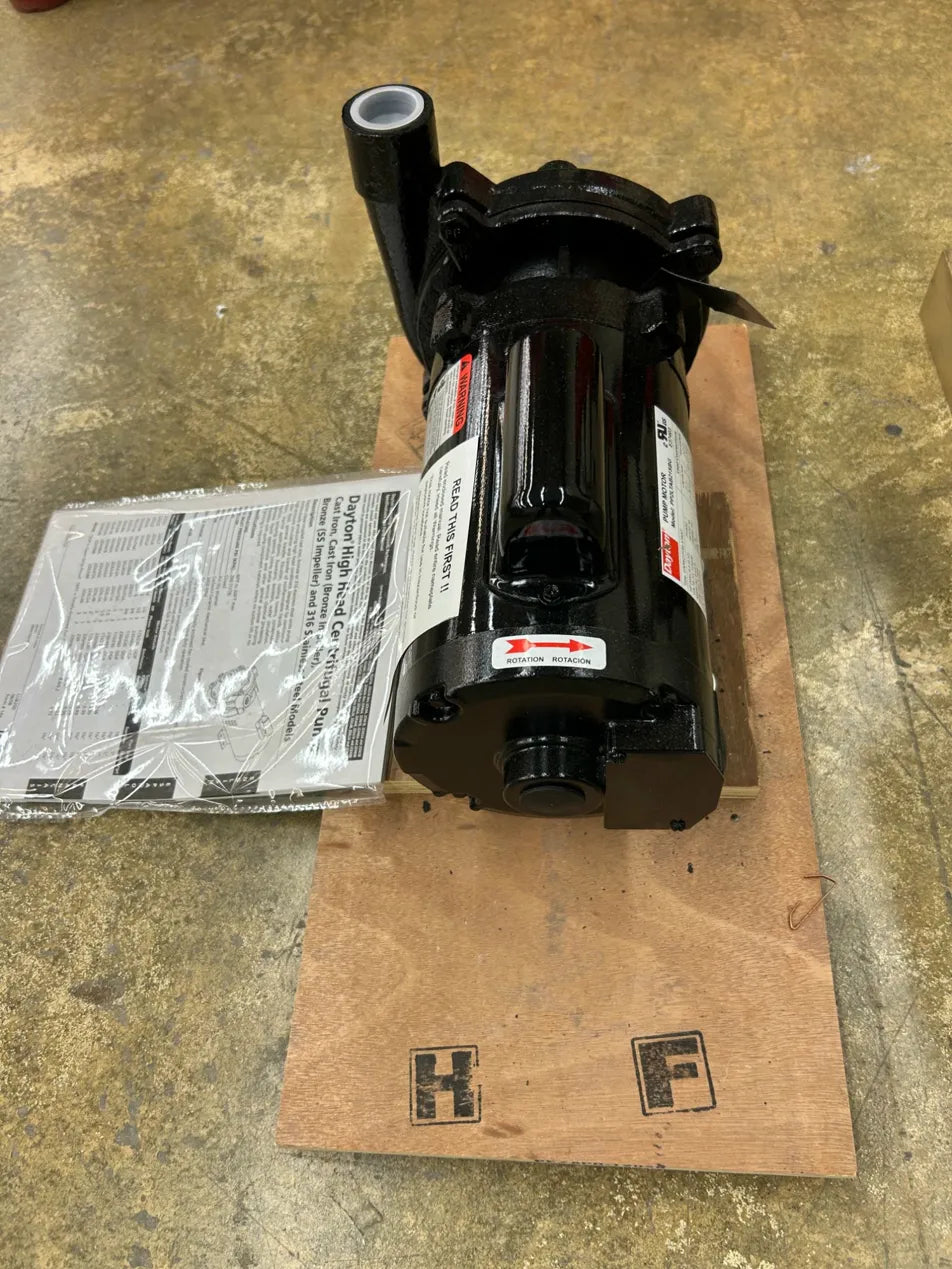

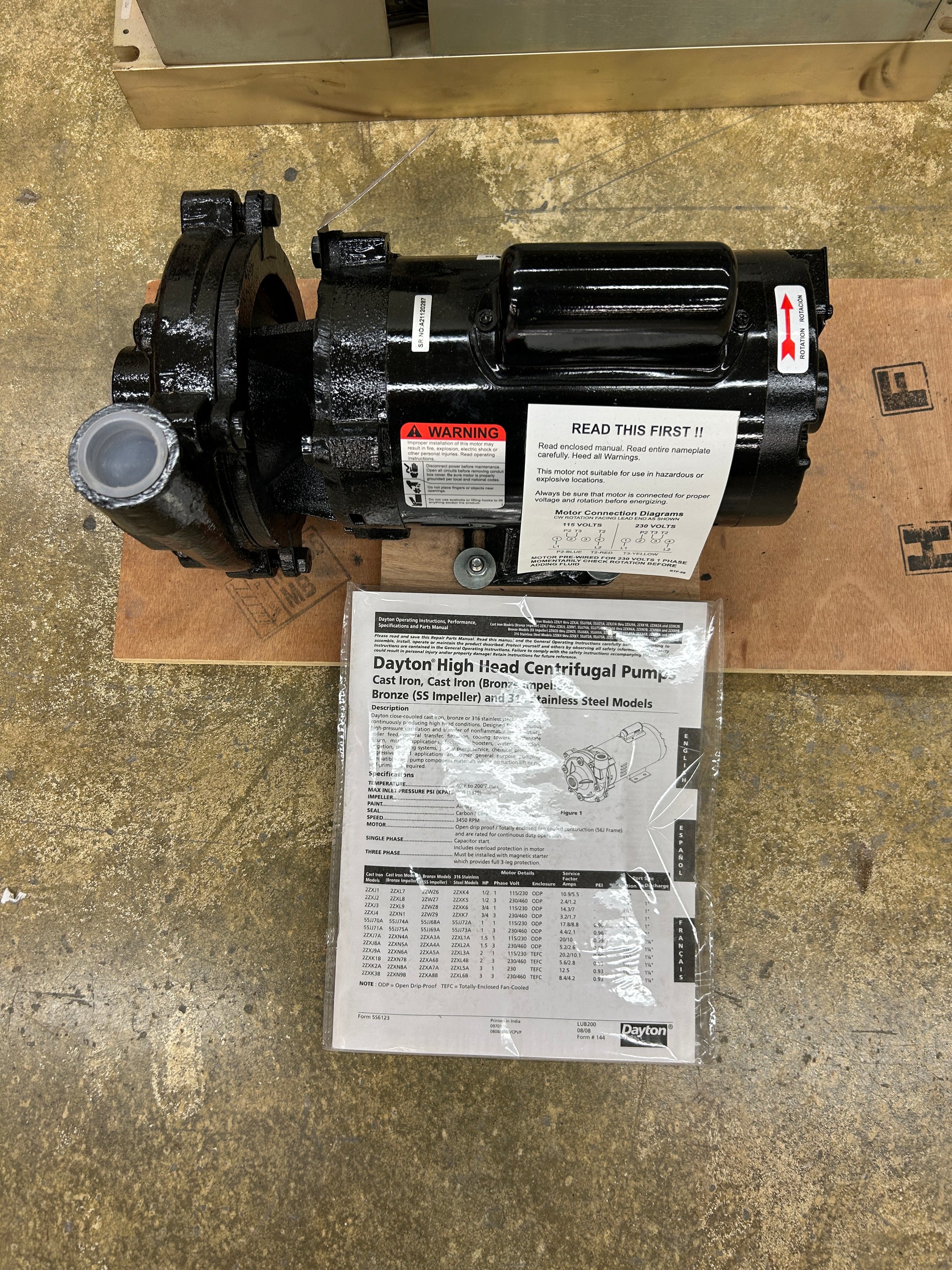

The assembly ships with the original Dayton instruction and parts manual. The unit is mounted on a wood skid as shown in photos. Thermal protection is automatic reset type. This pump is manufactured for Dayton Electric Mfg. Co., Lake Forest, IL, and is listed to UL standards as indicated by the nameplate marking E37403.
Stock # 0226-584
