Dayton Immersion Coolant Pump 3GRW1 3/4 in NPT
Dayton Immersion Coolant Pump 3GRW1 3/4 in NPT
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

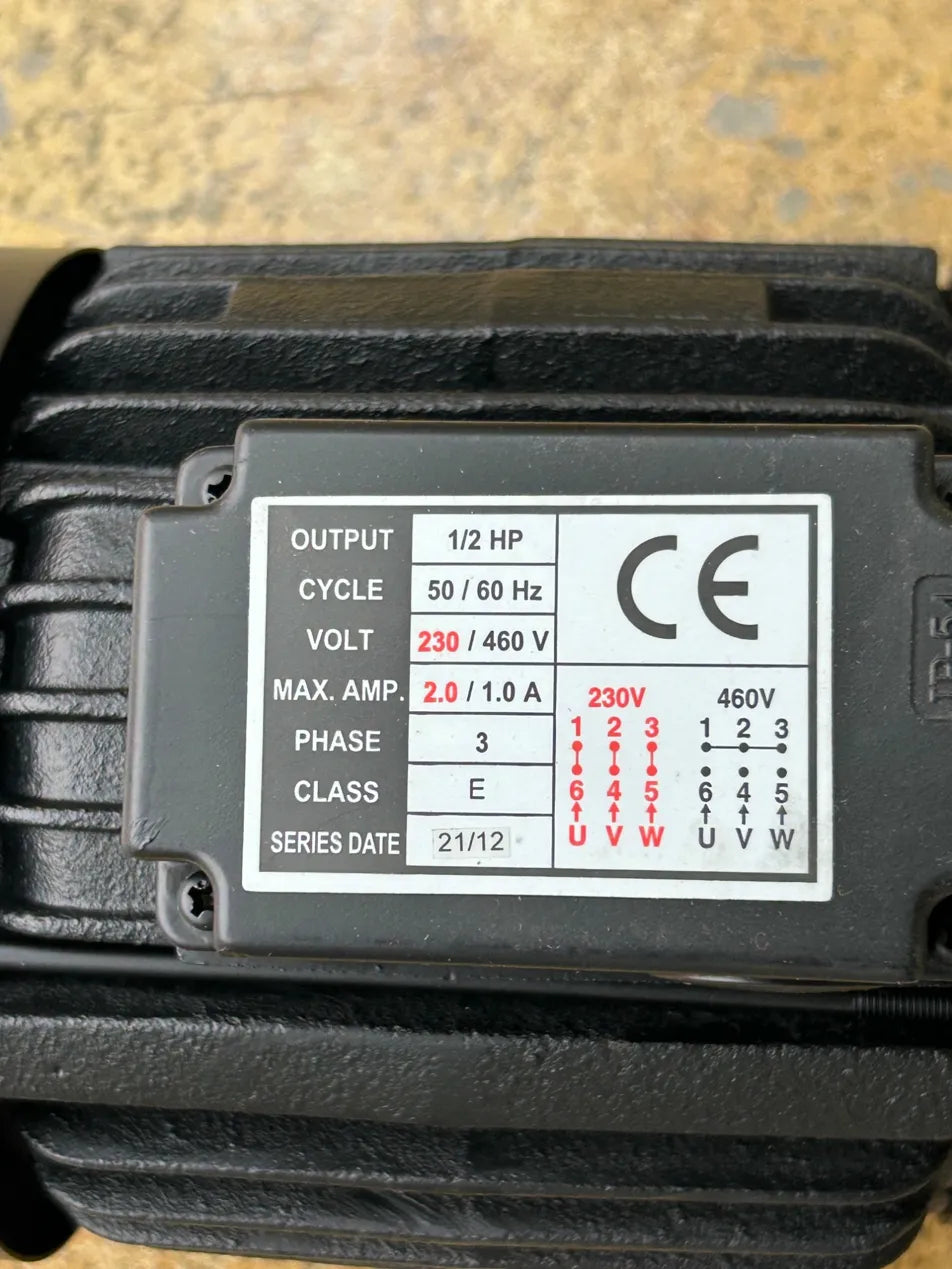

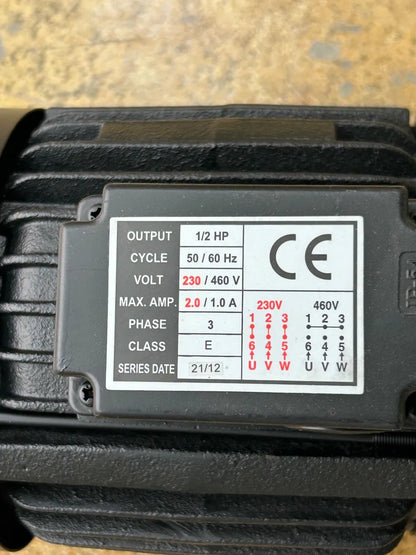

Used in machine tool applications including mills, lathes, and grinders, the Dayton 3GRW1 is a 3-phase immersion coolant pump rated at 1/2 HP. It operates on 230 or 460 volts at 50/60 Hz, drawing 2.0 amps at 230V or 1.0 amp at 460V, and is wired for 3-phase service with dual voltage configuration shown on the terminal box label. The motor carries Insulation Class E and bears a series date of 21/12.

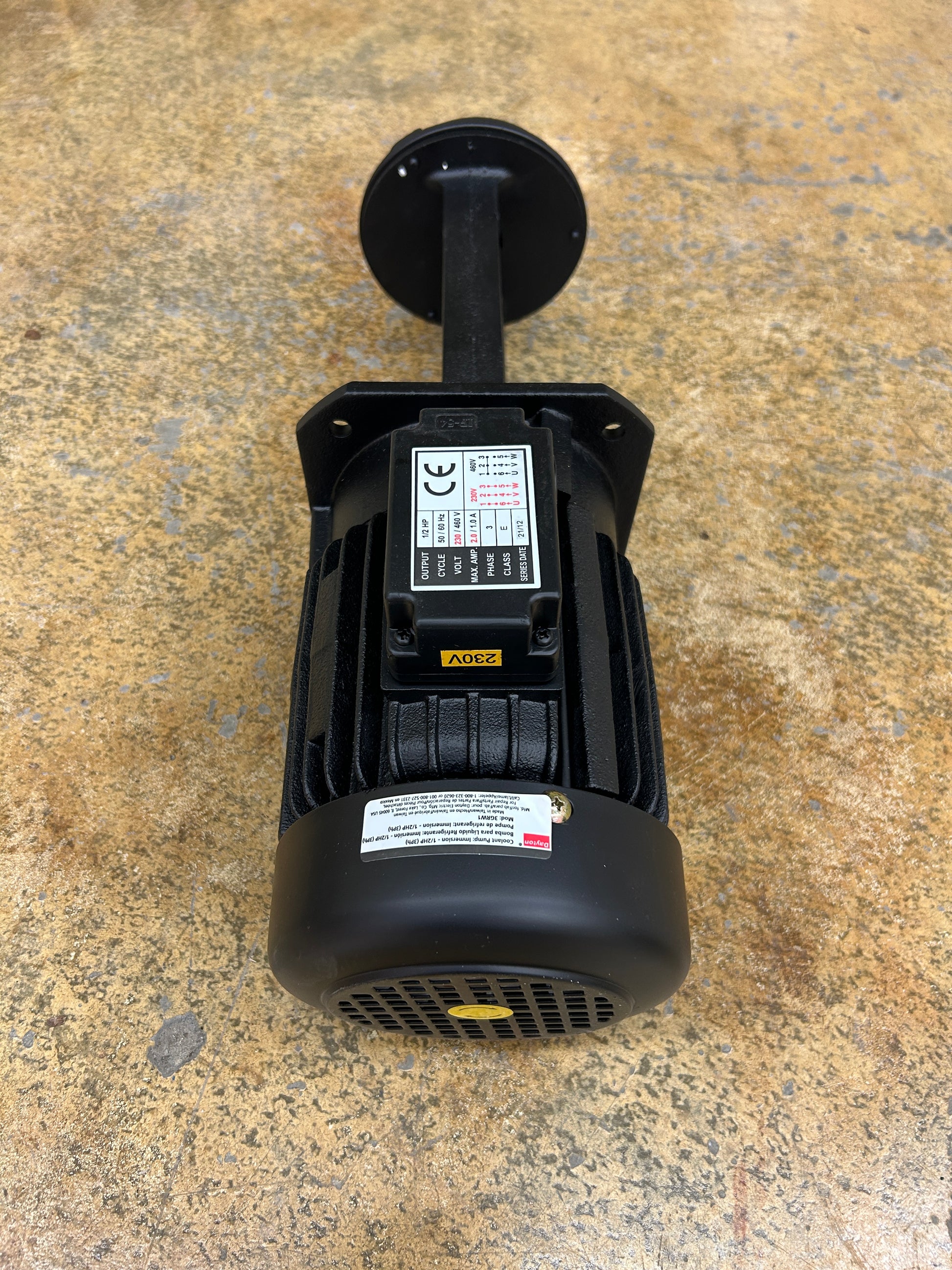

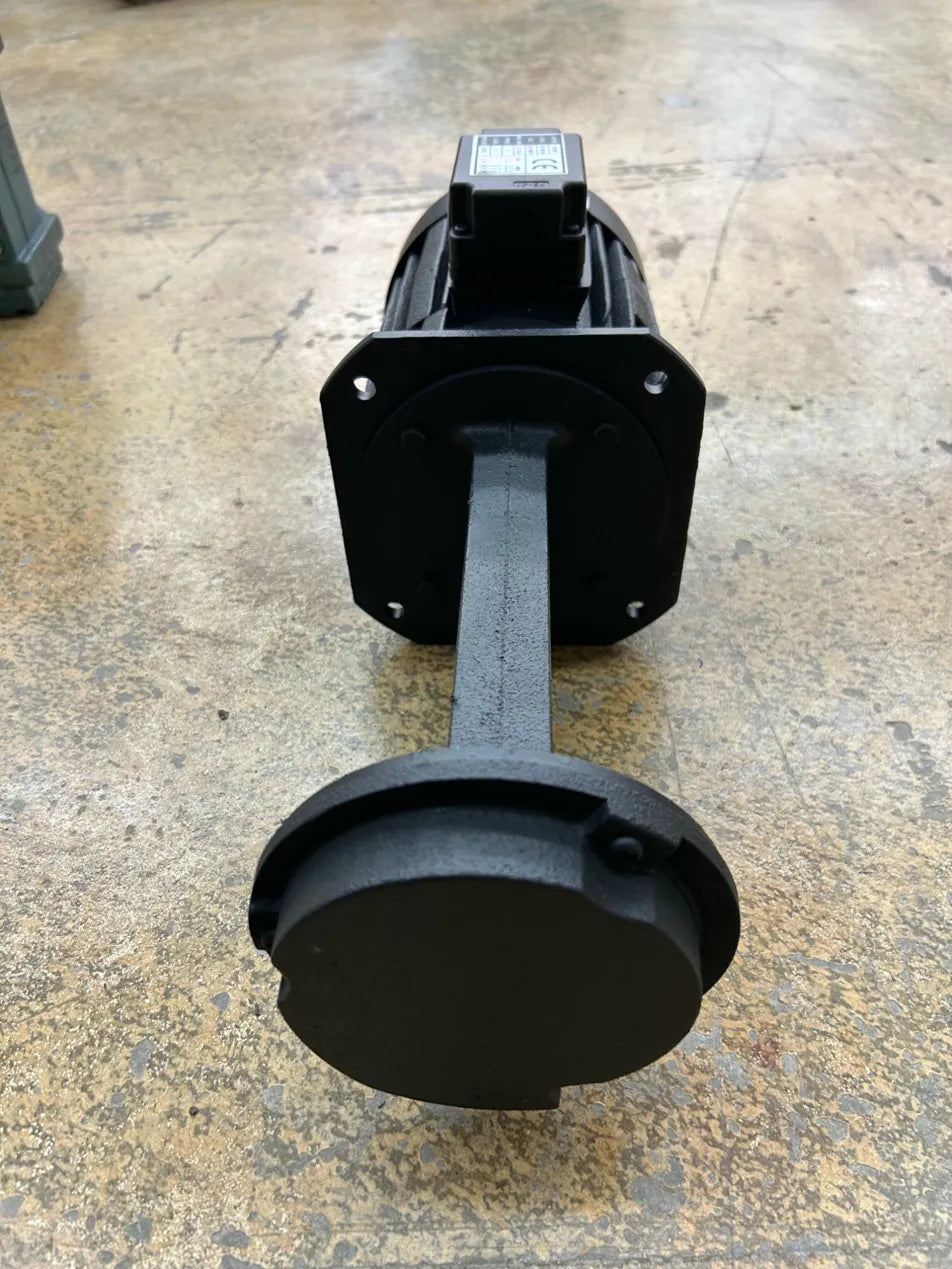

The cast iron body pump is designed for immersion in coolant sumps and delivers cutting fluid to machine tool cutting zones. The extended column and pump head assembly position the impeller below the sump floor level while the motor remains above the fluid surface. Discharge port size is 3/4 in NPT per published Dayton specifications for this model. The pump carries CE certification as shown on the terminal box label.

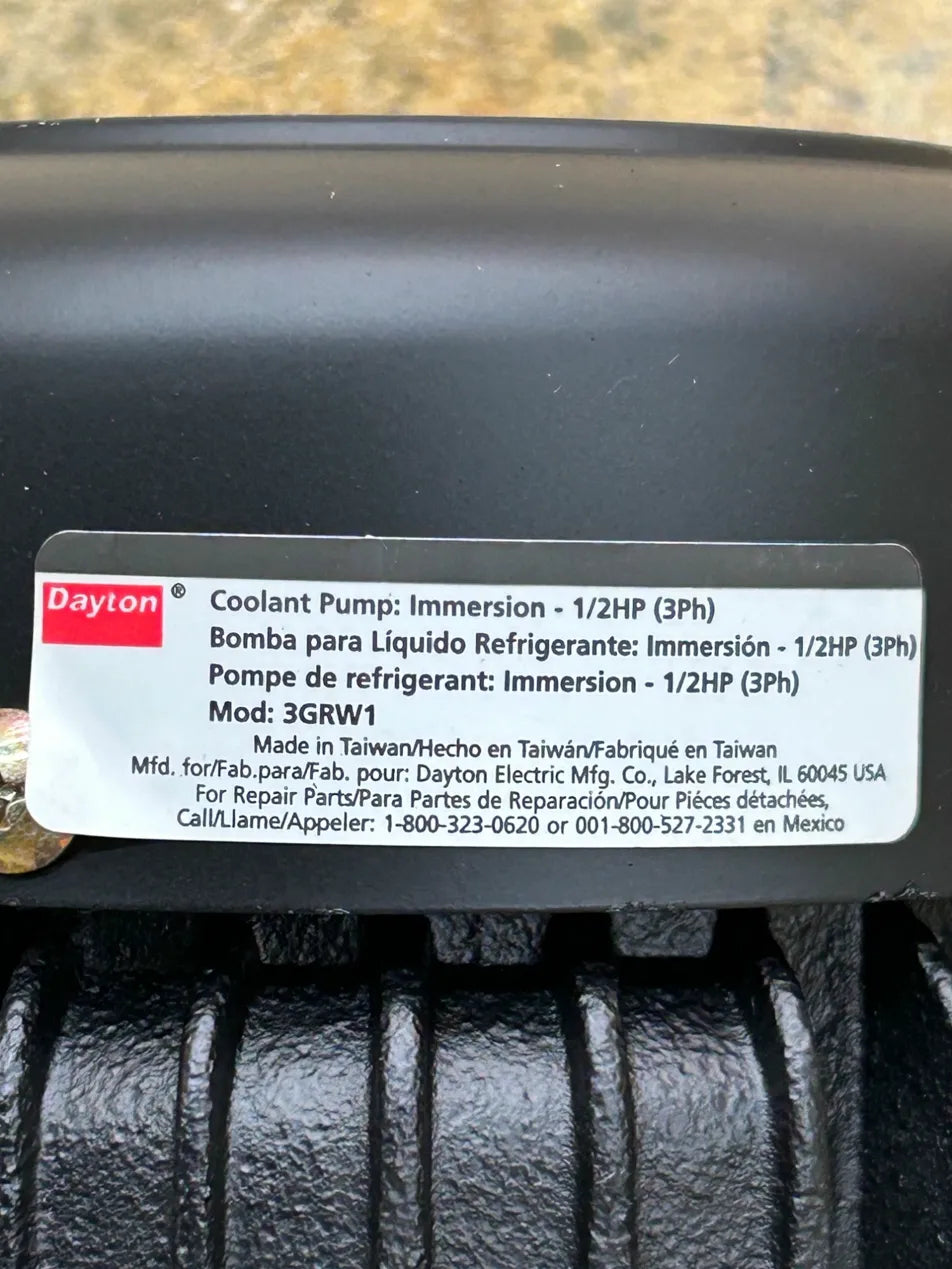

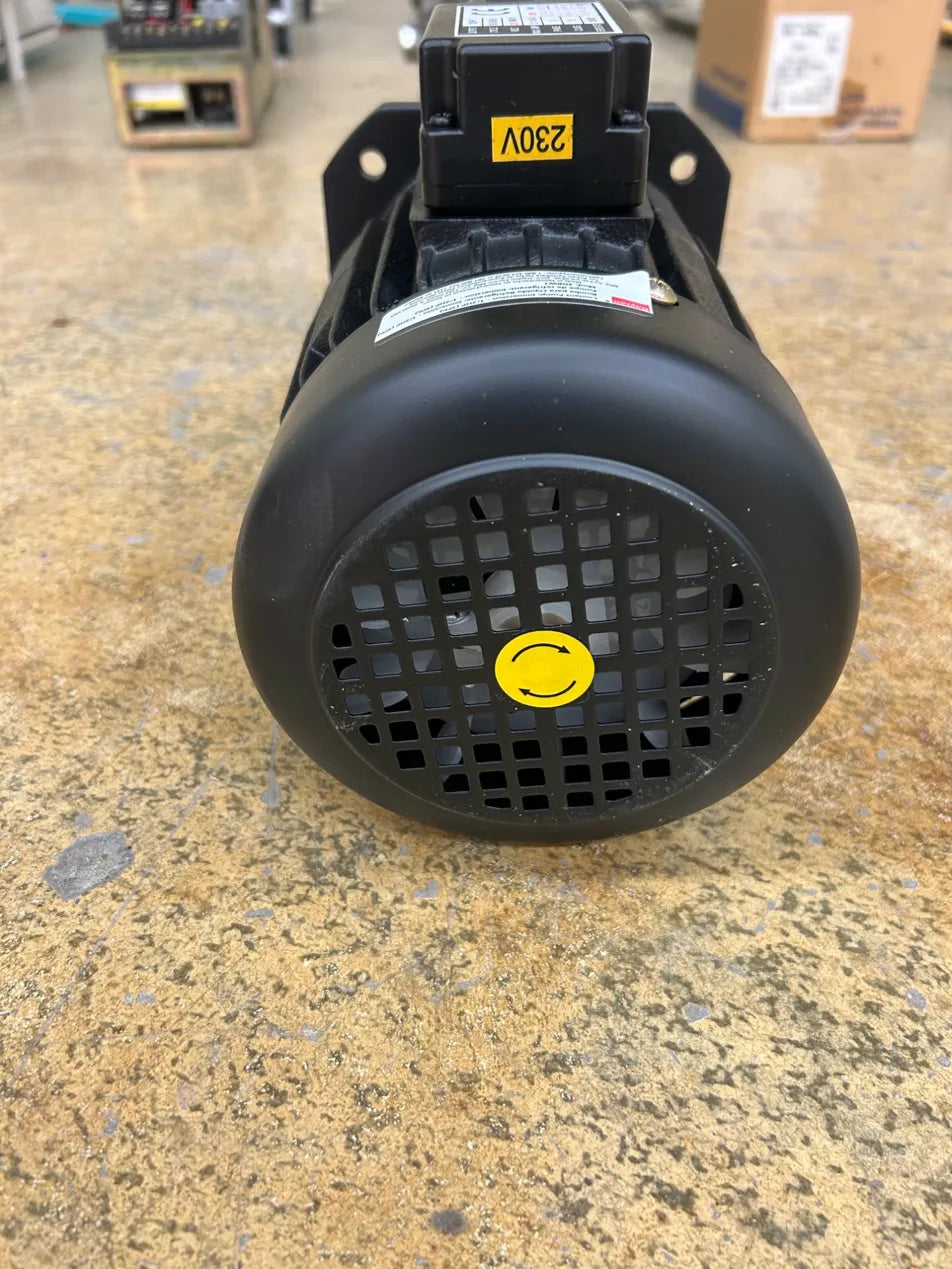

The 3GRW1 is compatible with nonflammable liquids within the material compatibility range of its components, including cutting oils and water-soluble coolants up to 500 SSU viscosity and 180 degrees F. The dual-rotation indicator sticker is visible on the fan cowl. MPN 3GRW1 is distributed by Dayton Electric Mfg. Co., Lake Forest, IL, and manufactured in Taiwan.
Stock # 0226-594
