Fanuc A06B-0651-B005 DC Servo Motor 3 HP 1500 RPM
Fanuc A06B-0651-B005 DC Servo Motor 3 HP 1500 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

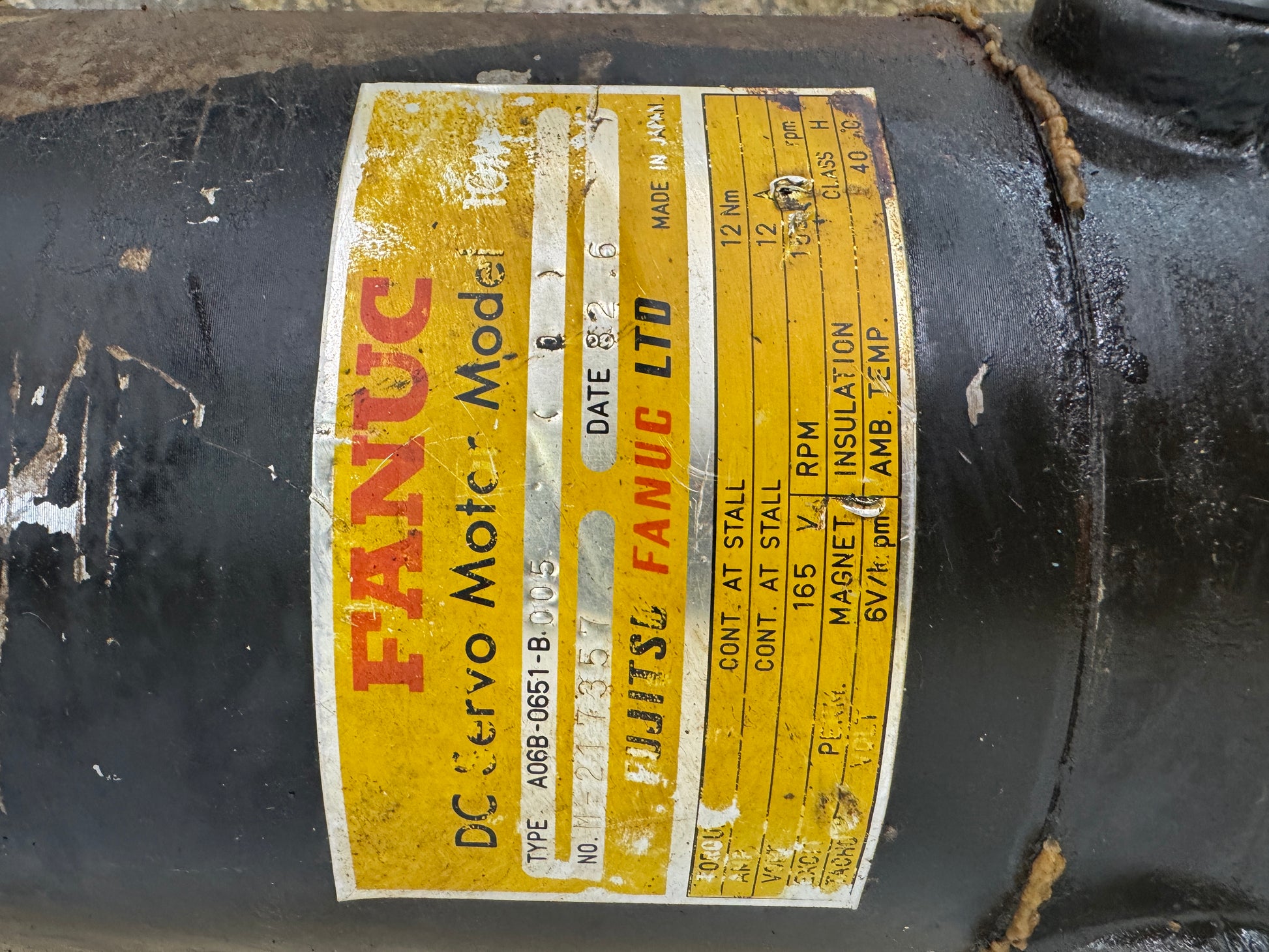

The Fanuc A06B-0651-B005 is a DC servo motor from the Model 10M series, manufactured by Fujitsu Fanuc Ltd. and built for use in CNC machine tool axis drives and legacy industrial automation systems. The nameplate identifies this unit as a DC Servo Motor, Type A06B-0651-B005, with serial number M 21357 and a date code of 82.6 indicating June 1982 production. Made in Japan.
Per the nameplate, continuous torque at stall is 12 Nm and continuous current at stall is 12 A. The unit is rated 165 V DC with a base speed of 1500 RPM. Insulation class is H, and the rated ambient temperature is 40 degrees C. The motor is permanent magnet excited and includes an integrated tachogenerator on the rear of the housing, rated 6 V per krpm, which provides velocity feedback to the servo control. No optical encoder is present on this configuration.
This DC servo platform was originally paired with Fanuc Velocity Control Unit (VCU) drives in the 6047 series and similar legacy Fanuc DC servo amplifiers. The Model 10M frame is commonly found on machining center axis drives and turret indexers from the late 1970s through the 1980s. Typical successor references in the Fanuc DC 10M family include the A06B-0651-B011 and A06B-0651-B211 variants, which differ in shaft, feedback, and encoder configuration.
Buyers should confirm shaft style, mounting flange, and amplifier compatibility against their existing installation before purchase.
Stock # 0226-092
