Fanuc DC Servo Motor Model 20M / A06B-0652 Series - 3 kW 1500 RPM
Fanuc DC Servo Motor Model 20M / A06B-0652 Series - 3 kW 1500 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

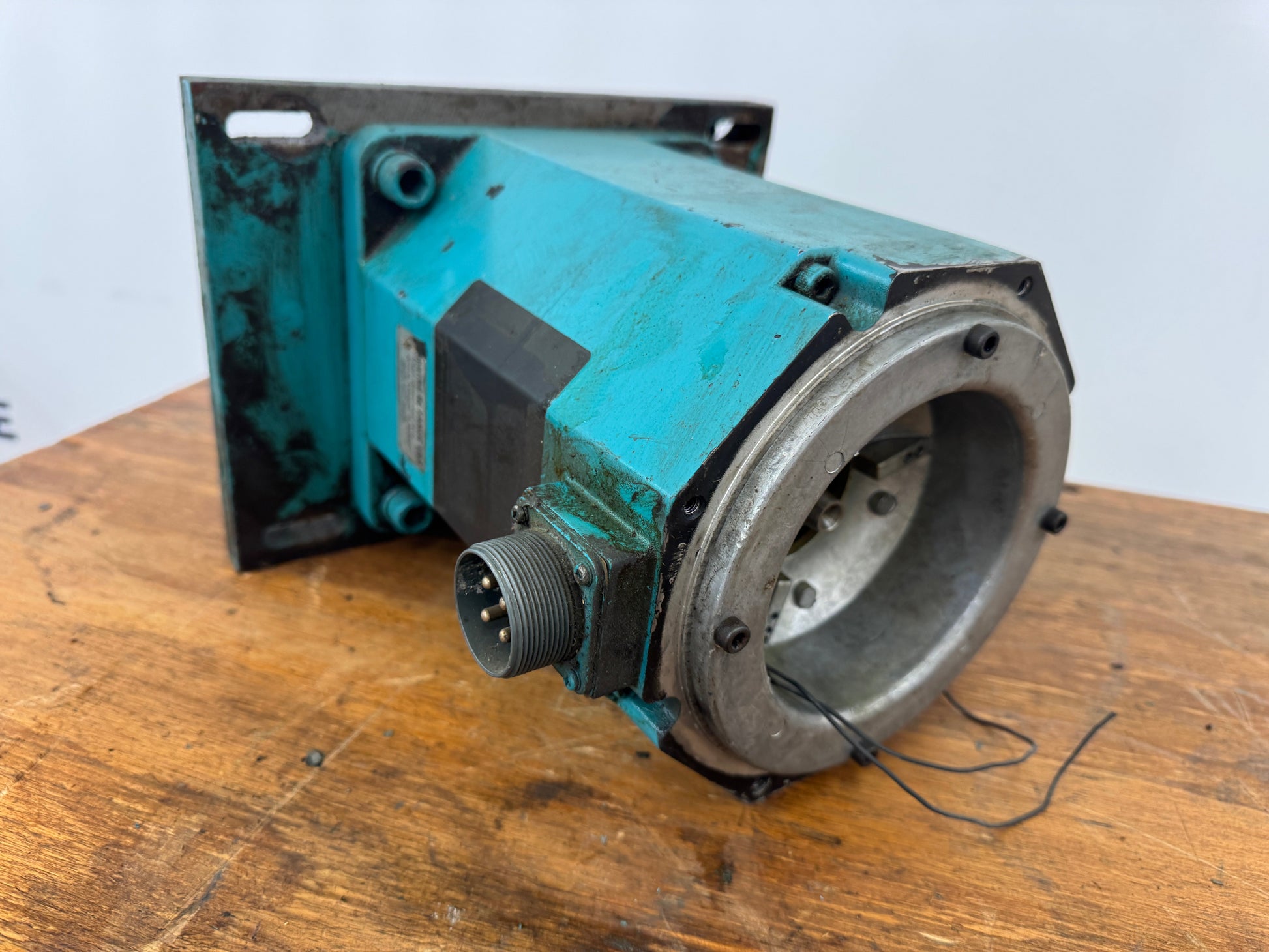

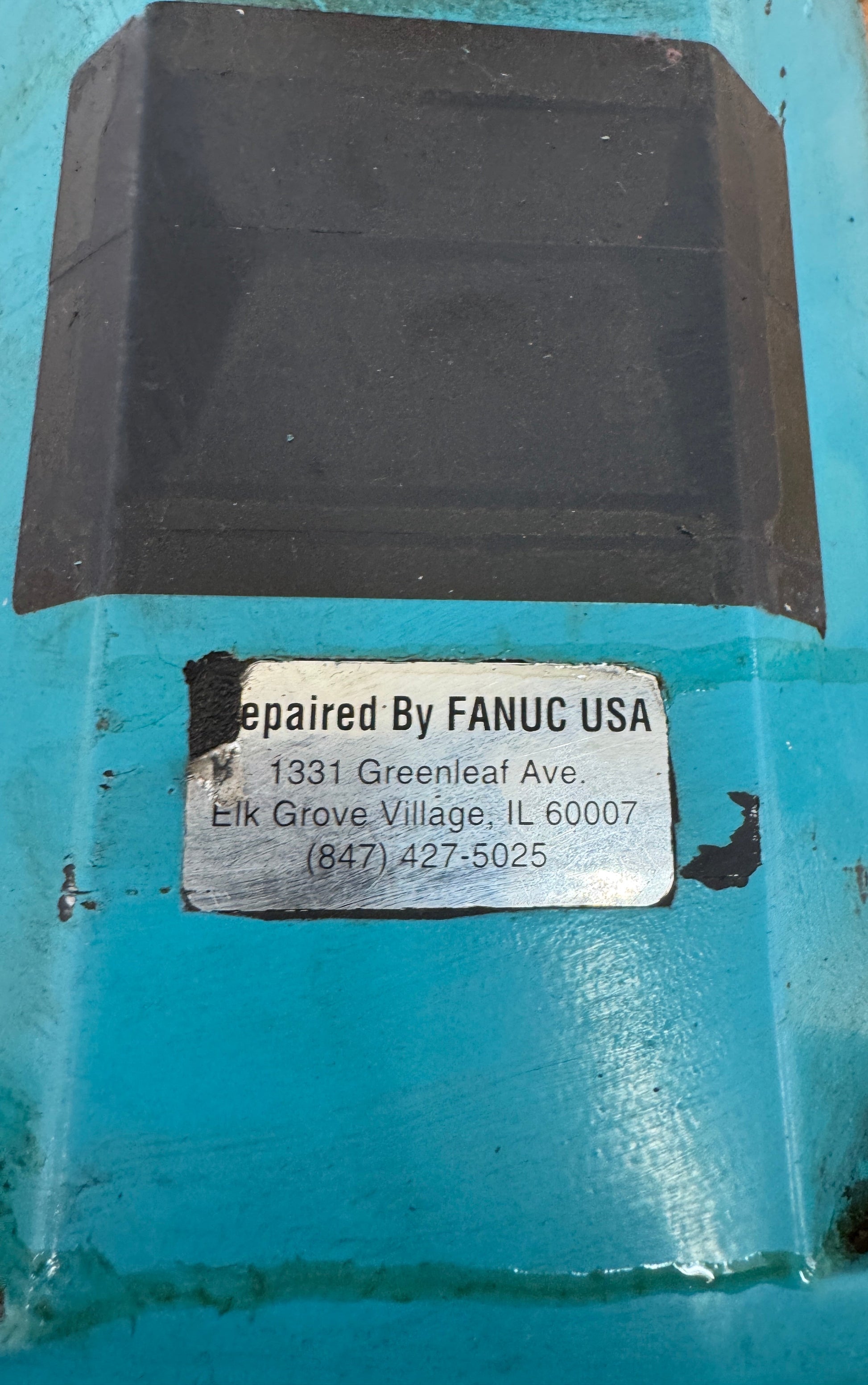

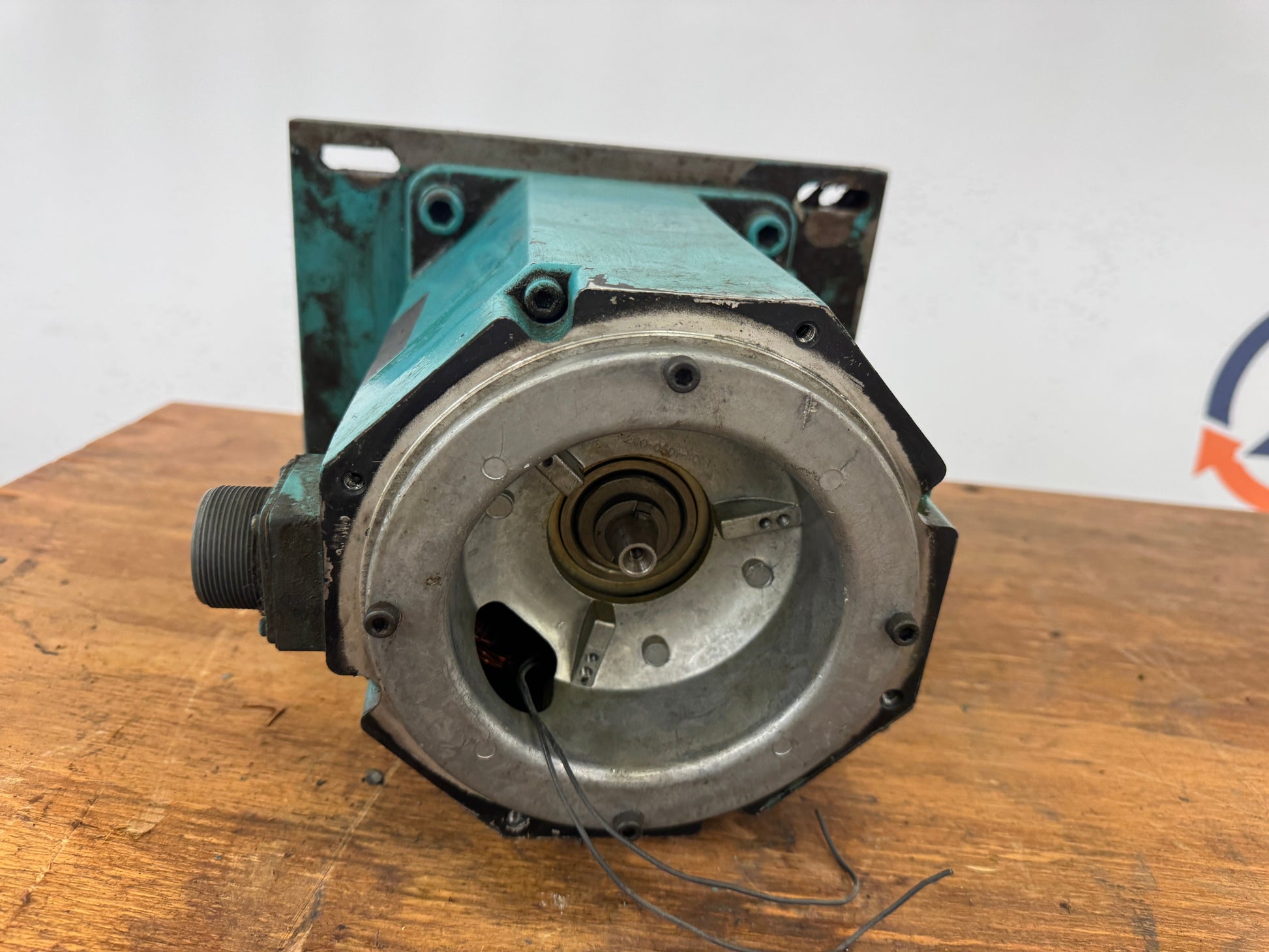

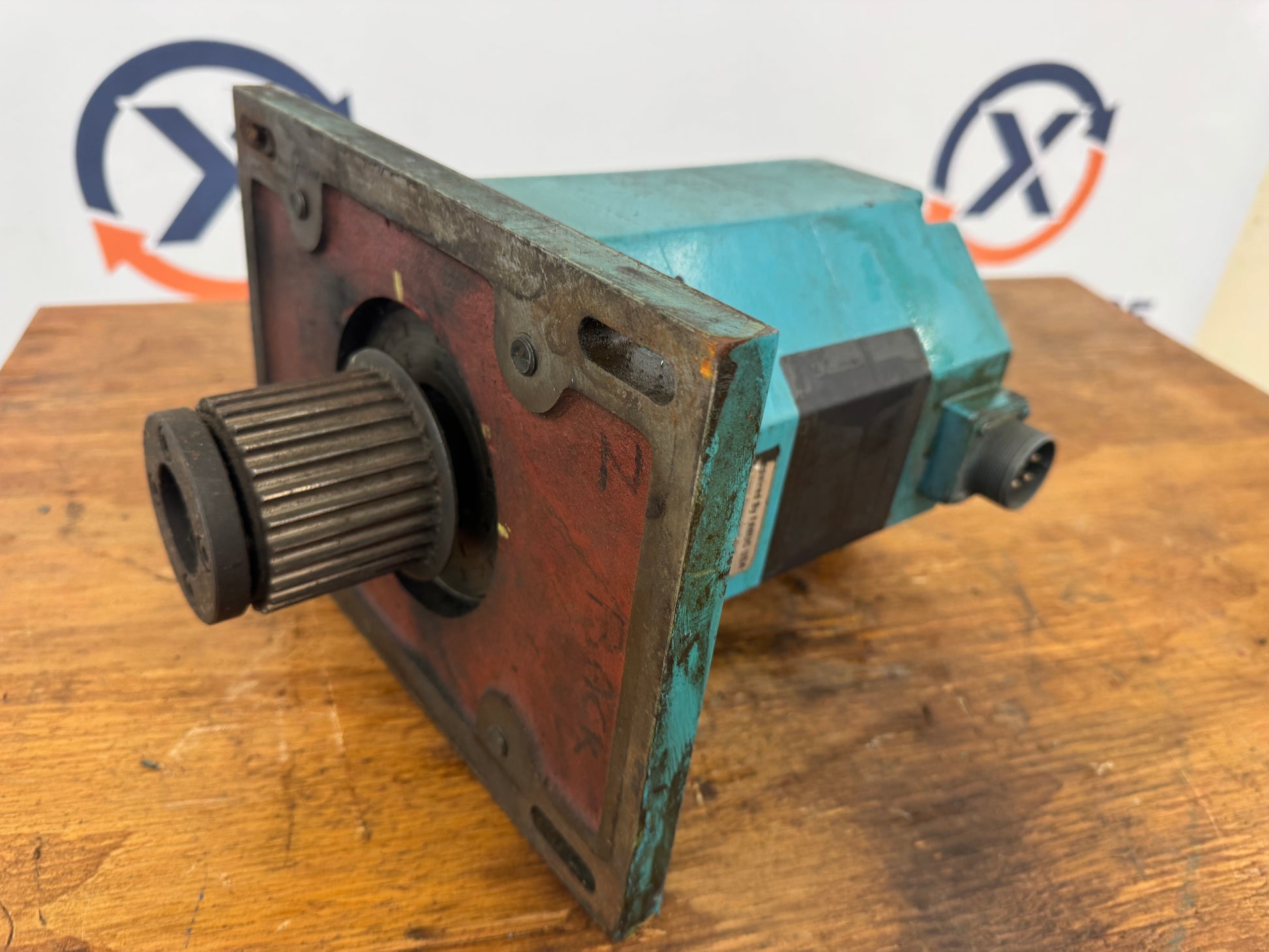

Used in CNC machining centers and lathes equipped with legacy FANUC CNC systems, the FANUC DC Servo Motor Model 20M belongs to the A06B-0652 series of axis drive motors produced for FANUC 6 and early FANUC 11 control platforms. This motor features the characteristic teal cast iron housing associated with the FANUC DC servo M series, a square bolt-on mounting flange, a large-diameter octagonal rear face with multi-bolt pattern, and a five-pin circular military-style connector for power and feedback connections. A timing belt pulley is installed on the output shaft, indicating prior use in a belt-drive axis configuration. Published specifications for the Model 20M establish a continuous stall torque of 23 Nm, a rated speed of 1500 RPM, a DC bus voltage of 213V, and a rated current of 18A. A label on the motor body reads Repaired By FANUC USA, 1331 Greenleaf Ave., Elk Grove Village, IL 60007, confirming the unit was serviced through the FANUC USA factory repair program at some point during its service life. The original nameplate is covered by an opaque sticker, and the exact type number suffix cannot be confirmed visually. Compatible with FANUC DC servo drives from the same era, including the A06B-6047 and related velocity control units. Weighs approximately 55 to 65 lbs bare based on published 20M dimensional data.
Stock # 0326-129
