Reliance Electric TC3612ATCZ DC Motor 28 HP 500 VDC 2200 RPM
Reliance Electric TC3612ATCZ DC Motor 28 HP 500 VDC 2200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
Bardac Drives / Reliance Electric DC Motor with Tachometer – Industrial Duty

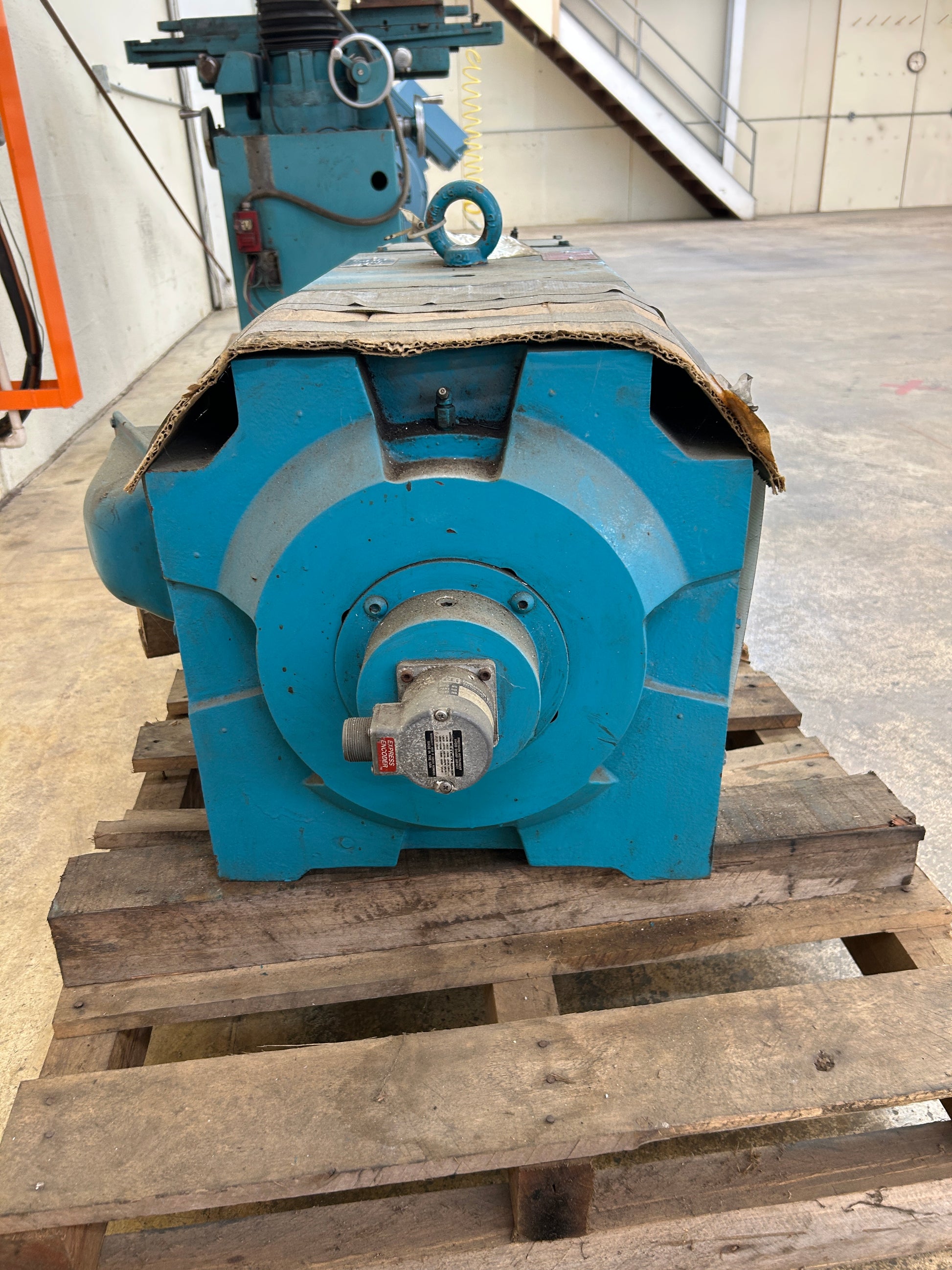

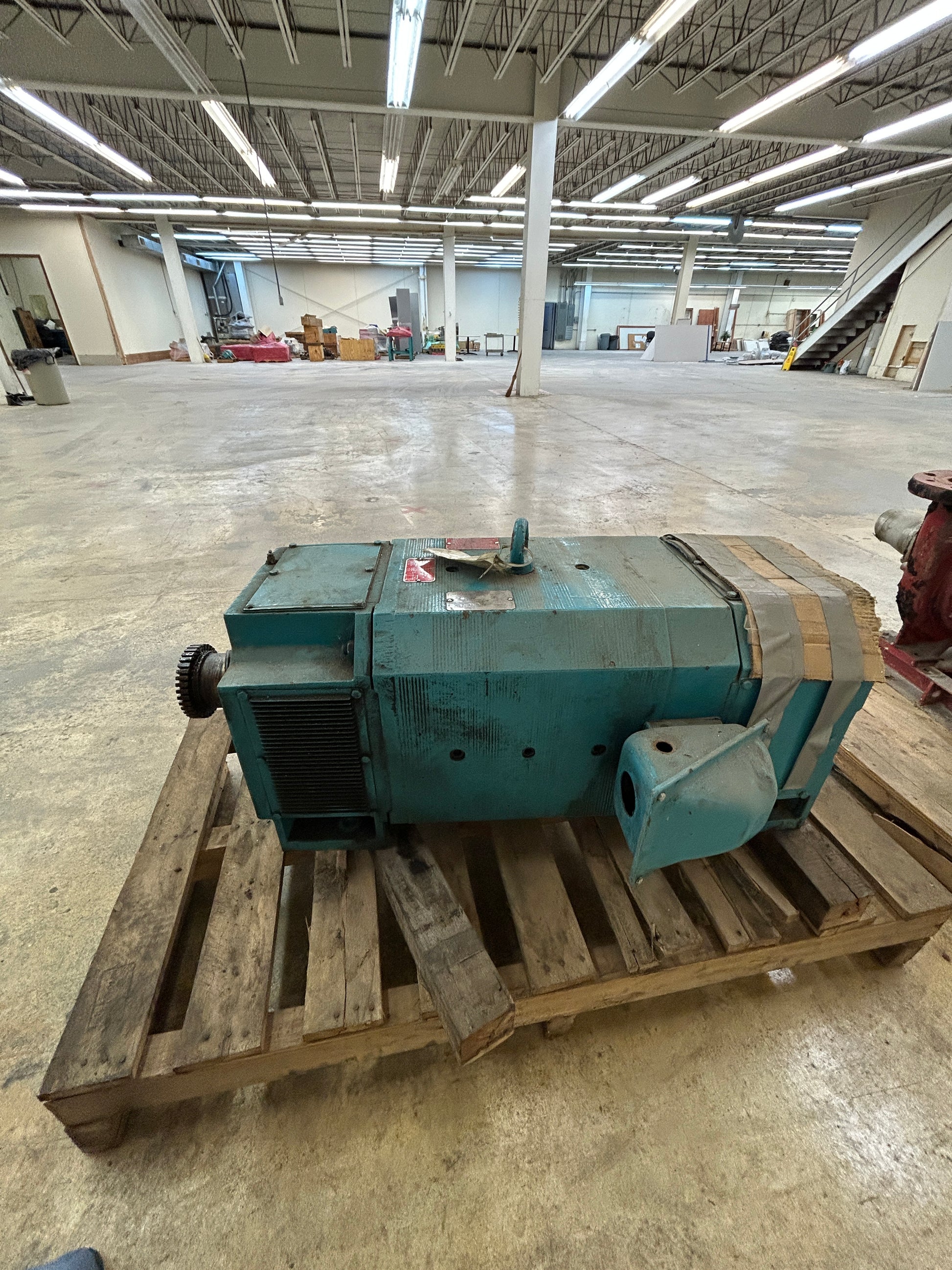

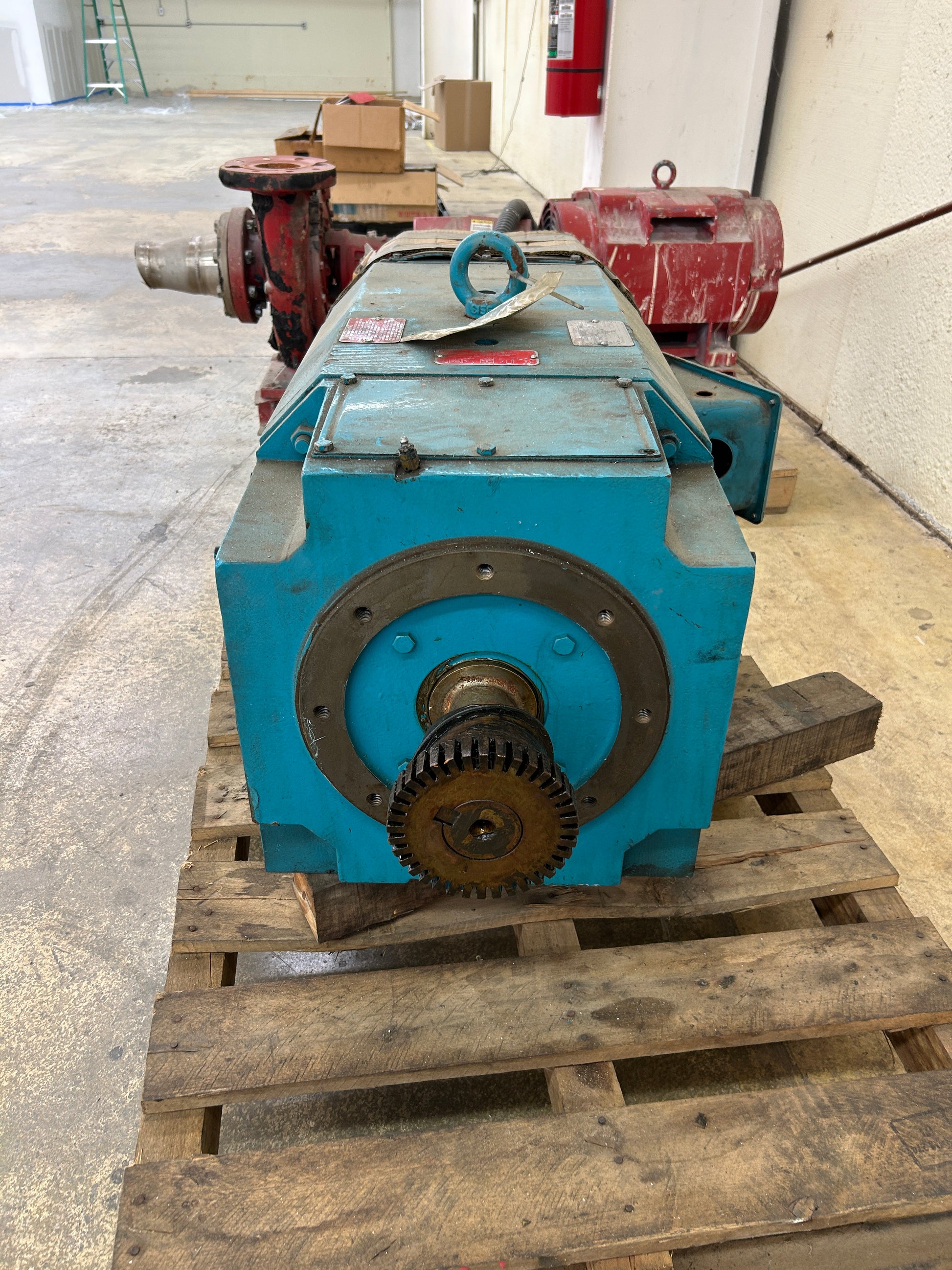

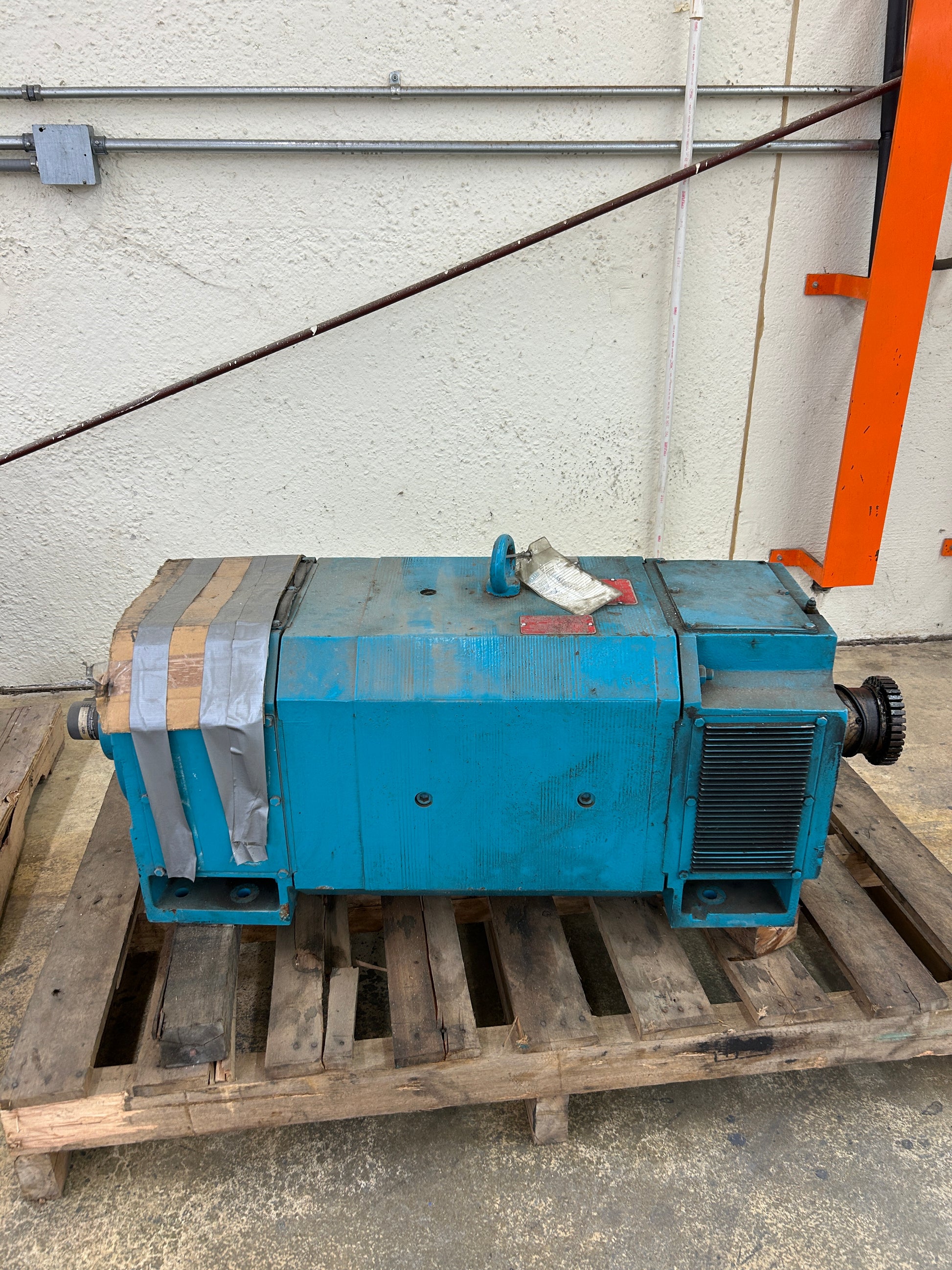

This industrial DC electric motor is manufactured by Reliance Electric and equipped with a Bardac Drives control interface, making it well suited for variable-speed, constant-torque applications. The motor features a heavy-duty cast housing, foot-mounted configuration, and a keyed shaft with mounted gear as shown. An integrated tachometer is installed on the non-drive end for closed-loop speed feedback, commonly required in precision control systems.

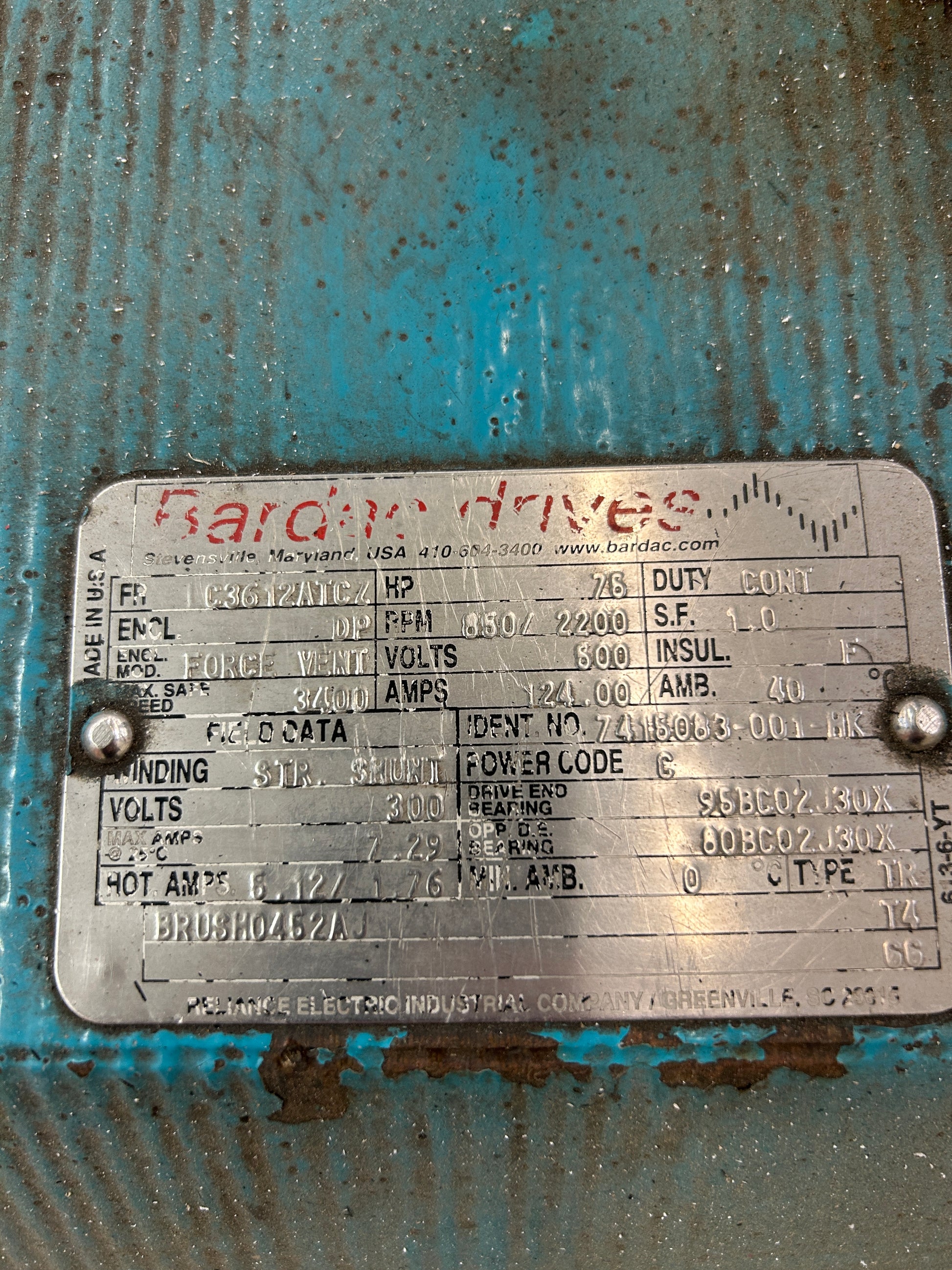

Based on the visible nameplate data, this motor is rated at 28 HP, 500 VDC, continuous duty, with a base speed of approximately 850 RPM and a maximum speed up to 2200 RPM. The unit is force-ventilated and designed for industrial environments, with Class F insulation and an ambient rating of 40°C. This configuration is typical for applications requiring accurate speed regulation and high starting torque.
Common applications include conveyors, extruders, rolling mills, machine tools, mixers, and other process equipment where DC motor control is preferred. This motor is ideal as a replacement unit, spare, or retrofit component in existing DC drive systems using Bardac or compatible controllers.
Motor is sold as shown. Please refer to photos for physical condition, shaft configuration, and nameplate details.
Stock # 0226-006
