Fanuc A860-0203-T010 5 VDC Manual Pulse Generator Pendant Handwheel New
Fanuc A860-0203-T010 5 VDC Manual Pulse Generator Pendant Handwheel New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A860-0203-T010
Stock #: 0226-00036

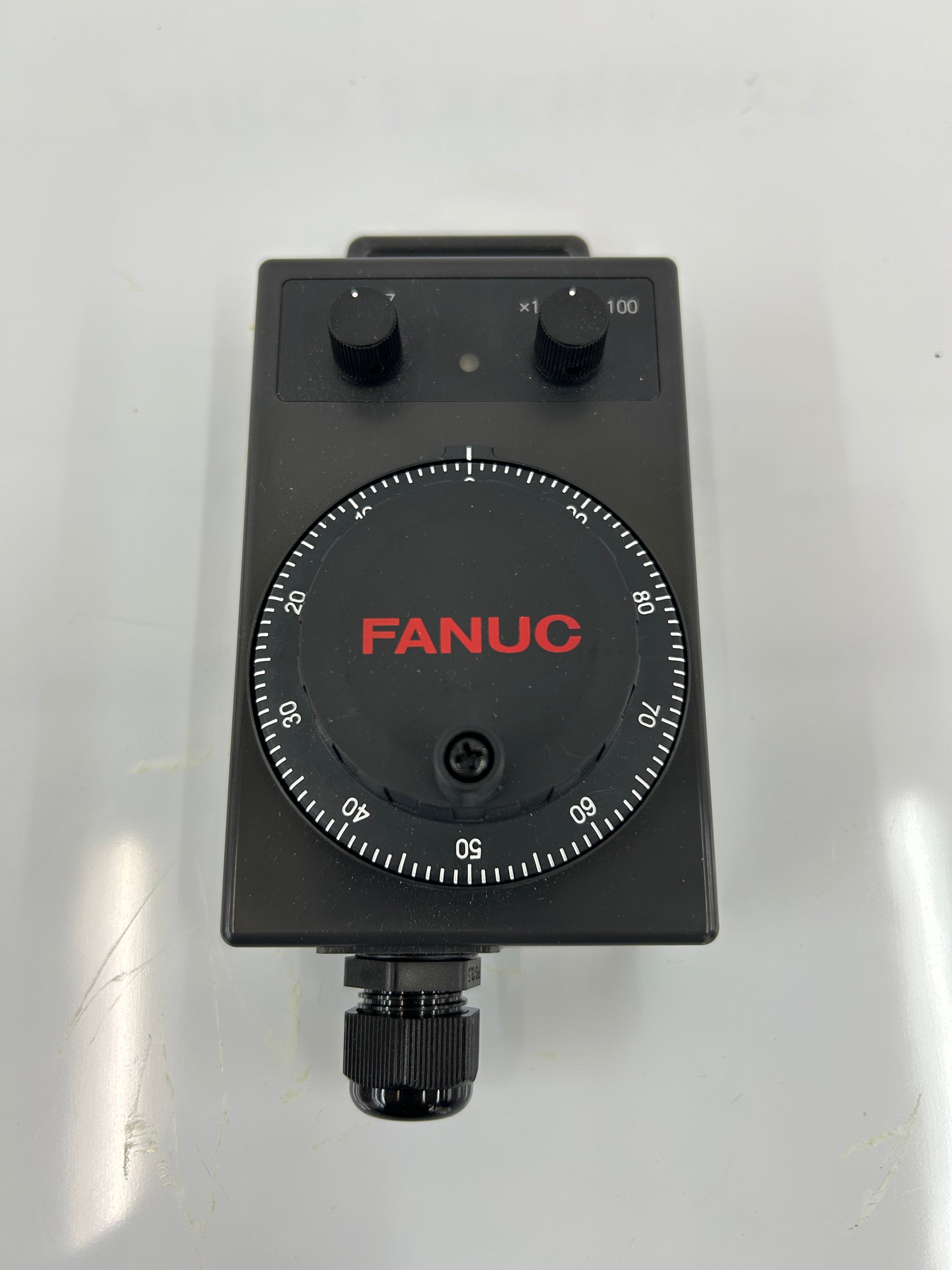

The Fanuc A860 0203 T010 is a pendant style Manual Pulse Generator (MPG) configured for X and Z axis selection, commonly used for jog control and fine positioning on Fanuc equipped CNC lathes and machining centers. The unit features a 100 pulse per revolution handwheel with detented graduations marked 0 through 100, an axis selector knob, and a multiplier knob with x1 and x100 settings for adjusting motion increment per pulse. An LED indicator is integrated into the pendant face for axis status feedback. Operating voltage is 5 VDC.

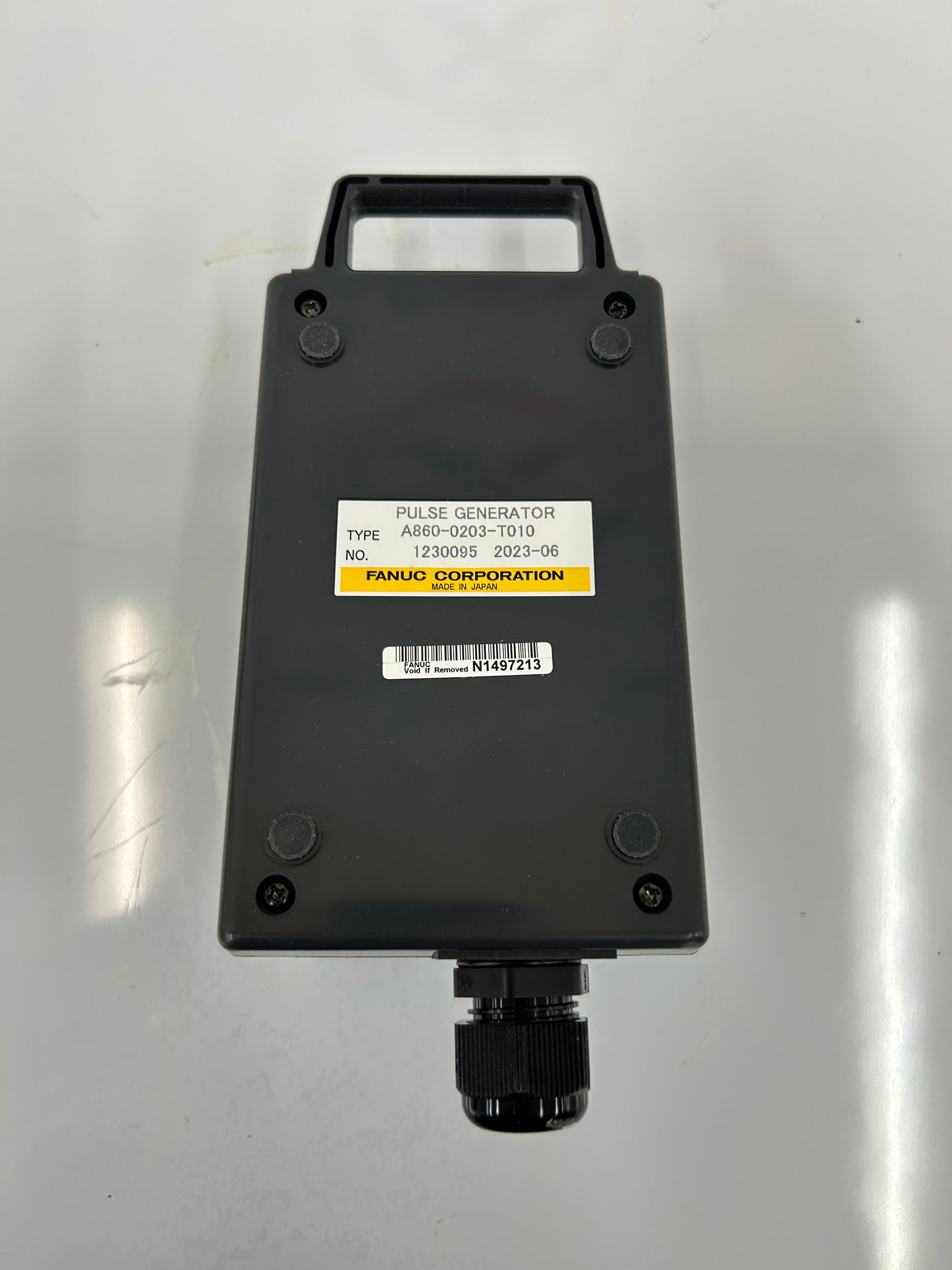

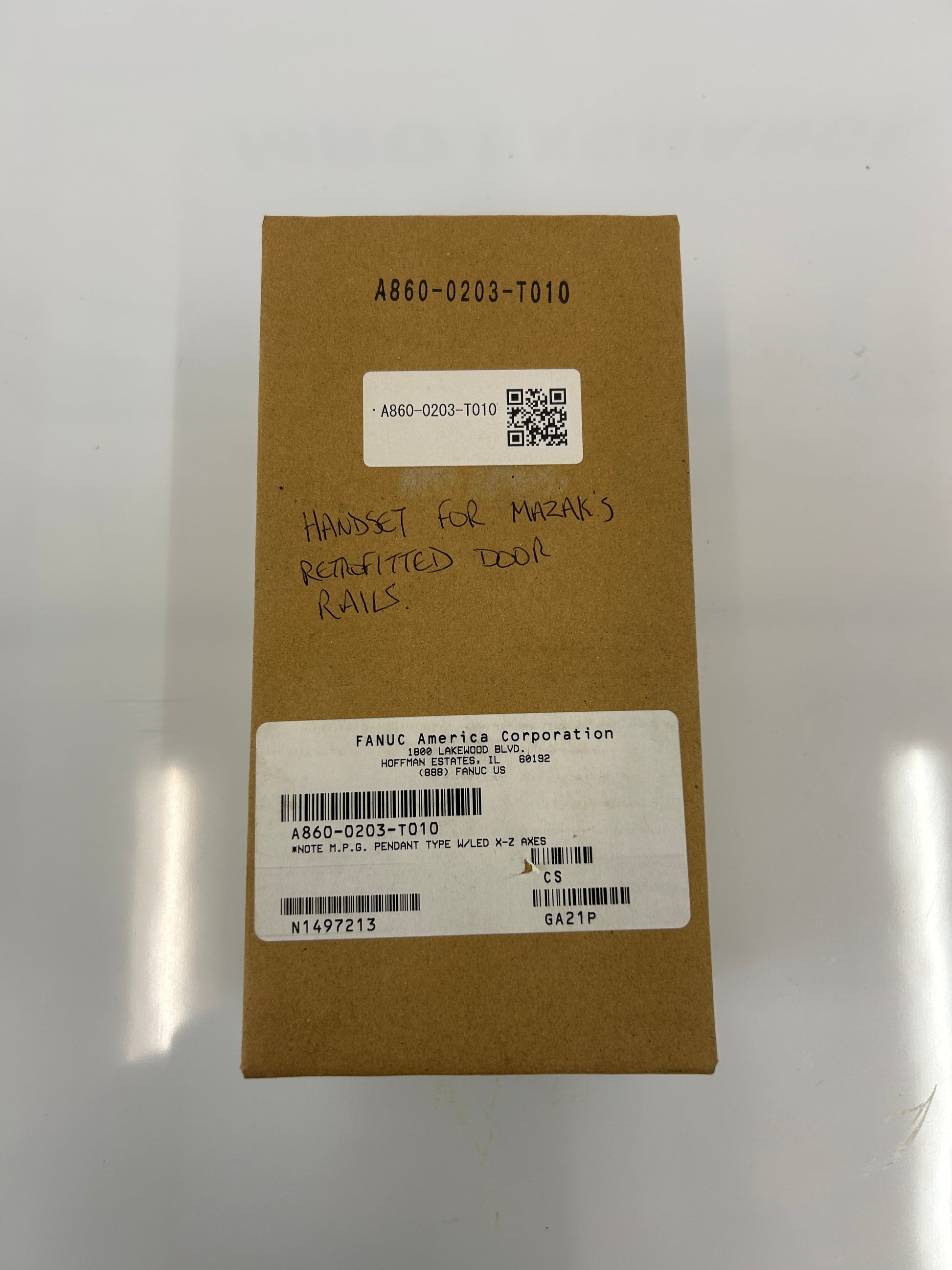

The enclosure is a handheld pendant style housing with a cable gland strain relief at the base for the connection harness. Nameplate markings confirm part number A860 0203 T010 and Fanuc serial number N1497213. The label also carries the description M.P.G. Pendant Type W/LED X Z Axes and the GA21P revision marking.
Per Fanuc documentation, A860 0203 T010 is the successor part number to the discontinued A860 0202 T005 pendant MPG. The unit is compatible with a wide range of Fanuc CNC platforms that accept the standard MPG quadrature signal interface, including Series 0, 16, 18, 21, 30, 31, and 32 controls used on CNC turning centers, machining centers, grinders, and EDM machines. Common applications include manual jogging of axes during setup, edge finding, tool touch off, and fine positioning during program proveout. Part number, MPN, and nameplate data are shown in the listing photos for verification before purchase.
Stock # 0226-036
