Mazak EAHR-001 5V DC Portable Manual Pulse Generator Handwheel Pendant New

$1,040.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: EAHR-001
Stock #: 0226-00033

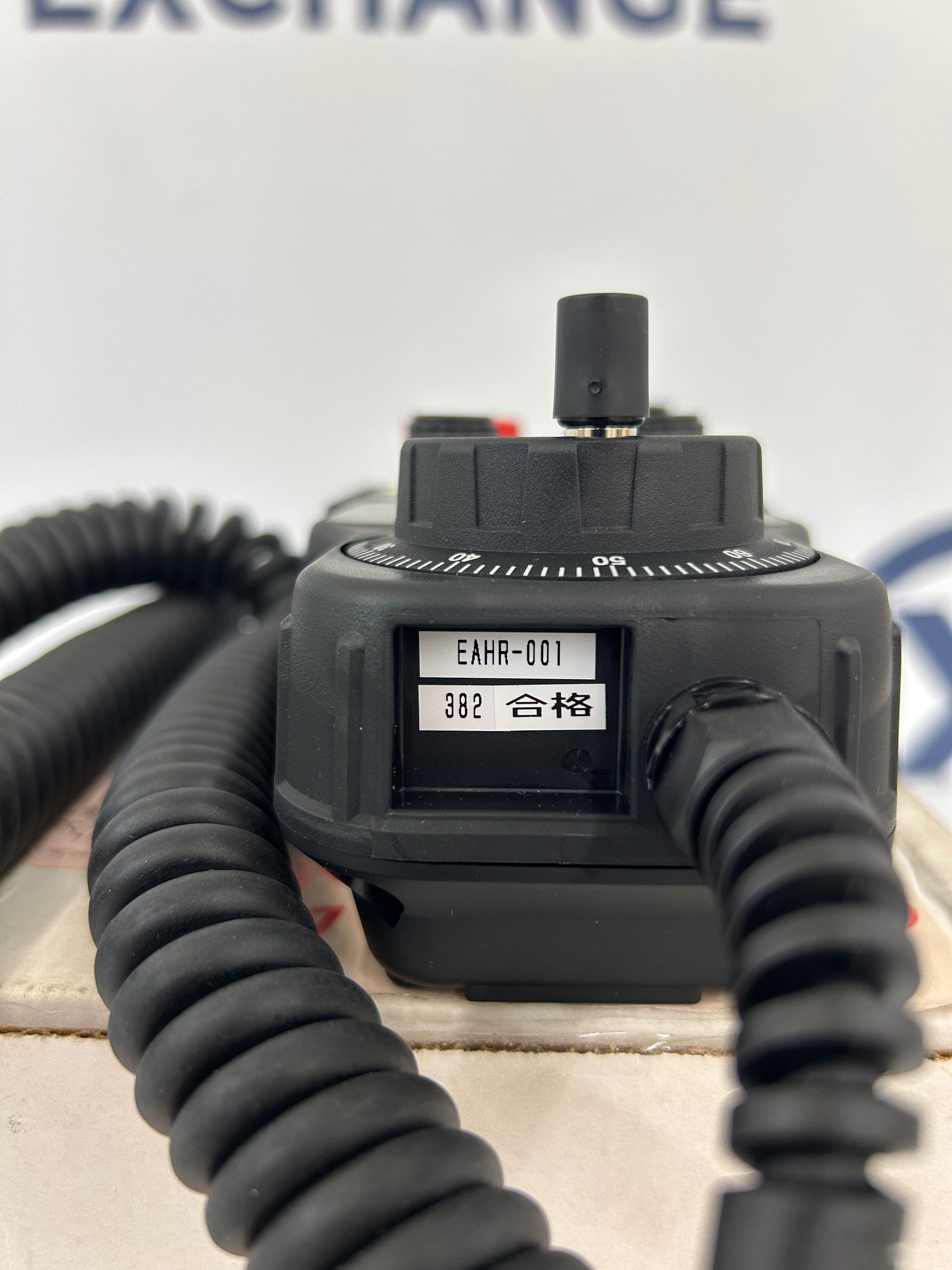

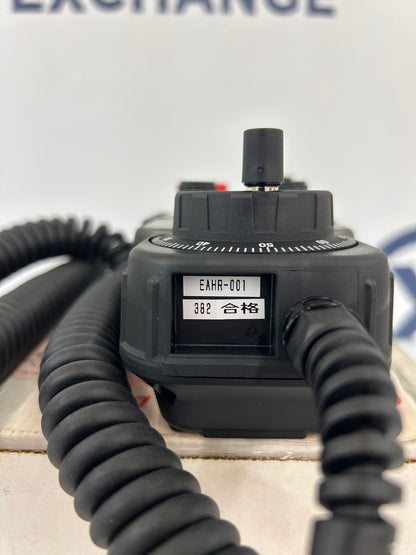

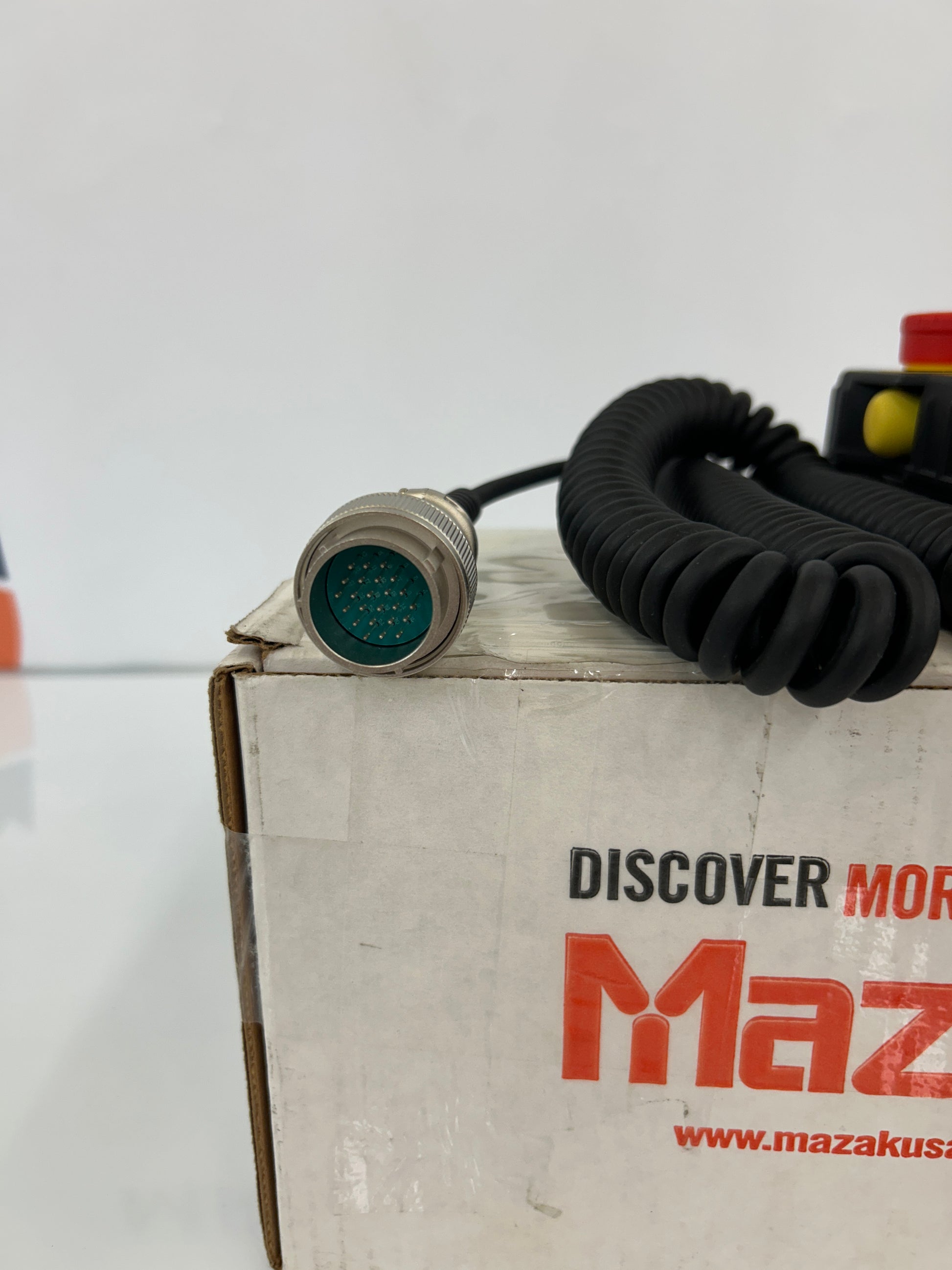

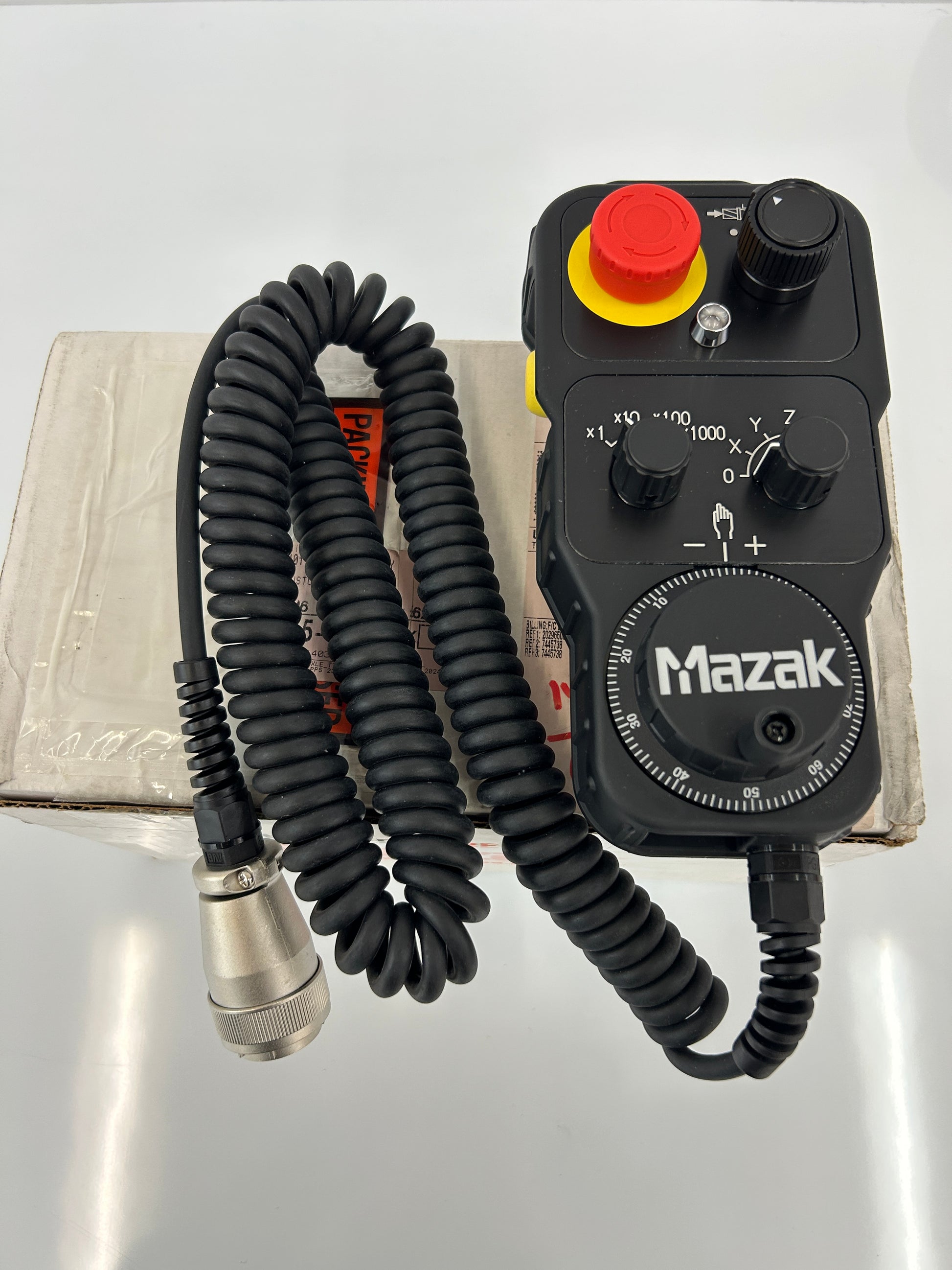

The Mazak EAHR-001 is a portable handheld manual pulse generator (MPG) pendant used on Mazak CNC machining centers and turning centers for jog control, axis positioning, and machine setup. The unit features a graduated rotary handwheel marked at 10 unit increments around its dial face, a recessed selector for choosing the active axis among X, Y, and Z, a step multiplier switch offering x1, x10, x100, and x1000 increments, and a positive/negative jog rocker. An integrated red mushroom emergency stop button with twist-release is mounted on the upper housing alongside a feed override or rotary selector knob and an indicator lamp. The pendant is housed in a black molded enclosure designed for handheld use on the shop floor and connects to the machine control through a heavy duty coiled cable terminated in a multi pin metal threaded circular connector. Internal inspection label indicates EAHR 001 with QC mark 382. Operating voltage 5V DC, consistent with standard OEM MPG handwheel specifications. Commonly cross referenced as Mazak handheld pulse generator part number D72ZZ009900, used across Mazak Integrex, Quick Turn, and Variaxis platforms equipped with Mazatrol controls. Compatible applications include manual axis jogging, tool setting, workpiece origin establishment, and dry run verification. The successor MPN in current Mazak parts catalogs for similar handheld pendant configurations is EAHR-004.

Stock # 0226-033
