General Electric Adjustable Speed Drive 7VYBD124CD02
General Electric Adjustable Speed Drive 7VYBD124CD02
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

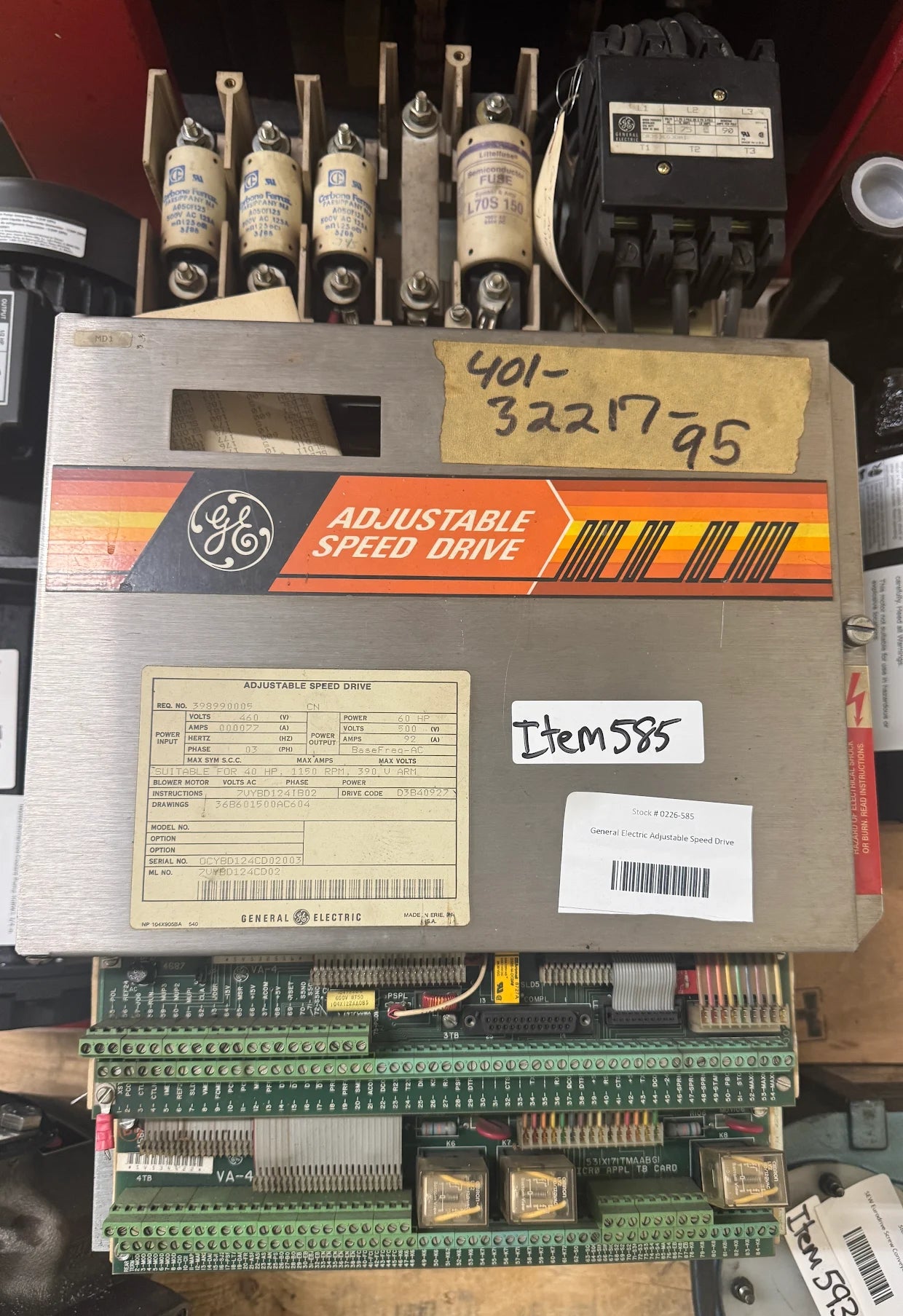

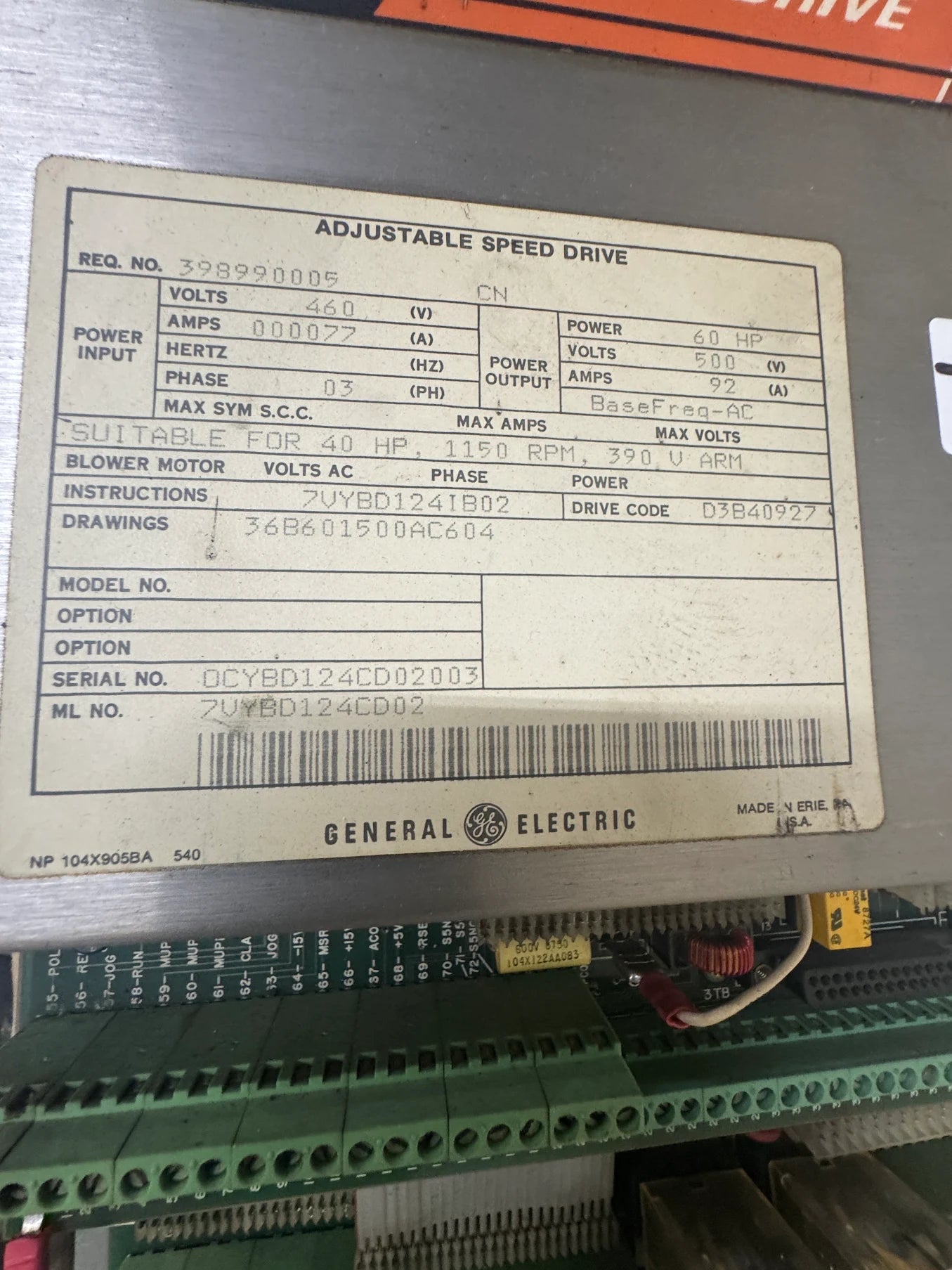

Used in DC motor control applications requiring precise speed regulation, the General Electric DC300 Adjustable Speed Drive carrying ML No. 7VYBD124CD02 is a 60 HP open-chassis drive built for 460V AC, 3-phase power input at 77 amps. Power output is rated at 500V DC and 92 amps. The drive is labeled suitable for use with a 40 HP, 1150 RPM, 390V ARM motor configuration per the nameplate. Drive code D3B40927 and instructions reference 7VYBD124IB02 are noted on the nameplate label. Serial No. OCYBD124CD002003. The unit was manufactured in Erie, PA, USA by General Electric.

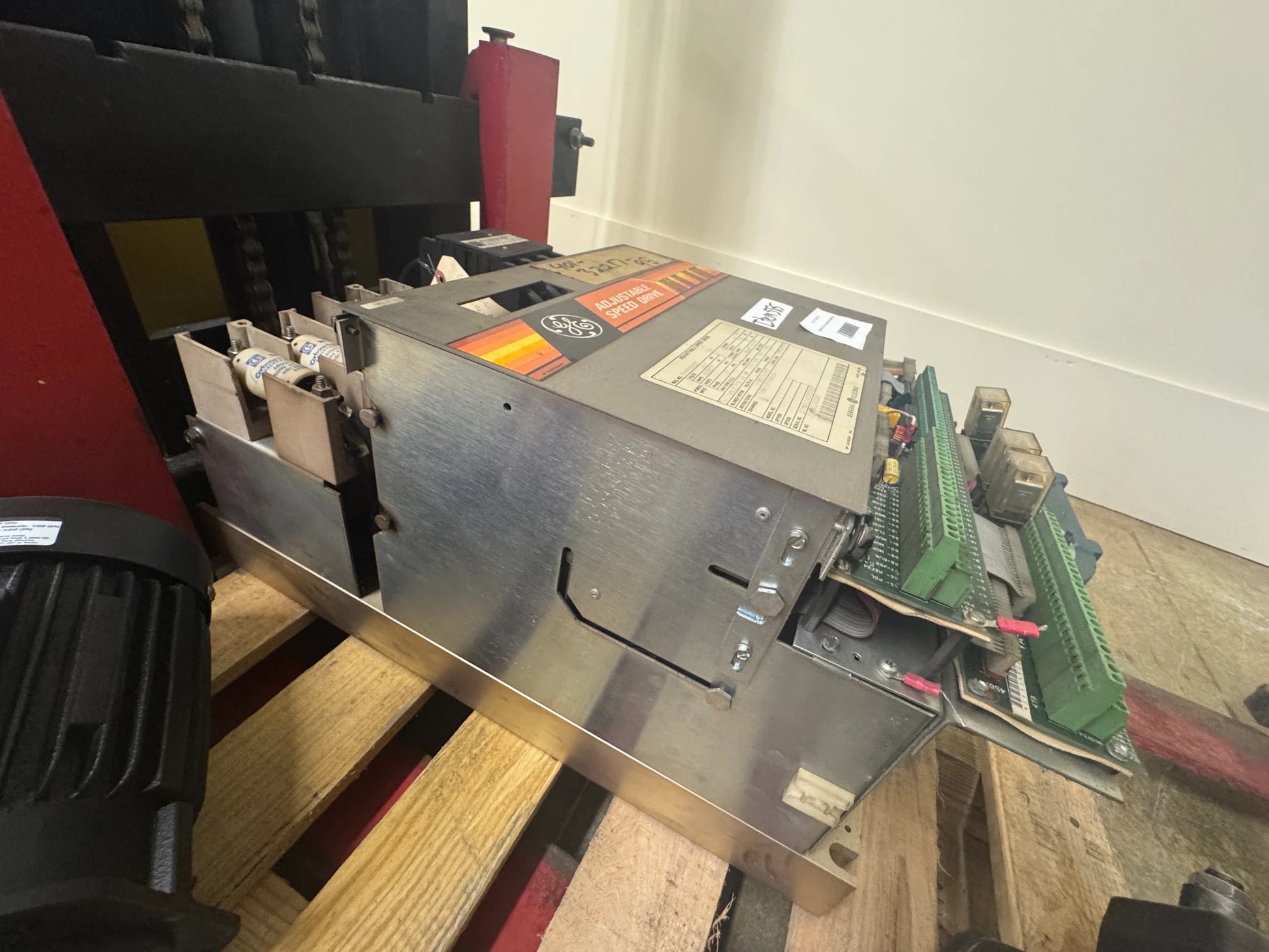

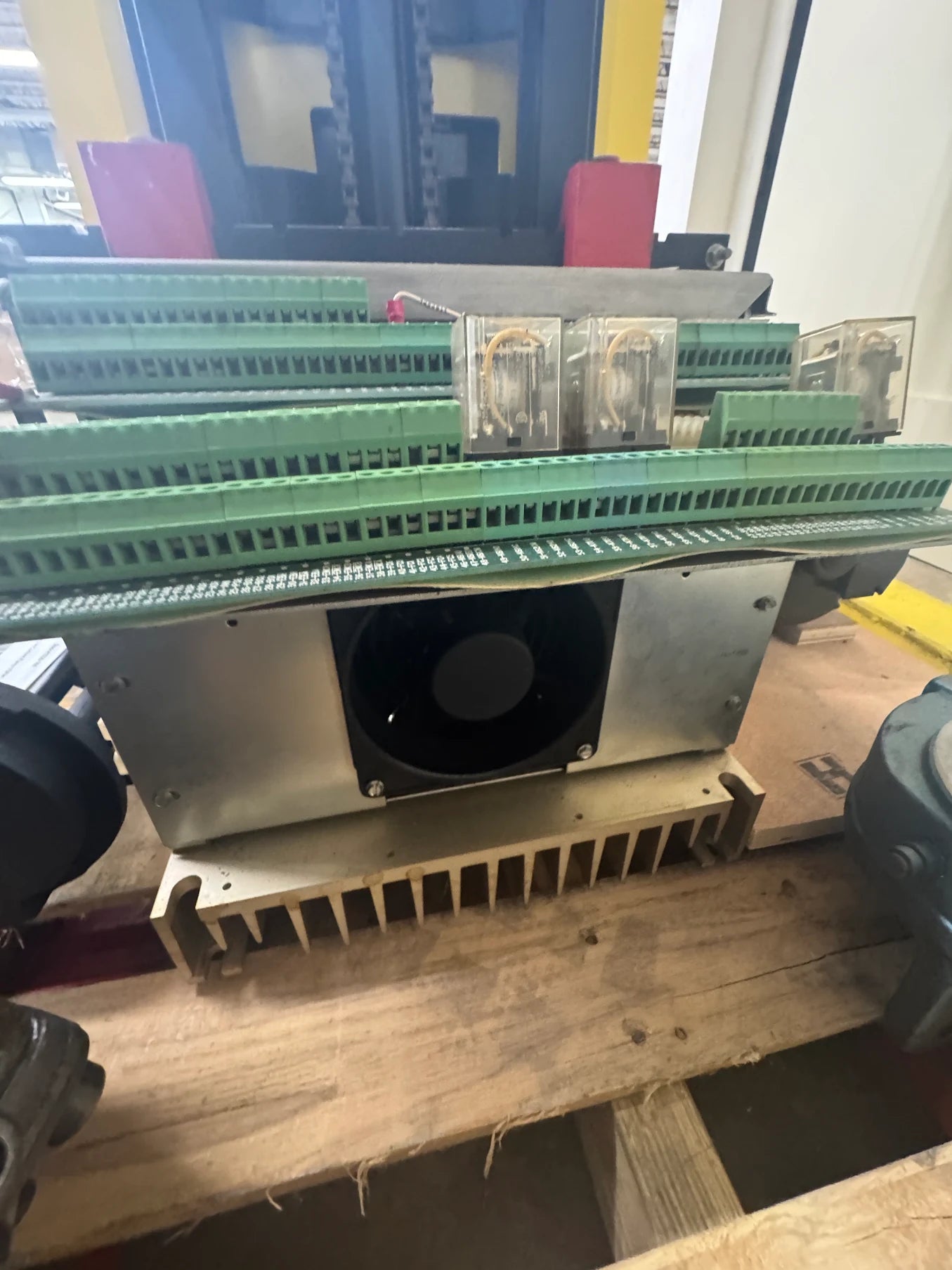

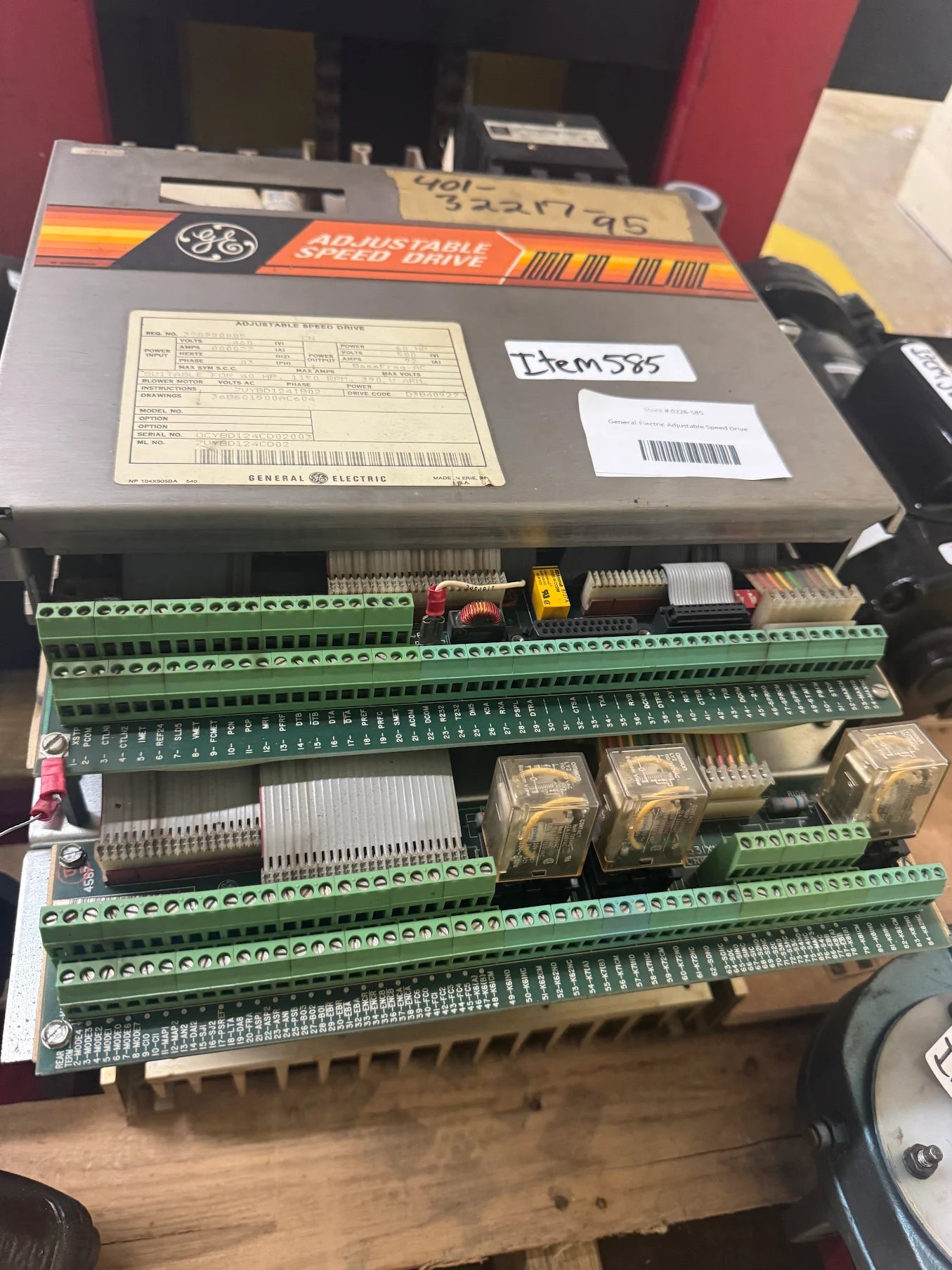

The DC300 series from GE is a discontinued platform that is no longer actively supported by the original manufacturer, making available units increasingly difficult to source. The open-chassis design exposes the control boards, power semiconductors, terminal strips, and heat sink assembly. Visible internal components include multiple GE VA-4 series control boards with green terminal blocks, a contactor assembly (CR353EG3DA1, 600V AC, 75A FL), and a fuse array including Littelfuse L70S 150 semiconductor fuses and Carbone Ferraz A050F125 fuses rated 500V AC 125A. The large aluminum fin heat sink is visible on the underside of the chassis.
REQ No. 398990005 and drawings reference 36B601500AC604 are indicated on the nameplate.
Stock # 0226-585
