General Electric Molded Case Circuit Breaker TED113020 277 VAC / 125 VDC

$59.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: TED113020
Stock #: 0226-00345

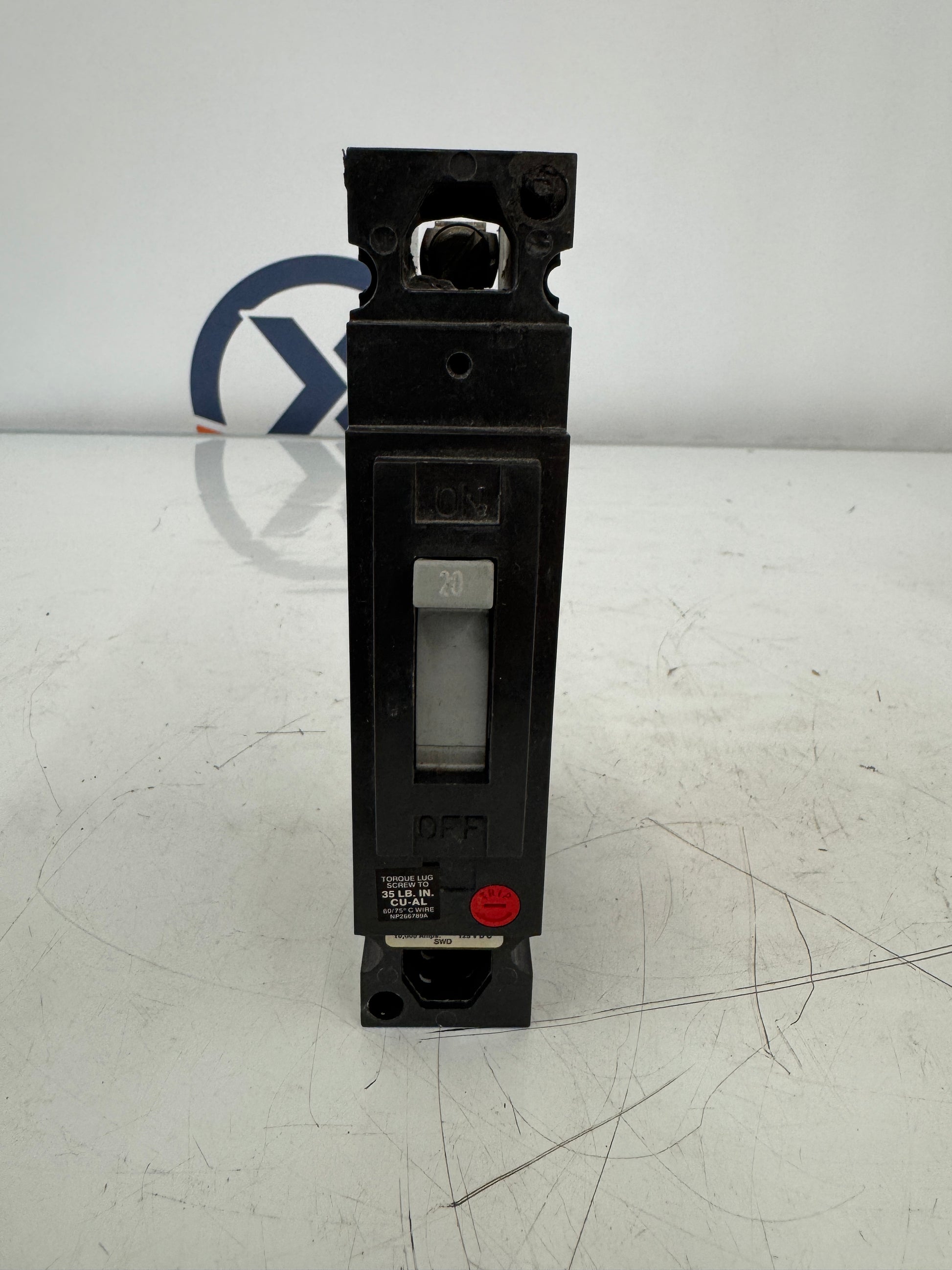

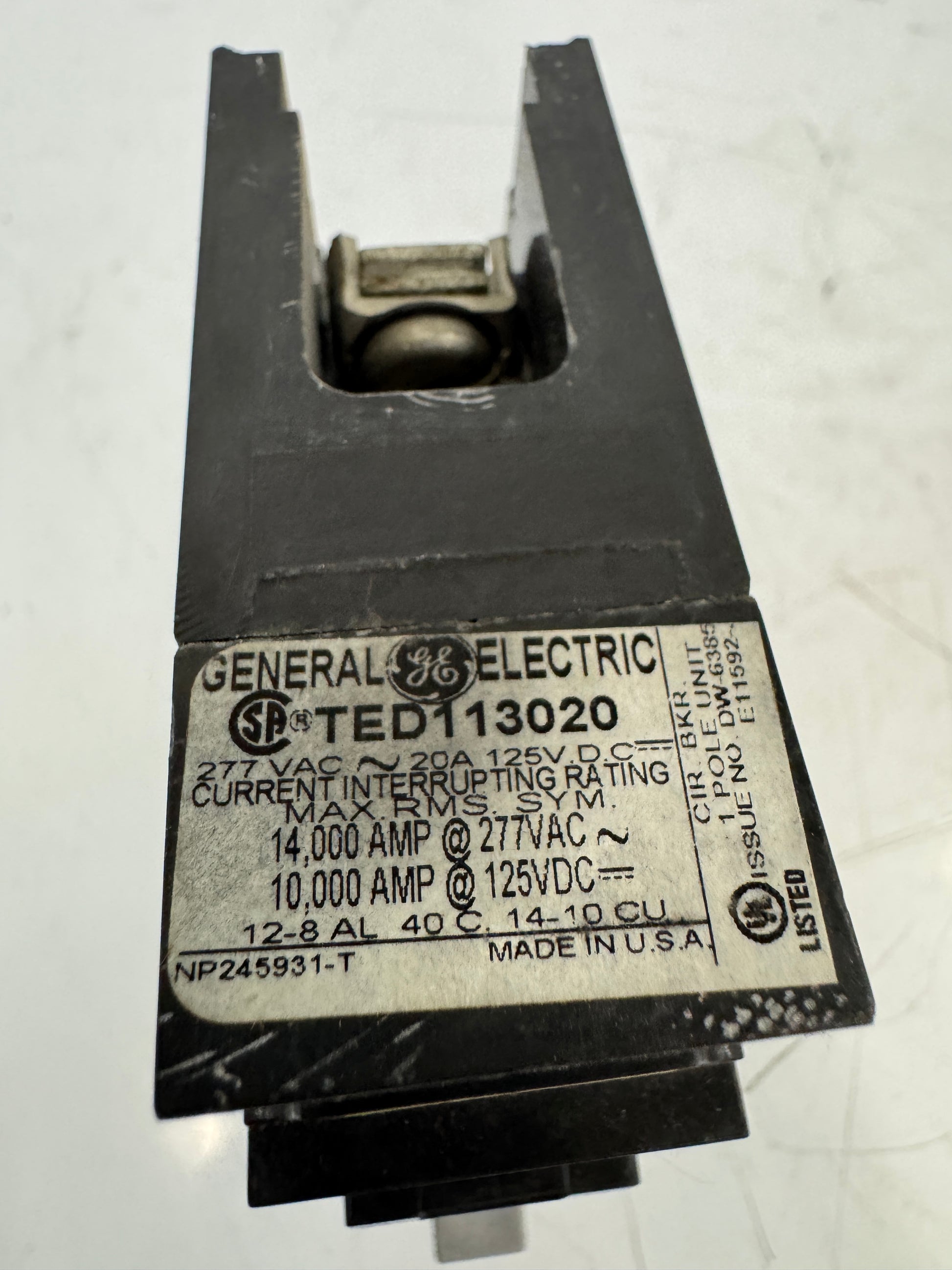

The General Electric TED113020 is a 1-pole, 20-amp molded case circuit breaker rated for 277 VAC and 125 VDC operation. It carries a current interrupting rating of 14,000 amps RMS symmetrical at 277 VAC and 10,000 amps at 125 VDC. The breaker is part of GE's Type TED series, a 150-amp frame line designed for branch circuit protection in commercial and industrial electrical distribution systems. Wire range is 14-10 AWG copper, with aluminum conductor compatibility from 12-8 AWG. Lug torque is specified at 35 lb-in for CU-AL conductors, and the unit is rated for 60/75 degree C wire. The nameplate indicates a 1-pole unit configuration with SWD (Switching Duty) designation, making it suitable for switching fluorescent lighting loads. Manufactured in the USA, the TED113020 carries UL listing and CSA certification. The part number TED113020 is the OEM market-recognized identifier used across US industrial distribution and surplus channels. Compatible applications include lighting panels, motor branch circuits, and industrial control enclosures where 277V single-pole protection is required. The nameplate serial reference NP245931-T is visible on the unit.

Stock # 0226-345
