Haldex Spring Brake Chamber Assembly 038A25A 3/8 In. 18 NPTF 150 PSI Max
Haldex Spring Brake Chamber Assembly 038A25A 3/8 In. 18 NPTF 150 PSI Max
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

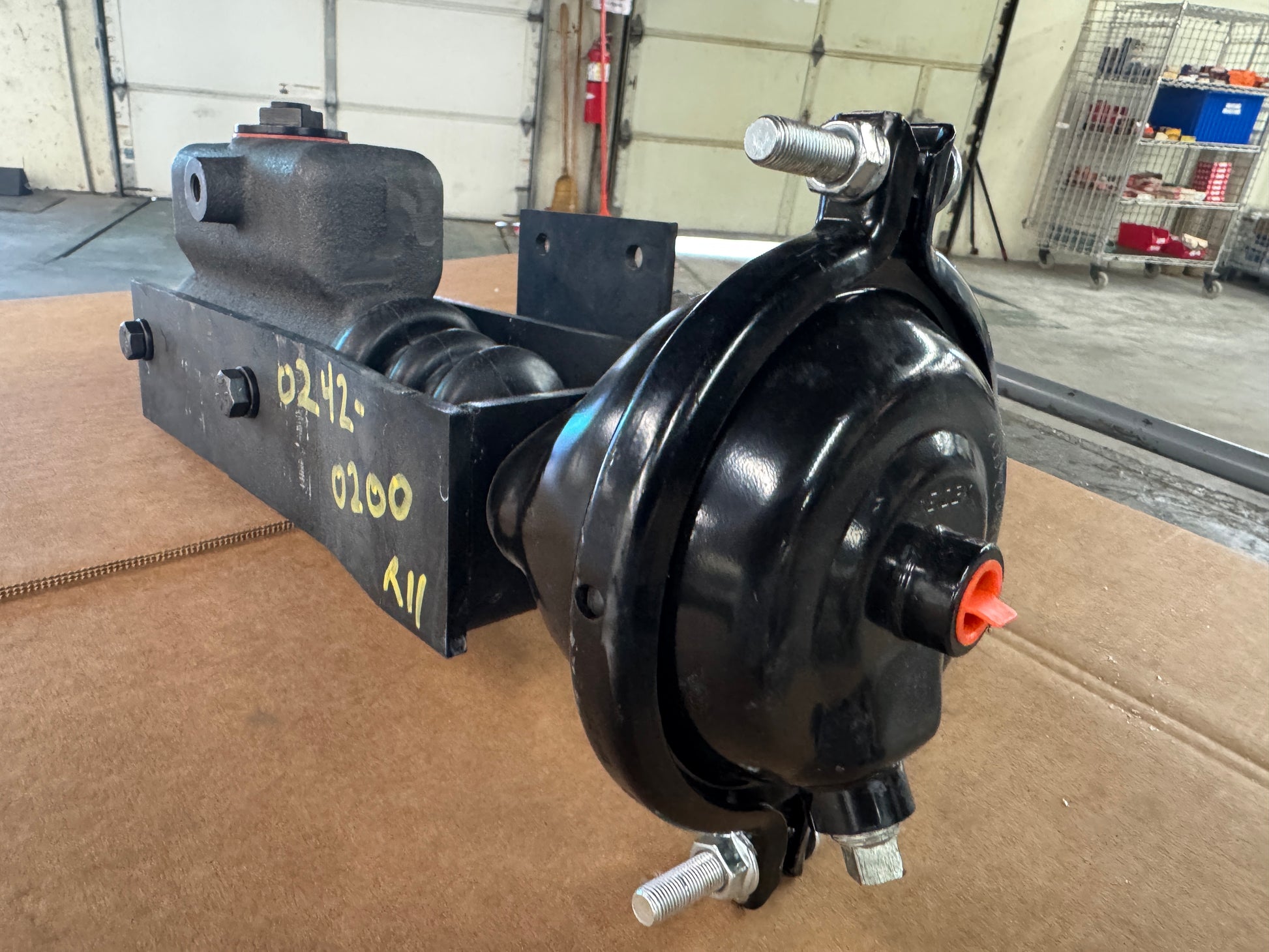

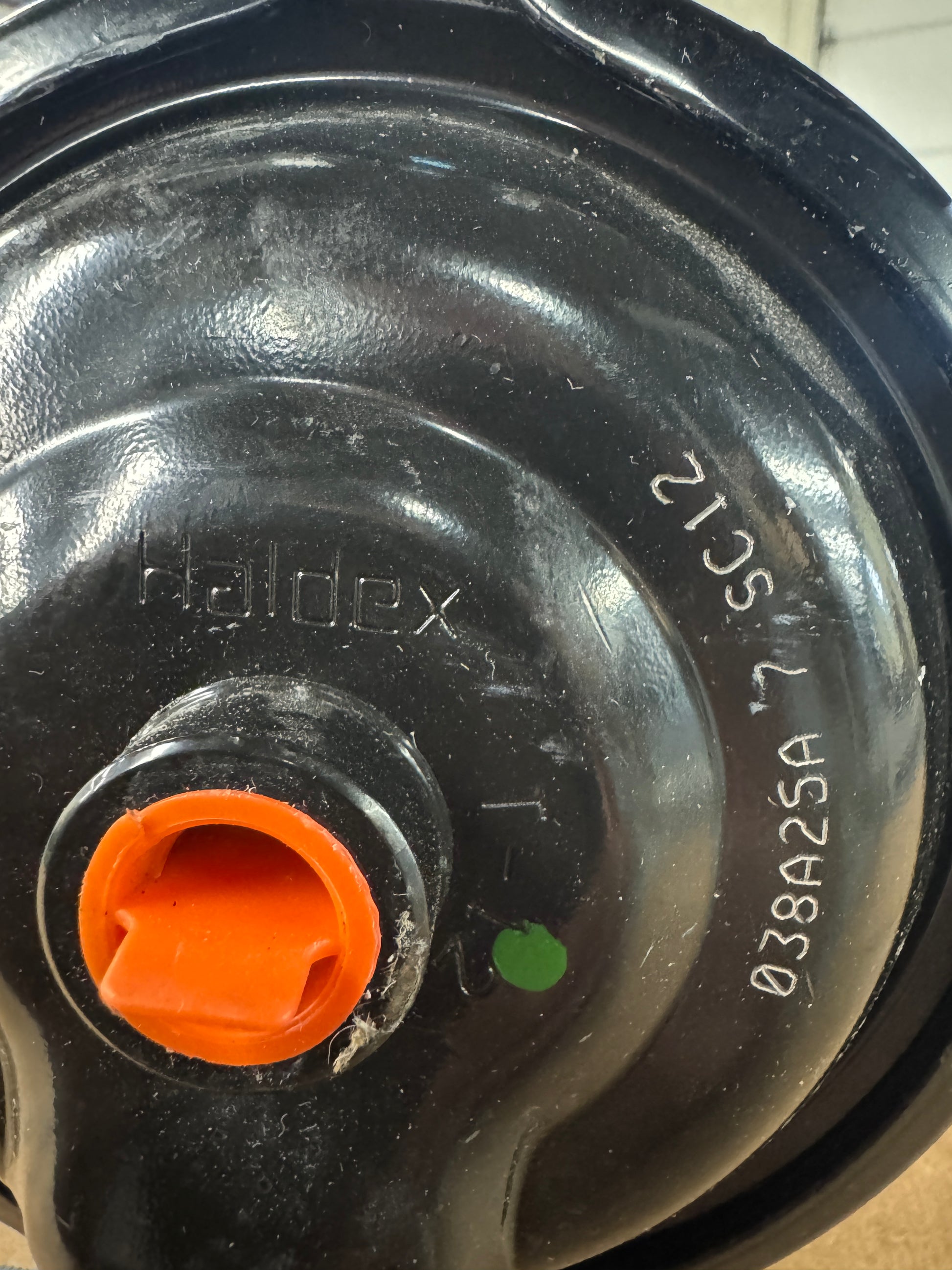

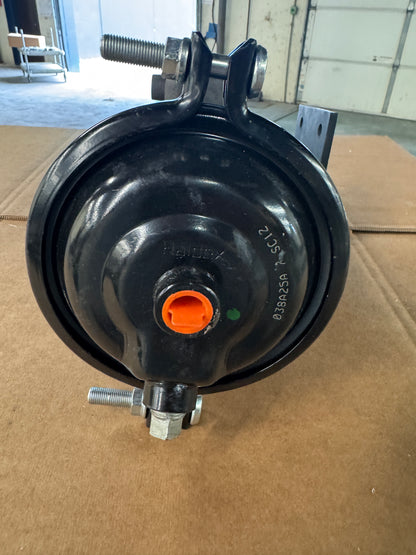

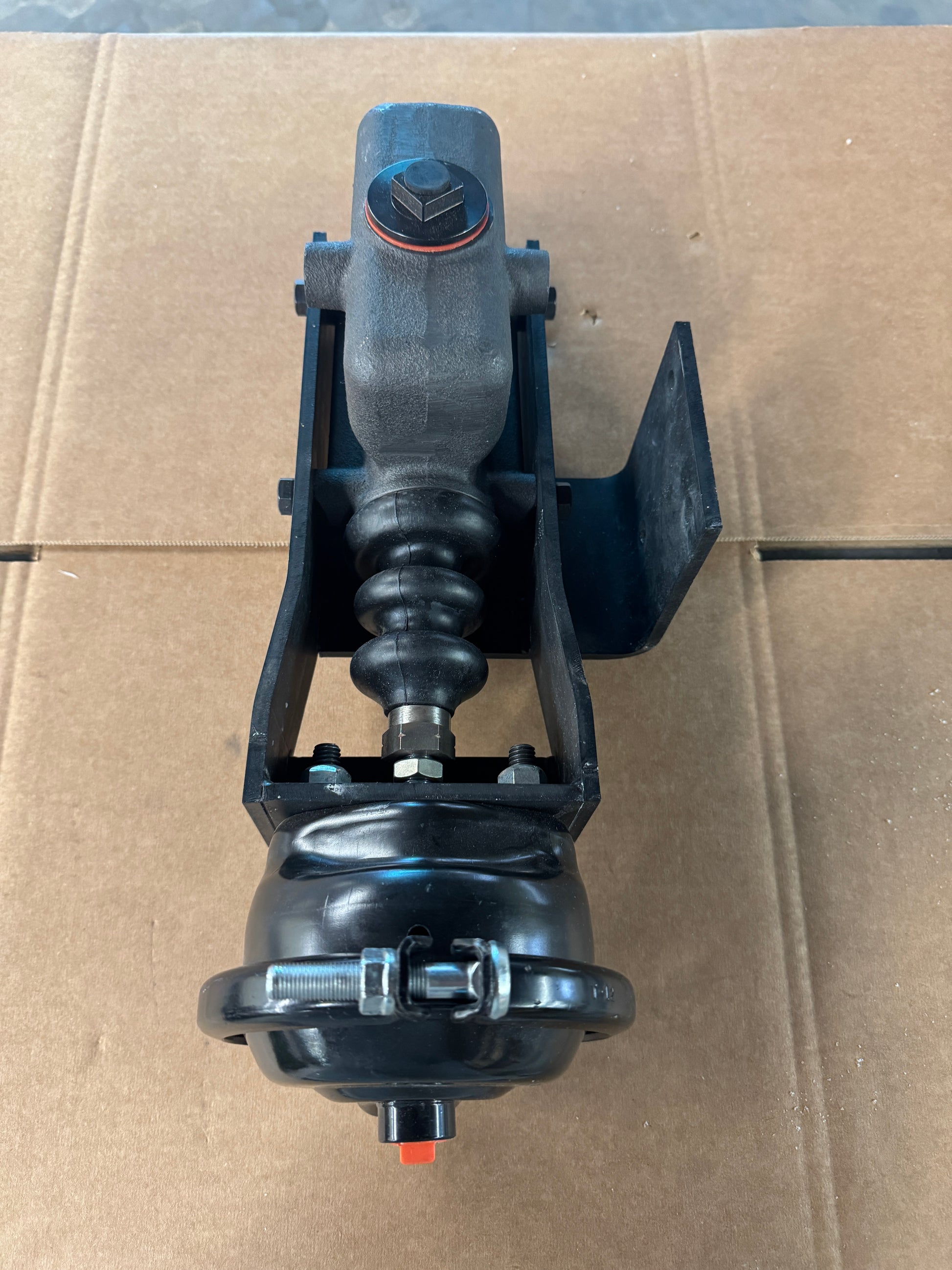

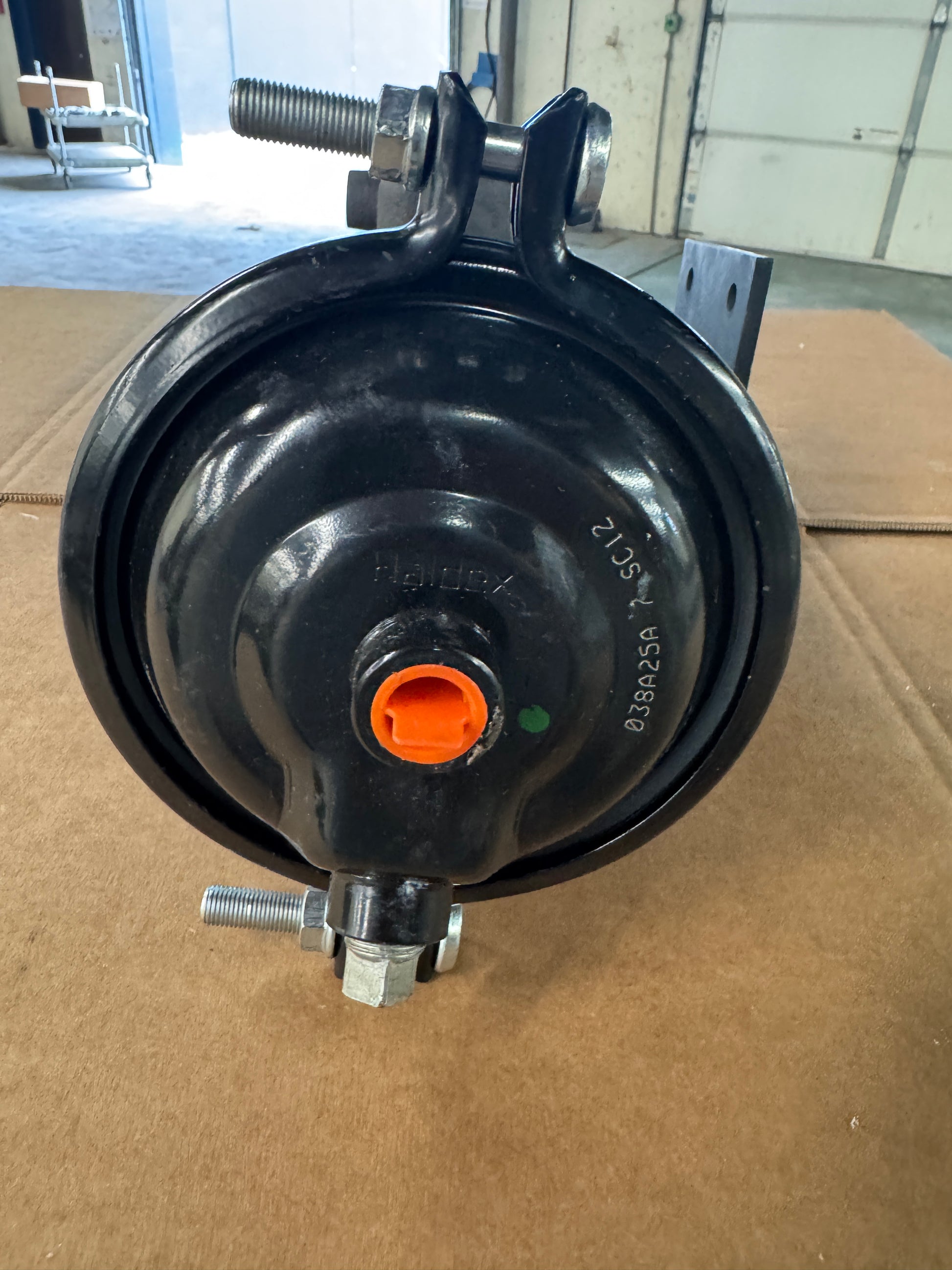

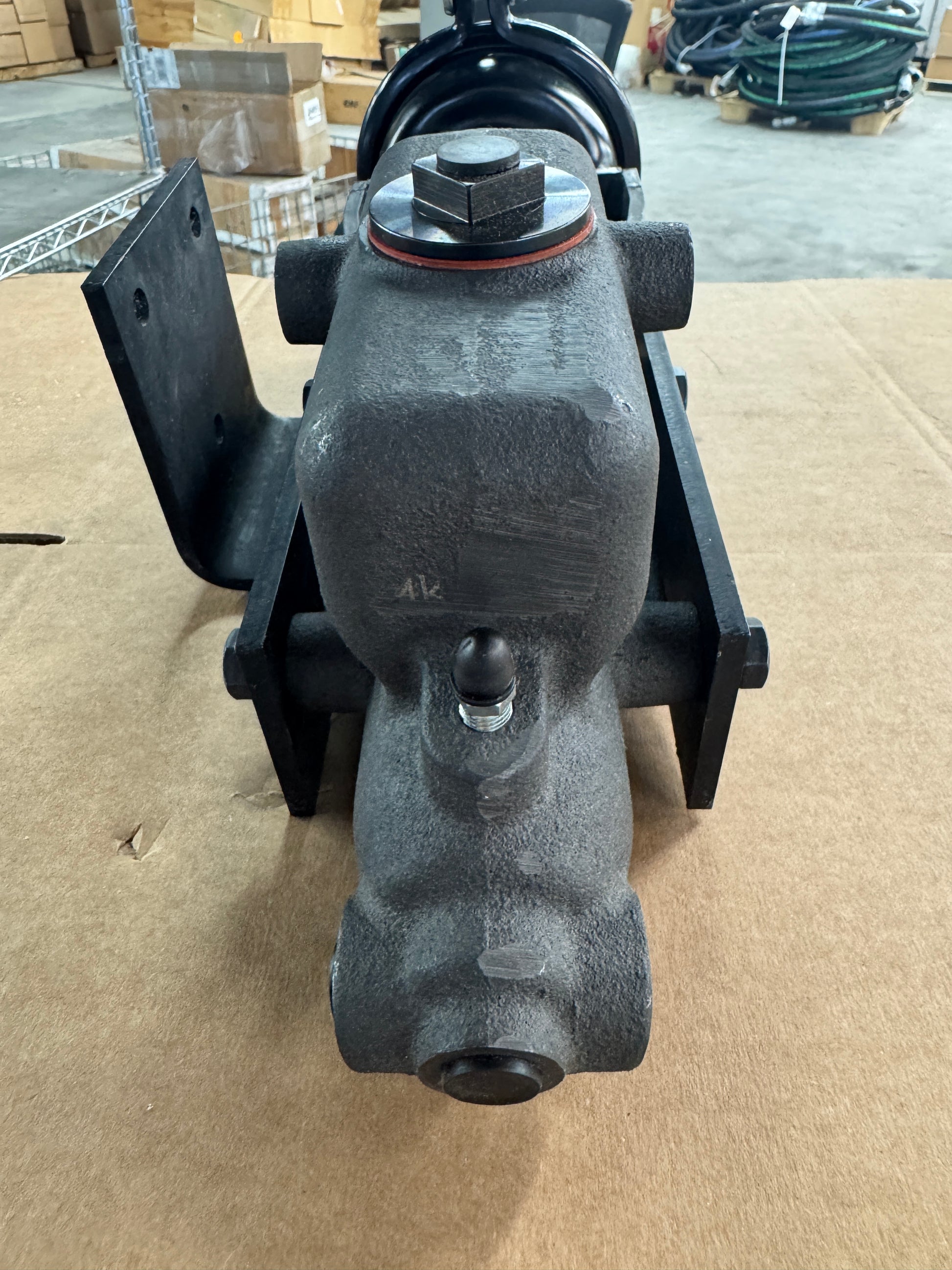

A combination spring brake chamber assembly from Haldex, carrying part number 038A25A and identified as an SC12 Type 12 service chamber configuration. The assembly integrates a service brake housing, a piggyback spring brake chamber, and a heavy steel mounting bracket, forming a complete ready-to-mount unit for commercial vehicle air brake applications. The spring brake chamber face is stamped with the Haldex name along with 038A25A and SC12 designations. The service housing exhibits fresh black powder coat finish with an orange dust plug installed at the pushrod port. The mounting bracket is fabricated from heavy-gauge steel plate with multiple bolt holes and integral gussets. A bump stop or isolator assembly is visible between the brake housing and bracket. Assembly hardware including studs and nuts is present. According to published Haldex SC12 specifications, the Type 12 service chamber provides a 1.75 inch standard stroke, maximum operating pressure of 150 PSI, and 3/8-18 NPTF air port threads. Stud spacing is 3.00 inches with 7/16-14 UNC studs. Internal inventory reference 0242-0200 and designation RII are handwritten in yellow on the bracket. Application details and vehicle fitment are unconfirmed and should be verified prior to installation. All fields flagged as unconfirmed should be reviewed before listing.
Stock # 0526-02526
