Joslyn Clark Limit Switch HLA-2 / A102-41251A-1 600V AC / 250V DC

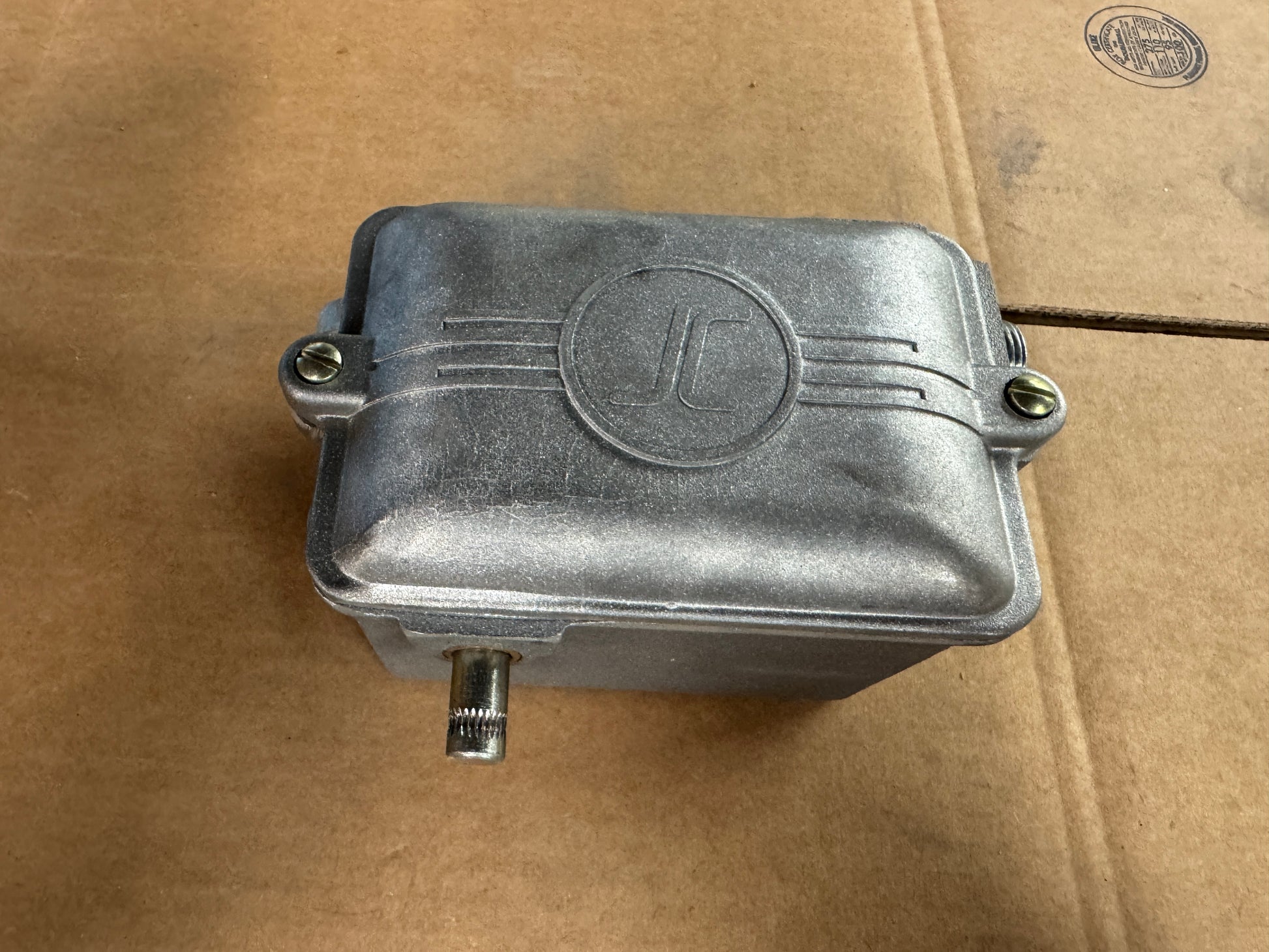

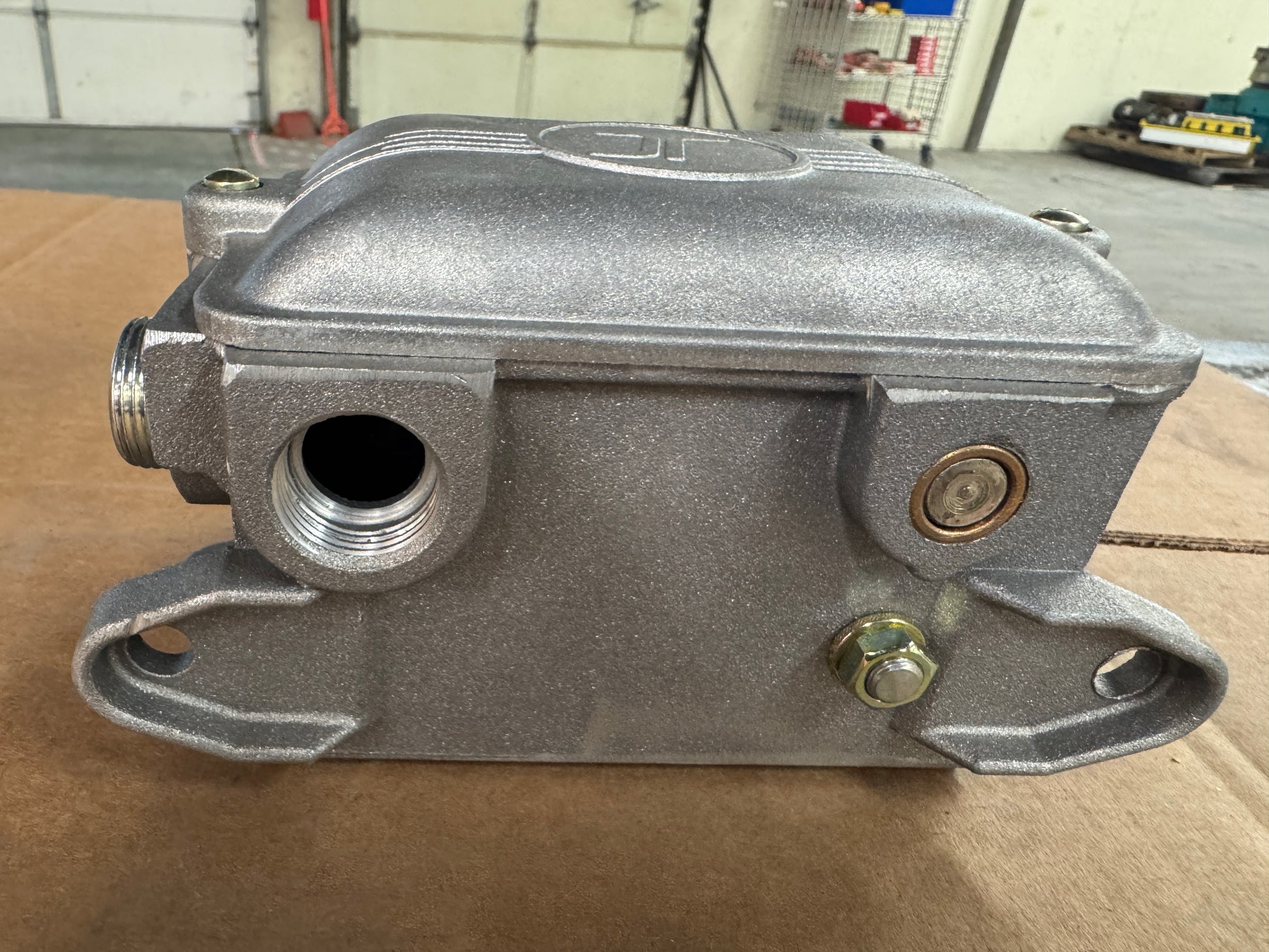

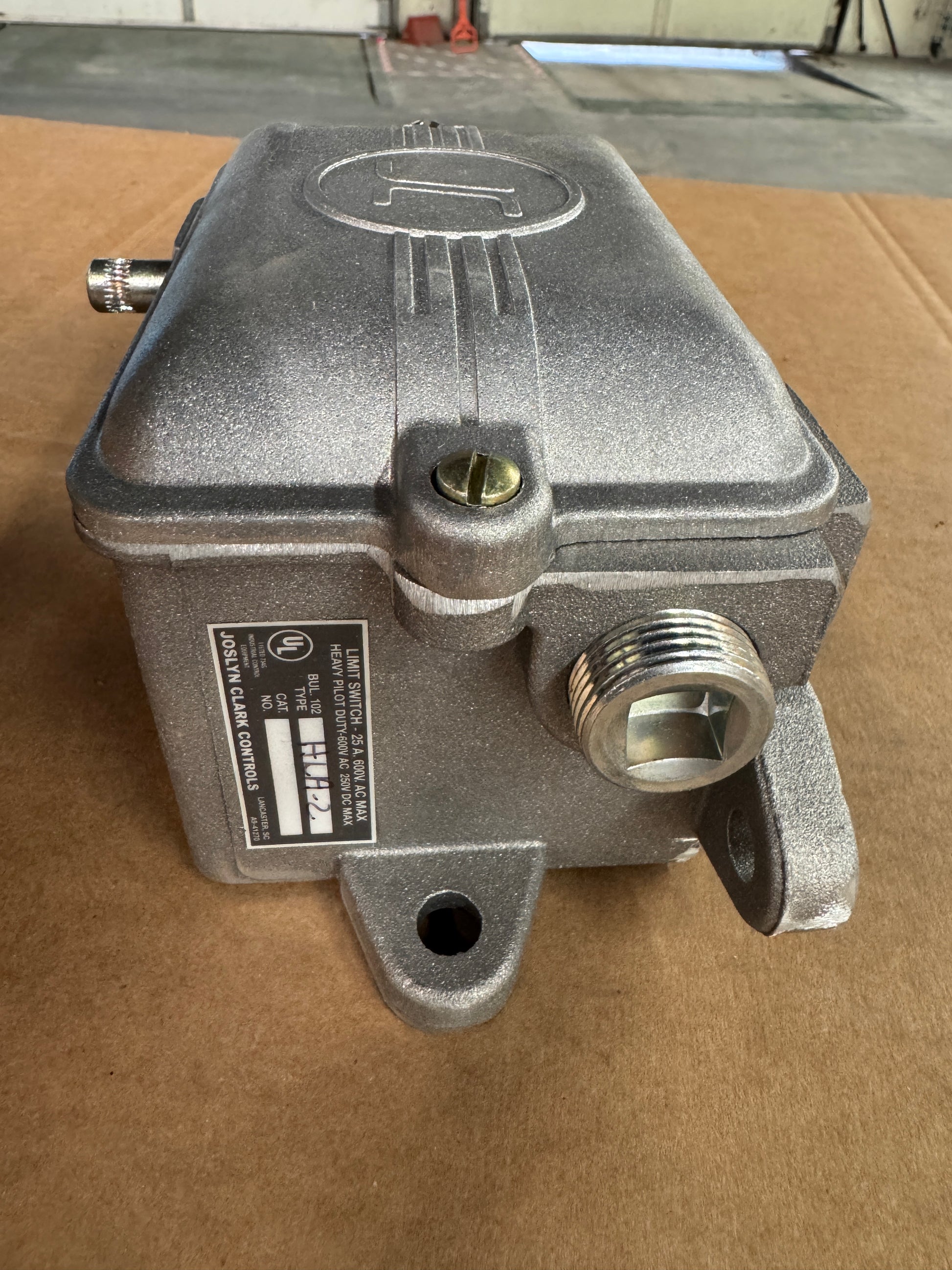

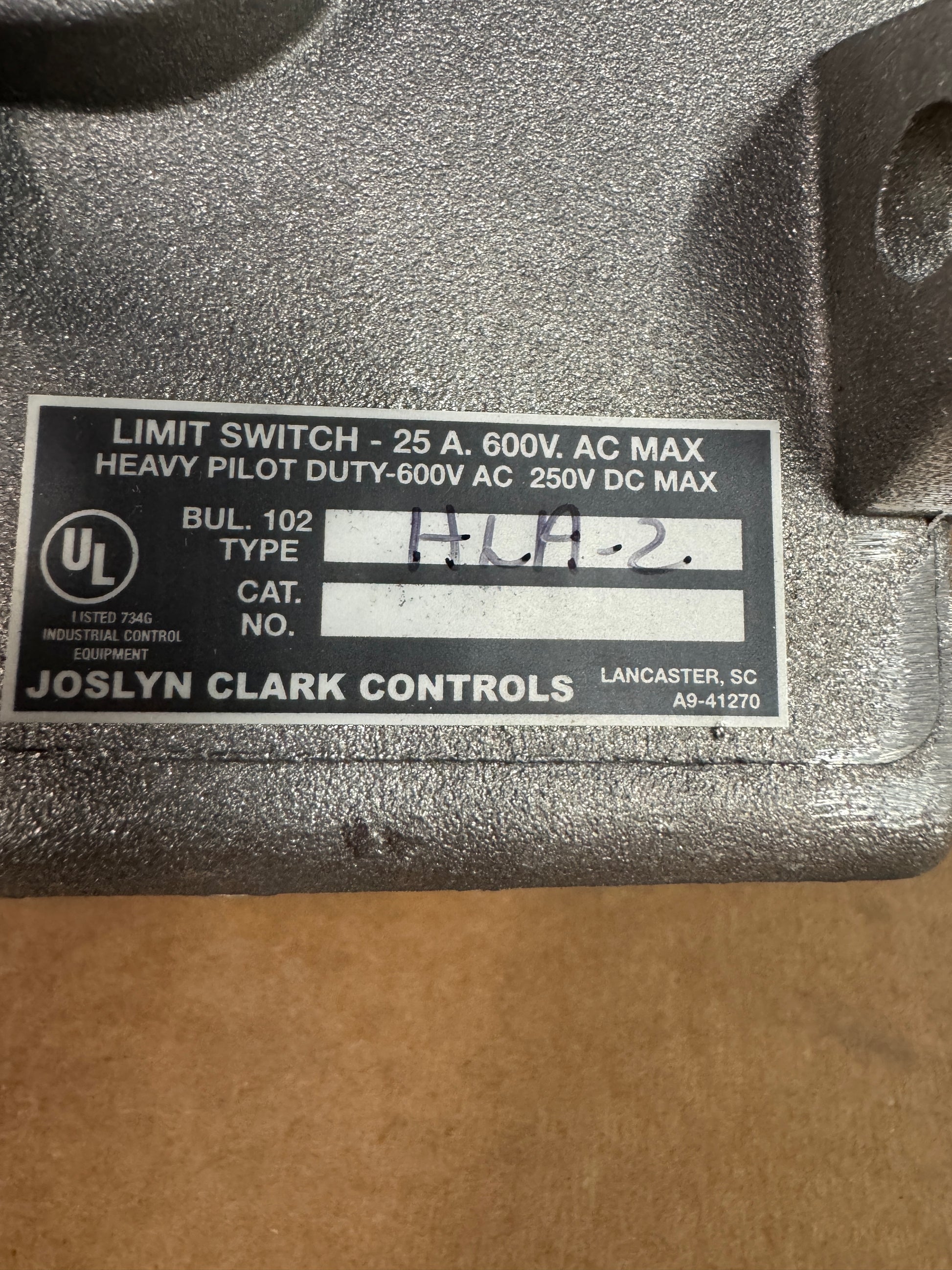

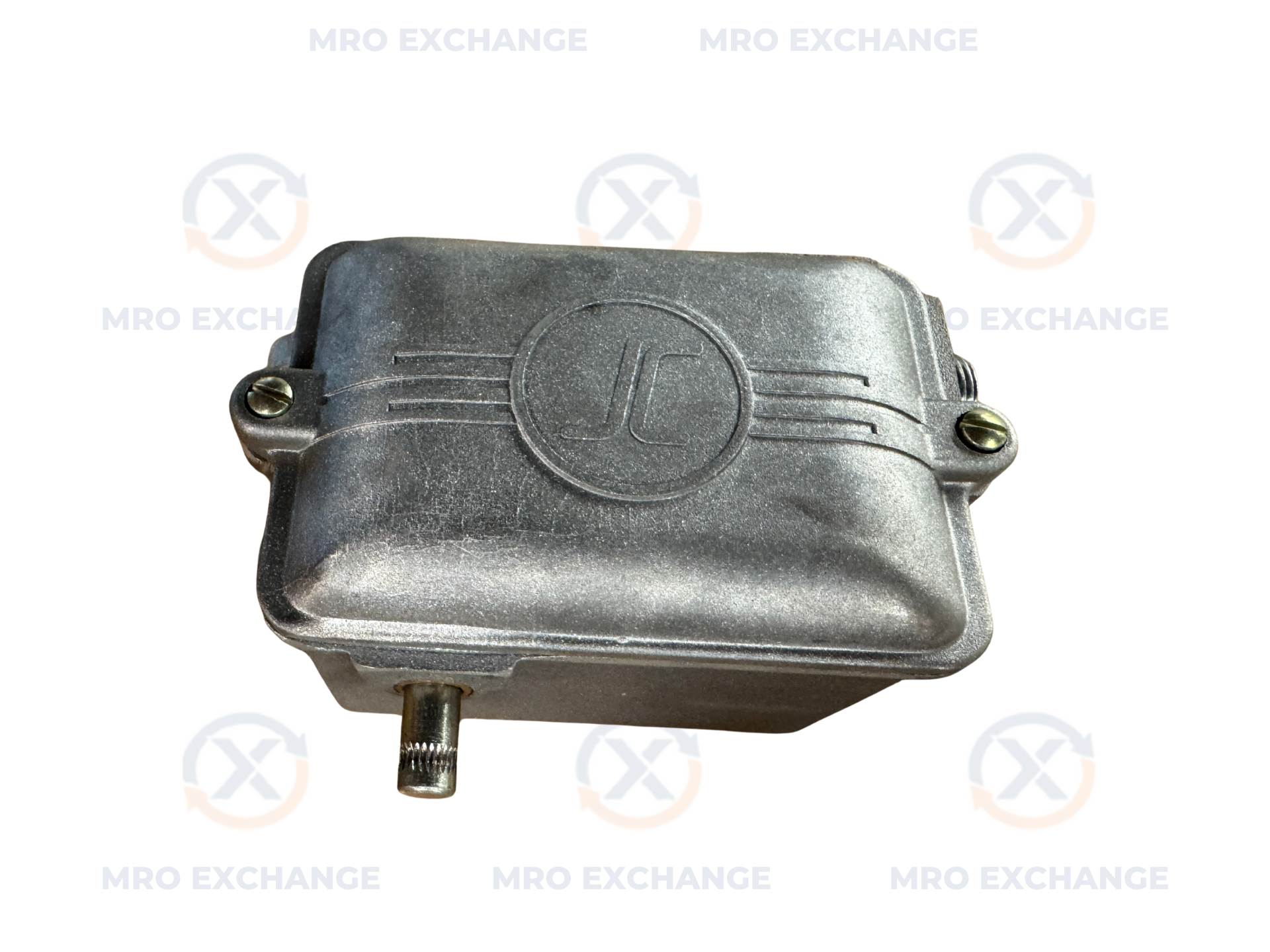

The Joslyn Clark HLA-2 (part number A102-41251A-1) is a heavy duty industrial limit switch designed as a pilot circuit device for travel limiting and position sensing applications. Rated at 25 amps and 600 volts AC maximum, with heavy pilot duty rating of 600V AC and 250V DC maximum, this unit is built for demanding industrial environments. The HLA-2 configuration features 2 poles with 2 normally closed contacts, right hand lever orientation, and a standard enclosure. Each contact may be independently configured from normally open to normally closed without disassembly, providing flexibility for various control applications. The cast aluminum housing offers durable mechanical protection and includes integrated mounting feet with through holes for secure installation. A threaded conduit entry on the side accommodates standard electrical conduit connections. The shaft mounted operating mechanism accepts a standard lever and roller assembly for actuation by passing machine components. UL listed under file 734G as Industrial Control Equipment, this unit carries the Joslyn Clark identification from the Lancaster, SC manufacturing facility (A9 41270). The HL series is widely used in crane, hoist, machine tool, conveyor, and material handling applications where reliable position detection and circuit interruption are required. NAED 30720. Bulletin 102 HL. MPN A102-41251A-1. Now associated with Danaher Controls following manufacturer consolidation. This unit is presented in original Joslyn Clark factory packaging based on visible labeling.

Stock # 0526-02286
