Joslyn Clark Magnetic Starter T13U031-76
Joslyn Clark Magnetic Starter T13U031-76
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: T13U031-76
Stock #: 0526-02290

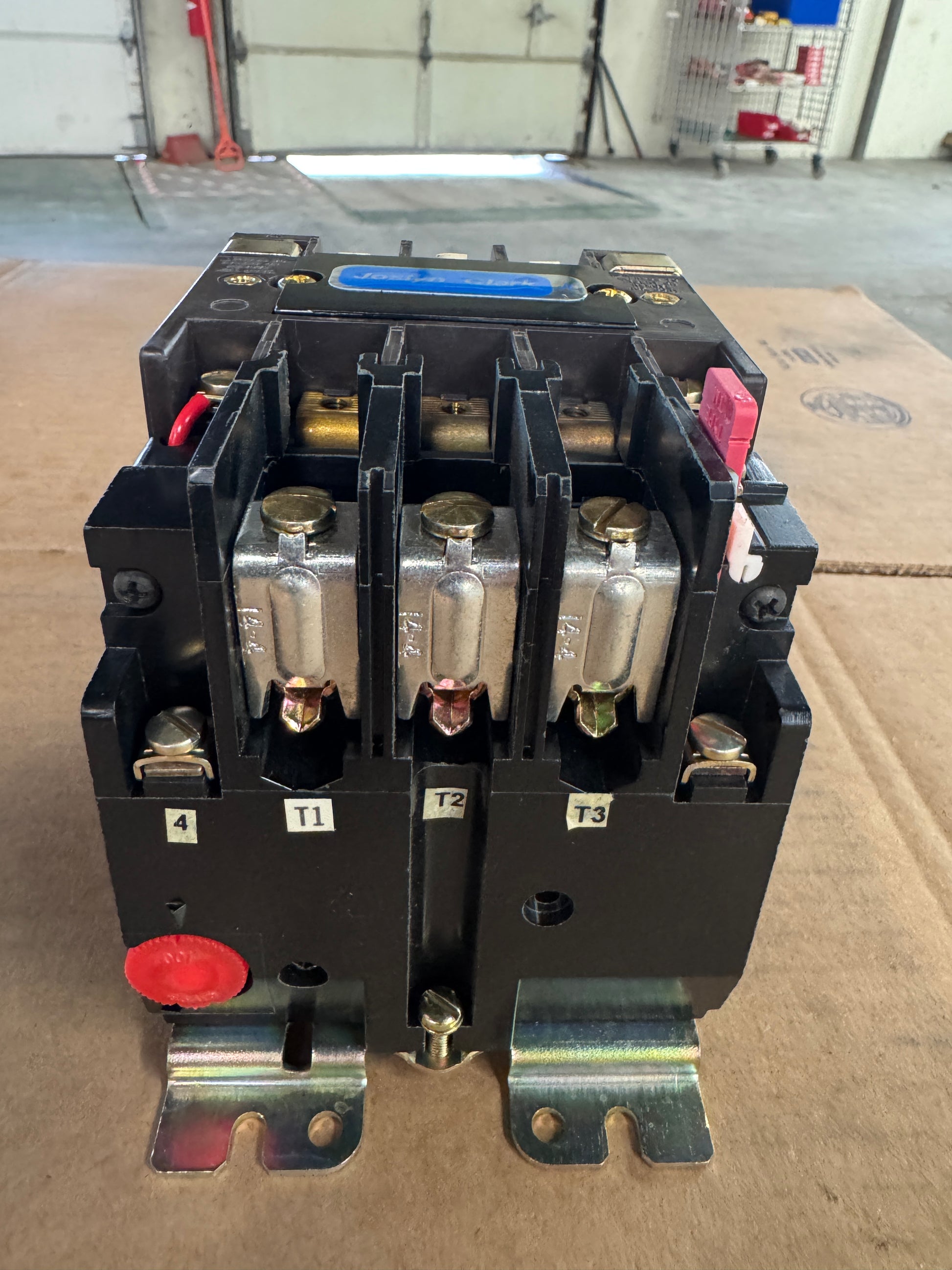

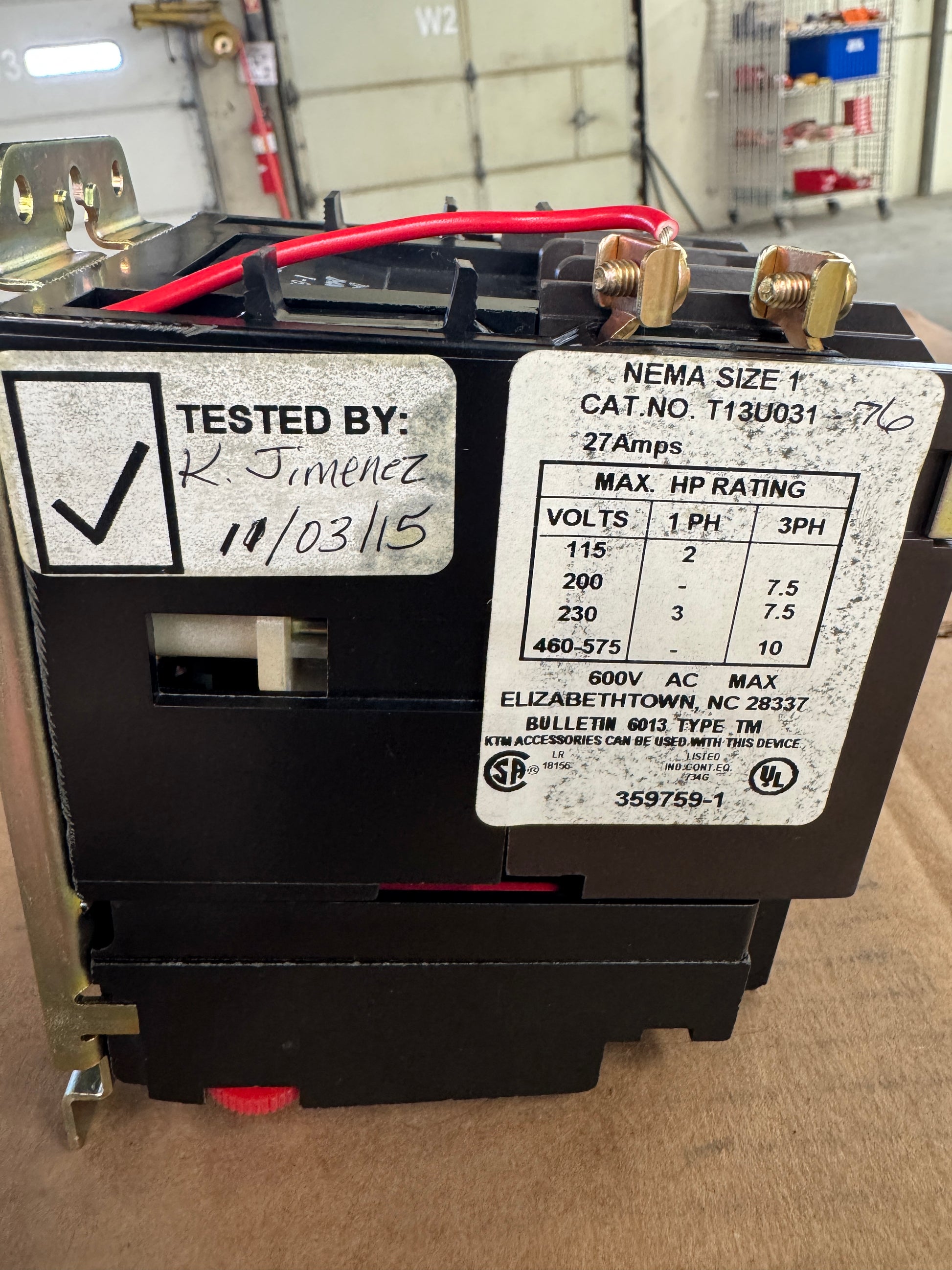

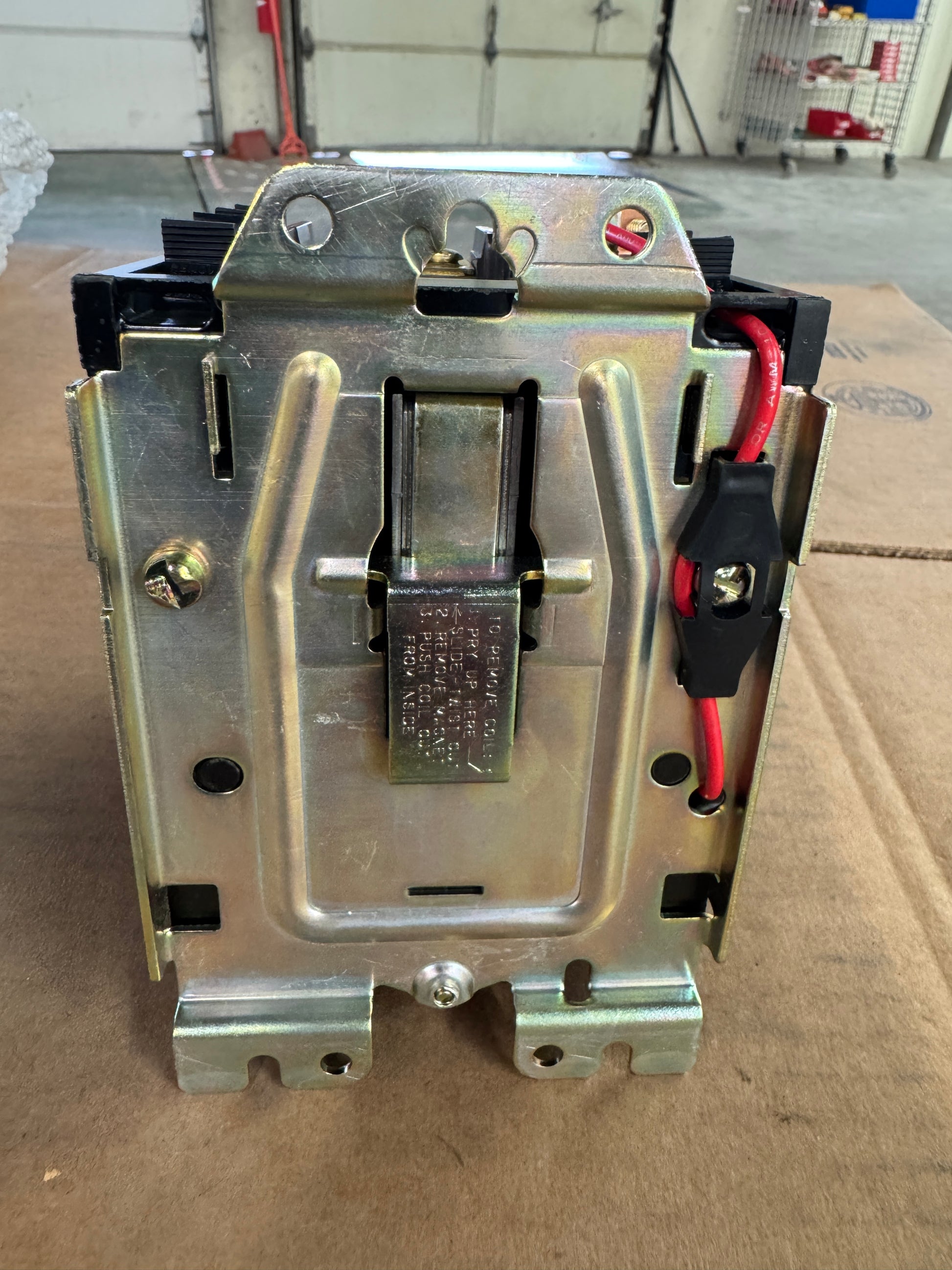

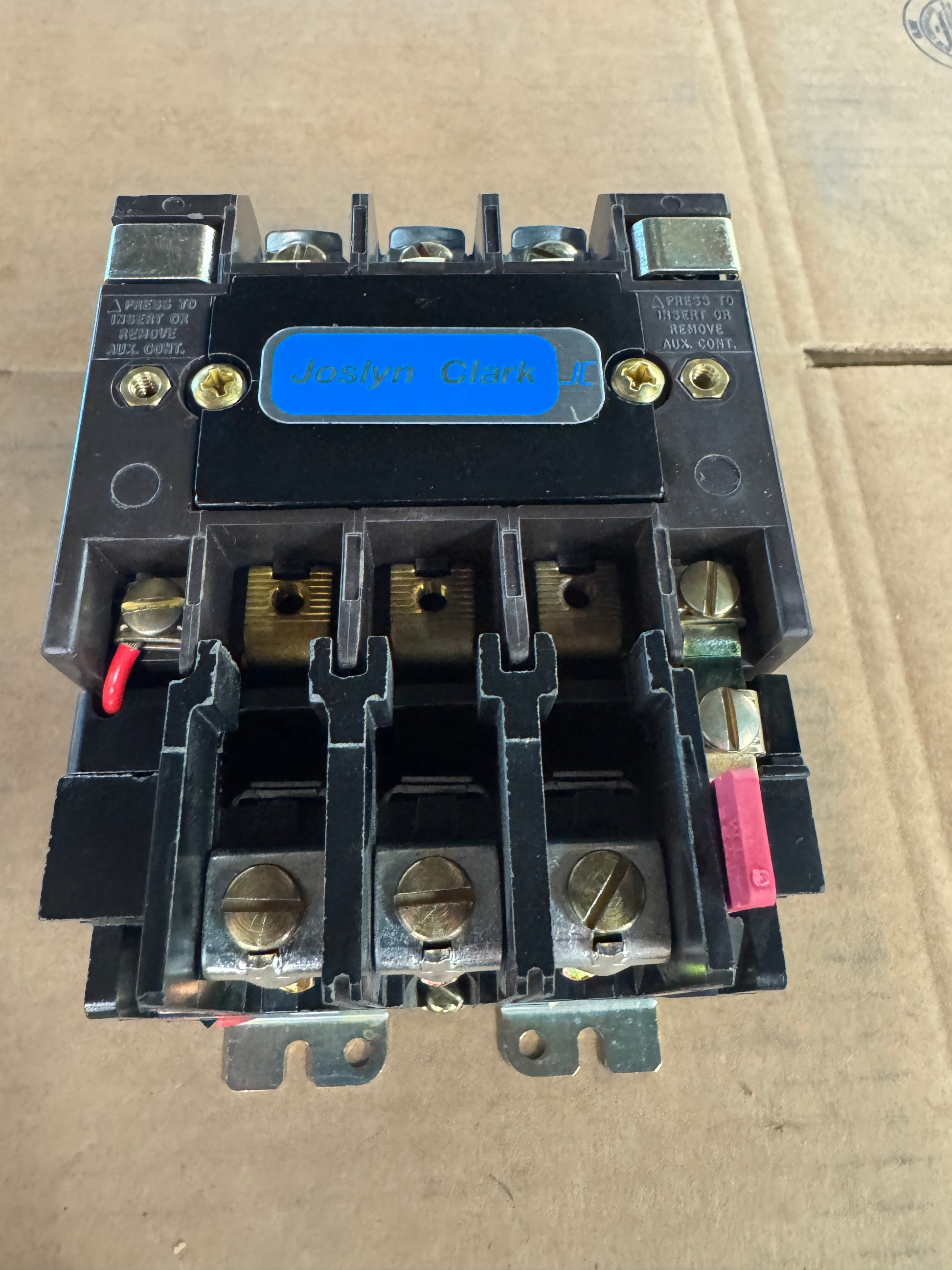

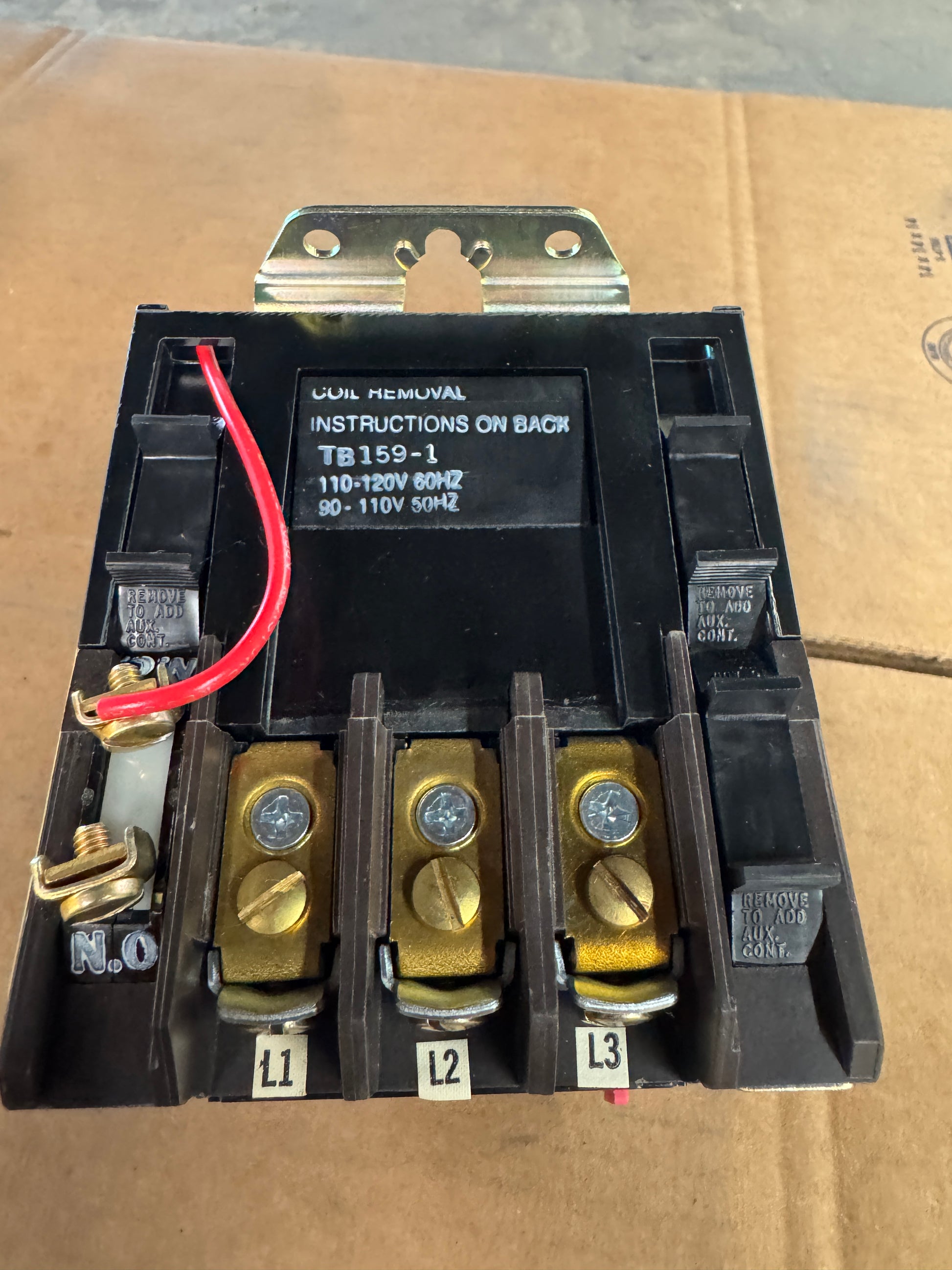

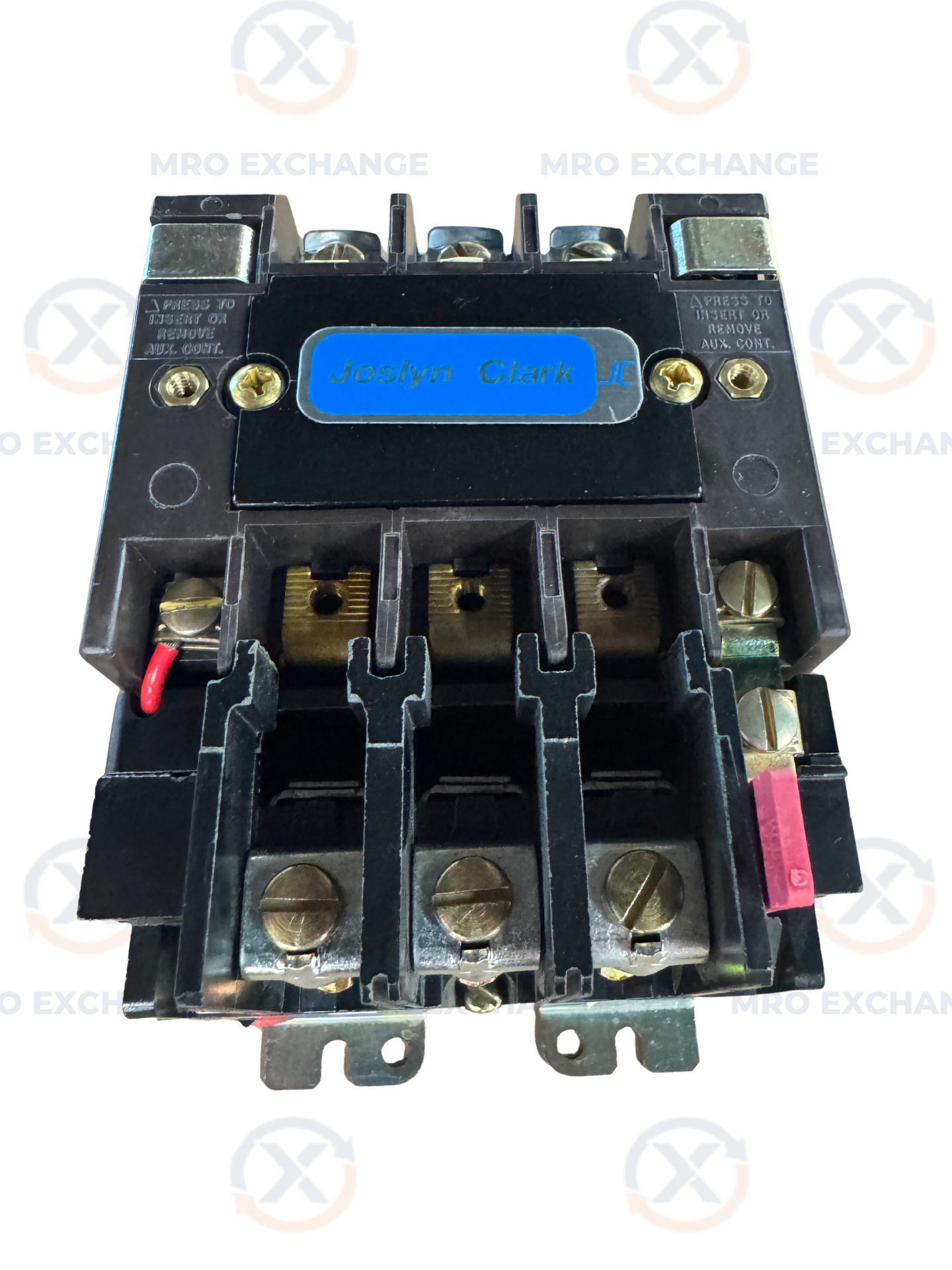

The Joslyn Clark T13U031 76 is a NEMA Size 1 AC magnetic motor starter rated for 27 amps and 600V AC maximum. This three pole, non reversing starter is part of the Bulletin 6013 Type TM series, manufactured in Elizabethtown, NC. The coil is a TB159 1 rated for 110 to 120V at 60Hz or 90 to 110V at 50Hz. Maximum horsepower ratings per the nameplate are 2 HP at 115V single phase, 3 HP at 230V single phase, 7.5 HP at 200V three phase, 7.5 HP at 230V three phase, and 10 HP at 460 to 575V three phase. The unit carries a NEMA Size 1 designation and is labeled as part number 359759 1 with both UL and CSA agency markings (UL Listed Industrial Control Equipment 734G, CSA LR 18156). The starter is an open construction style with bracket mounting feet, and incorporates an integrated overload relay with a reset button on the front face. Power terminals are clearly marked L1, L2, L3 on the line side and T1, T2, T3 on the load side, with an auxiliary normally open contact provided. KTM series accessories are compatible with this device. A tested by sticker dated 11/03/15 is affixed to the housing. Common applications include three phase motor starting in industrial control panels, pump stations, HVAC equipment, conveyors, and machine tool electrical systems.
Stock # 0526-02290
