OTT-JAKOB Spindle Drawbar Clamping Assembly 000.672.194

$749.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 000.672.194
Stock #: 0226-00668

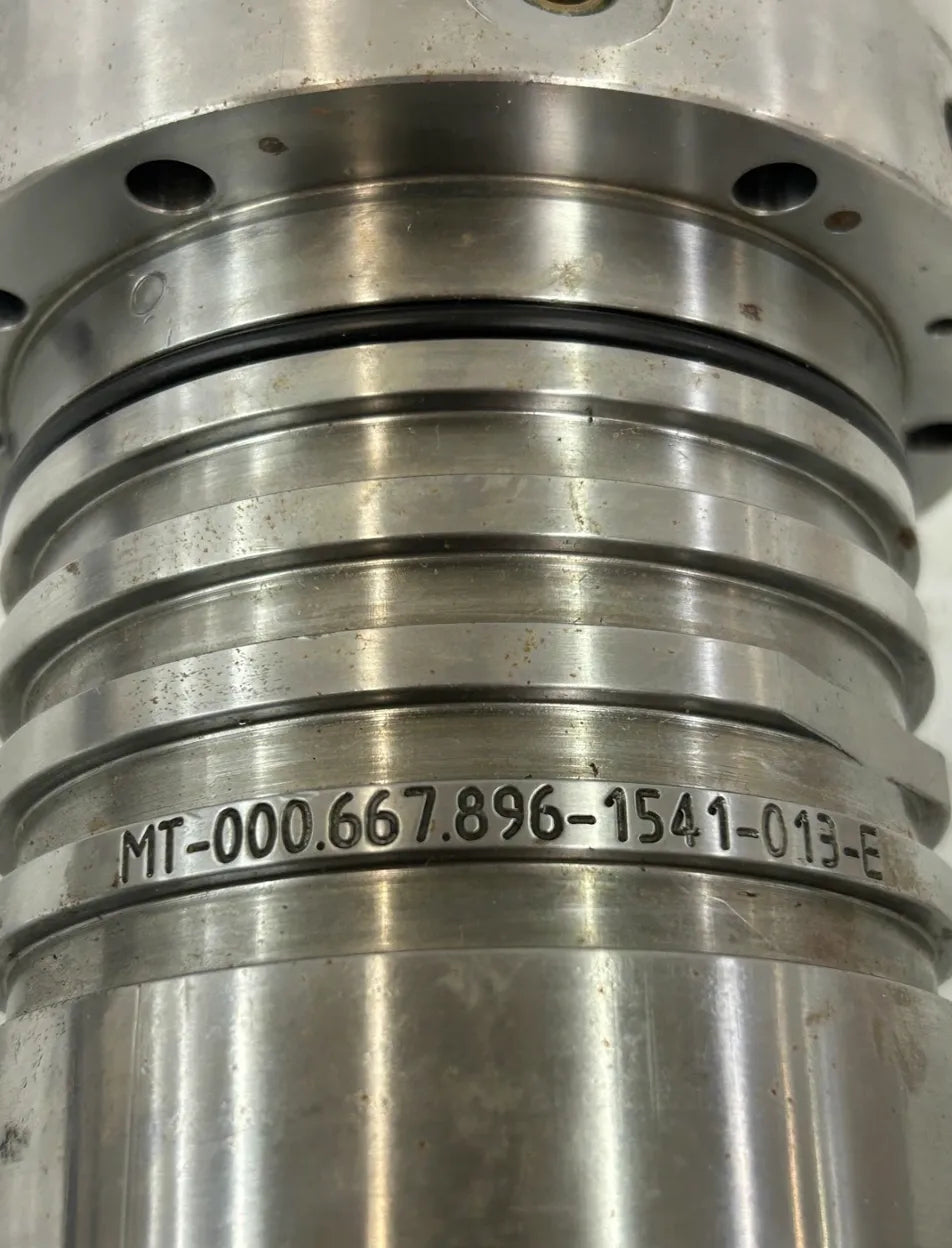

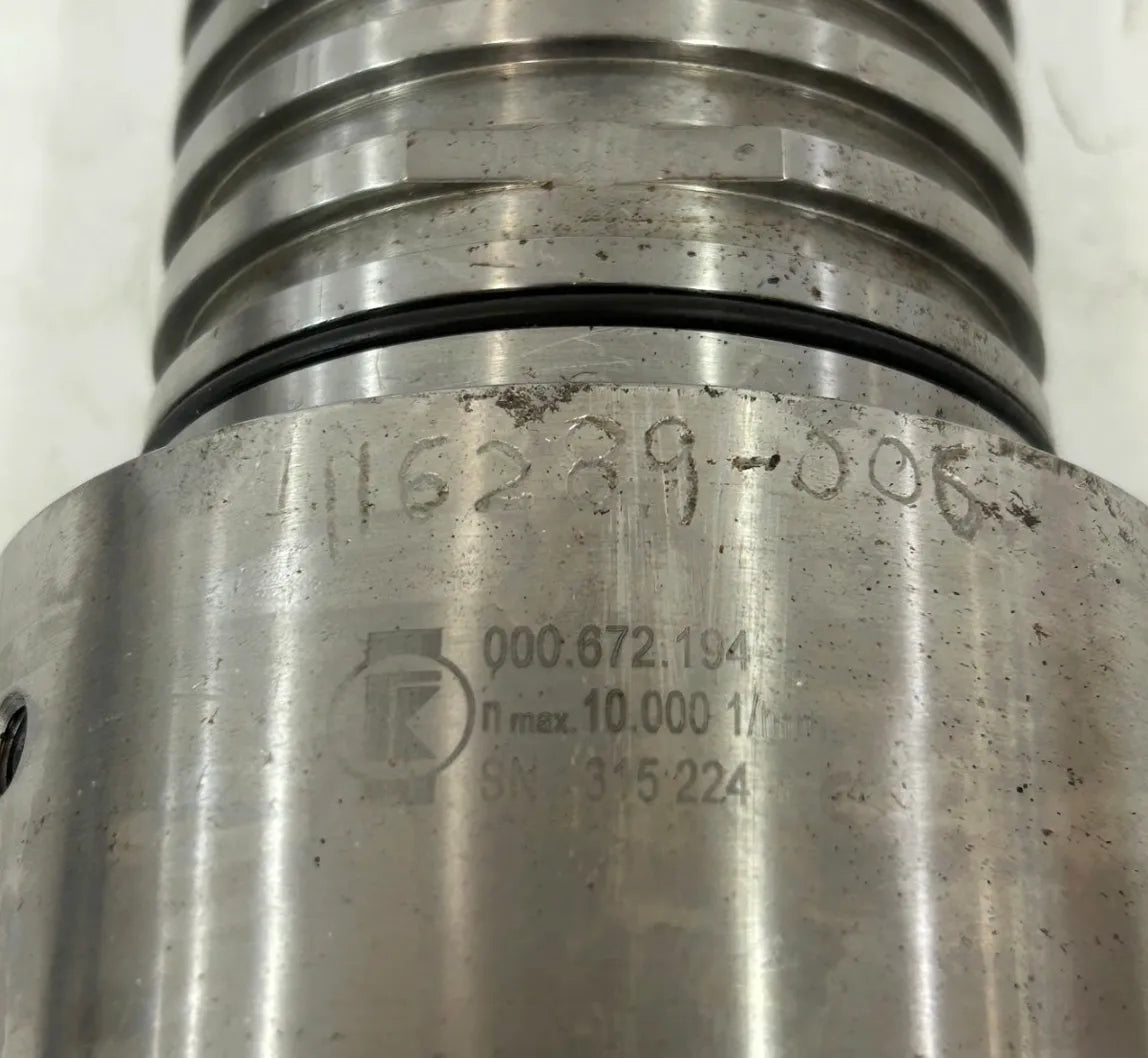

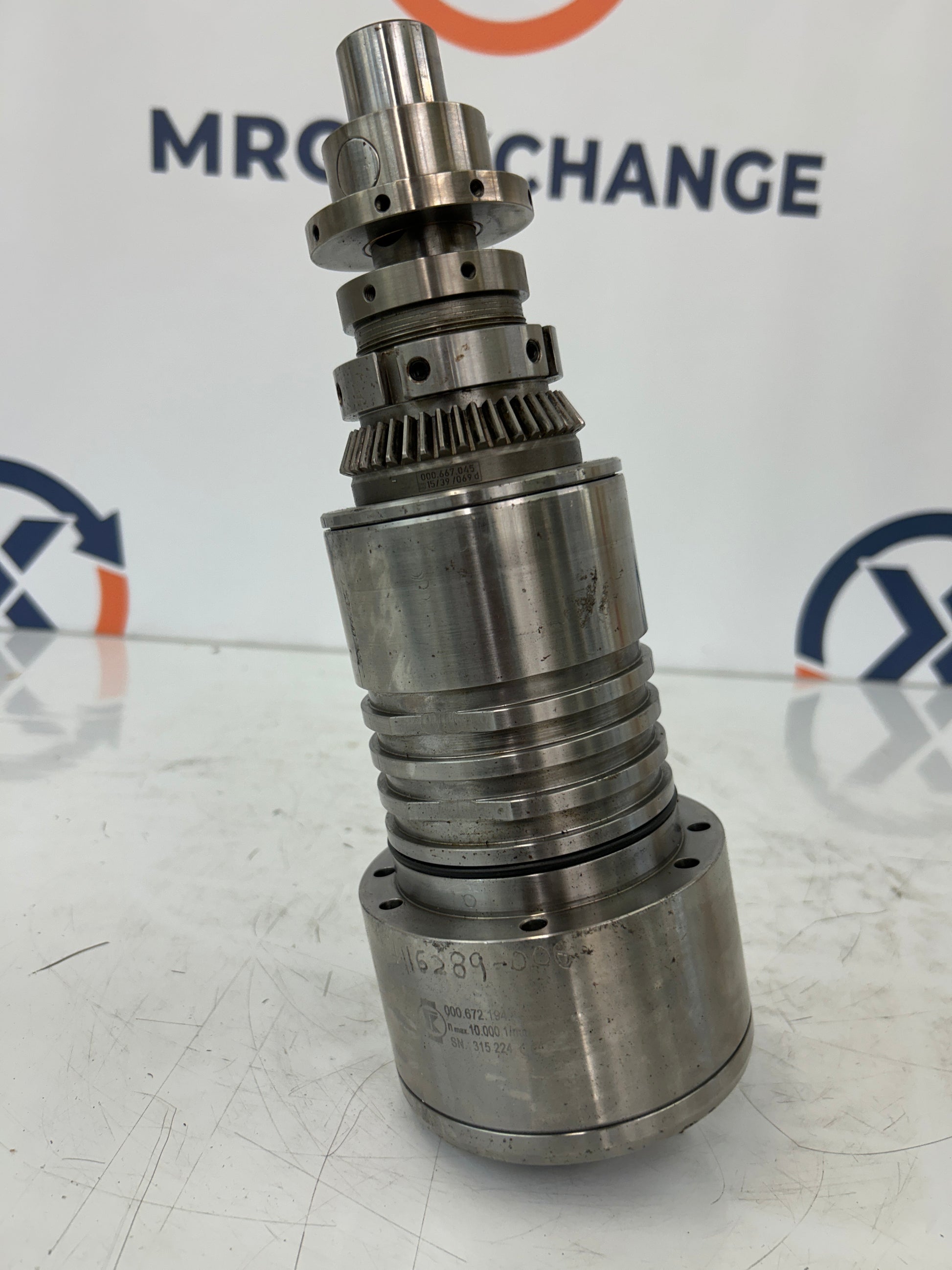

Used in CNC machining centers requiring automatic tool retention, the OTT-JAKOB spindle drawbar clamping assembly carrying part number 000.672.194 is a complete, integrated unit combining a drawbar shaft, helical gear drive, gripper mechanism, and bolt-flange mounting base. A secondary assembly reference, MT-000.667.896-1541-013-E, is stamped on the lower housing. The nameplate confirms a maximum spindle speed of 10,000 RPM and serial number 315.224. OTT-JAKOB, headquartered in Germany, is recognized globally as a leading manufacturer of spindle tool clamping systems, and this assembly reflects the company's characteristic all-steel precision construction. The helical gear visible on the assembly is consistent with OTT-JAKOB's internally integrated force-intensifying mechanisms, which multiply spring clamping force to secure tool holders under high cutting loads. The flanged lower section incorporates O-ring grooves for sealing, and multiple precision-ground journal diameters are visible along the shaft. This assembly is consistent with OTT-JAKOB's custom-engineered, spindle-specific clamping system designs, which are built to individual machine tool specifications. Buyers seeking replacement or spare spindle drawbar assemblies for OTT-JAKOB-equipped machining centers should verify compatibility using the part numbers 000.672.194 and MT-000.667.896-1541-013-E against their machine's original documentation.

Stock # 0226-668
