Teral Kyokuto Type TE 1.1kW 3 Phase Immersion Coolant Pump 200/220V TEFC IP55
Teral Kyokuto Type TE 1.1kW 3 Phase Immersion Coolant Pump 200/220V TEFC IP55
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

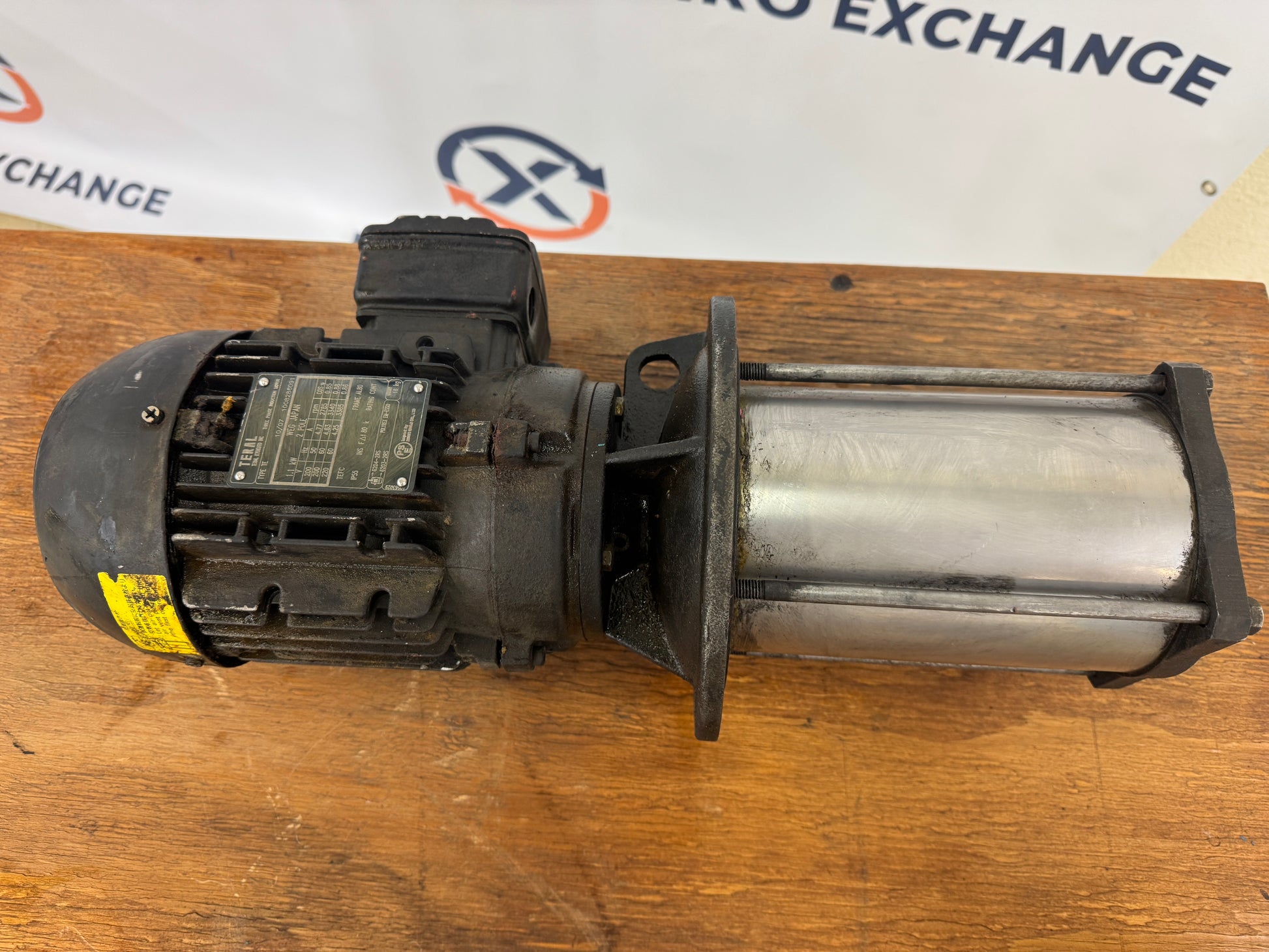

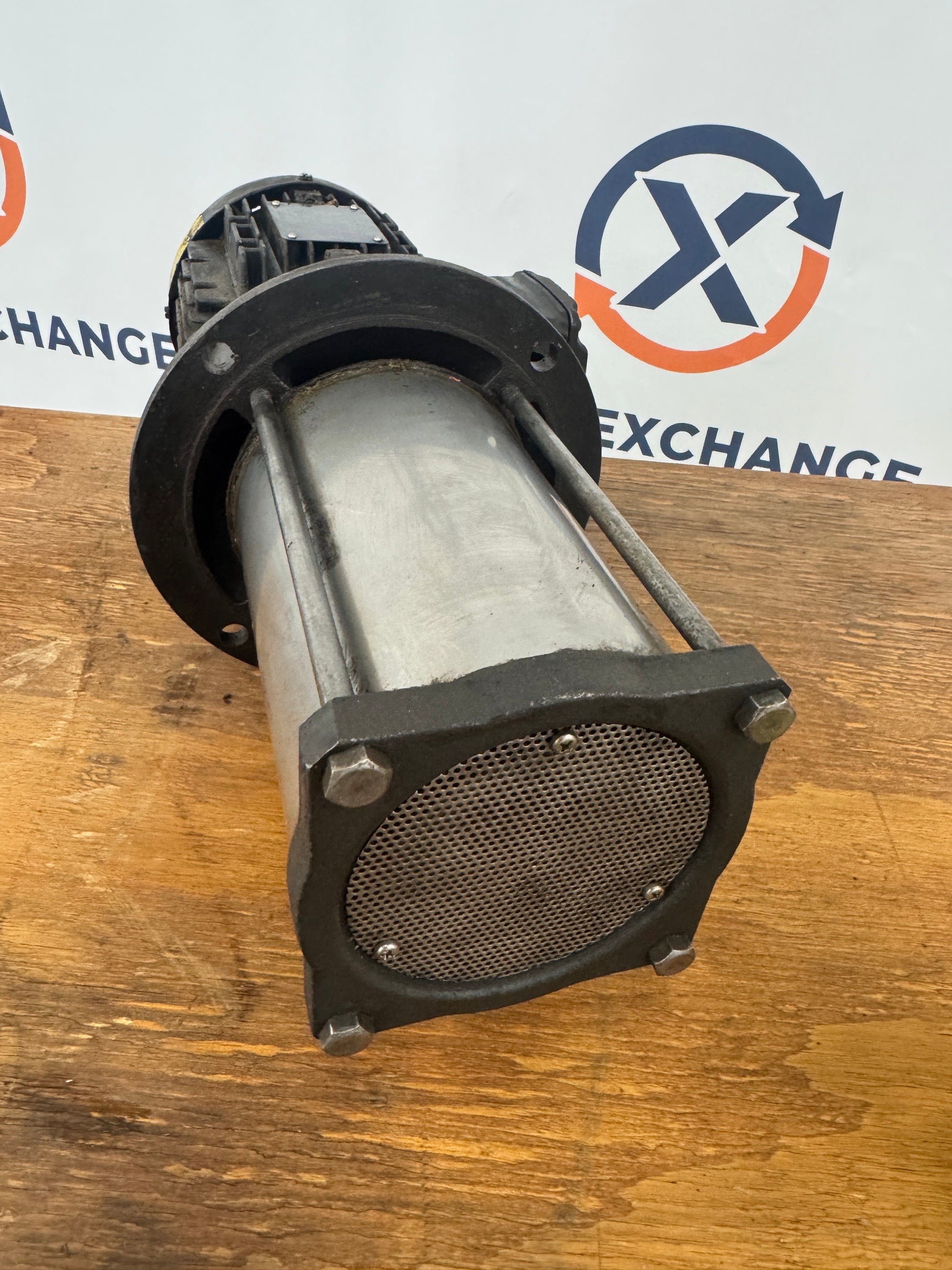

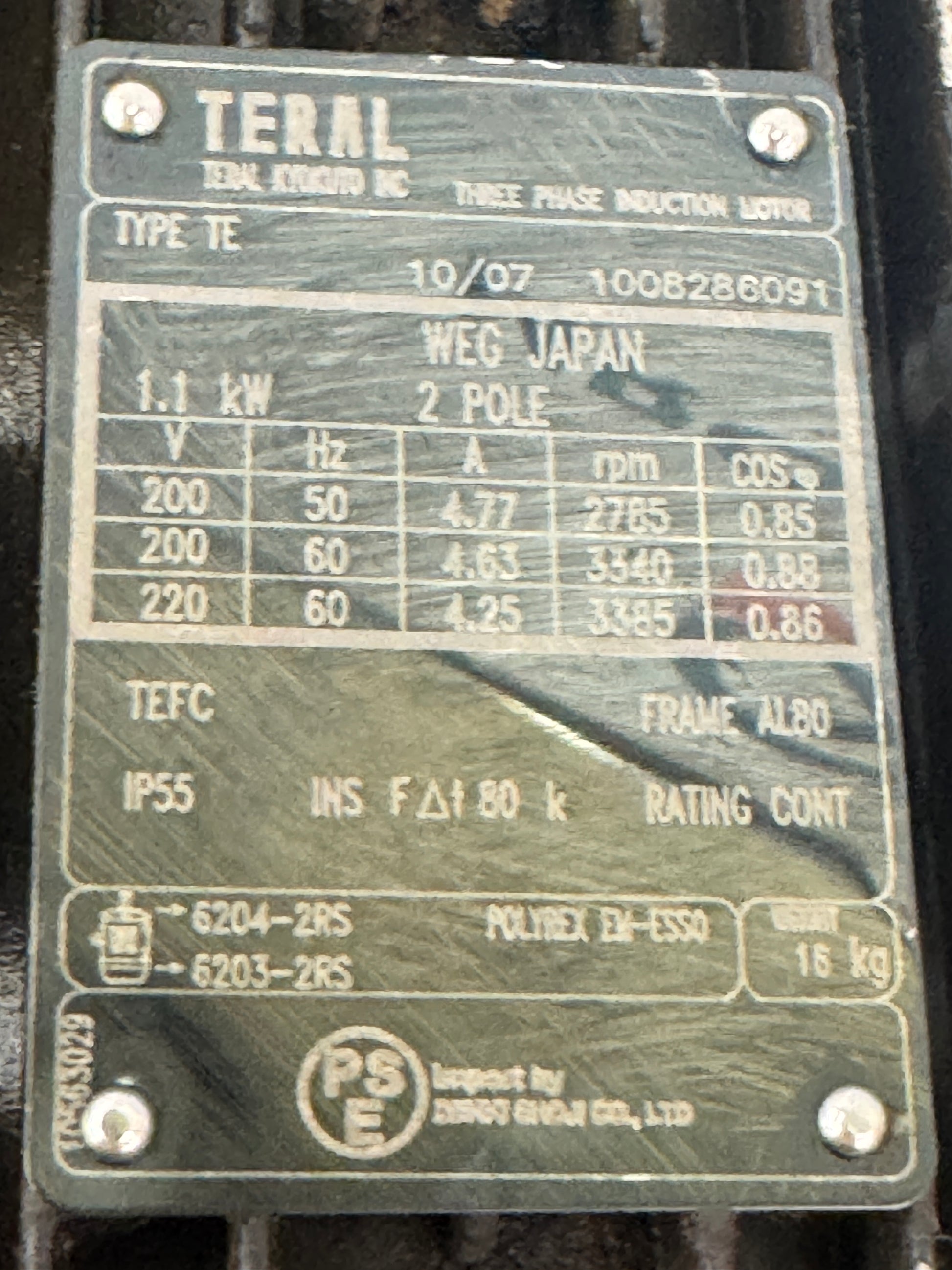

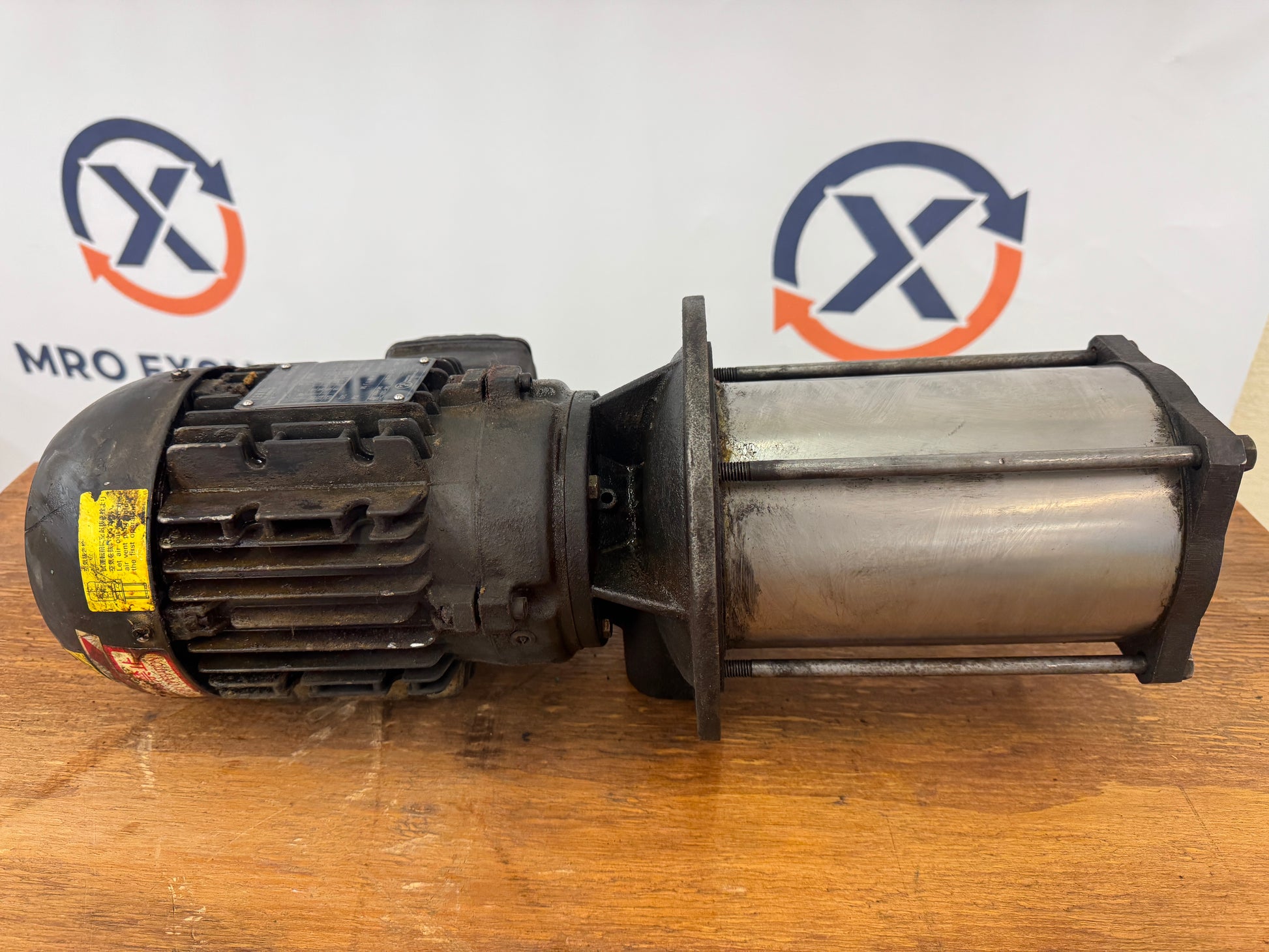

A multistage immersion coolant pump from Teral, this unit pairs a 1.1 kW, 2 pole three phase induction motor with a stainless steel multistage pump body in a co-axial vertical configuration. The motor nameplate identifies the assembly as Teral TYPE TE, Serial 1008286091, manufactured by WEG Japan, with frame AL80 construction. Electrical ratings are listed at 200V 50Hz, 200V 60Hz, and 220V 60Hz, drawing 4.77 A, 4.63 A, and 4.25 A respectively. Rated speeds at the listed voltages are 2785 RPM, 3340 RPM, and 3385 RPM. Cos phi values are 0.85, 0.88, and 0.86 across the three voltage configurations. The motor enclosure is TEFC with IP55 ingress protection, Class F insulation rated for 80 K temperature rise, and continuous duty rating. Motor bearings are specified as 6204 2RS at the drive end and 6203 2RS at the non drive end, with Polyrex EM ESSO grease specified. The pump section is a vertical multistage stainless steel barrel design with tie rod construction, intended for vertical installation in a coolant tank with the motor mounted above tank level. Approximate dry weight per the nameplate is 16 kg. Bearings and seals are standard sourced replacement components. Compatible with CNC machining centers, lathes, grinders, and other machine tool coolant delivery applications requiring elevated discharge head from a sump.
Stock # 0226-112
