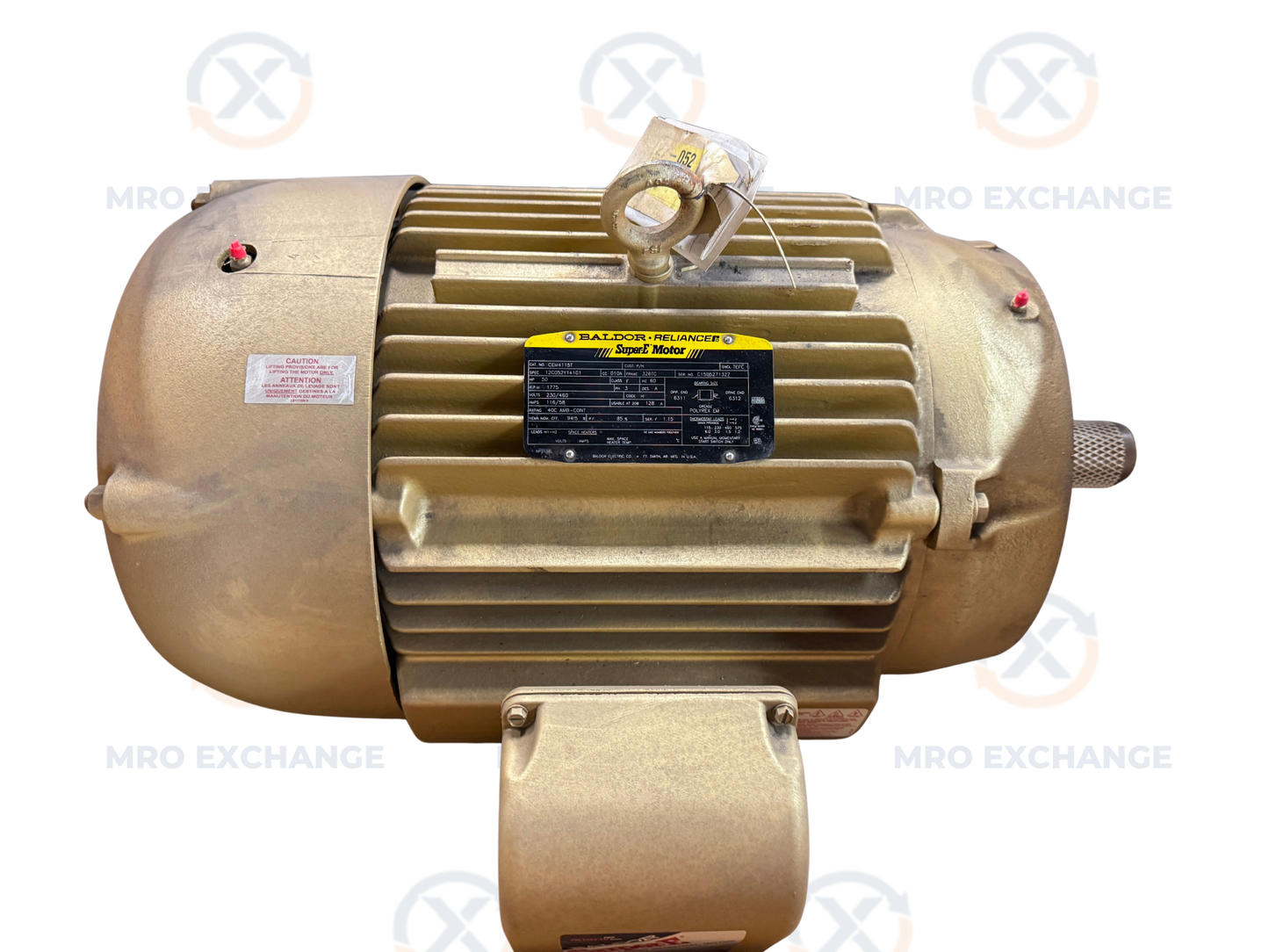

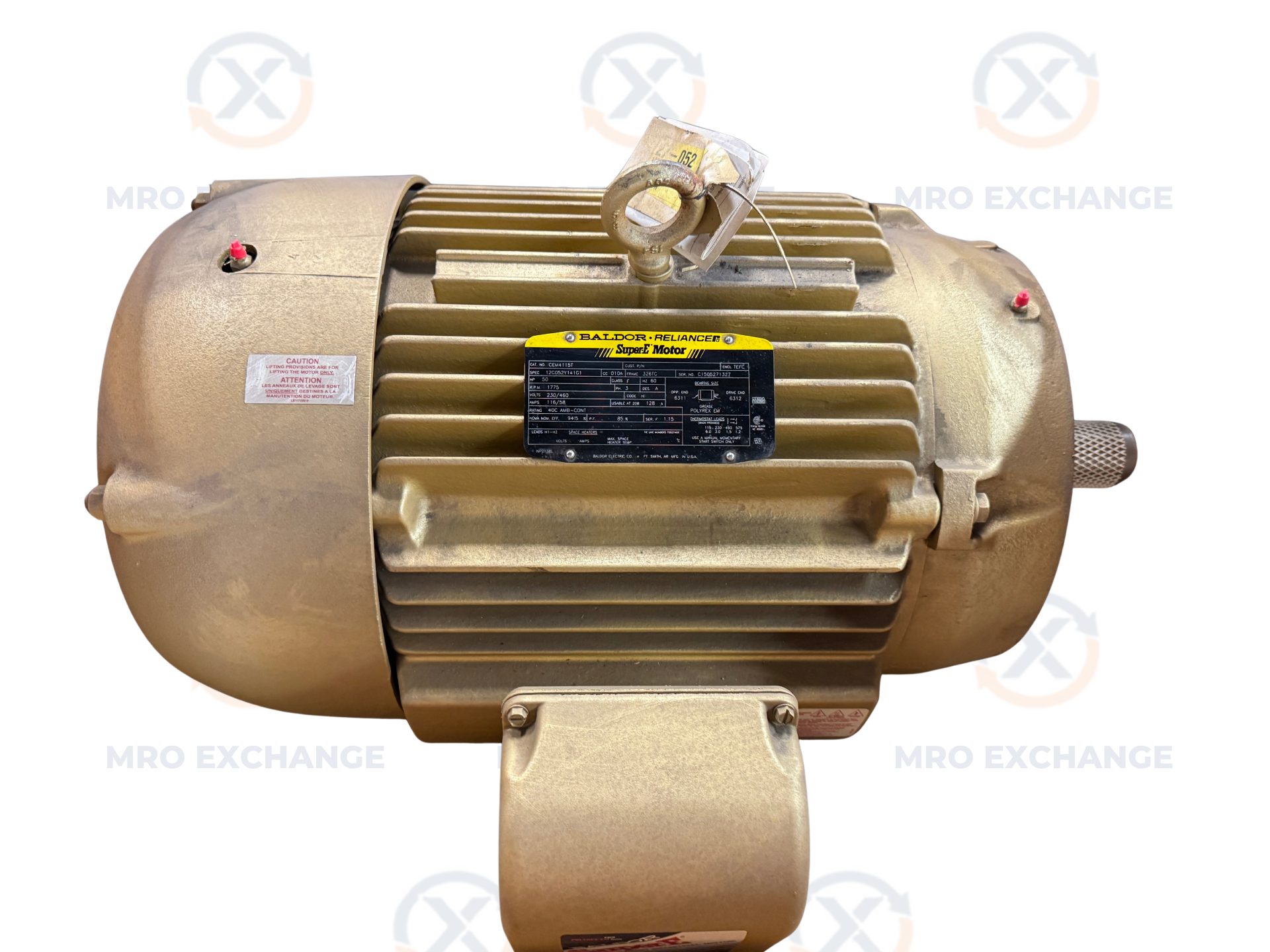

Baldor Reliance AC Motor CEM4115T - 50 HP 1800 RPM
Baldor Reliance AC Motor CEM4115T - 50 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Inspected Surplus - Appears Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CEM4115T
Stock #: 0526-01415

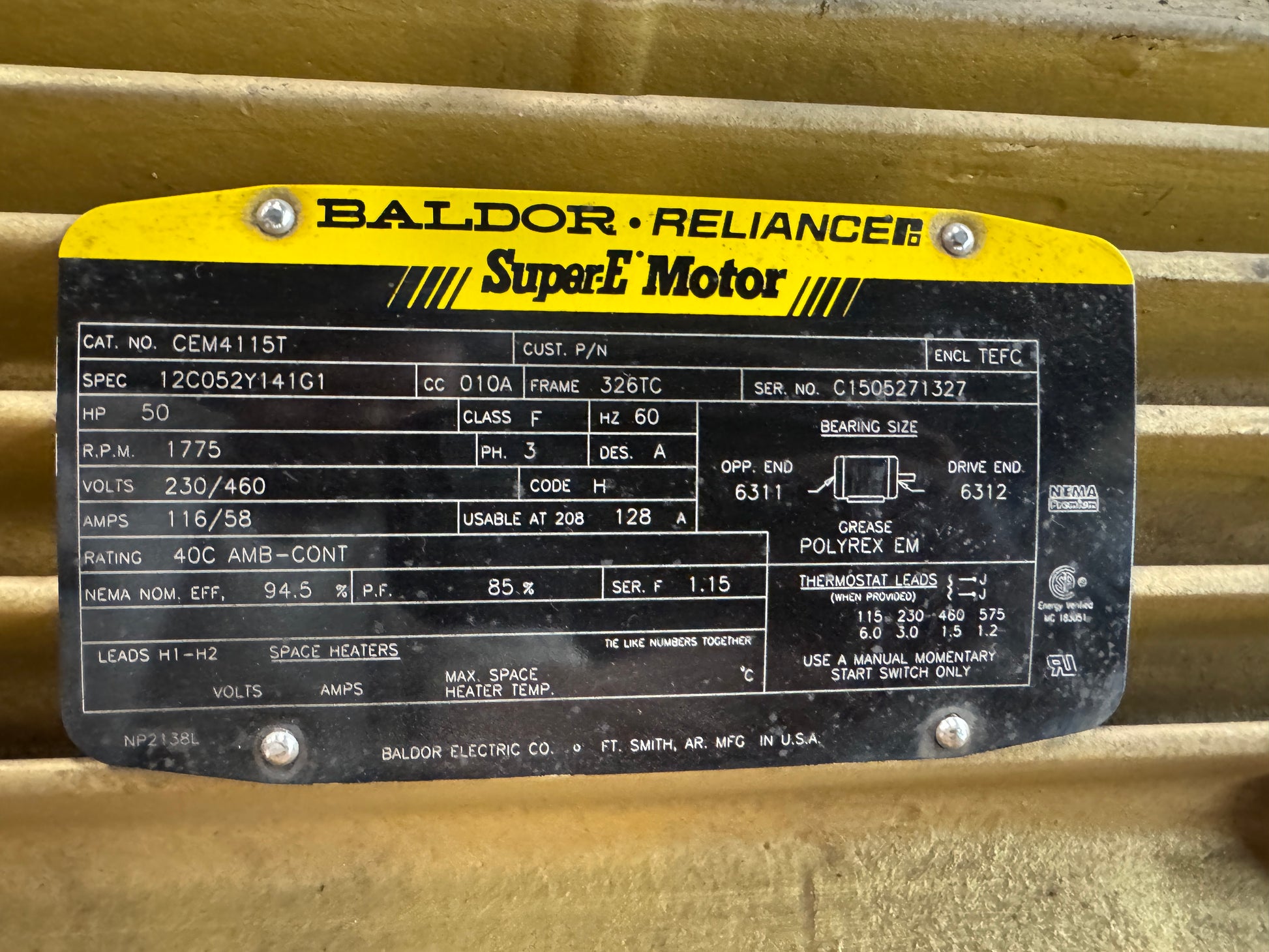

Product Specifications
- Manufacturer: Baldor Electric Co.
- MPN / Model: CEM4115T
- Product Type: Three-Phase AC Motor
- Horsepower: 50 HP
- Frame: 326TC
- Voltage: 230/460V
- Frequency: 60 Hz
- Speed: 1,775 RPM
- Full Load Amps: 116/58A (208V: 128A)
- Enclosure: TEFC
- Service Factor: 1.15
- Insulation Class: F
- Efficiency: 94.5% at Full Load (NEMA Premium)
- Power Factor: 85%
- Design Code: A
- Ambient Rating: 40 degrees C

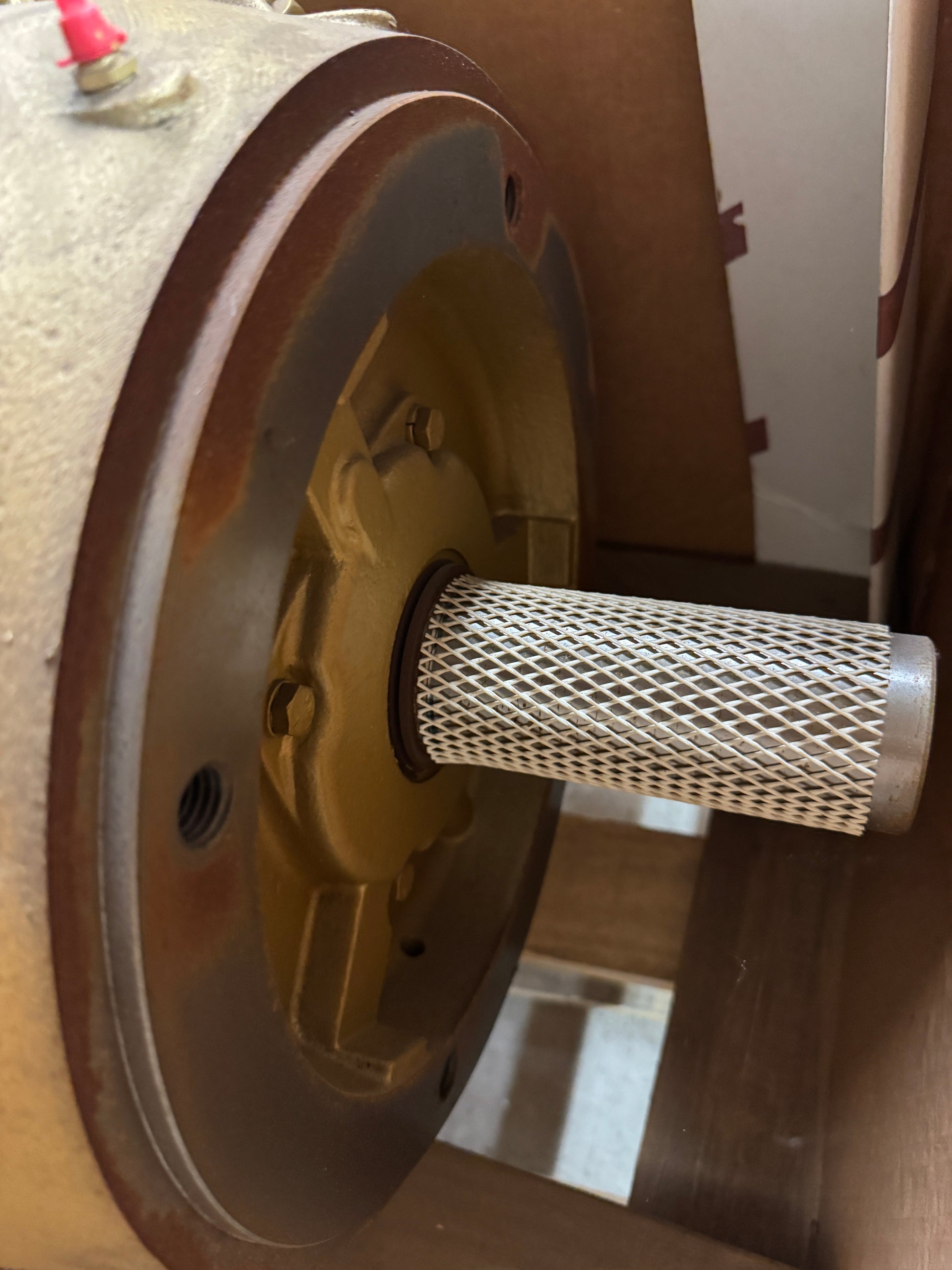

- Mount: C-Face and Foot Mount
- Frame Material: Cast Iron
- Drive-End Bearing: 6312
- Opposite Drive-End Bearing: 6311
- Lubrication: Polyrex EM
- Inverter Ready: Yes, NEMA MG1 Part 31.4.4.2
- Spec Number: 12C052Y141G1
- Serial Number: C1505271327
- UPC: 781568436660
- Country of Origin: United States
- Stock Number: 0526-01415
Product Description

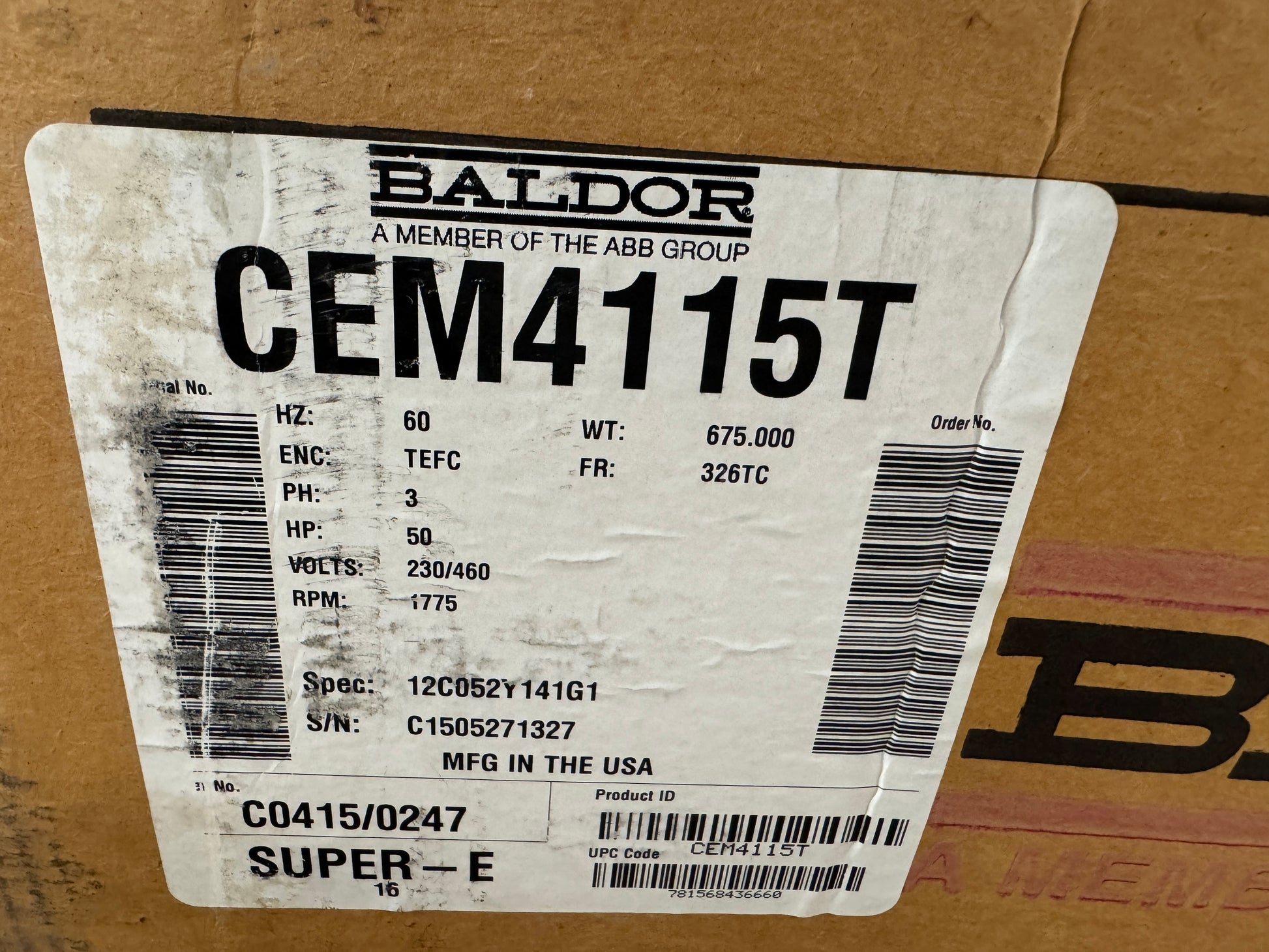

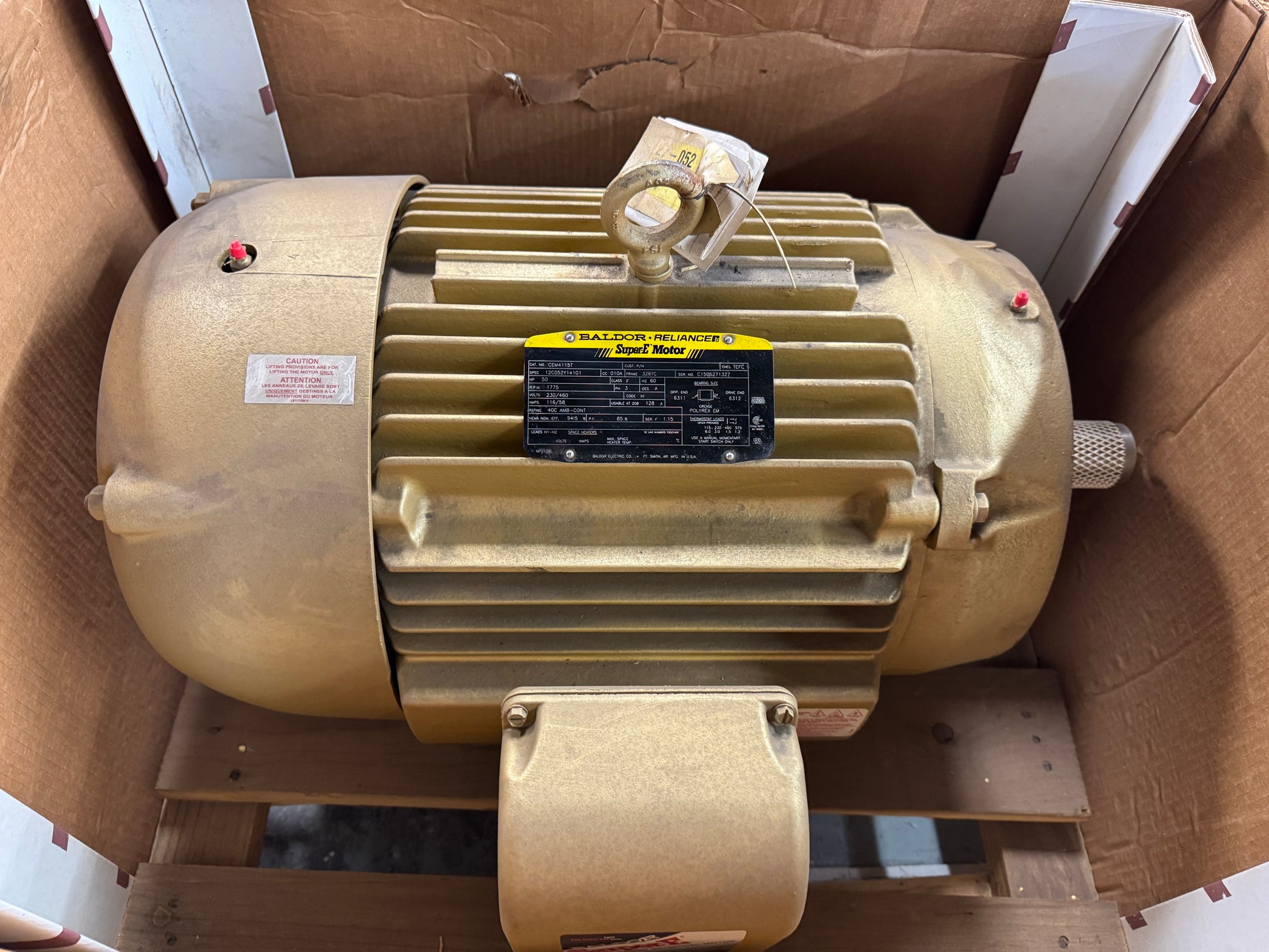

The Baldor Reliance CEM4115T is a 50 HP three-phase general purpose AC motor built on a 326TC frame with TEFC enclosure. Rated at 230/460V, 60 Hz, the motor operates at 1,775 RPM with full load amps of 116/58A and usable at 208V drawing 128A. Service factor is 1.15 with Class F insulation and NEMA Premium efficiency rated at 94.5% at full load. Design Code A, Power Factor 85%, continuous duty rating at 40 degrees C ambient. The motor carries a C-face and foot mount configuration, making it suitable for direct coupling to pumps, fans, compressors, blowers, conveyors, gear reducers, and other general industrial applications. Frame material is cast iron. Bearing sizes are 6311 on the opposite drive end and 6312 on the drive end, greased with Polyrex EM. The unit is inverter ready per NEMA MG1 Part 31.4.4.2. Serial number C1505271327, Spec 12C052Y141G1. Manufactured in the USA by Baldor Electric Co., Fort Smith, AR. UPC 781568436660. The motor is presented in its original OEM cardboard box.
