Baldor Reliance IEC Three Phase AC Motor MM5600 - 2 HP 3600 RPM
Baldor Reliance IEC Three Phase AC Motor MM5600 - 2 HP 3600 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

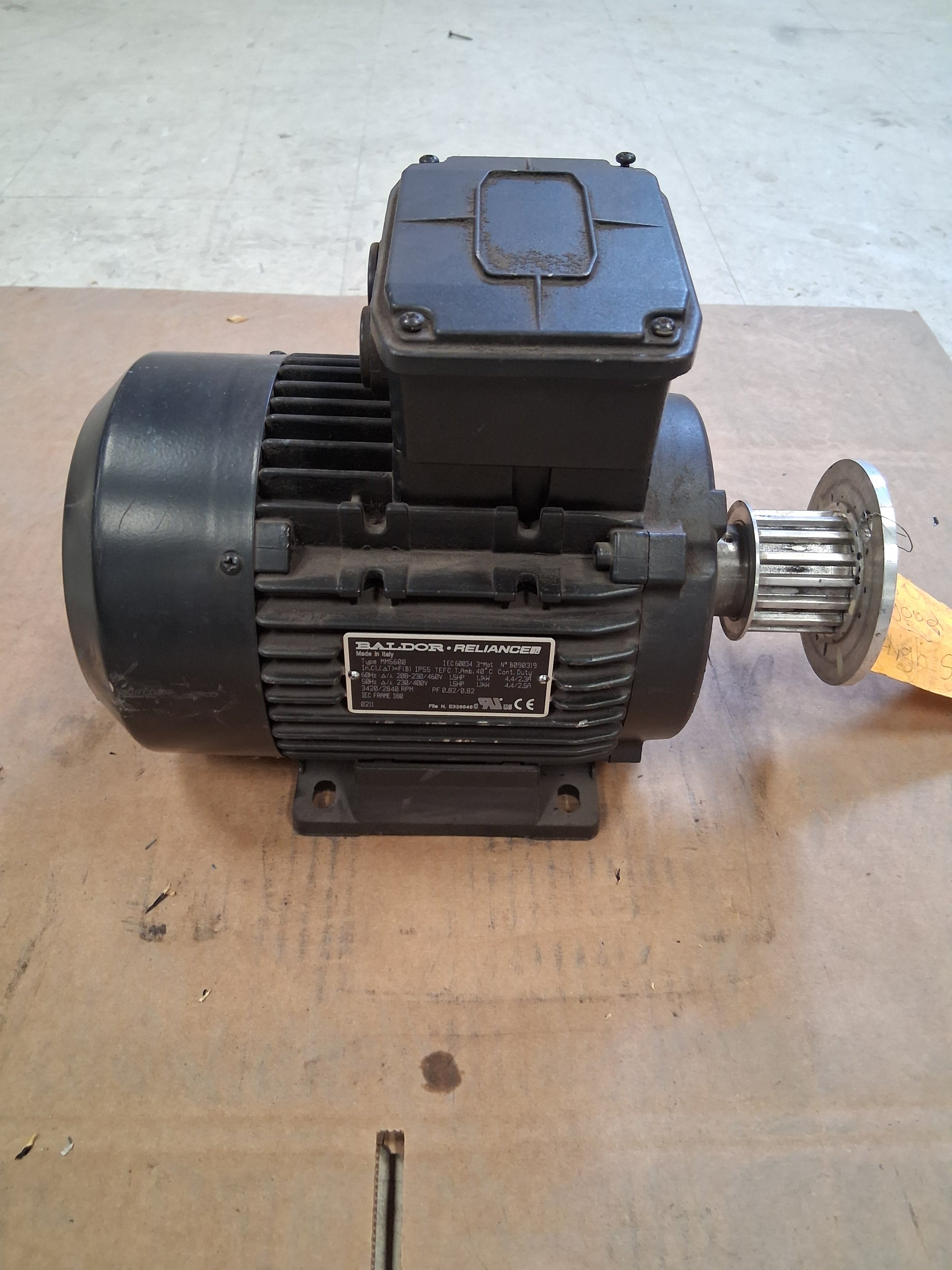

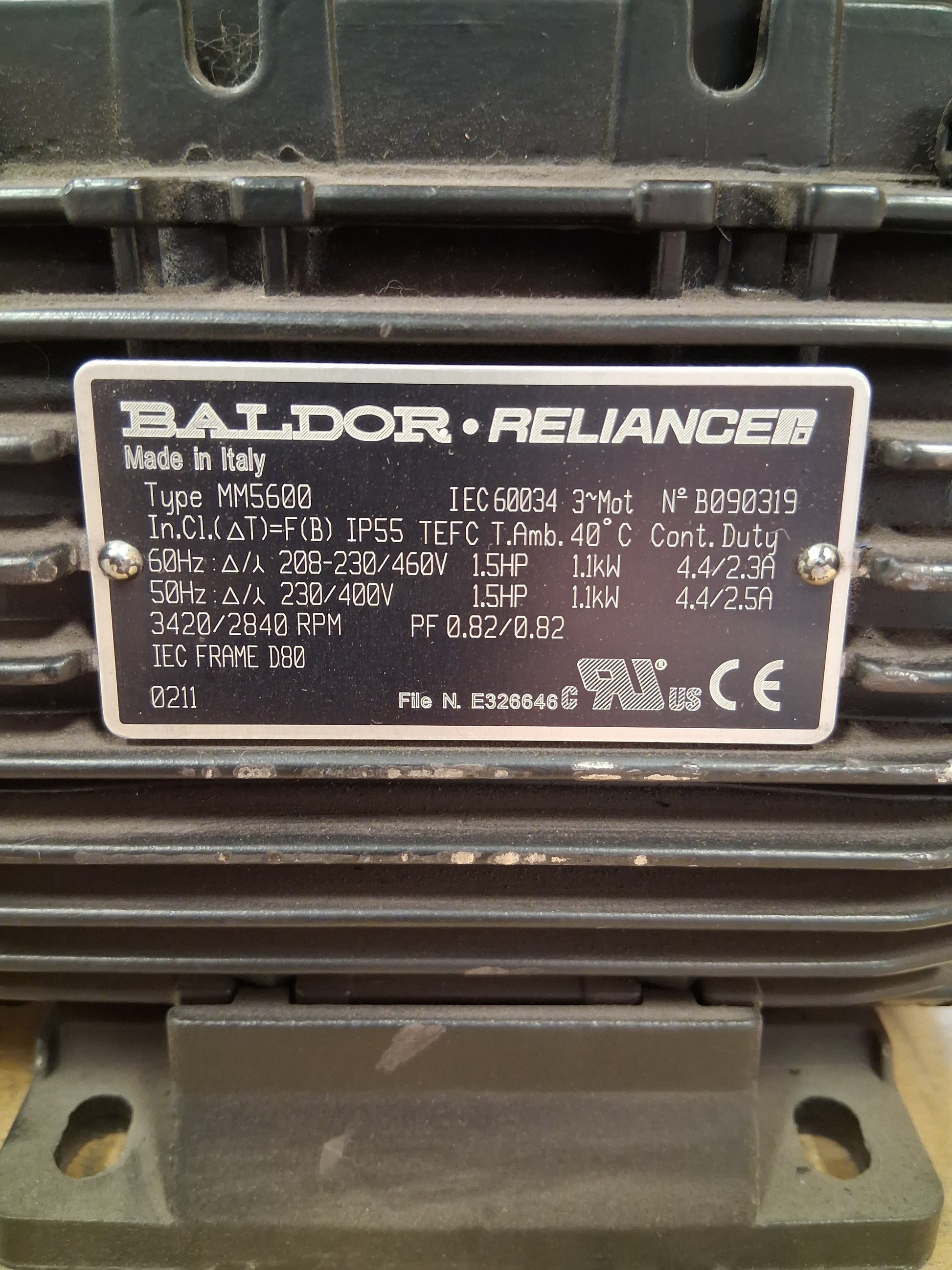

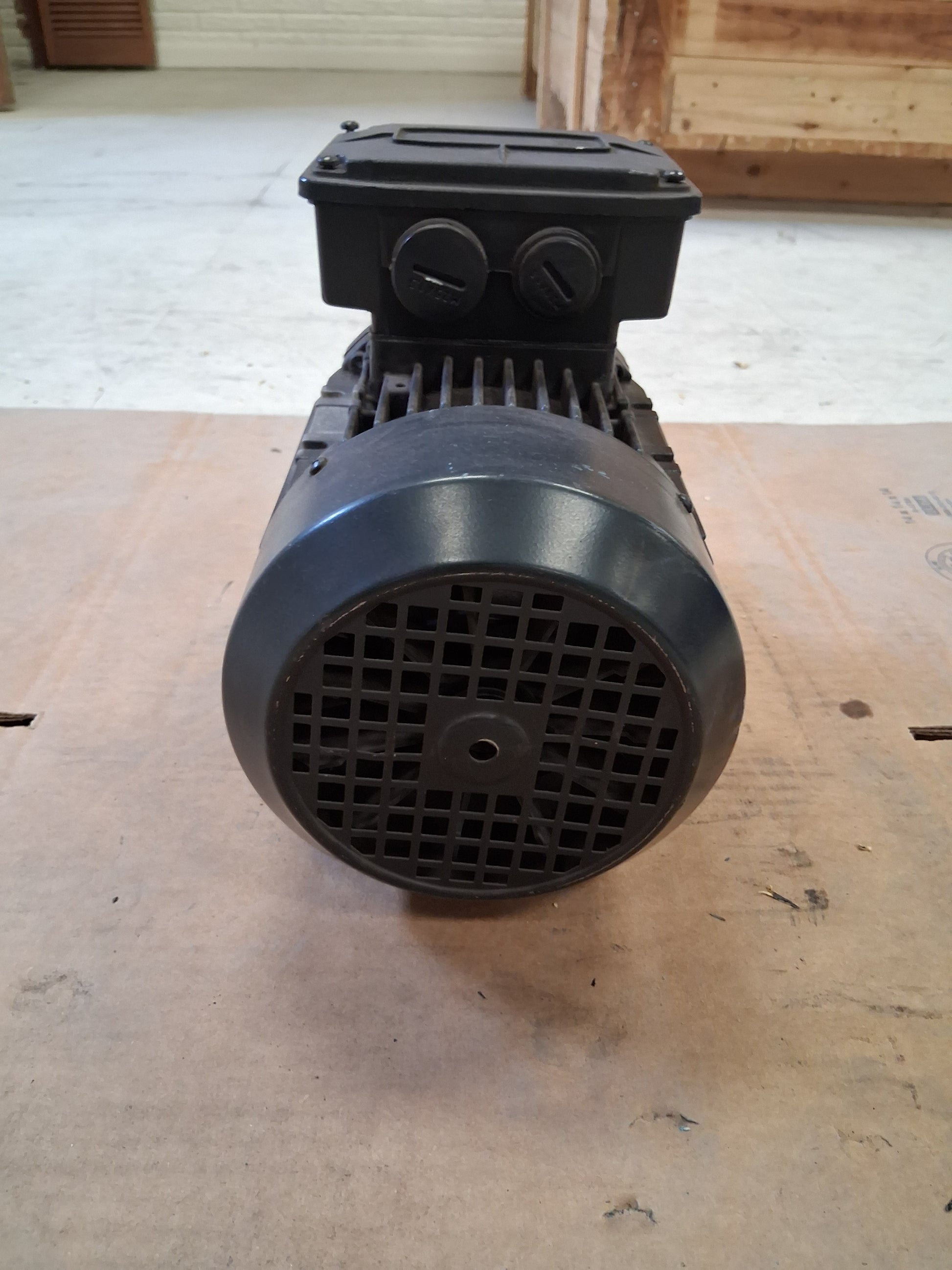

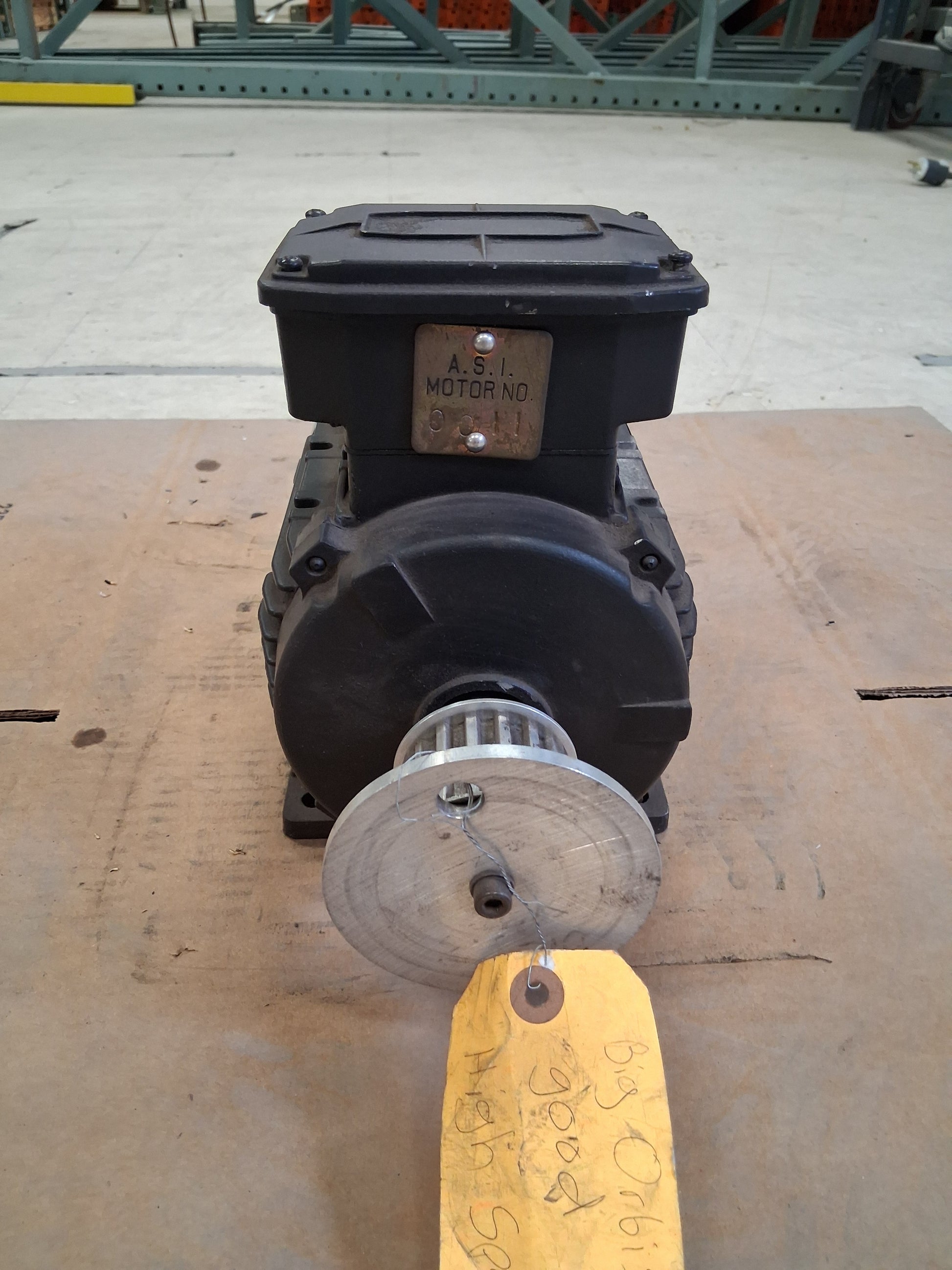

The Baldor Reliance MM5600 is a three phase IEC frame AC induction motor rated for 1.5 HP (1.1 kW) continuous duty operation. Manufactured in Italy and bearing nameplate identifier N° B090319, this TEFC (Totally Enclosed Fan Cooled) motor operates at 208 to 230 / 460V at 60 Hz with full load current of 4.4 / 2.3 amps, and 230 / 400V at 50 Hz with 4.4 / 2.5 amps. Synchronous speed is rated 3420 RPM at 60 Hz and 2840 RPM at 50 Hz. The motor carries an IP55 ingress protection rating, Class F insulation with Class B temperature rise, 40°C ambient temperature rating, and a power factor of 0.82 at both frequency ratings. Built to IEC 60034 standard on the D80 frame in foot mount (B3) configuration with cast aluminum housing, the motor is fitted with 6204 ball bearings on both drive end and opposite drive end. The output shaft is equipped with a toothed pulley as shown. The unit is UL listed under file E326646 and carries CE marking. Applications include pumps, fans, conveyors, machine tool feed drives, and general industrial drive duty where metric IEC mounting is required. Note: The MM5600 has been discontinued and replaced by Baldor's EMM5600 series.
Stock # 0526-02307
