Baldor Reliance Hydraulic Filter Cart Motor 941766 - 1 HP 3000 RPM

$1,168.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

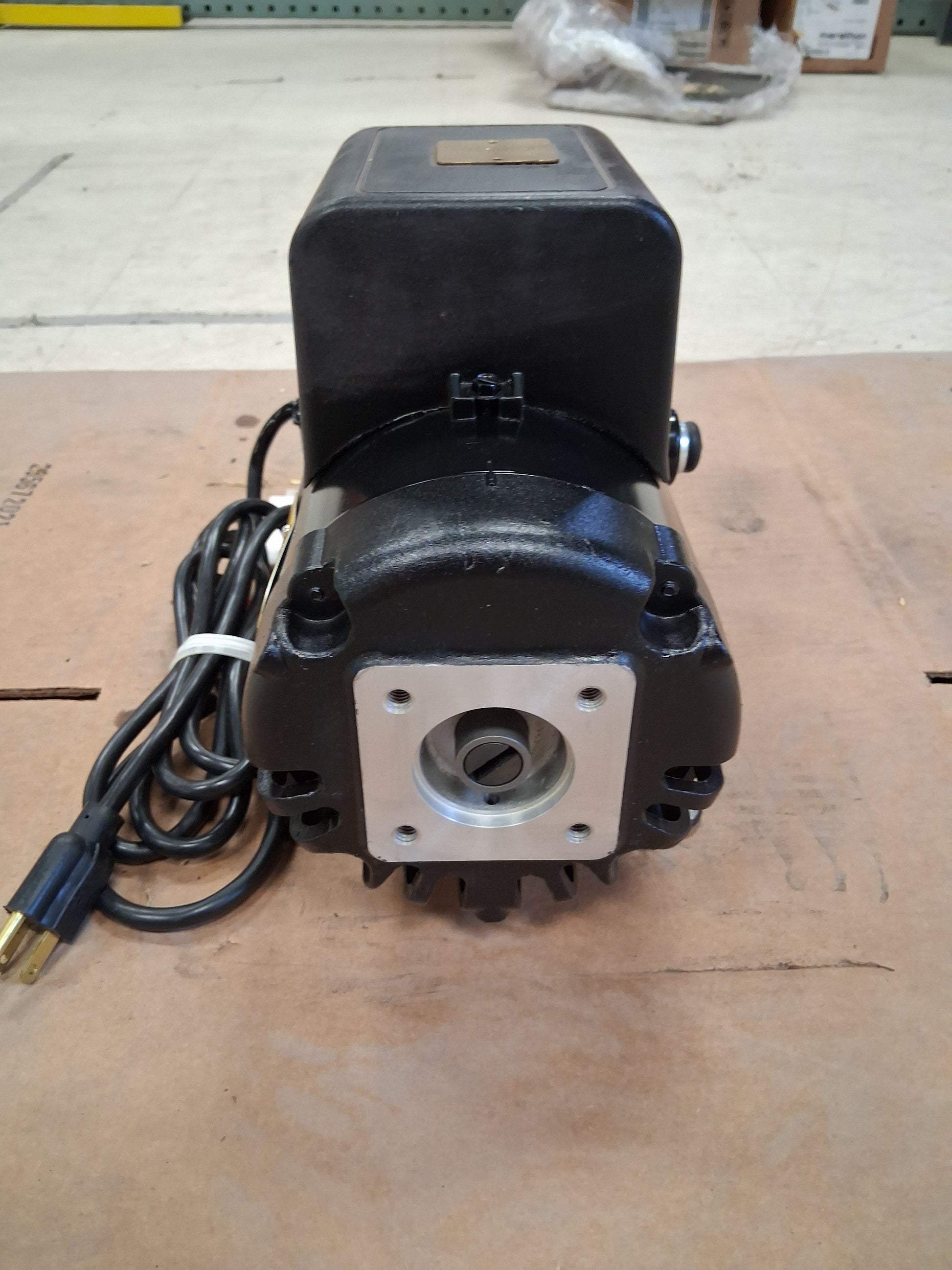

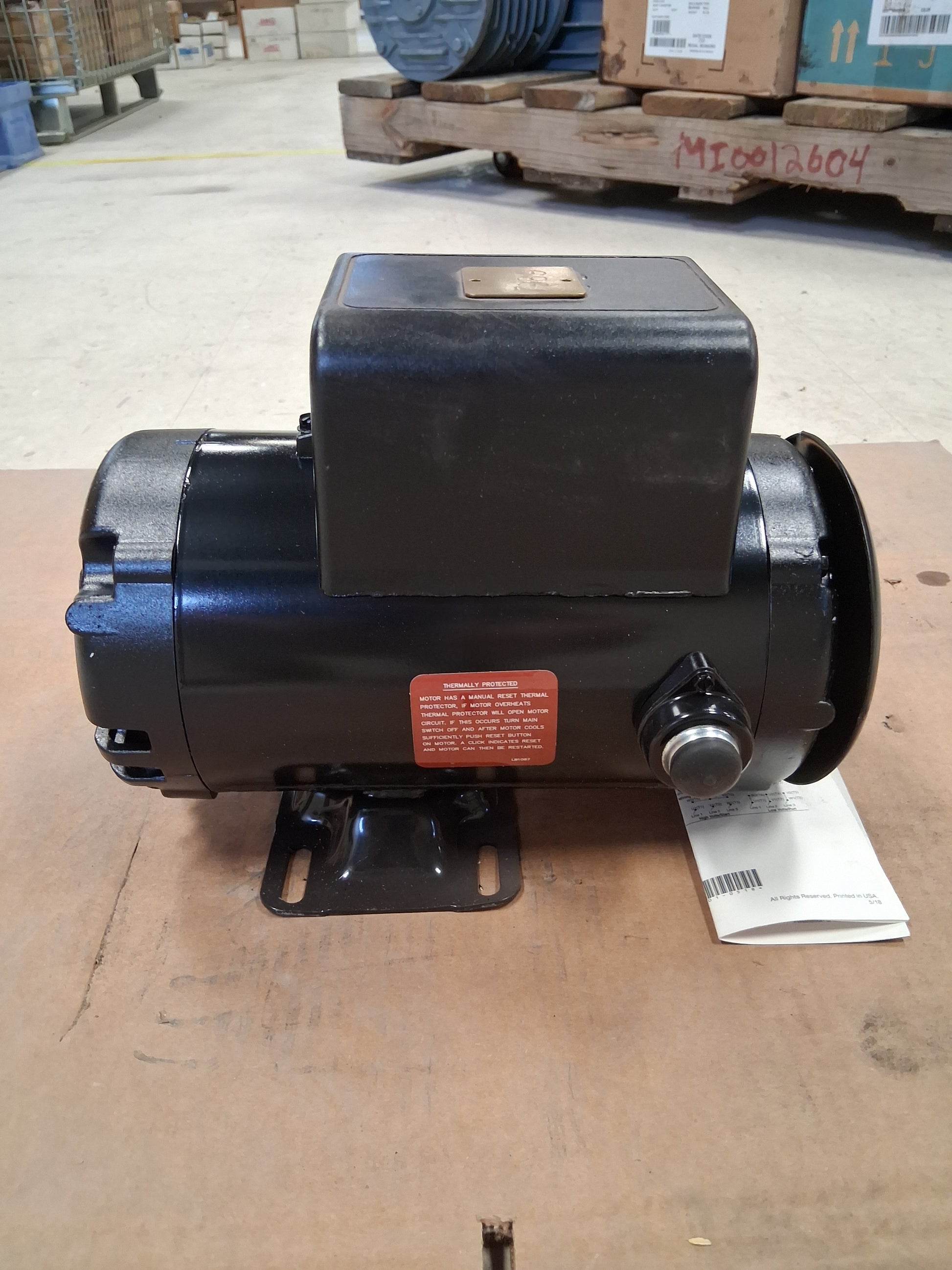

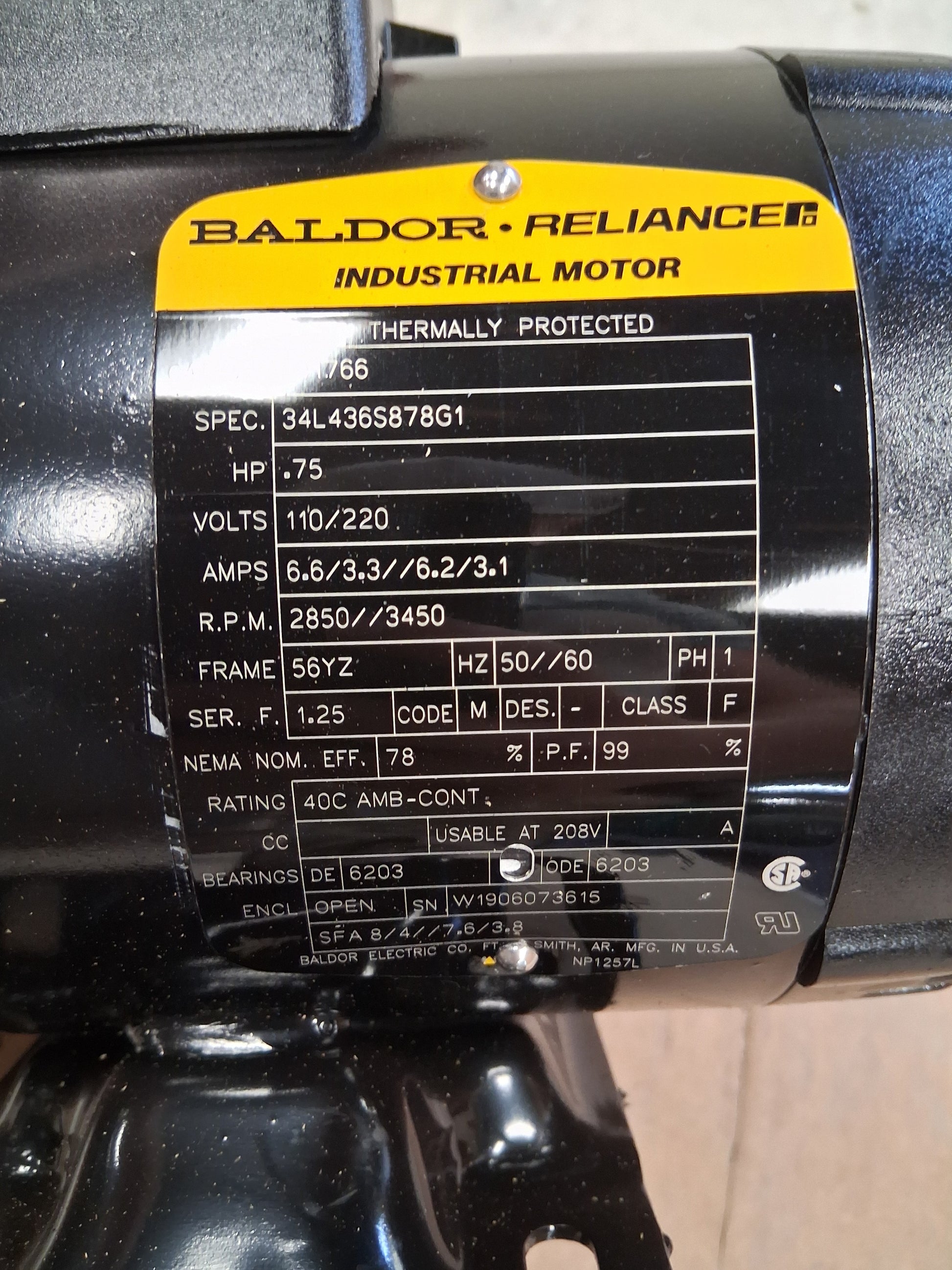

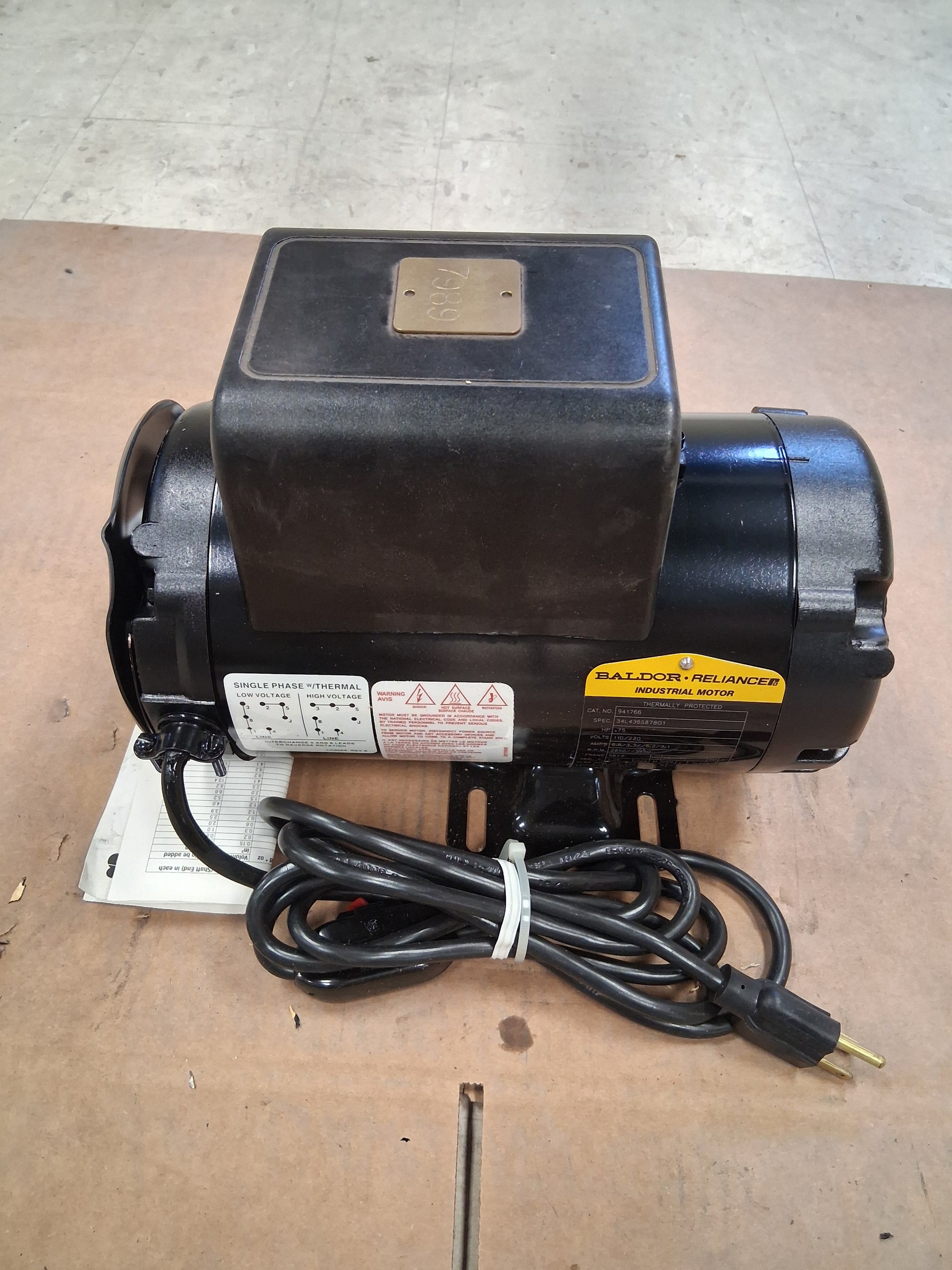

The Baldor Reliance 941766 is a single phase, thermally protected AC industrial motor originally specified as the OEM electric motor for Parker Hydraulic Filter Division 5MF, 10MF, and MFP series filter carts. Rated at 0.75 HP, the motor operates on 110/220 volts at 50/60 Hz with full load amps of 6.6/3.3 at 60 Hz and 6.2/3.1 at 50 Hz. Speed is rated at 2850/3450 RPM. The motor uses a 56YZ NEMA frame with square flange mounting and includes a service factor of 1.25, Class F insulation, and NEMA nominal efficiency of 78 percent. Power factor is rated at 99 percent. Bearings are 6203 on both drive end and opposite drive end. Enclosure is open construction with a Baldor specification number of 34L436S878G1. The unit ships with an integrated power cord and standard NEMA plug, along with a manual reset thermal protector mounted to the motor housing. The square flange front mounting interface is machined for direct coupling to Parker hydraulic filter cart pump housings. The motor is CSA and UL recognized, manufactured by Baldor Electric Co. in Fort Smith, Arkansas, USA. Serial number W1906073615 is present on the nameplate. Suitable applications include hydraulic fluid filtration carts, transfer pumps, and similar light duty industrial fluid handling equipment.

Stock # 0526-02302
