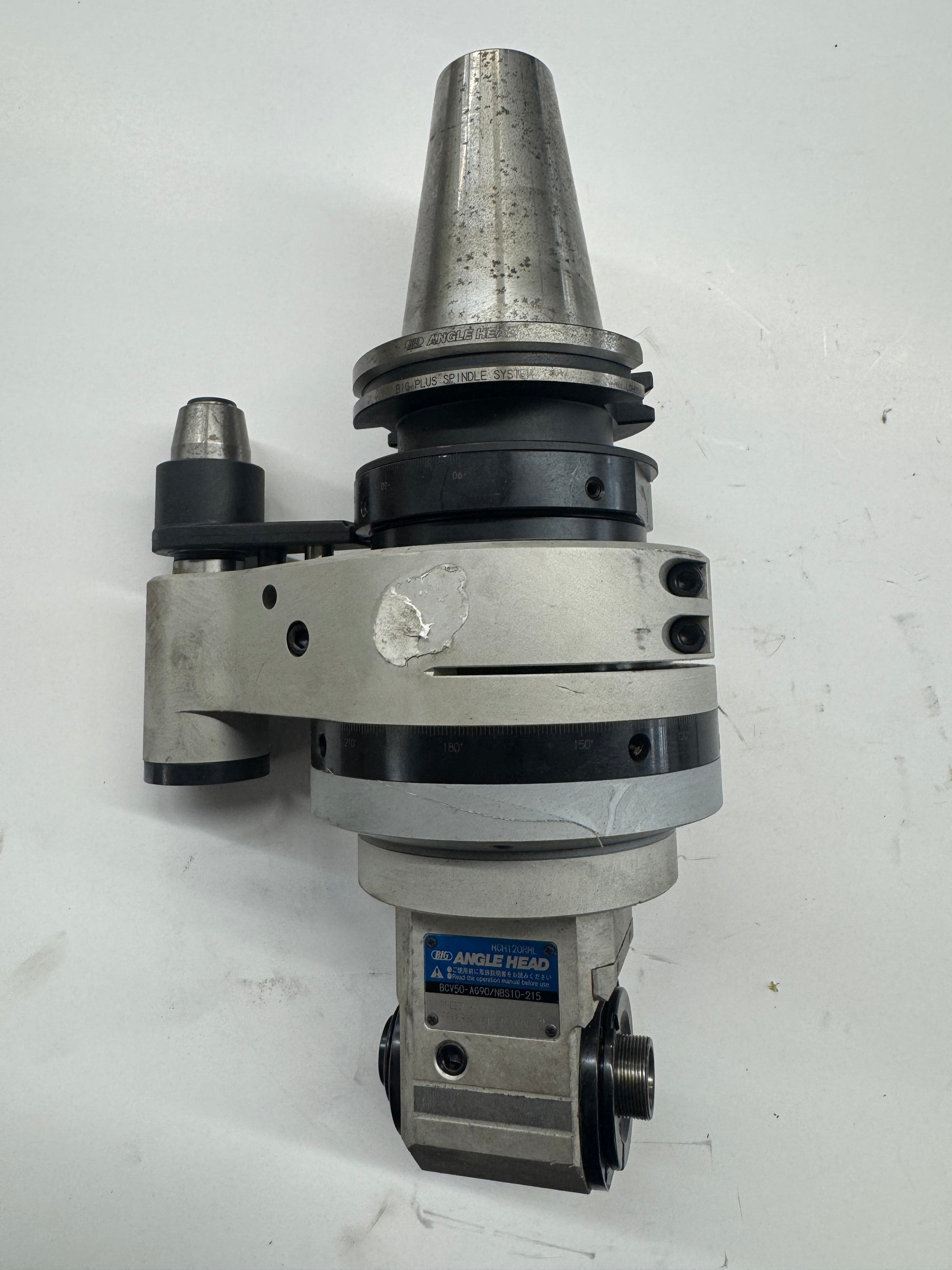

Big Daishowa Right Angle Head BCV50-AG90/NBS10-215 | CAT50 | NBS10 Collet Chuck Output, 6,000 RPM Max | Orientation: Radial | Coolant Through

$4,499.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: BCV50-AG90
Stock #: 0426-02115

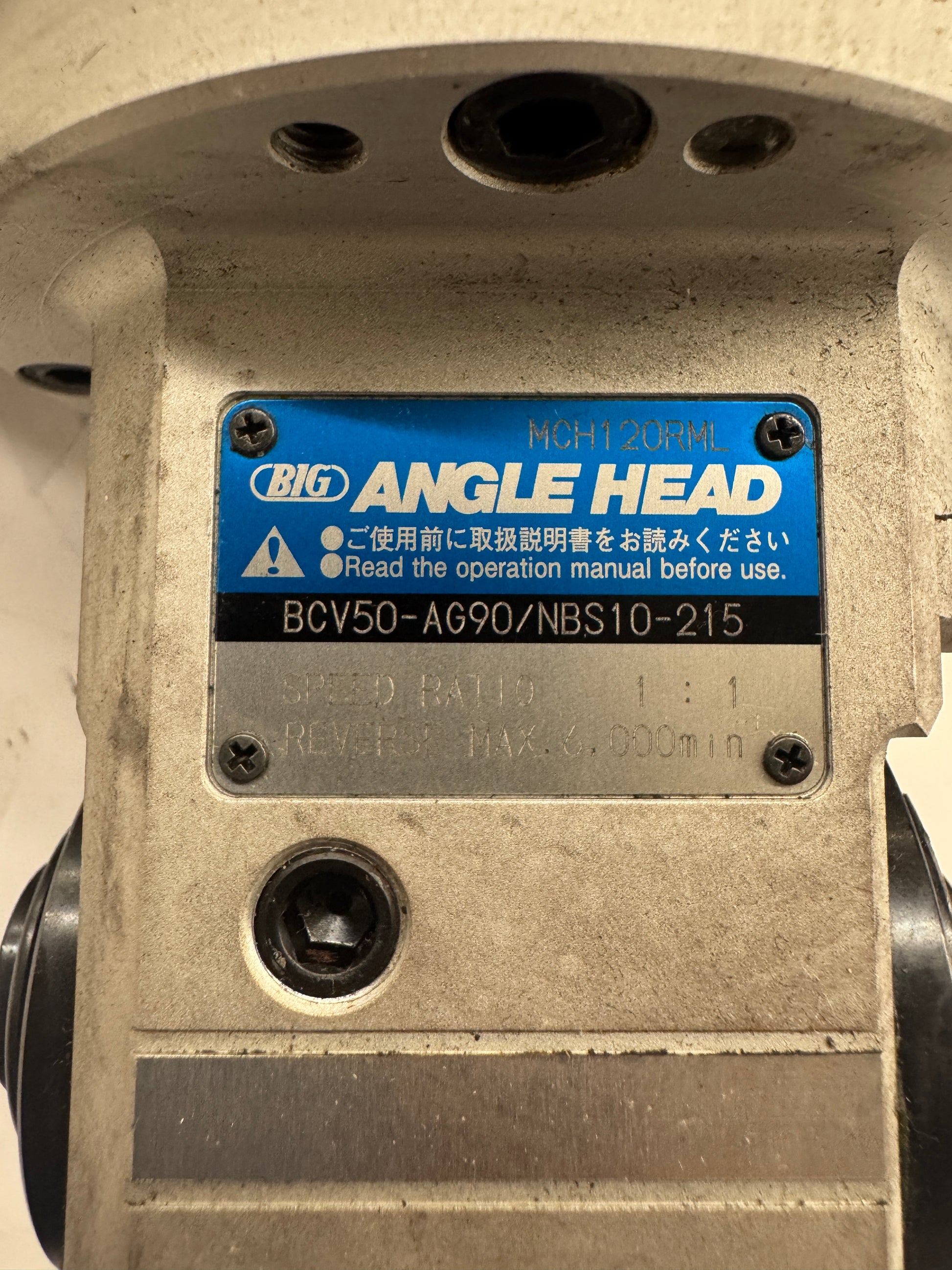

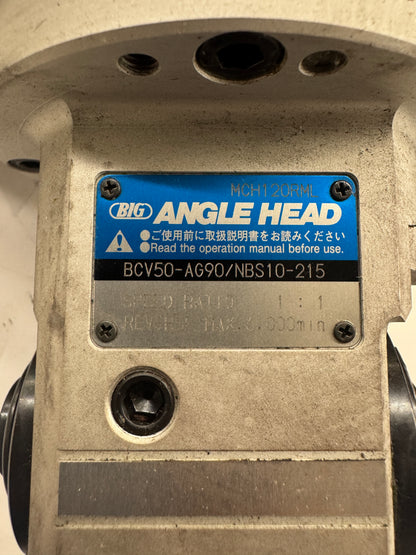

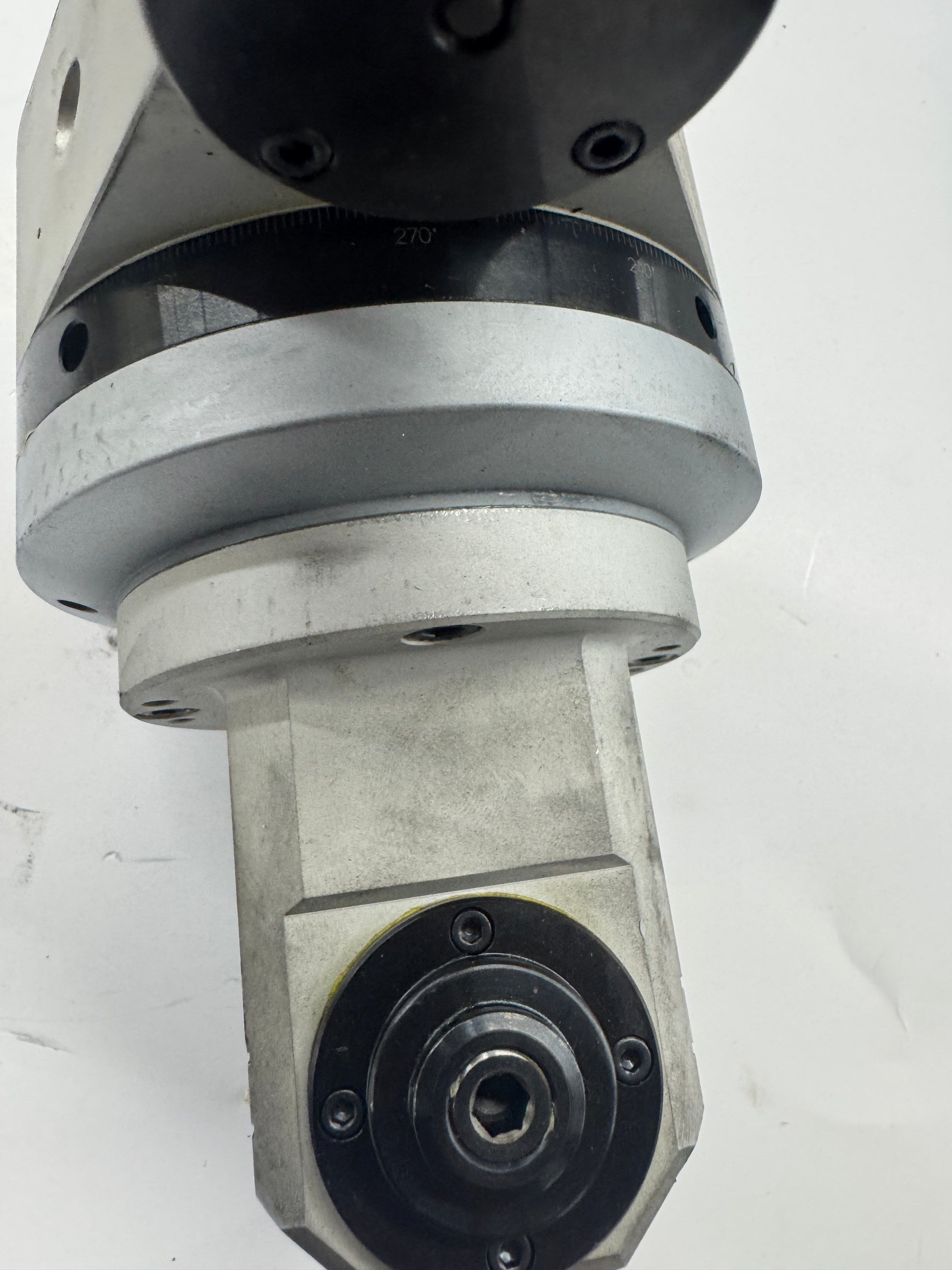

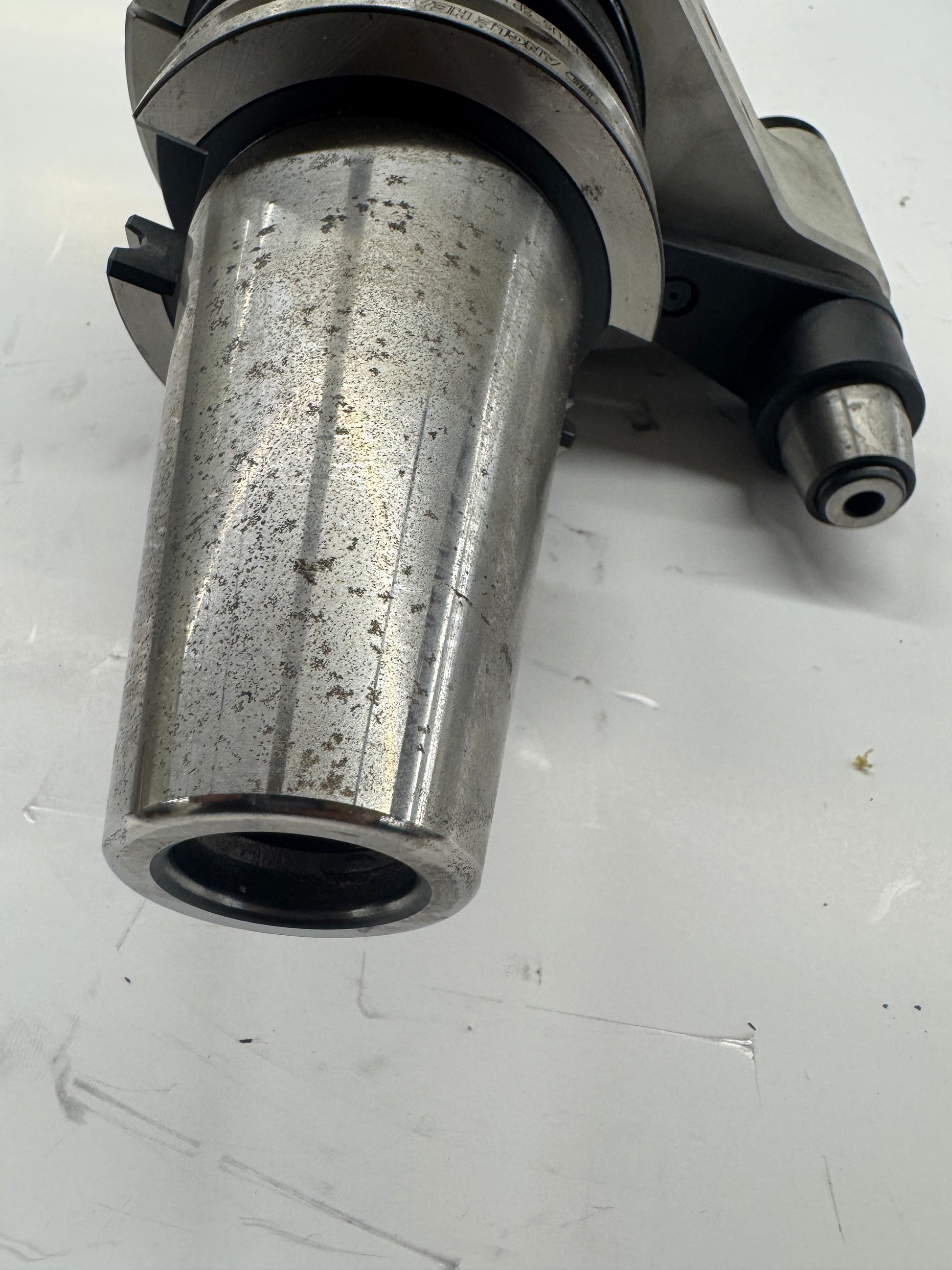

Used in horizontal and vertical machining centers where access to confined or obstructed features requires a 90-degree output orientation, the Big Daishowa BCV50-AG90/NBS10-215 is a BIG-PLUS CAT50 right angle head with an integrated New Baby Chuck collet system. The model designation BCV50-AG90/NBS10-215 identifies the BIG-PLUS CAT50 taper input, 90-degree angle output, NBS10 collet chuck interface, and 215mm projection length. Nameplate data confirms a 1:1 speed ratio and a maximum spindle speed of 6,000 RPM. The NBS10 collet interface accepts New Baby Chuck collets for small-diameter tooling applications. The BIG-PLUS dual-contact spindle interface provides simultaneous taper and flange contact for enhanced rigidity and repeatability compared to standard V-flange tooling. Coolant is supplied through the locating pin per Big Daishowa AG90-series design. The adjustable output head incorporates a graduated rotation ring visible in photos, allowing angular positioning of the output spindle. Internal machine reference number MCH120RML is visible on the nameplate. Big Daishowa is a Japanese manufacturer recognized in the precision toolholding market for the BIG-PLUS spindle system and the AG90 angle head series, both widely used in aerospace, die and mold, and general machining applications.

Stock # 0426-02115
