Cipriani Harrison Sanitary Pneumatic Butterfly Valve 4" AISI 316L 38/22 4 In. Sanitary Tri-Clamp
Cipriani Harrison Sanitary Pneumatic Butterfly Valve 4" AISI 316L 38/22 4 In. Sanitary Tri-Clamp
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

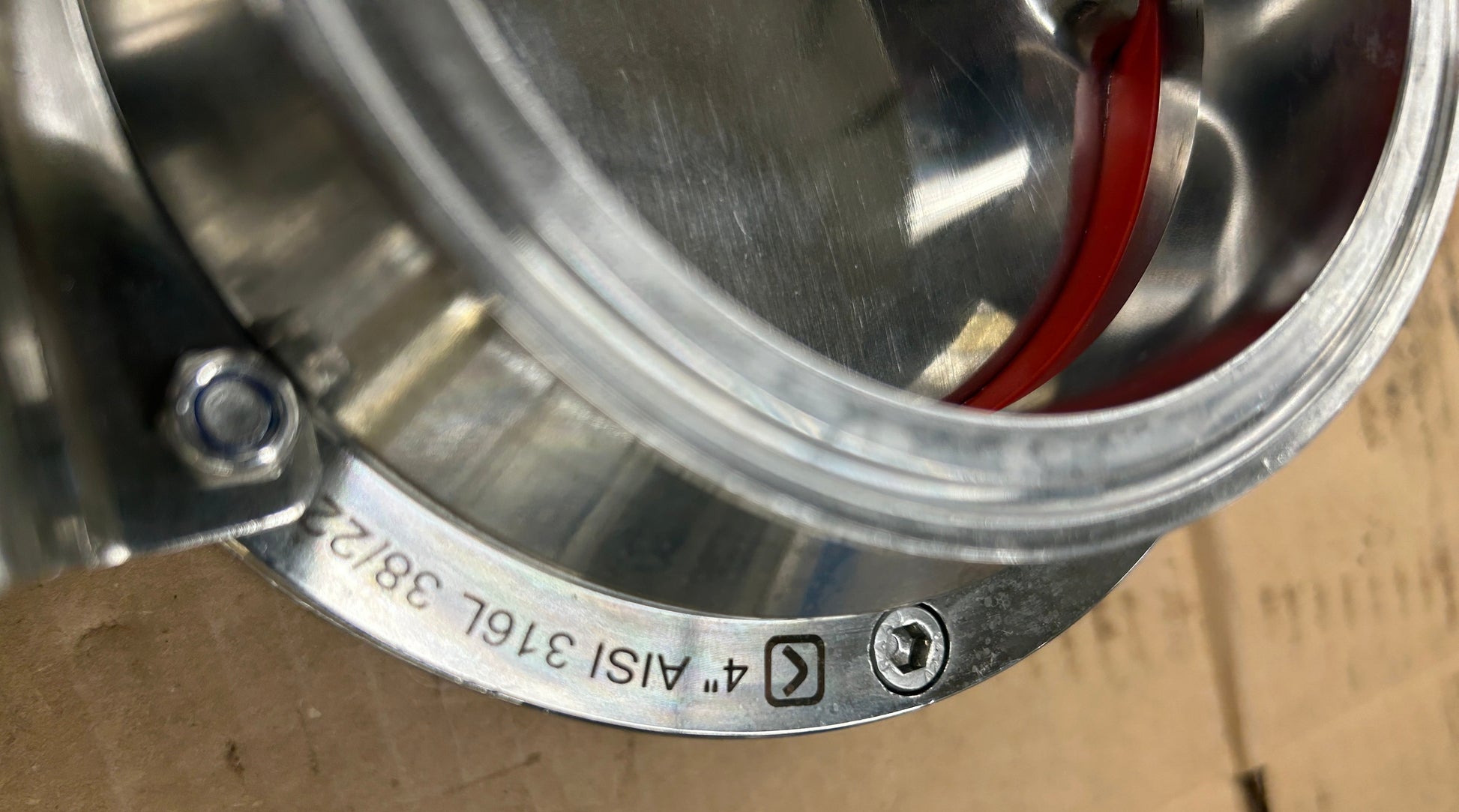

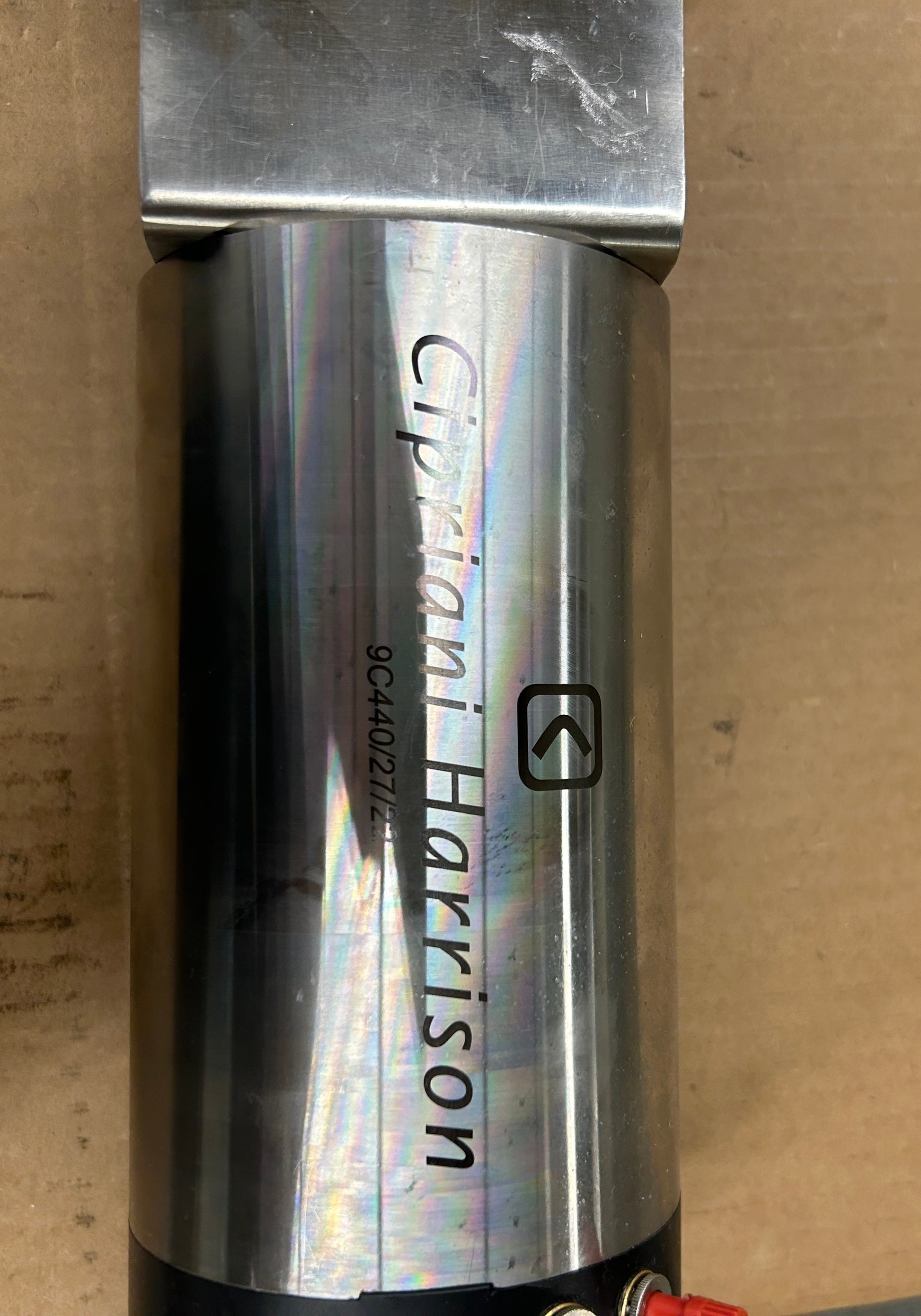

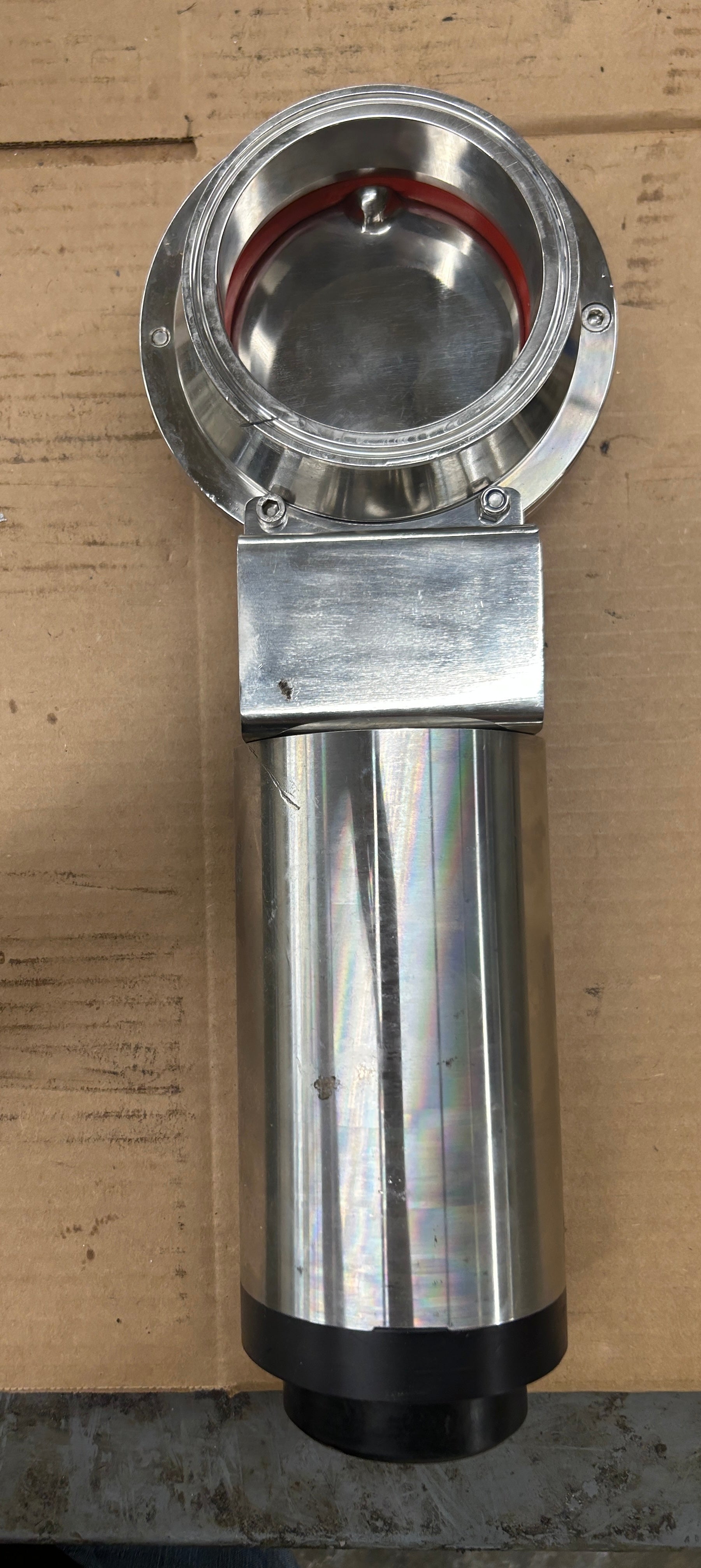

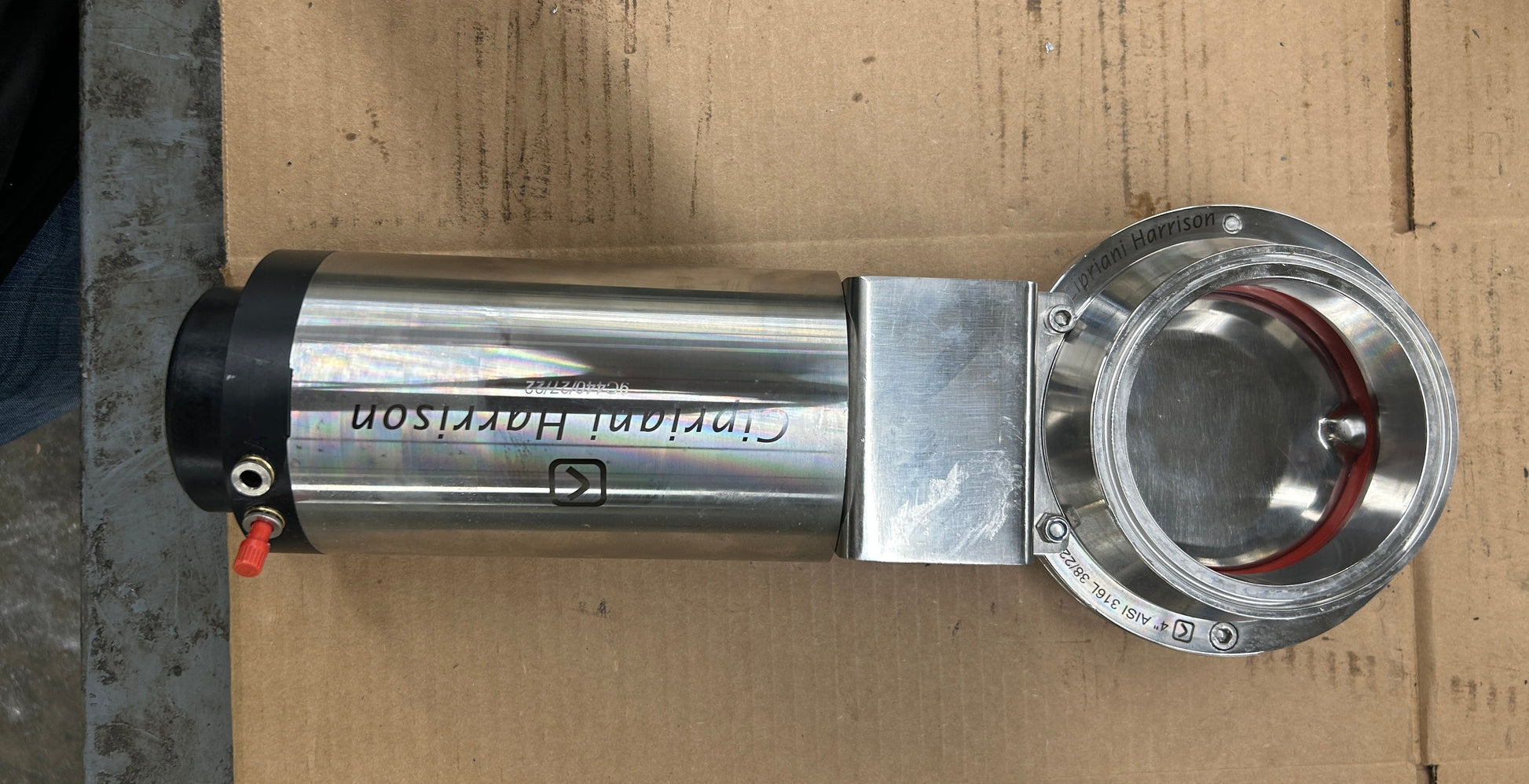

The Cipriani Harrison 4" AISI 316L sanitary pneumatic butterfly valve is a quarter-turn actuated isolation valve designed for hygienic process piping systems. The valve body and disc are constructed from AISI 316L stainless steel, a low-carbon grade offering enhanced corrosion resistance suitable for food, beverage, dairy, pharmaceutical, and biotechnology applications. A red silicone seat seal is visible, consistent with Cipriani Harrison's standard FDA-approved seal material offerings for this valve family. The pneumatic actuator is a cylindrical single-acting spring-return type, assembled to the valve body via a stainless steel yoke bracket and secured with a sanitary tri-clamp connection. A red manual override knob and side-mount air port fitting are visible on the actuator body. The tri-clamp end connection measures 4 inches with a ferrule outer diameter consistent with standard sanitary clamp sizing. The item is marked 9C440/27/22 on the actuator body and 4" AISI 316L 38/22 on the valve body flange, with the Cipriani Harrison name and logo appearing on both components. Cipriani Harrison Valves Corp. is a US-based manufacturer of hygienic stainless steel valves holding ISO 9001:2015, 3A, and ASME-BPE certifications. The valve assembly is suitable for CIP-compatible sanitary process systems requiring automated shutoff in a 4-inch pipeline.
Stock # 0326-940
