Fanuc DC Motor DC Servo Motor – A06B-0651-B005 - 2 kW 1500 RPM

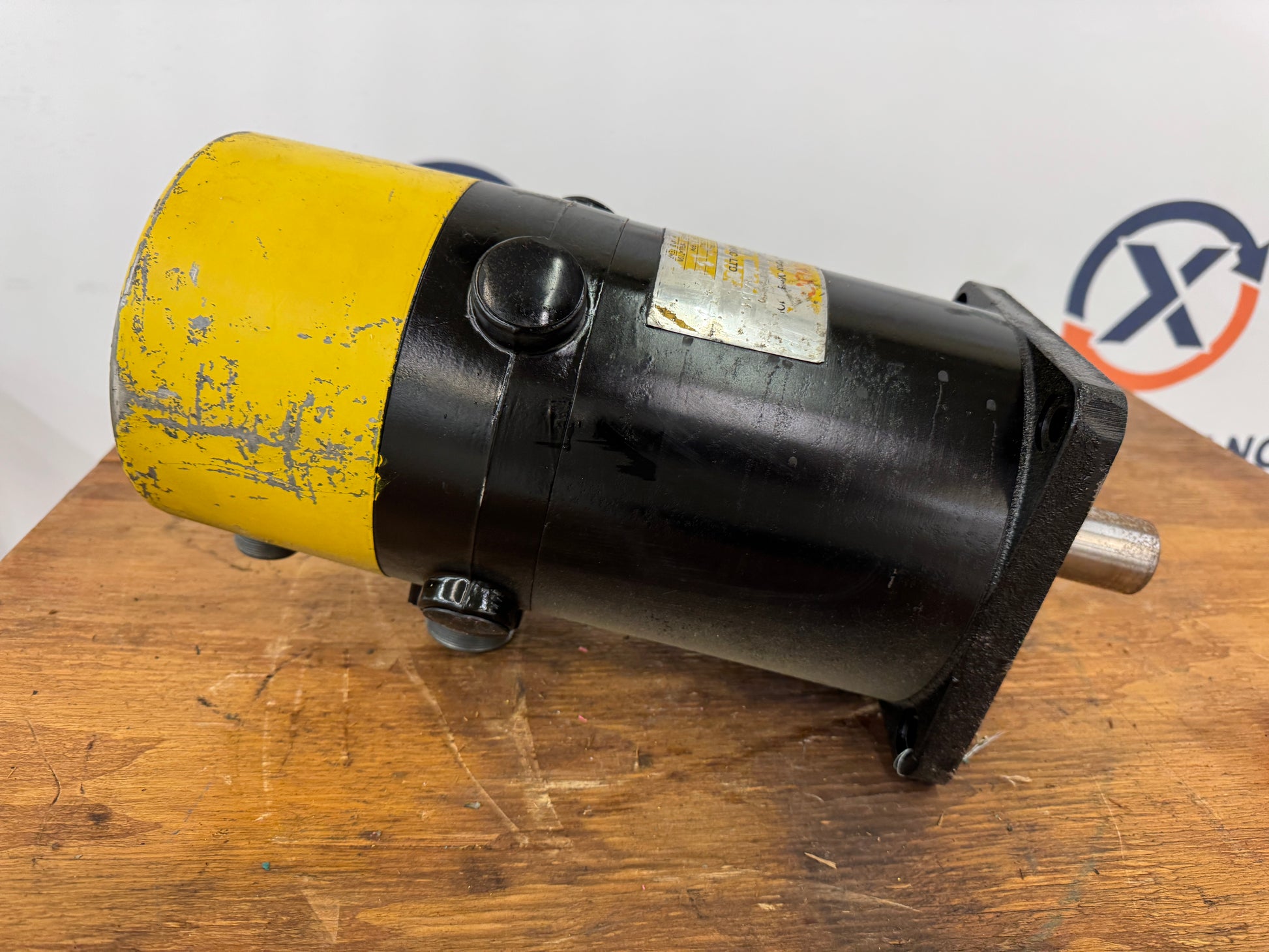

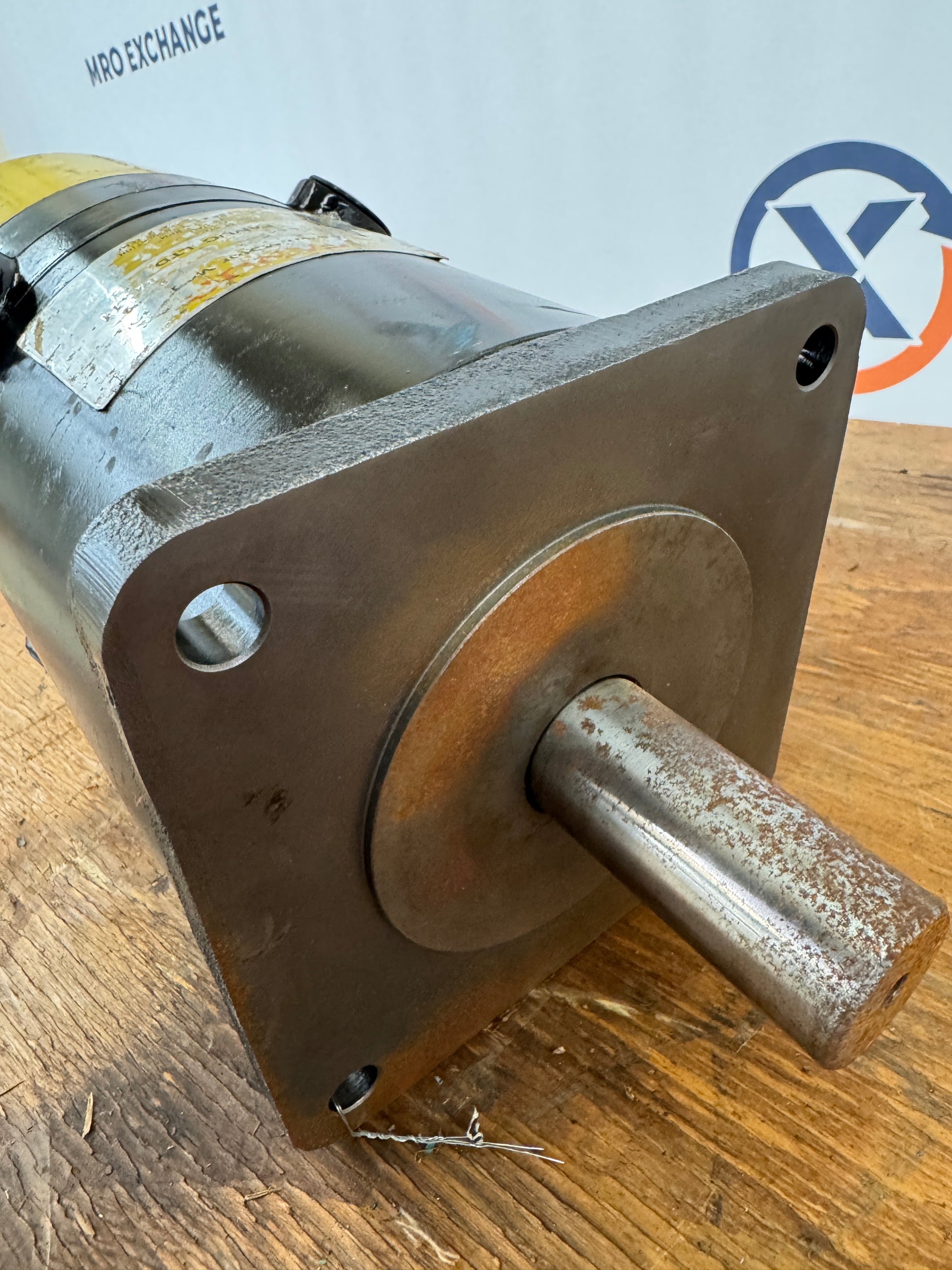

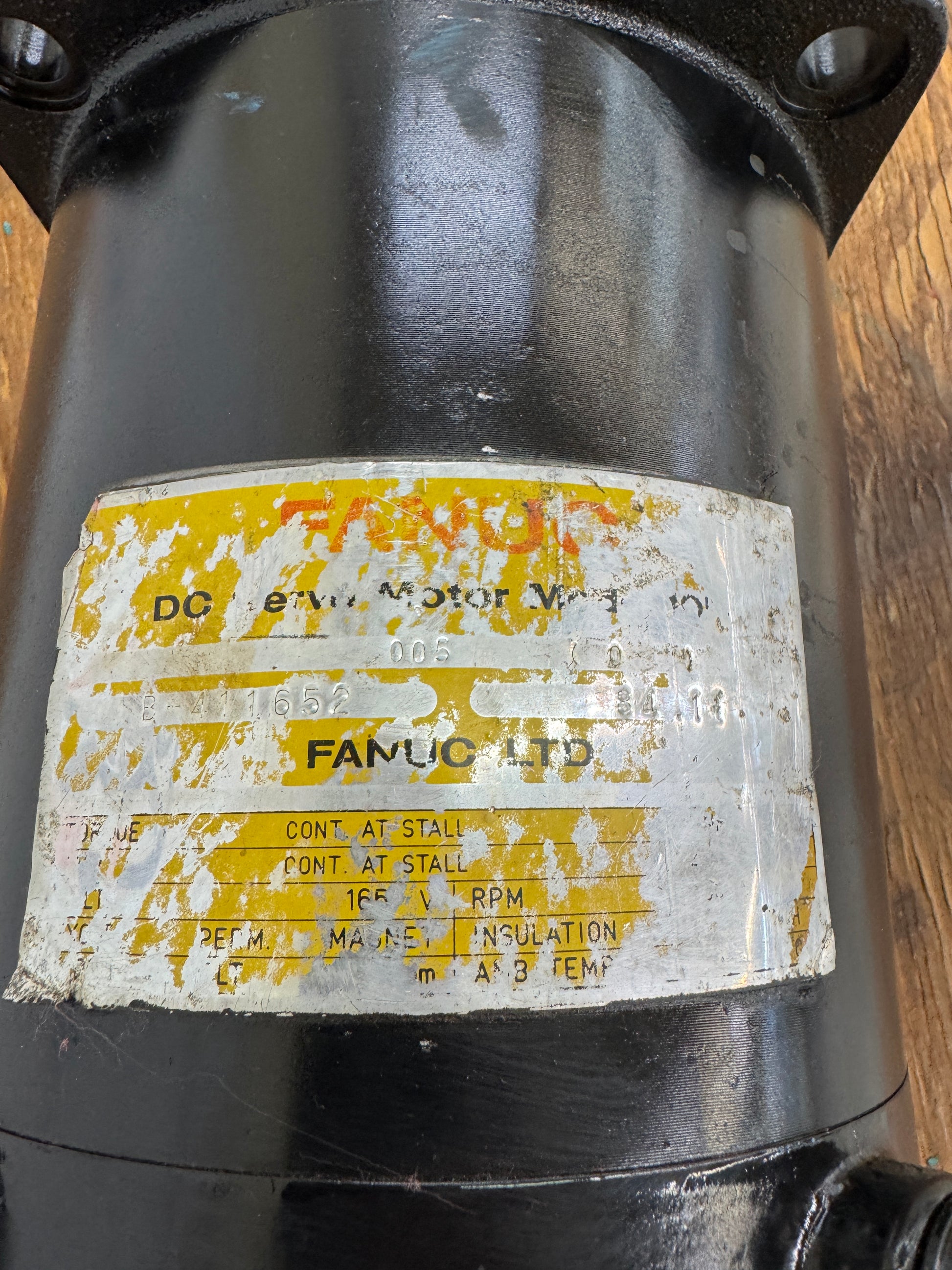

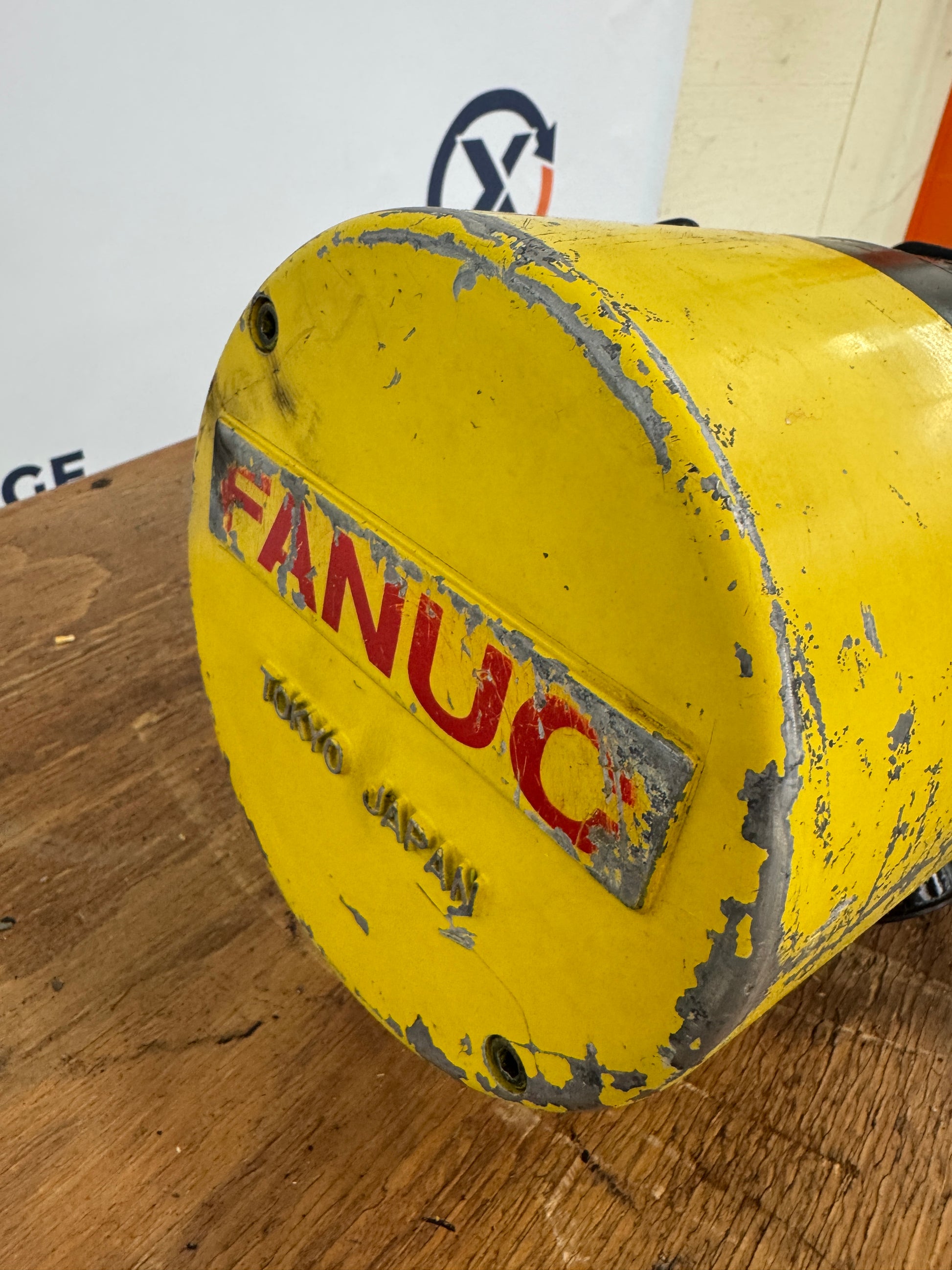

The Fanuc A06B-0651-B005 is a DC servo motor from the Model 10M series, designed for use in CNC machine tool axis drive applications. The nameplate identifies the unit as a permanent magnet DC servo motor manufactured by Fanuc Ltd., with rated armature voltage of 165 V and continuous stall ratings printed on the data plate. Serial number B 411652 is stamped on the rating plate. Per published Fanuc specifications for the A06B-0651-B005 configuration, this Model 10M unit operates at 1500 RPM rated speed, draws 12 A, and delivers approximately 12 Nm continuous stall torque. The motor includes an integrated tachogenerator rated at 6 V per 1000 RPM, providing analog velocity feedback to compatible Fanuc velocity control units in the VCU 6047 series and equivalent. Construction is the standard yellow cap DC servo configuration with a straight keyed output shaft and rear mounted tachogenerator housing. Mounting is via the integrated cast flange visible on the drive end. The A06B-0651-B005 is commonly found driving feed axes on Fanuc 5, 6, and 7 series CNC controlled machining centers, lathes, and grinders, and is used as a direct OEM replacement on legacy machine tools that retain DC drive electronics. Class B insulation is indicated on the nameplate. Permanent magnet field construction eliminates the need for separate field excitation circuitry. Surface wear and paint loss are visible on the yellow cap end housing.

Stock # 0226-130
