Fanuc DC Servo Motor A06B-0653-B005 - Variable 1200 RPM
Fanuc DC Servo Motor A06B-0653-B005 - Variable 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

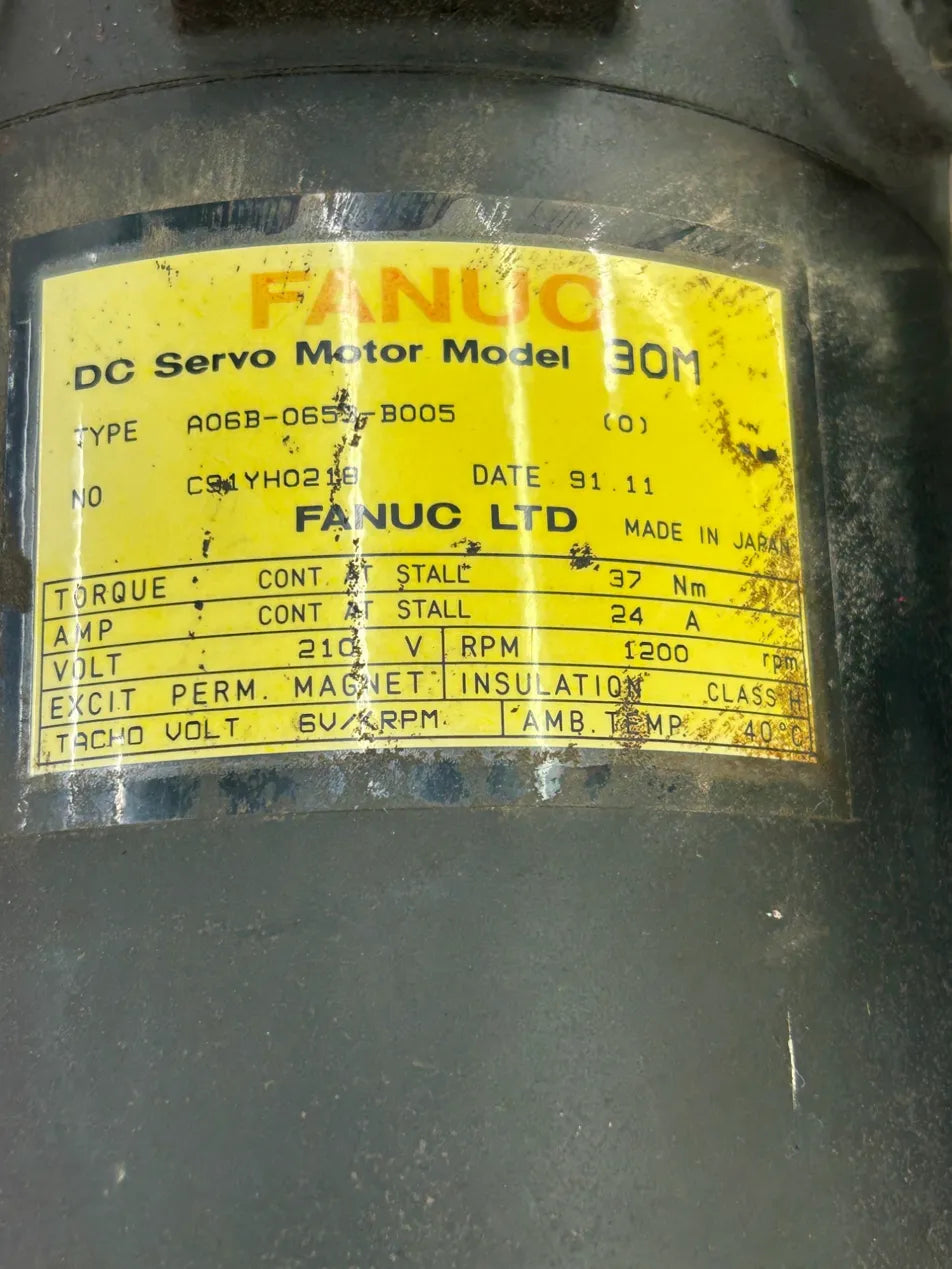

A DC Servo Motor from Fanuc in the 30M series, part number A06B-0653-B005, rated for continuous stall torque of 37 Nm at 24 A and 210 VDC. Rated speed is 1200 RPM. Excitation is by permanent magnet. Tacho generator output is specified at 6V per 1000 RPM. Insulation class is H and ambient temperature rating is 40 degrees C. Serial number C91YH0218 and date code 91.11 are visible on the nameplate. Manufactured by Fanuc Ltd. and made in Japan.

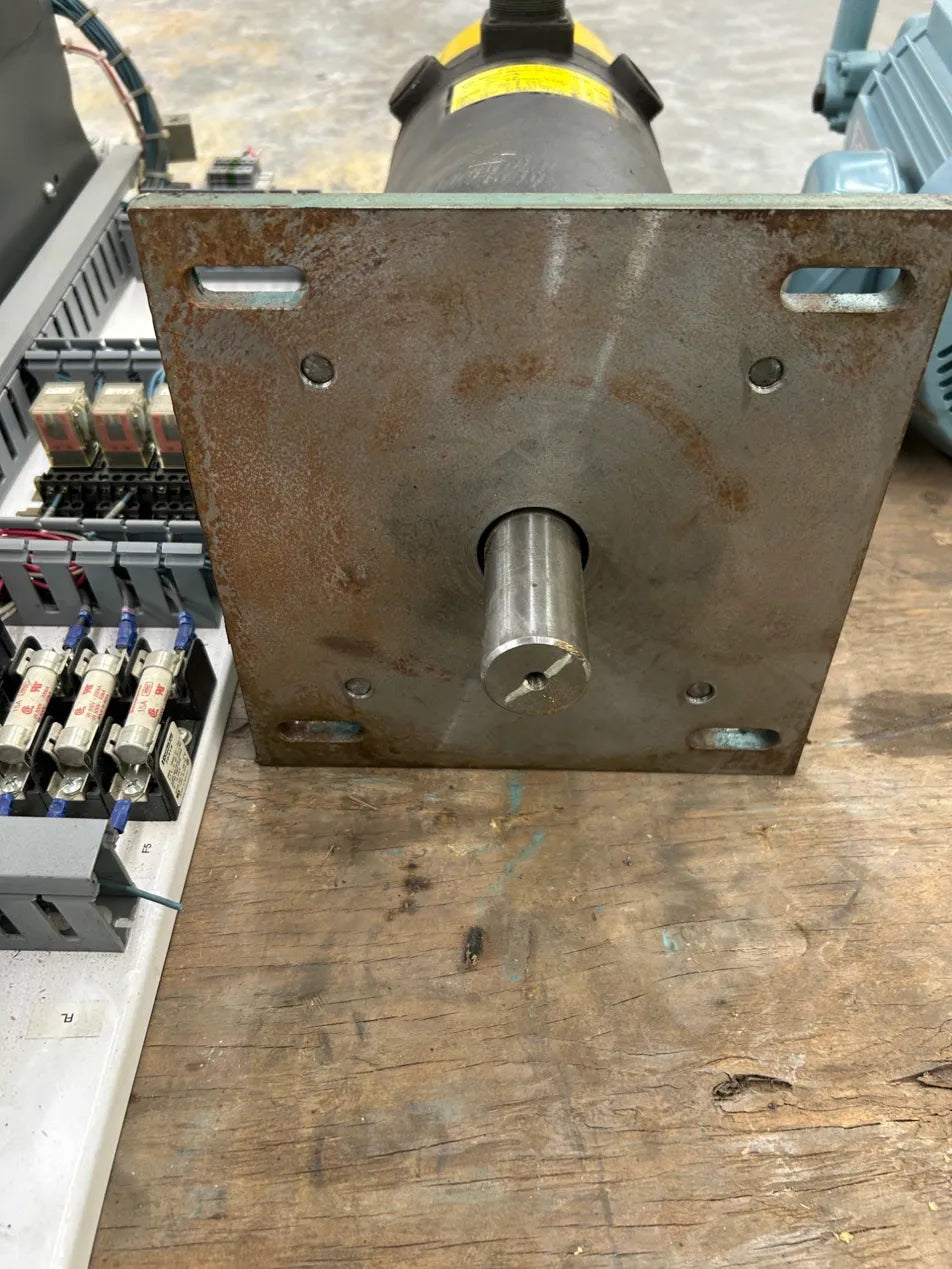

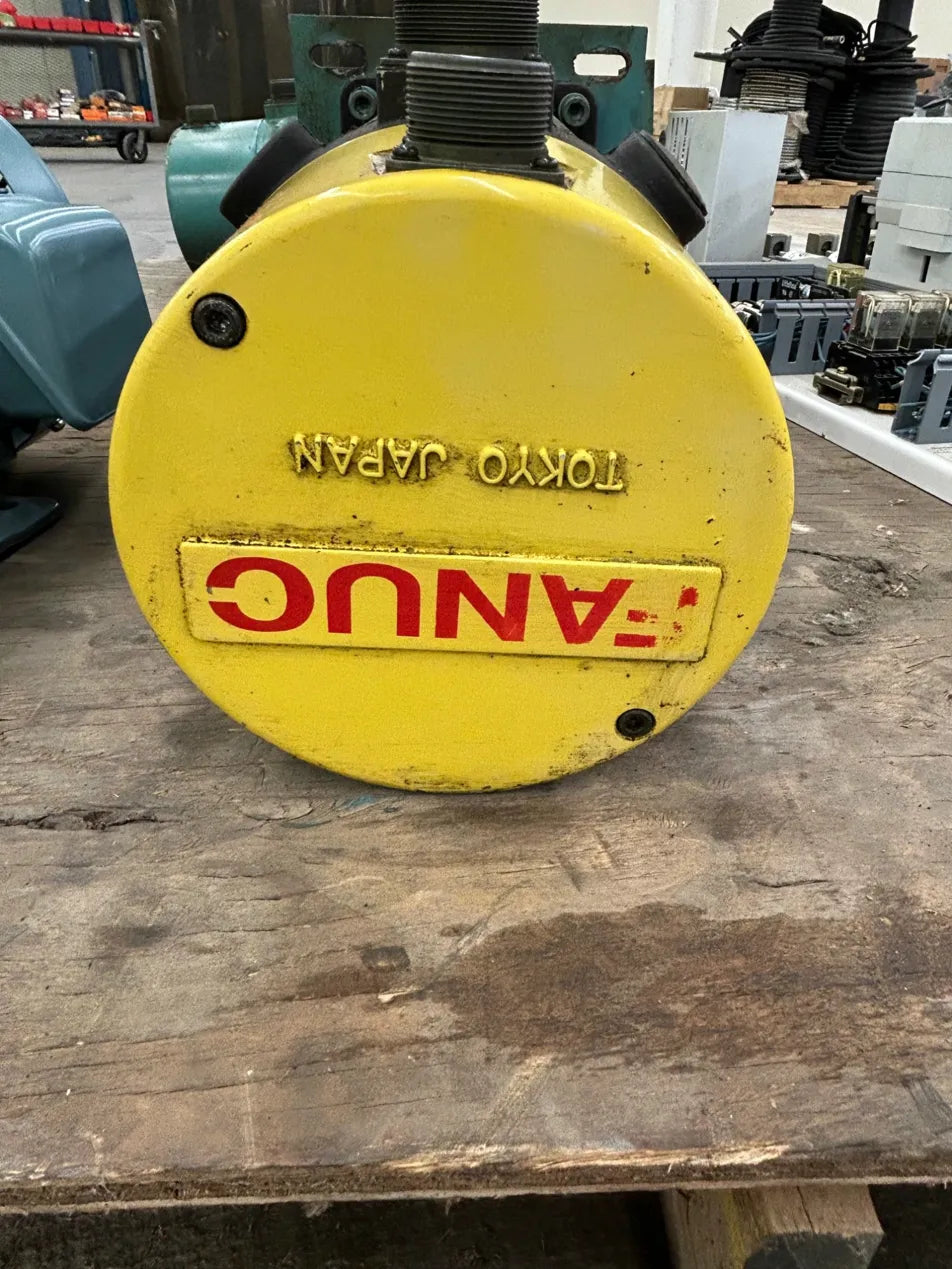

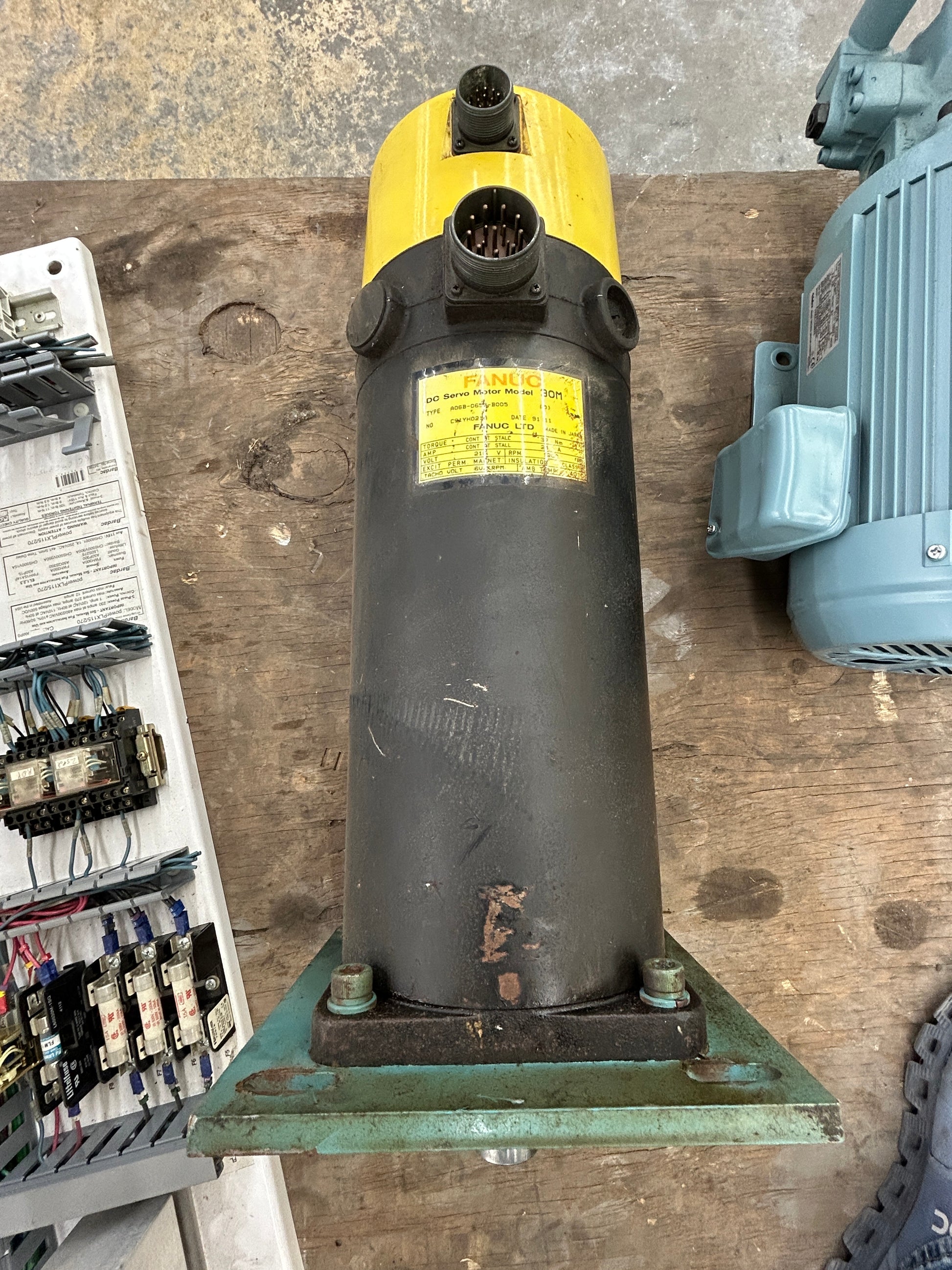

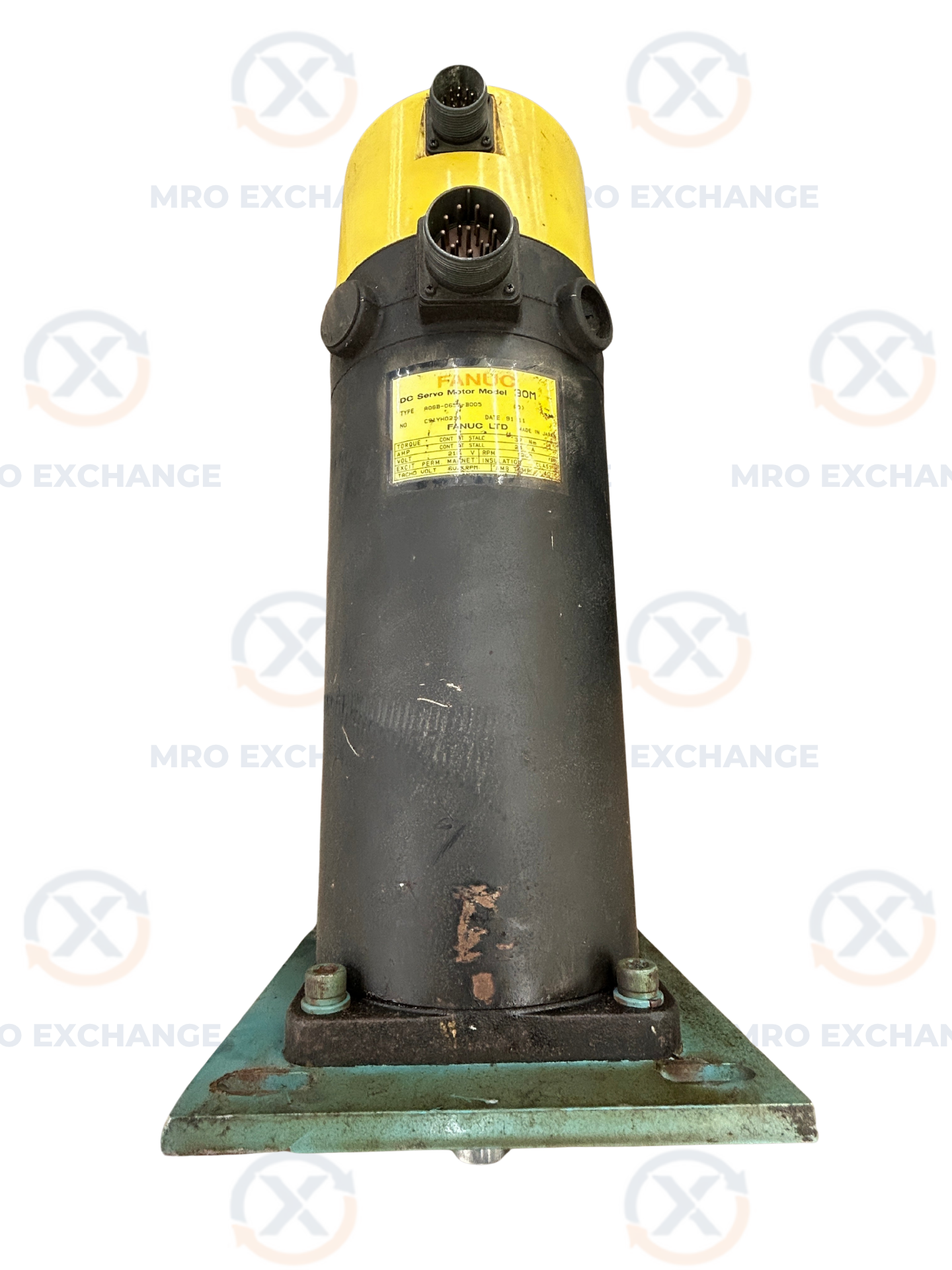

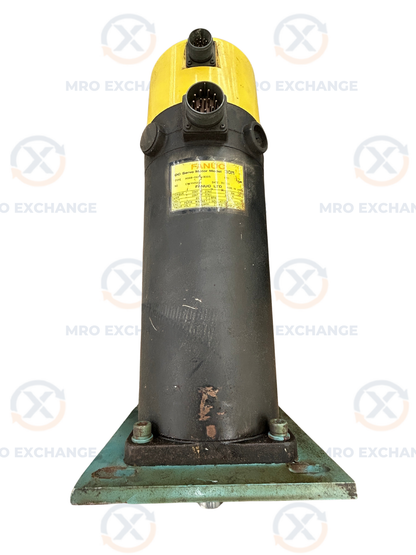

The motor body is finished in black with a yellow end cap, and two multi-pin circular connectors are present at the rear. The output shaft protrudes through a steel mounting flange plate visible in the photos, with a smooth cylindrical shaft end shown. No timing pulley or gear is installed on this unit. The yellow end cap bears the cast text "FANUC" and "TOKYO JAPAN."
The A06B-0653 30M platform is widely used in legacy Fanuc 0, 6, 10, 11, and 15 series CNC control systems as an axis drive motor. This MPN is cross-referenced in the market as A06B0653B005 and is compatible with Fanuc DC servo amplifier systems requiring a 37 Nm continuous torque rating.
Stock # 0226-747
