Fanuc DC Servo Motor A06B-0653-B005#0008 - Variable 37 NM
Fanuc DC Servo Motor A06B-0653-B005#0008 - Variable 37 NM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

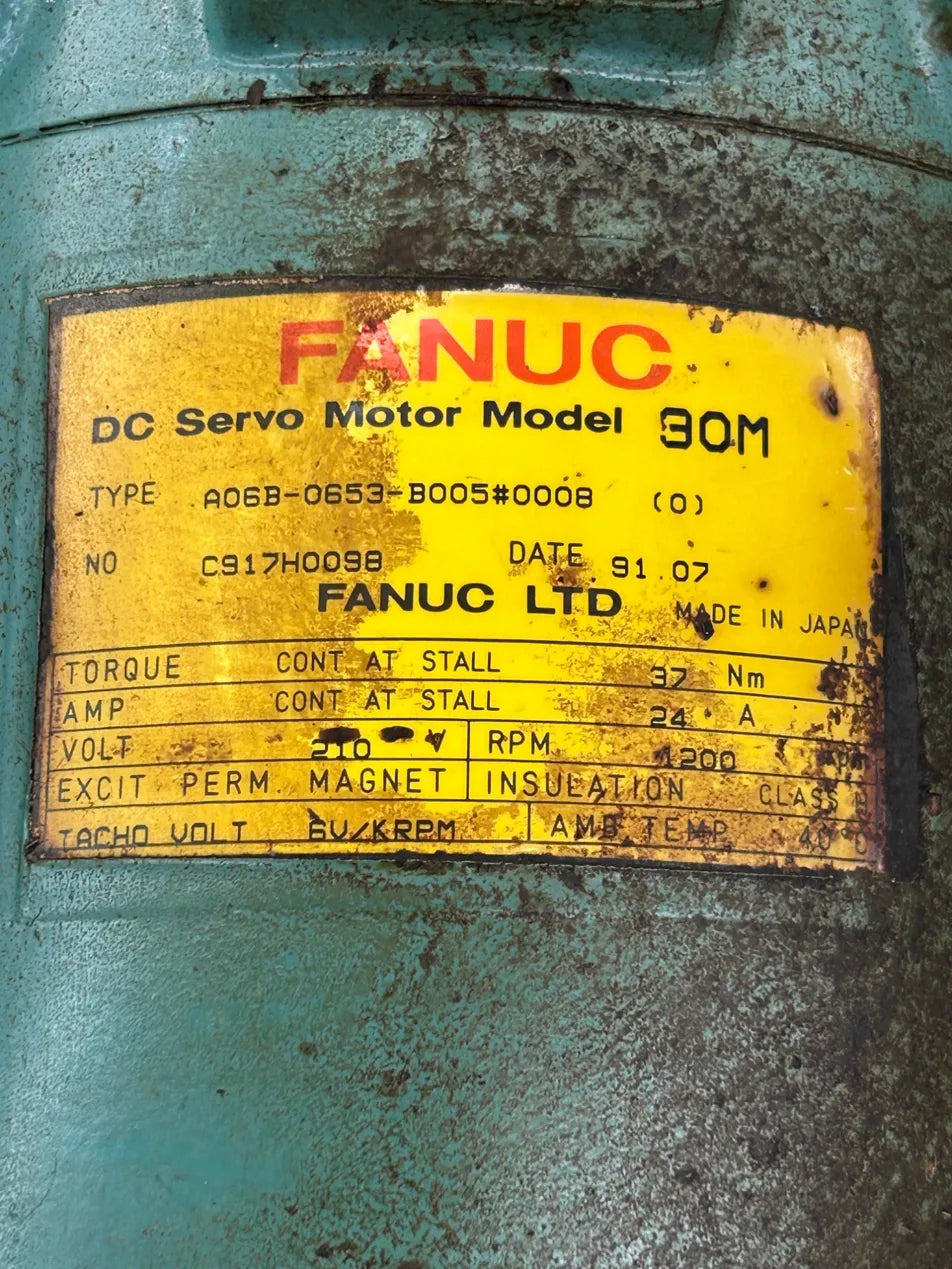

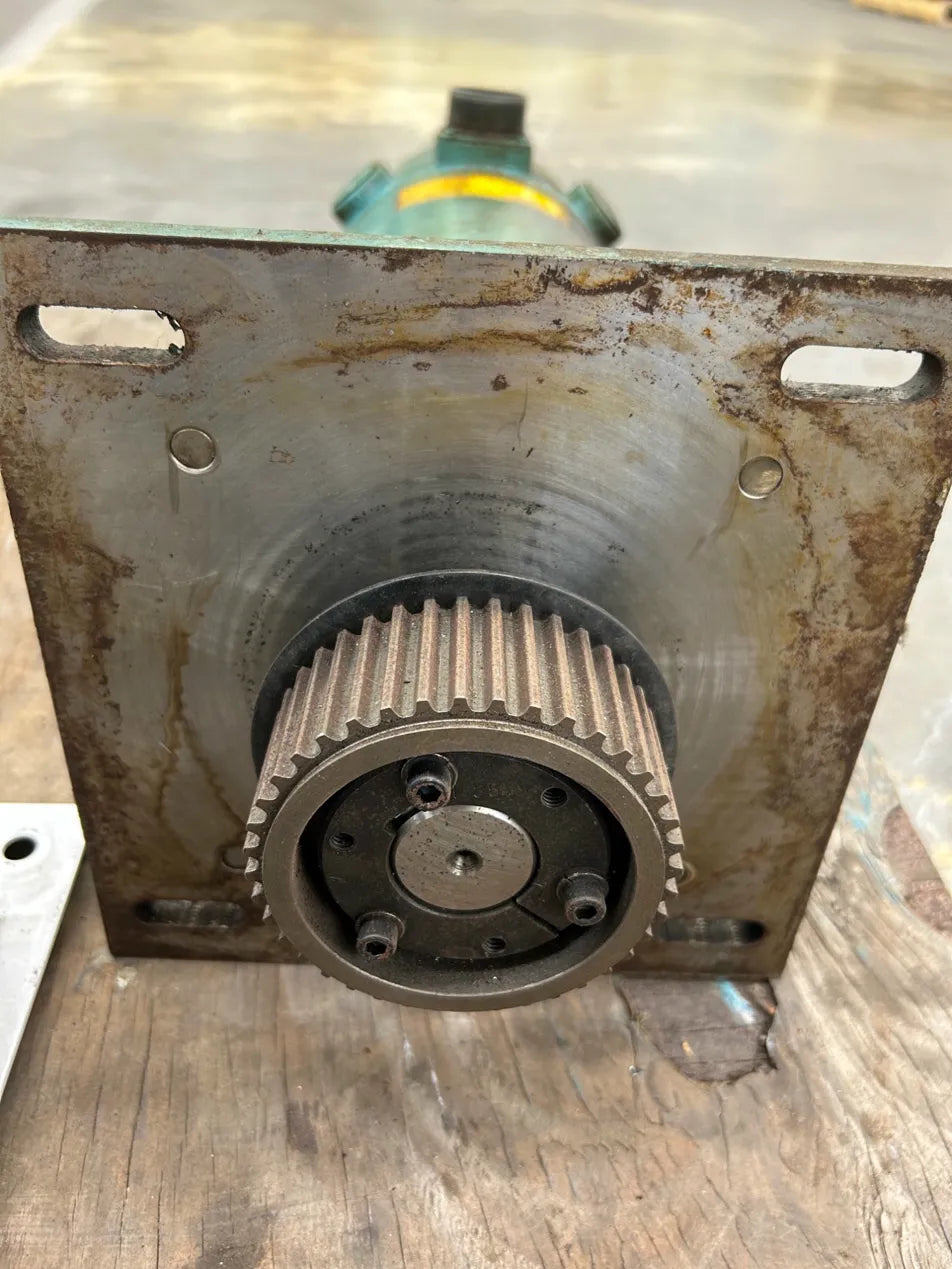

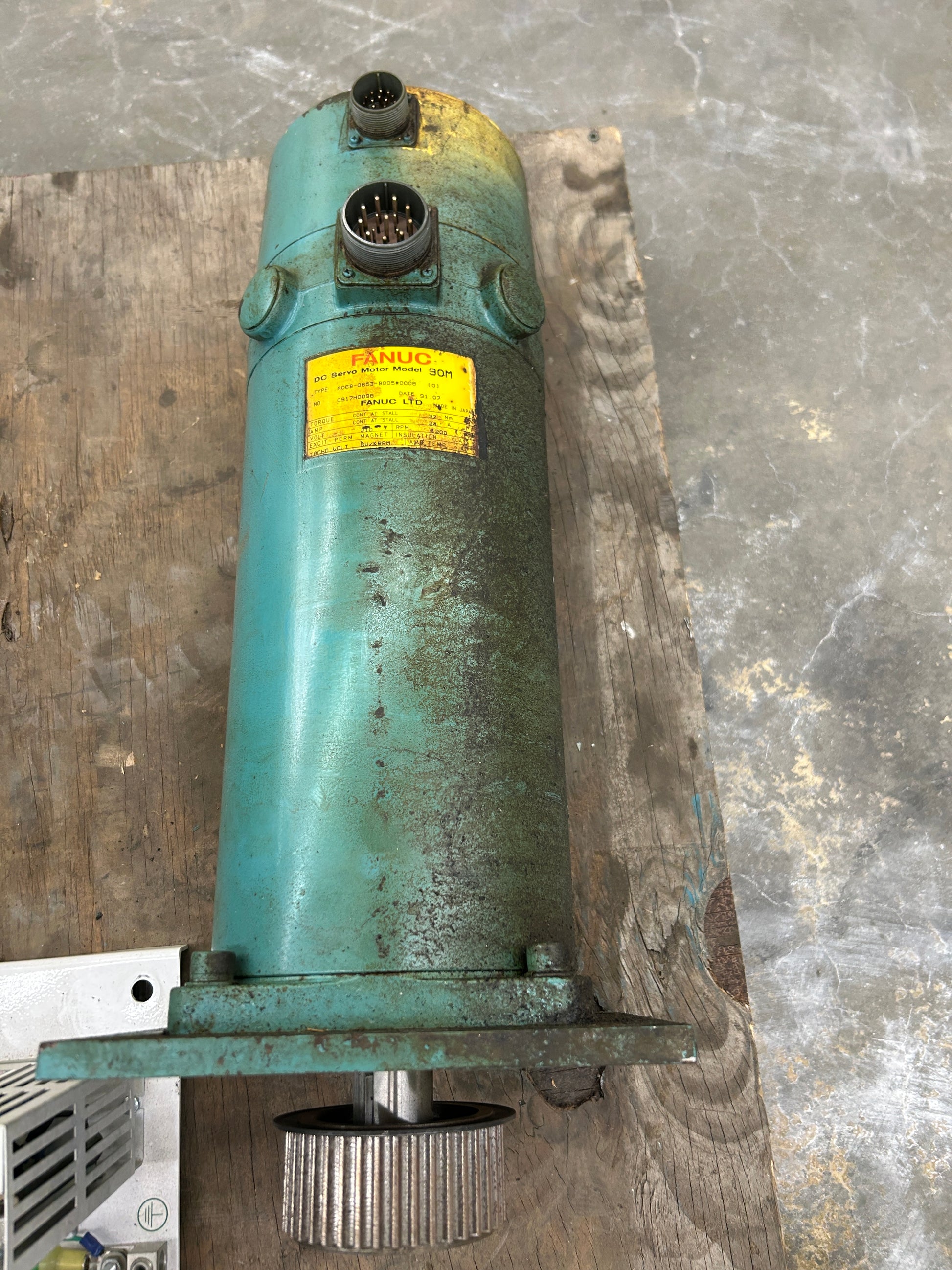

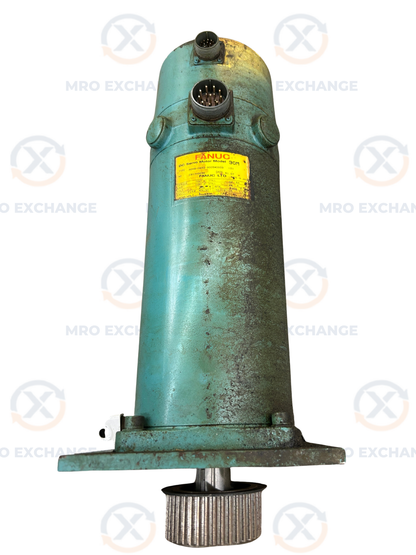

Used in CNC machining centers and industrial automation systems, the Fanuc DC Servo Motor Model 30M is a permanent magnet DC servo motor designed for high-torque axis drive applications. This unit carries part number A06B-0653-B005#0008, indicating a keyed shaft configuration with tacho generator feedback. Nameplate data confirms a continuous stall torque of 37 Nm, a continuous stall current of 24 A, and a rated voltage of 210 VDC. Rated speed is 1200 RPM. The tacho generator output is rated at 6V per 1000 RPM. Excitation is by permanent magnet. Insulation is Class H, and the ambient temperature rating is 40 degrees C. The motor is manufactured by Fanuc Ltd. and made in Japan. Serial number C917H0098 and date code 91.07 are visible on the nameplate. Two multi-pin circular connectors are present at the rear of the motor body. A timing belt pulley is installed on the output shaft. The motor mounts to a steel flange plate visible in the photos. The A06B-0653 series is a well-established platform in legacy Fanuc 0, 6, 10, 11, and 15 series CNC control applications.
Stock # 0226-745
