Marathon Electric AC Motor 5K36PNB111A - 1 HP 1800 RPM

$250.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

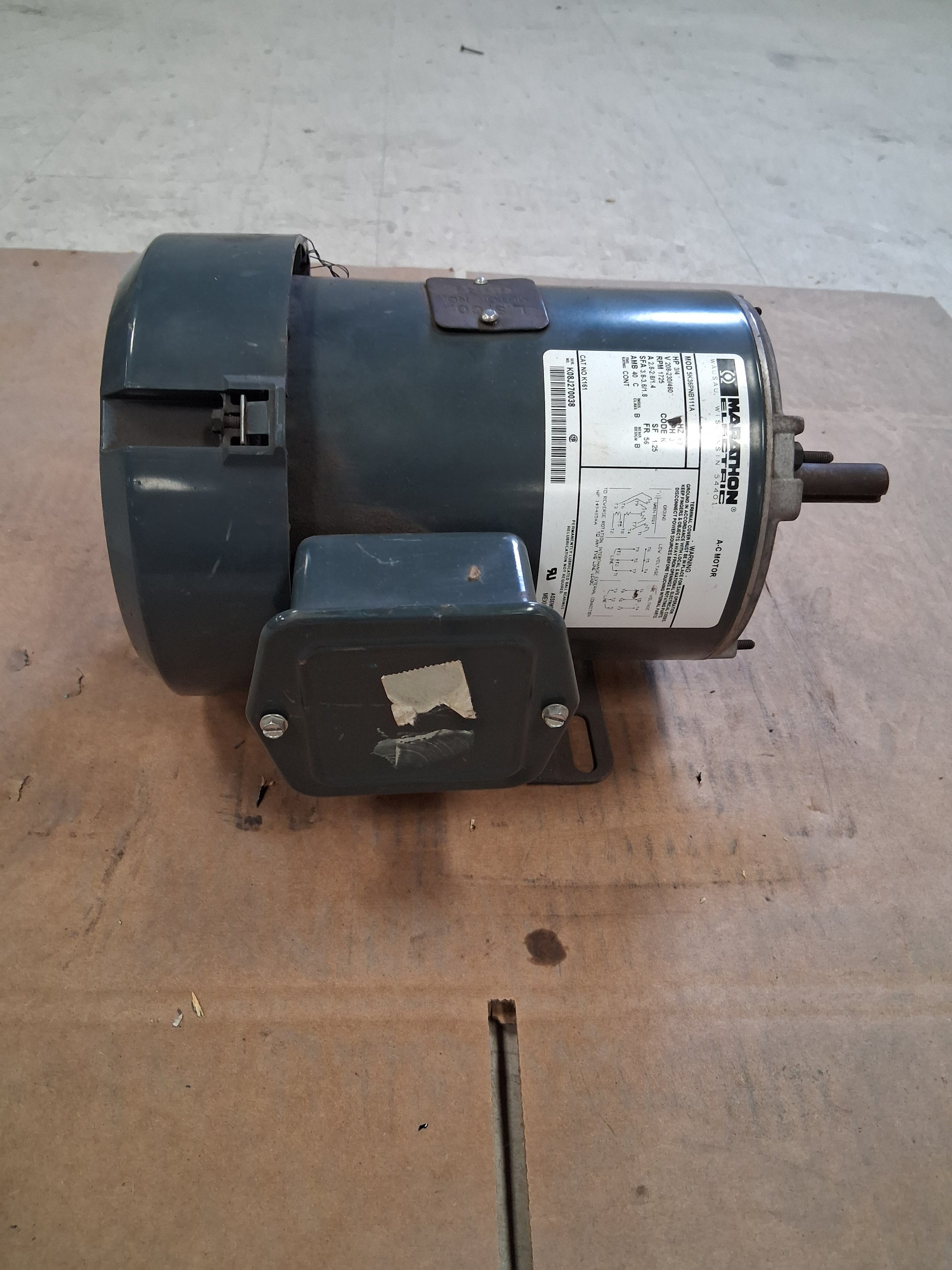

The Marathon Electric 5K36PNB111A is a 3/4 HP three phase AC induction motor manufactured in Wausau, Wisconsin under catalog number K161. This unit is designed for general purpose applications on pumps, fans, blowers, compressors, conveyors, and similar industrial machinery. Nameplate data confirms a dual voltage rating of 208 to 230 / 460 VAC, 60 Hz, with full load current draw of 2.8 to 2.8 / 1.4 amps. The motor operates at 1725 RPM under load and is rated for continuous duty service.

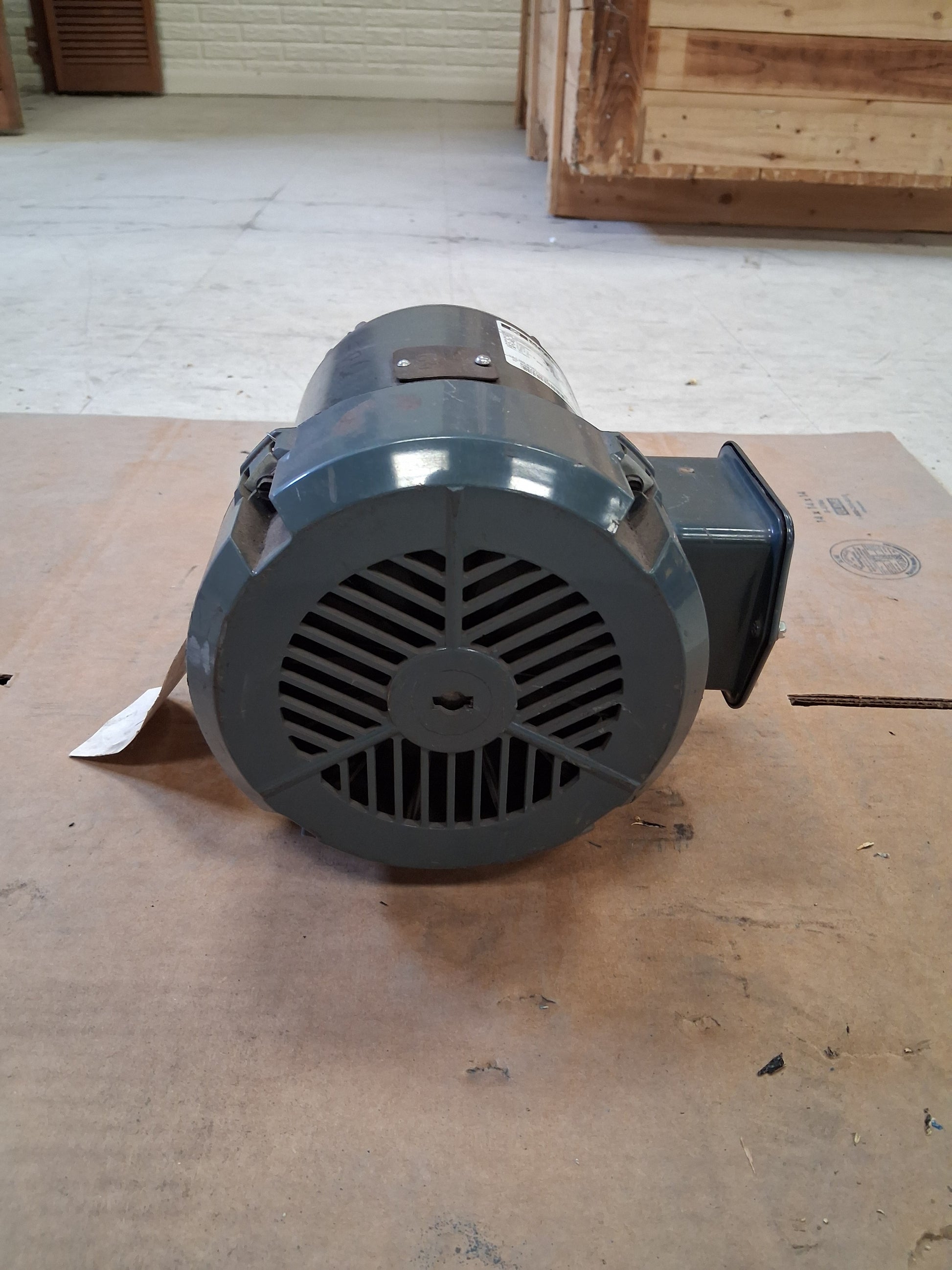

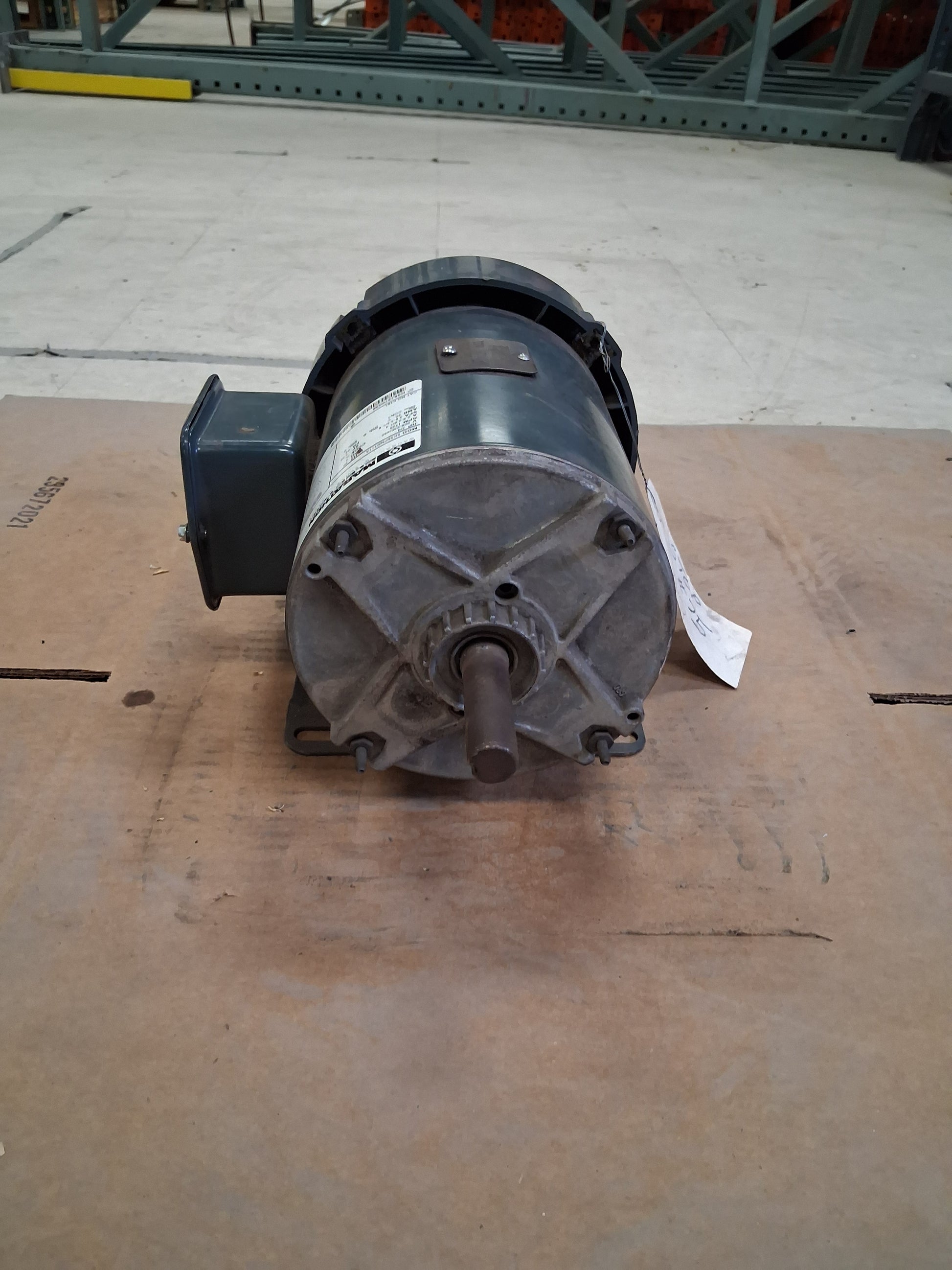

Construction is totally enclosed fan cooled (TEFC) on a NEMA 56 frame with a rigid base mount and a 5/8 inch keyed output shaft. The motor carries a 1.25 service factor, Class B insulation, NEMA Design B classification, and Code K locked rotor designation. Maximum ambient operating temperature is rated at 40 degrees C. Permanently lubricated ball bearings are used at both ends, eliminating the need for field relubrication. The cast aluminum end shields, steel shell, and gasketed terminal box provide protection in damp, dusty, and dirty operating environments.

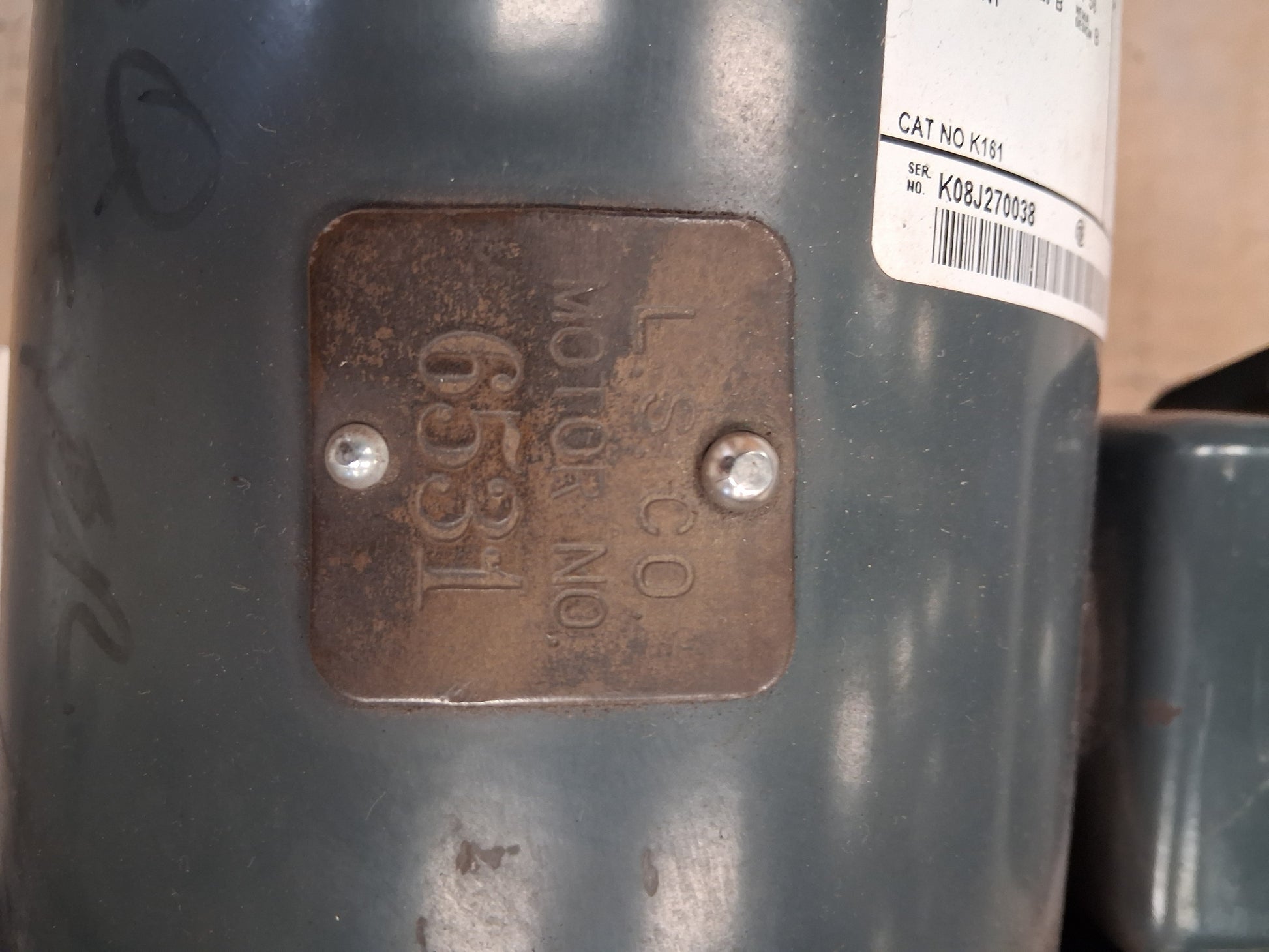

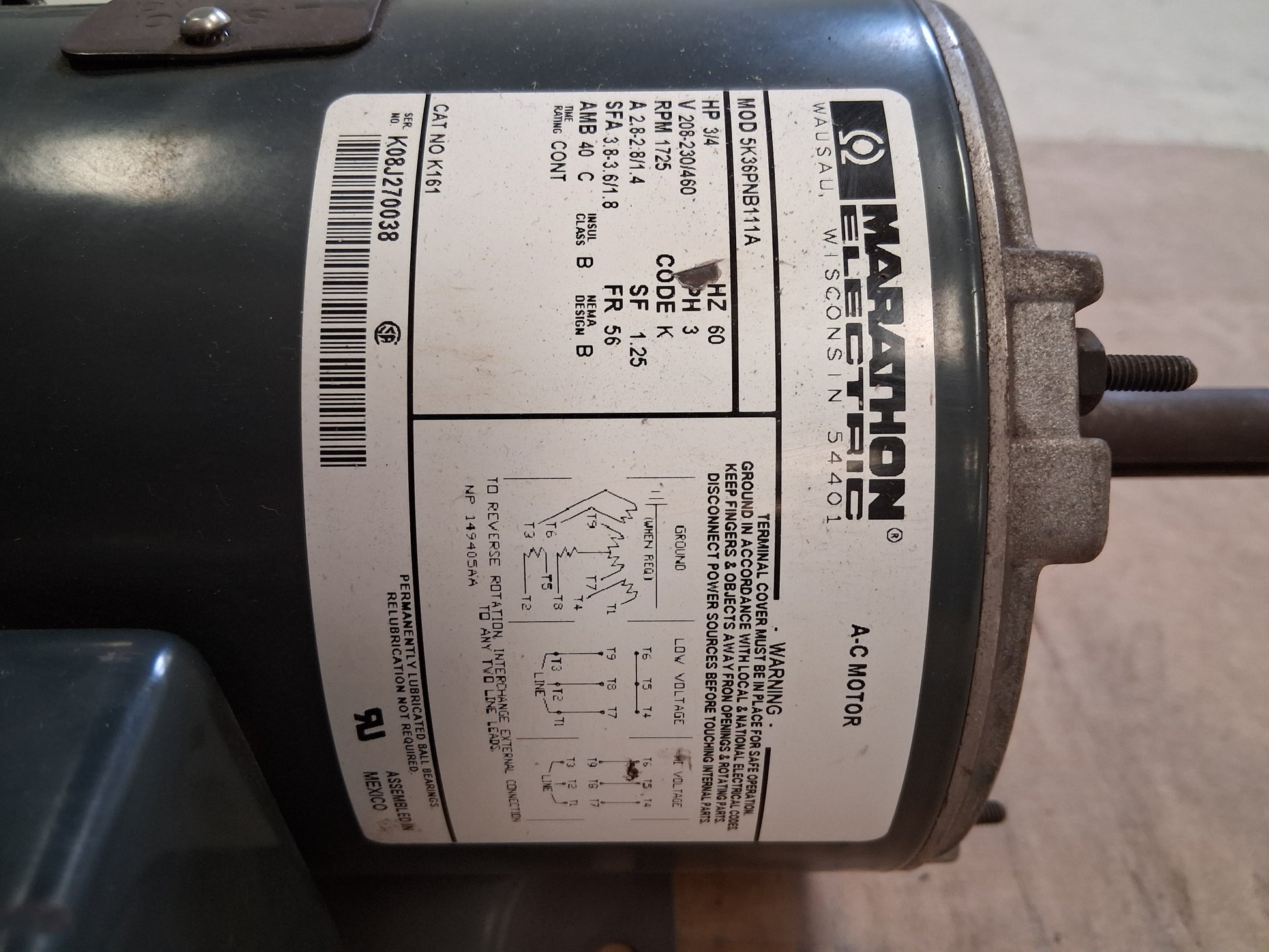

Serial number K08J270038 is visible on the nameplate. The motor includes a low voltage and high voltage wiring diagram printed on the nameplate for nine lead wye configurations. The unit is UL recognized and CSA certified. Assembled in Mexico. A separate L S Co. motor identification tag stamped 6531 is mounted to the frame. The motor is sold in used industrial surplus condition as removed from prior service.

Stock # 0526-02308
