Marathon Electric Farm Duty Motor 56C17F5325H - 1 HP 1800 RPM
Marathon Electric Farm Duty Motor 56C17F5325H - 1 HP 1800 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

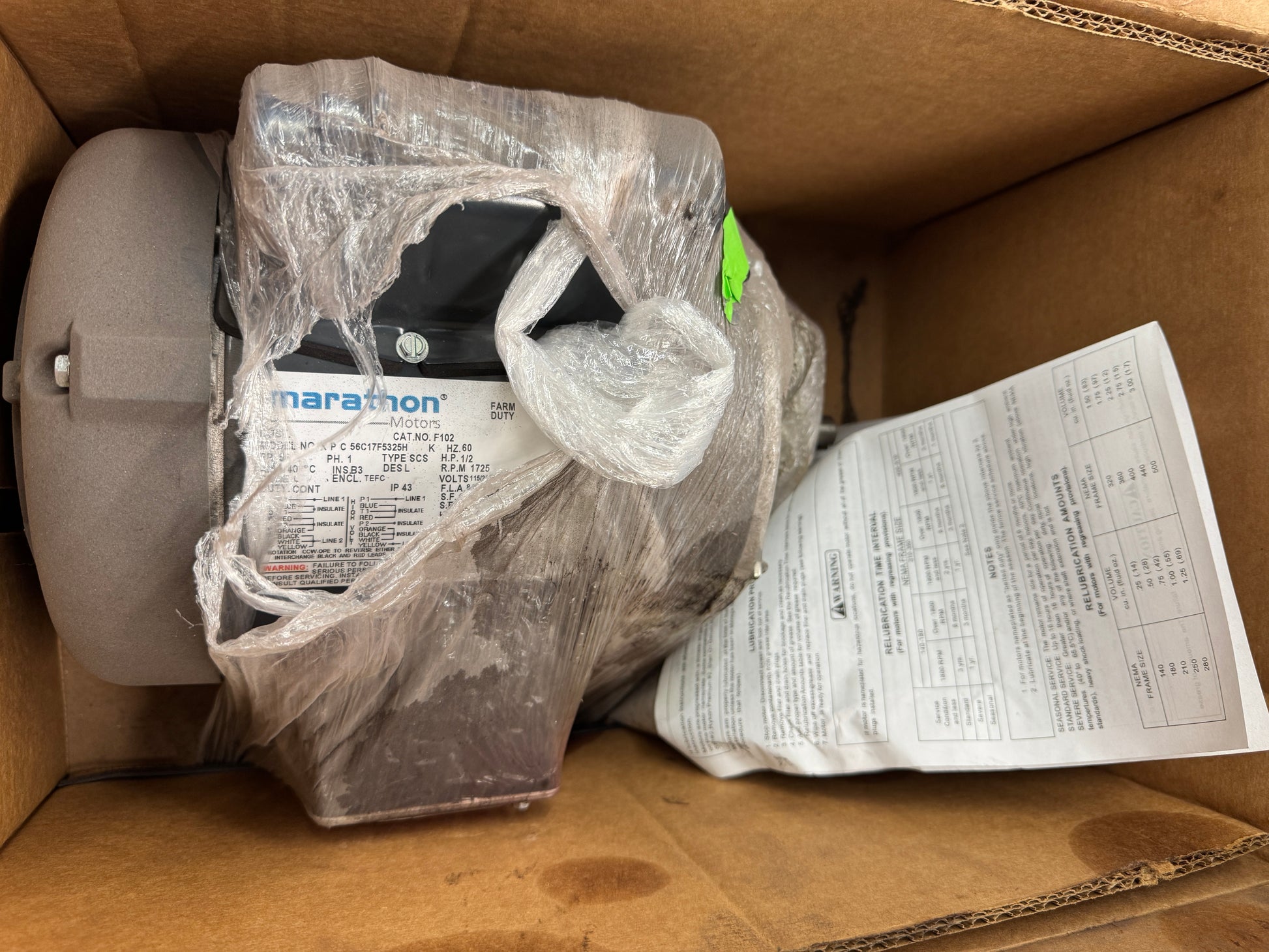

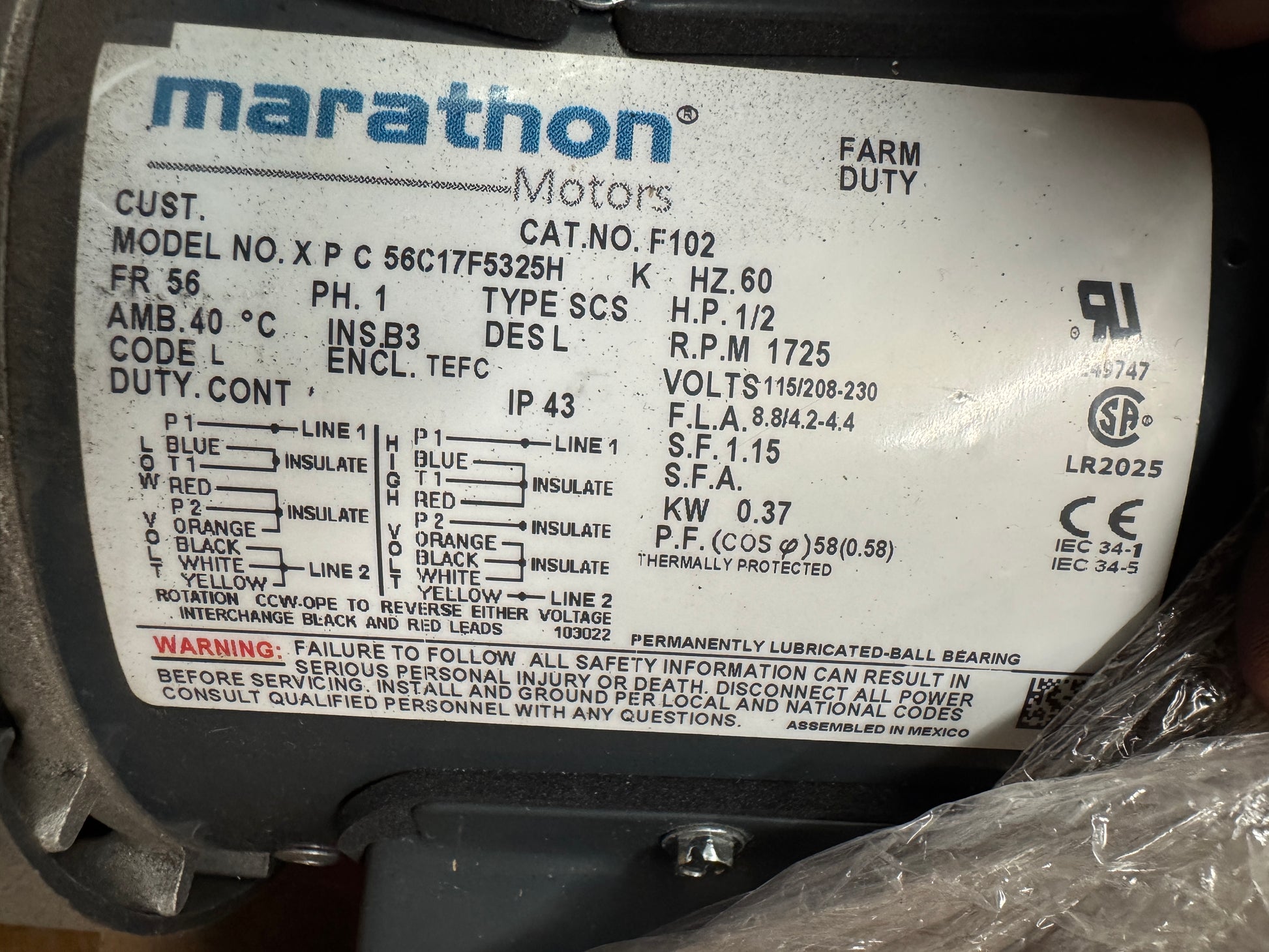

The Marathon Electric 56C17F5325H is a 1/2 HP single-phase AC motor rated at 1725 RPM with a catalog number of F102. It carries a NEMA 56 frame and is configured for rigid base mounting. Voltage rating is 115/208-230V at 60 Hz, with full-load amps of 8.8 at 115V and 4.2 to 4.4 at 208-230V. Service factor is 1.15 and KW output is 0.37. The enclosure type is TEFC (Totally Enclosed Fan Cooled) with an IP43 rating, making it suitable for dirty or outdoor environments. Insulation class is B3 with design code L and a 40 degrees C ambient rating. Duty is continuous and thermal protection is manual. Power factor is listed at 0.58. The motor is permanently lubricated with ball bearings and features a capacitor start, induction run design for high starting torque. UL recognized, CSA certified, and CE marked per IEC 34-1 and IEC 34-5 standards, with CSA file LR2025. Assembled in Mexico. Listed as a Farm Duty motor, the F102 is commonly used in agricultural equipment, air compressors, pumps, and general-purpose single-phase applications. The motor is presented in its original box with factory plastic wrap still in place and documentation included. Date code visible on nameplate: 103022.
Stock # 0526-02471
