Marathon Electric AC Motor GT1005 (182TTFC6076) - 1 kW 1200 RPM
Marathon Electric AC Motor GT1005 (182TTFC6076) - 1 kW 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

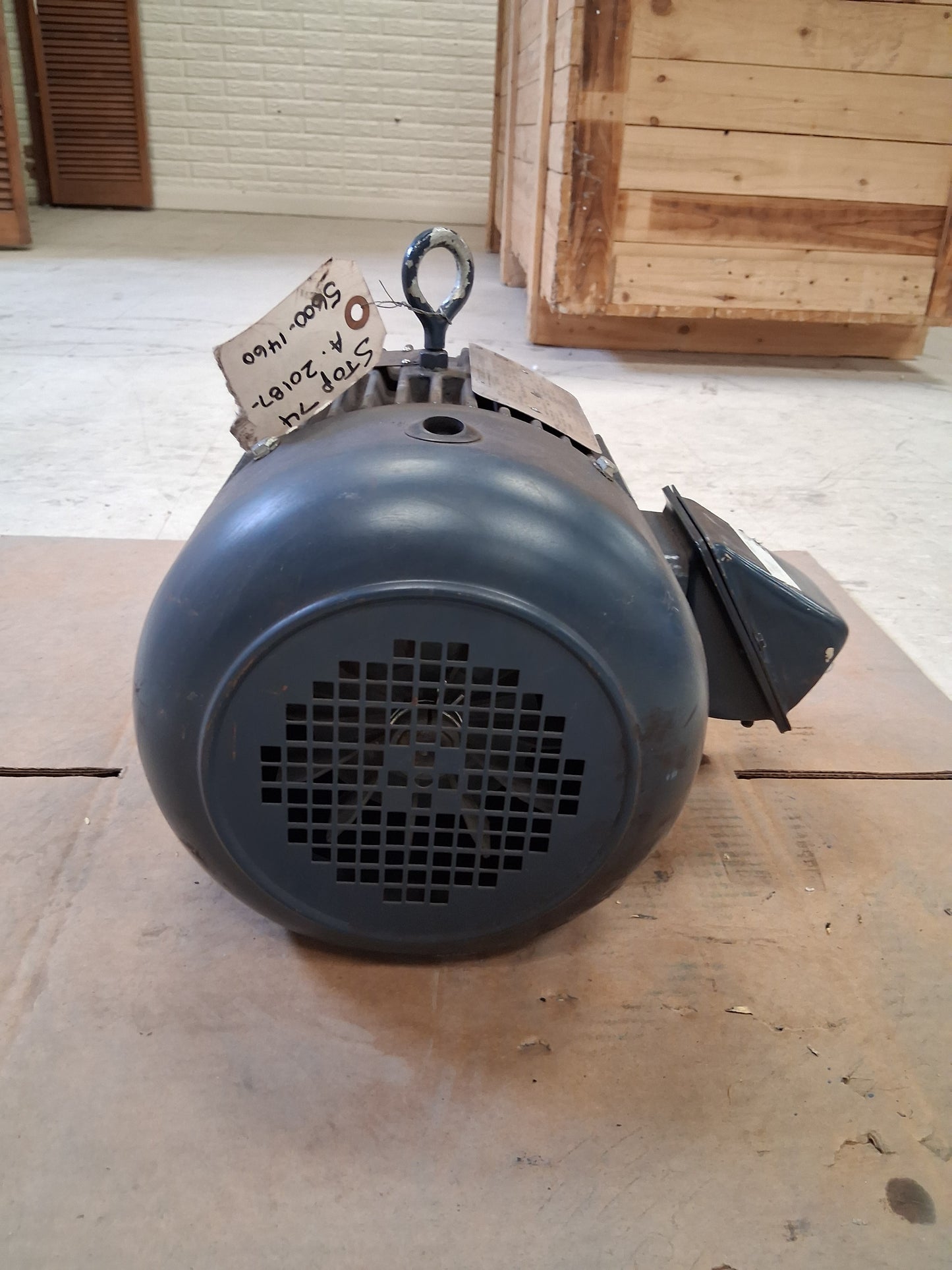

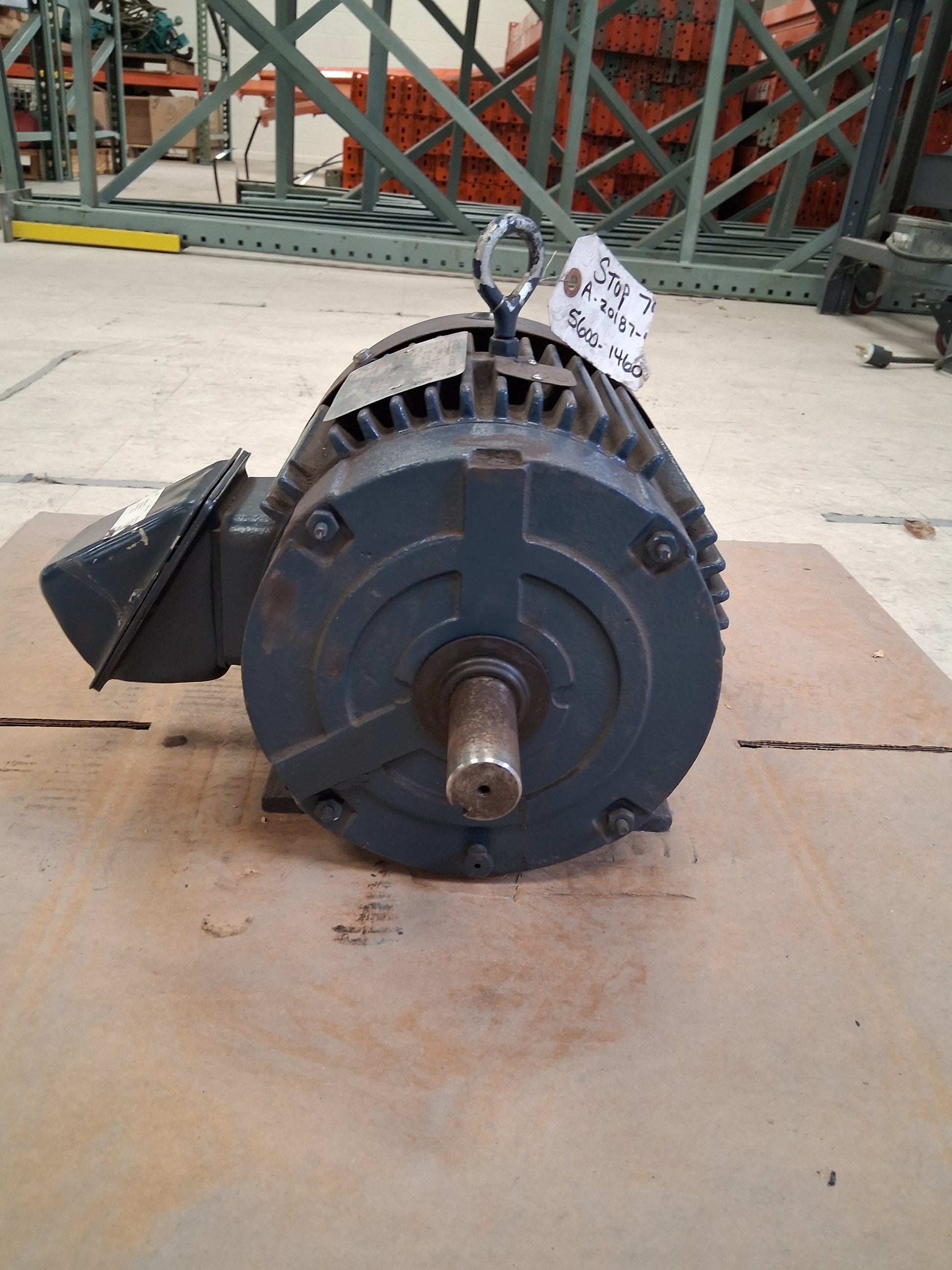

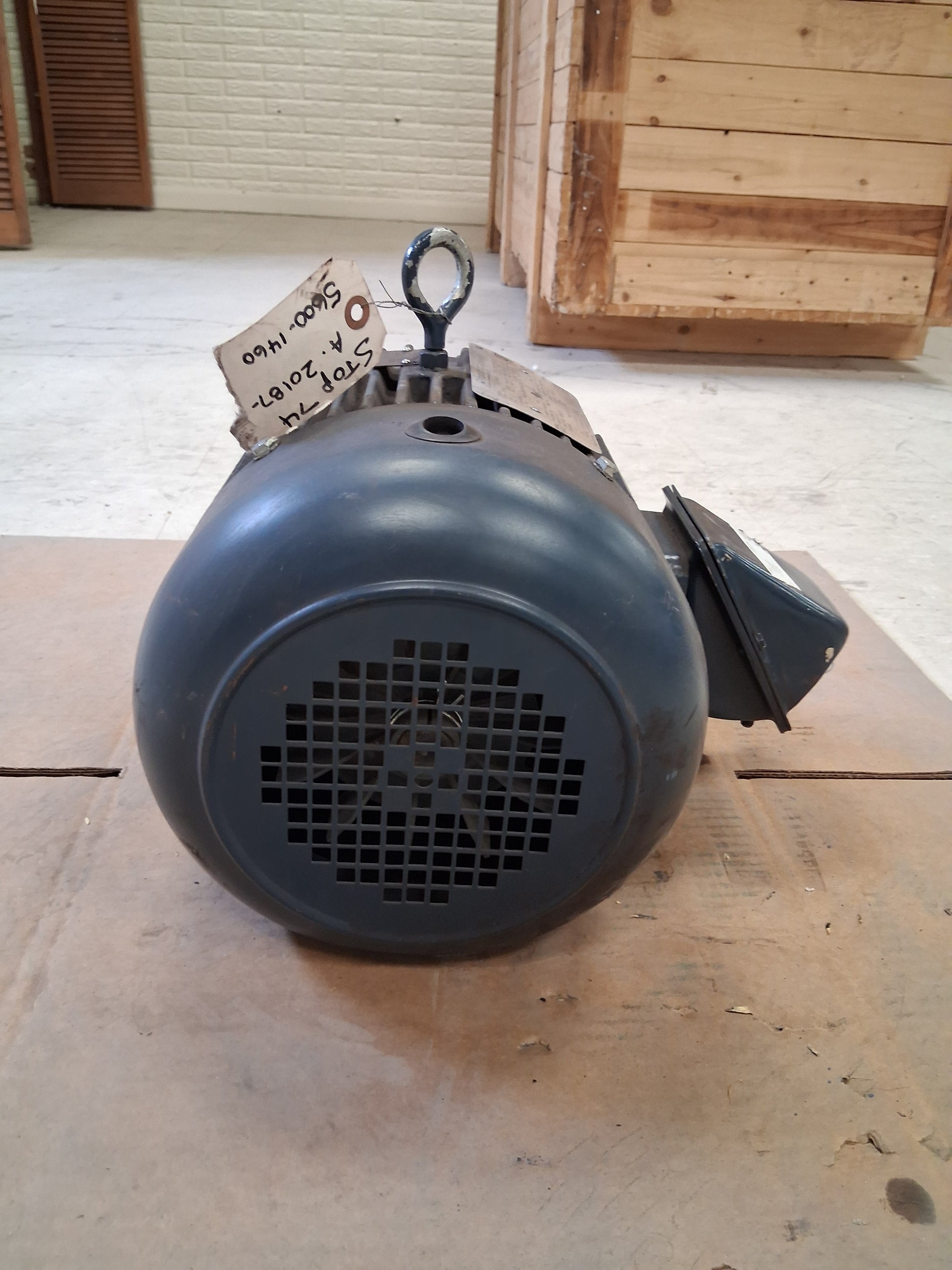

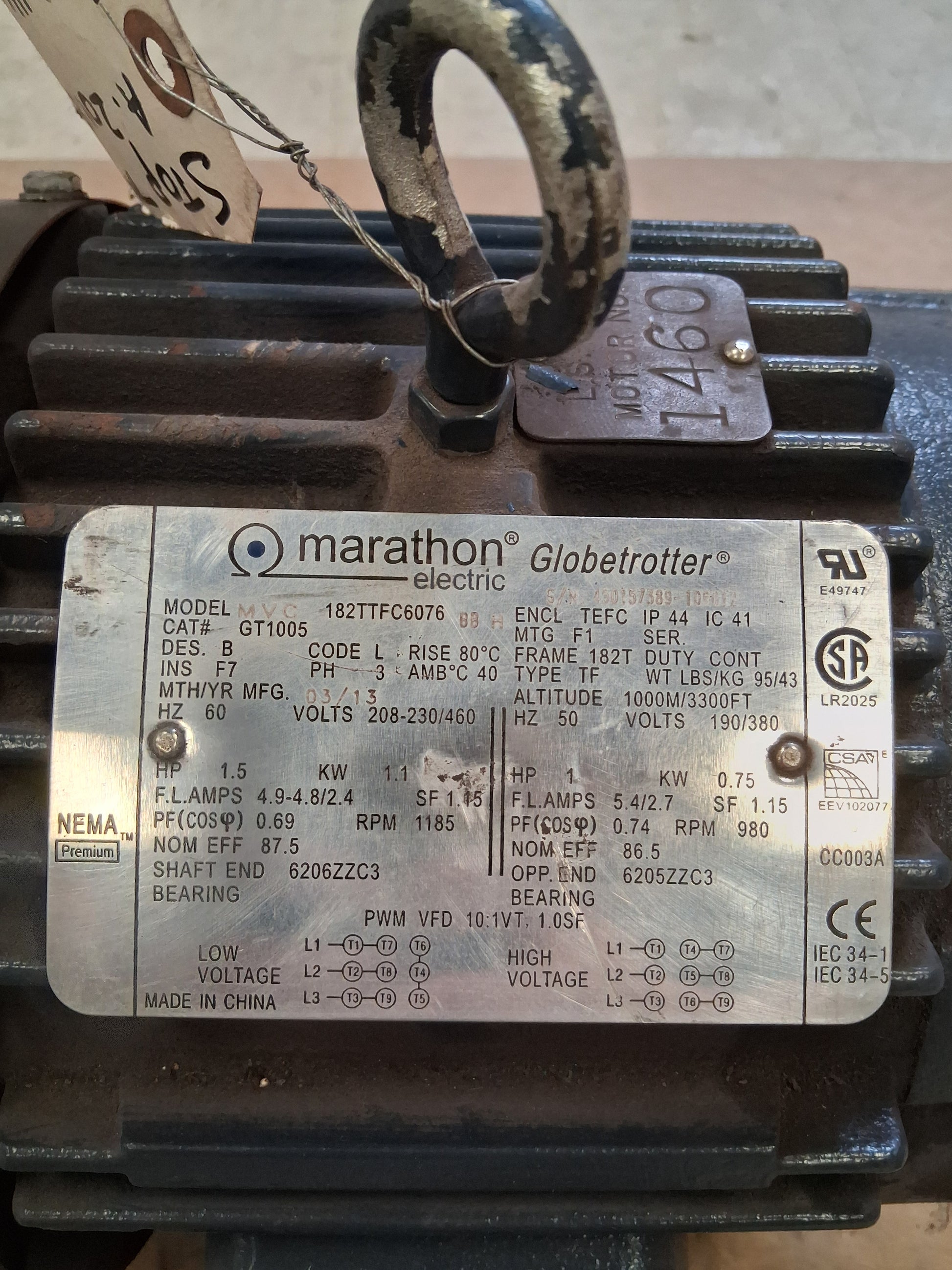

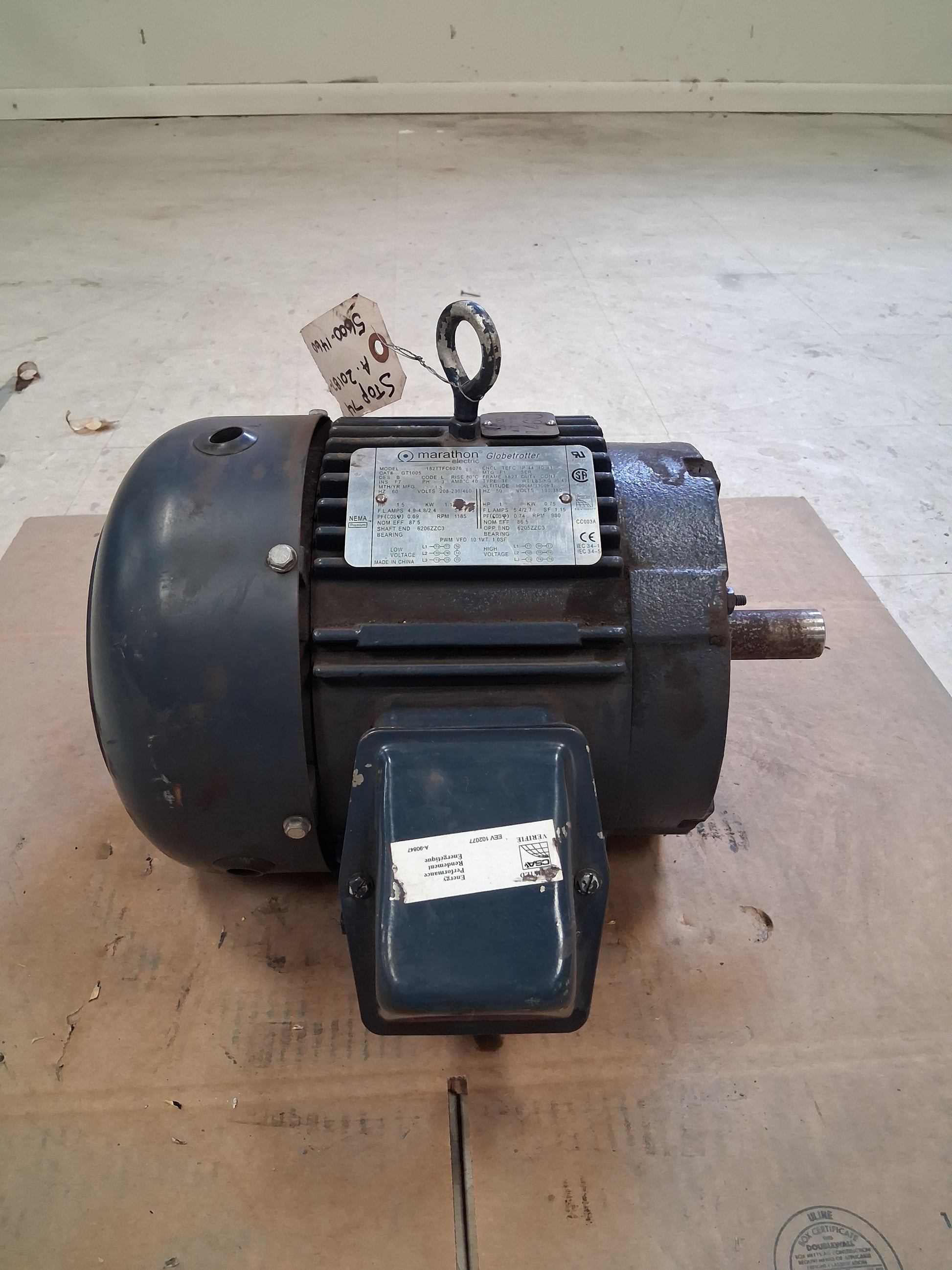

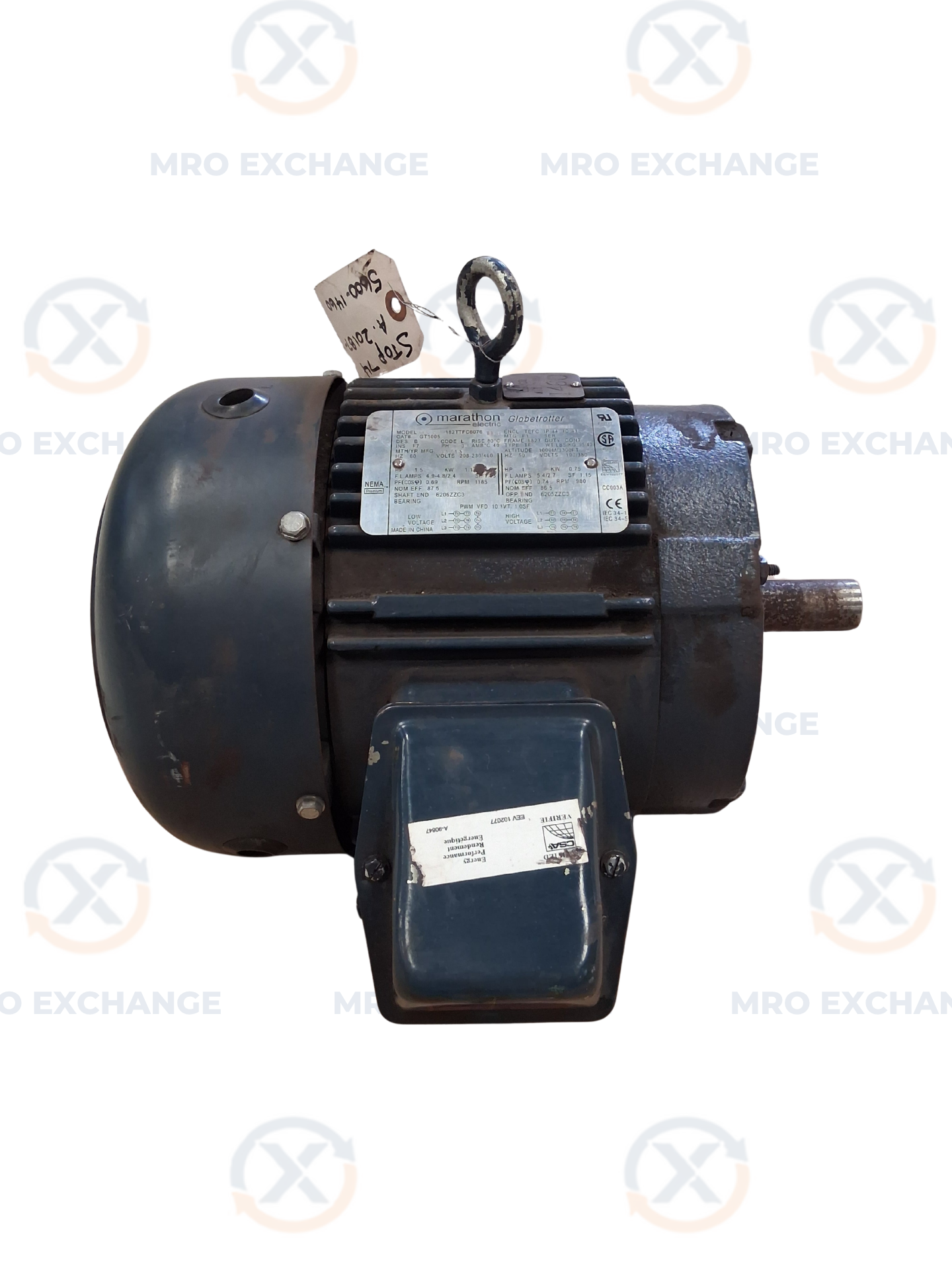

The Marathon Electric Globetrotter GT1005, part number 182TTFC6076, is a NEMA Premium efficiency three phase AC induction motor rated for 1.5 HP at 60 Hz and 1 HP at 50 Hz operation. Built on a 182T cast iron frame with TEFC enclosure rated IP44 IC41, this motor is designed for general purpose industrial applications including pumps, fans, compressors, conveyors, and machine tool drives. At 60 Hz the motor operates at 1185 RPM with full load amps of 4.9 to 4.8 at 208 to 230 volts or 2.4 amps at 460 volts. Service factor is 1.15 with a power factor of 0.69 and nominal efficiency of 87.5 percent. The unit carries Class F insulation with an 80 degree C temperature rise rating and 40 degree C ambient. Design B with Code L starting characteristics is suitable for across the line or VFD operation, supporting PWM VFD duty at 10:1 variable torque and 1.0 service factor. Shaft end bearing is 6206ZZC3 and opposite end bearing is 6205ZZC3. The motor includes a lifting eye bolt, F1 mounting configuration reversible to F2, and a side mounted conduit box. UL, CSA, and CE certifications are present on the nameplate. Date code 03/13 indicates a March 2013 manufacture date. The Globetrotter line is designed for global voltage compatibility, supporting 208 to 230 / 460 V at 60 Hz and 190 / 380 V at 50 Hz operation.
Stock # 0526-02312
