Baldor-Reliance Gearmotor 35W590-0085G3 - .5 HP 1800 RPM
Baldor-Reliance Gearmotor 35W590-0085G3 - .5 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

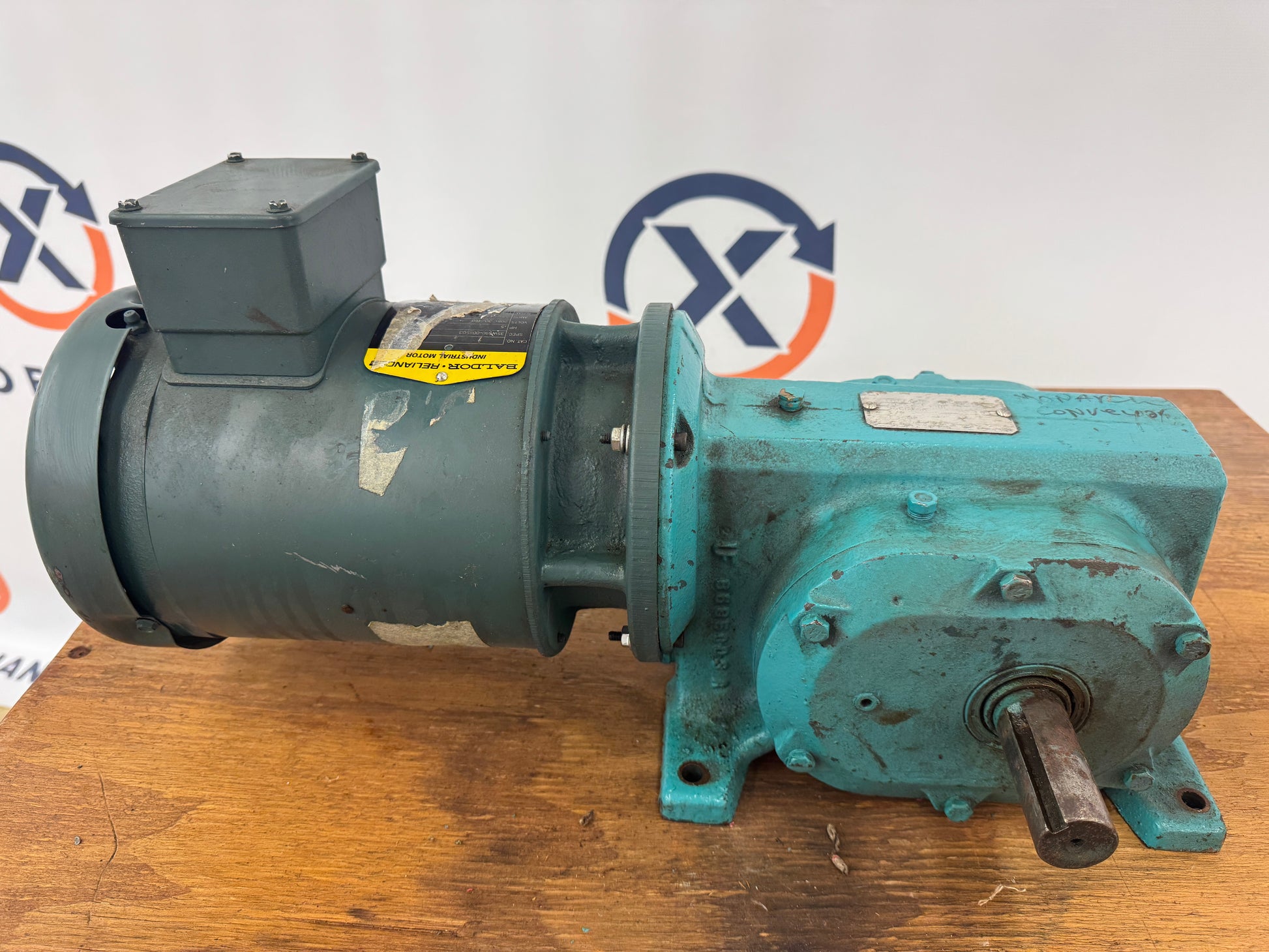

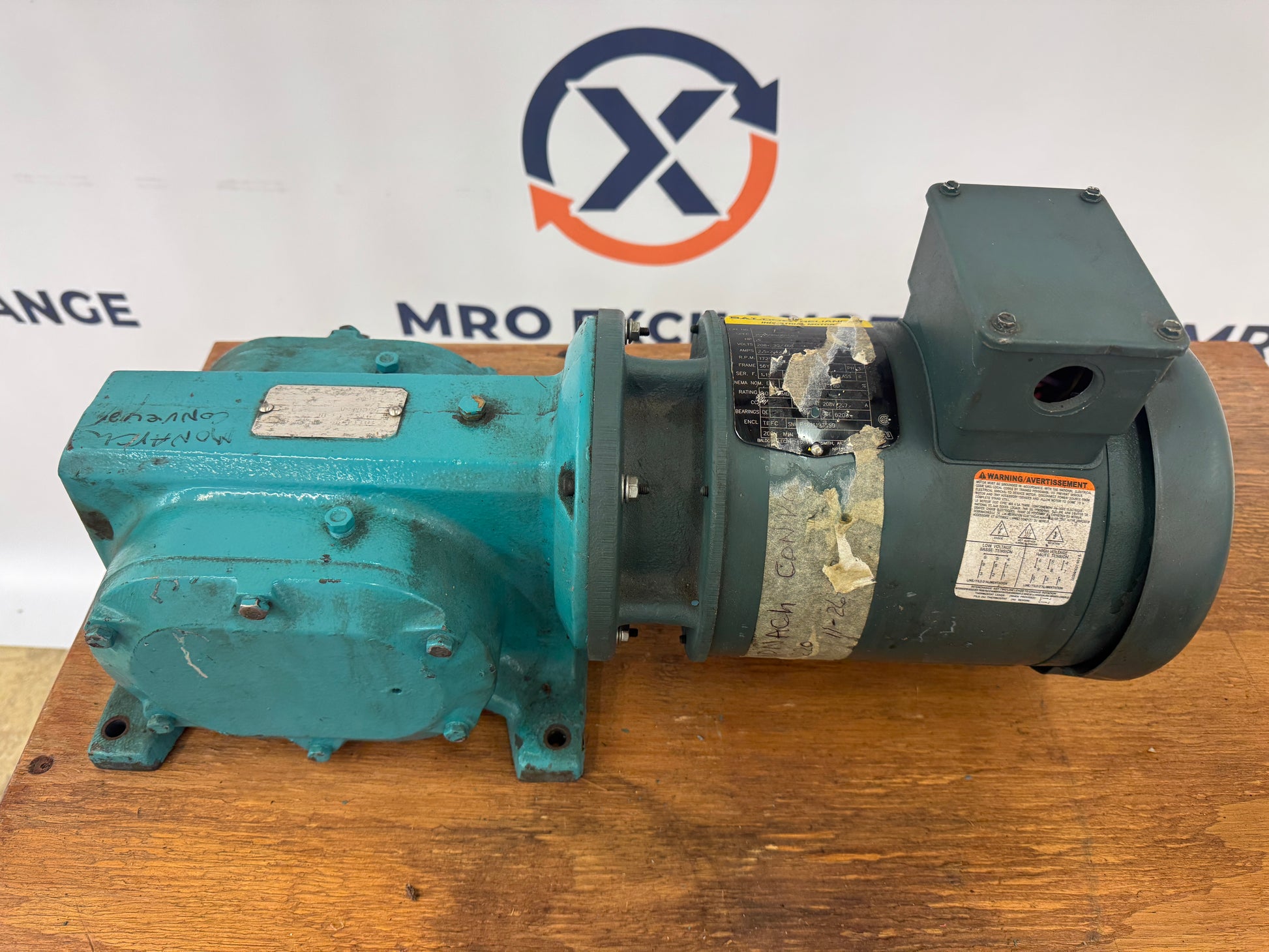

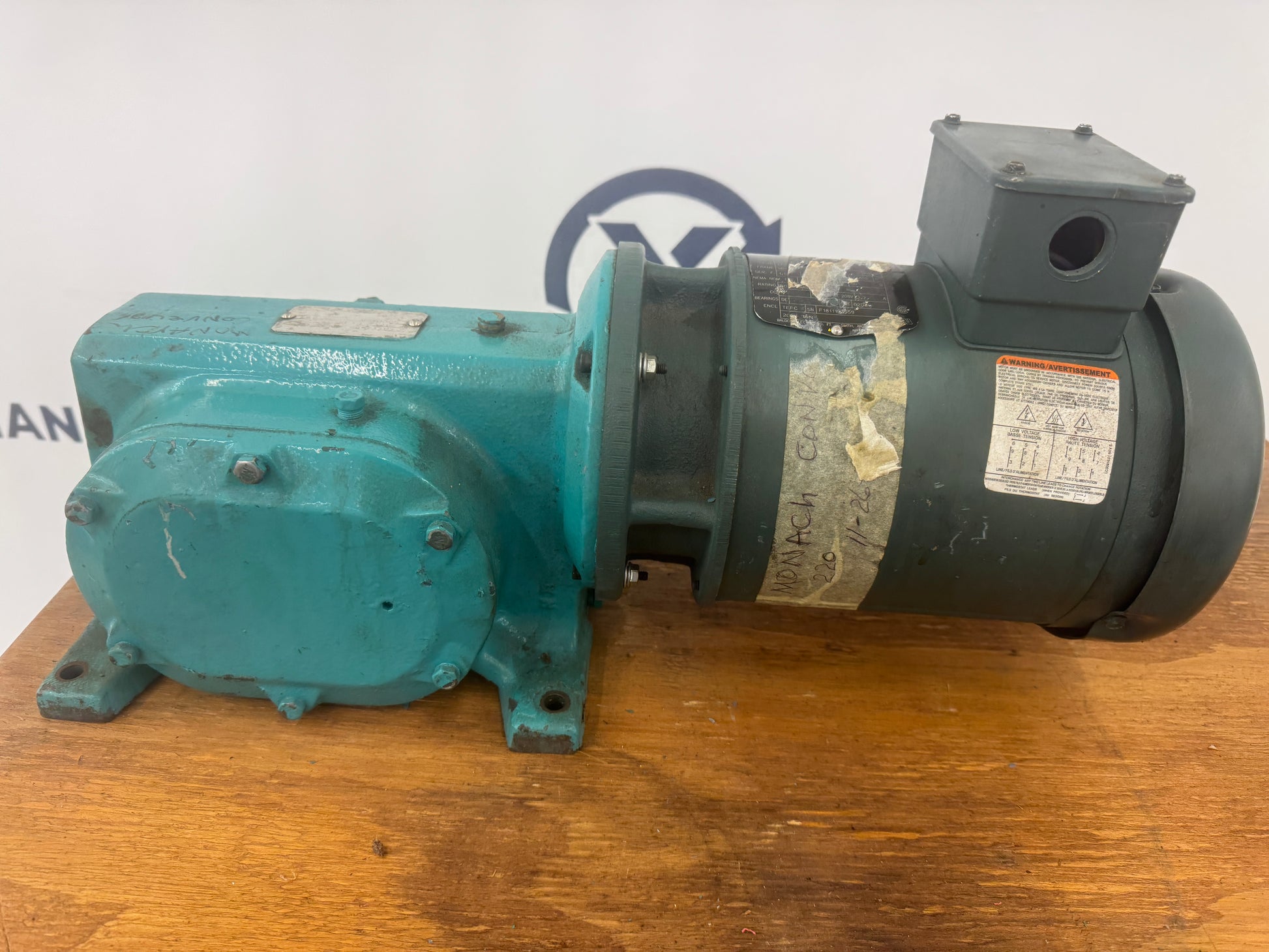

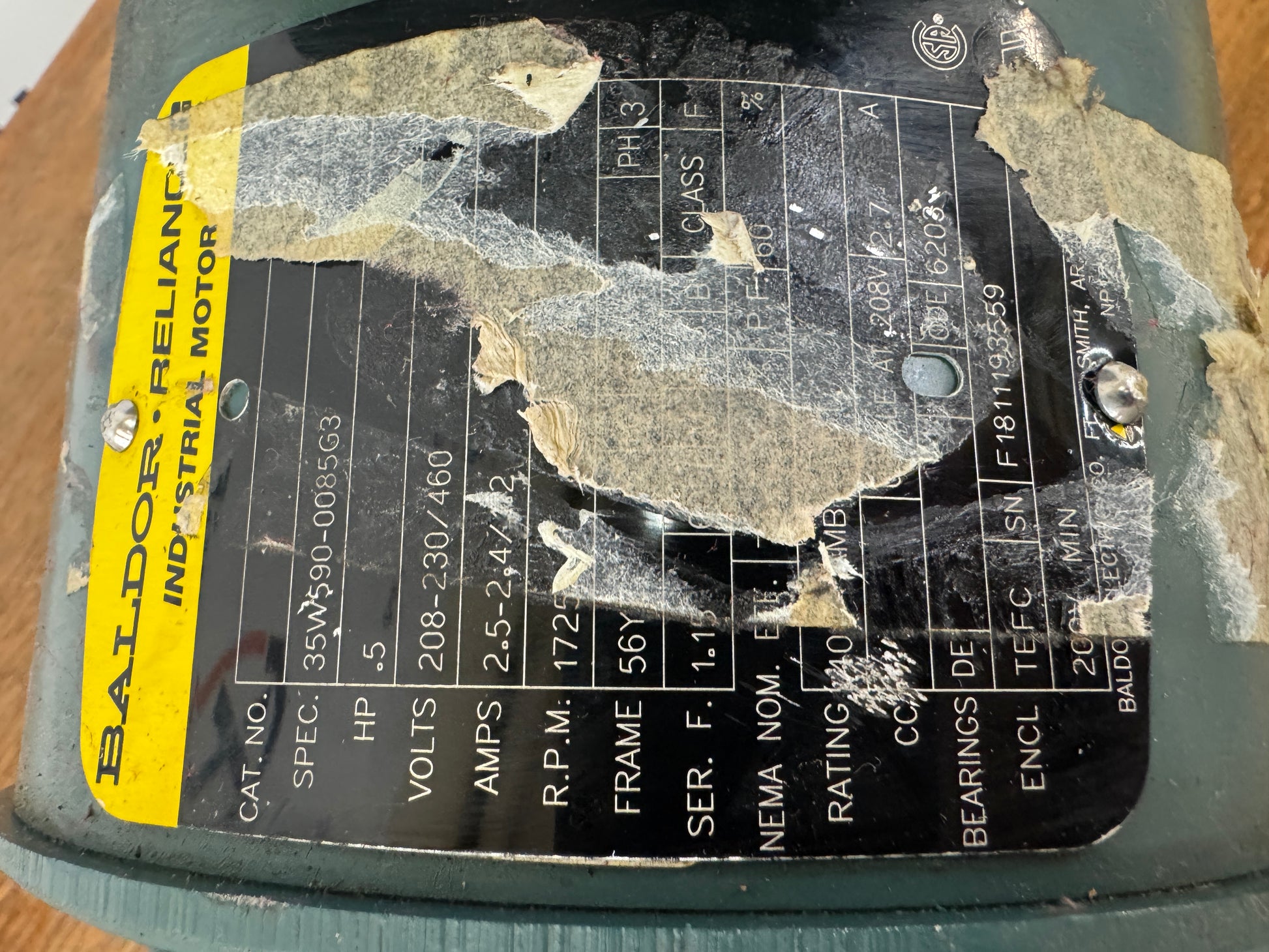

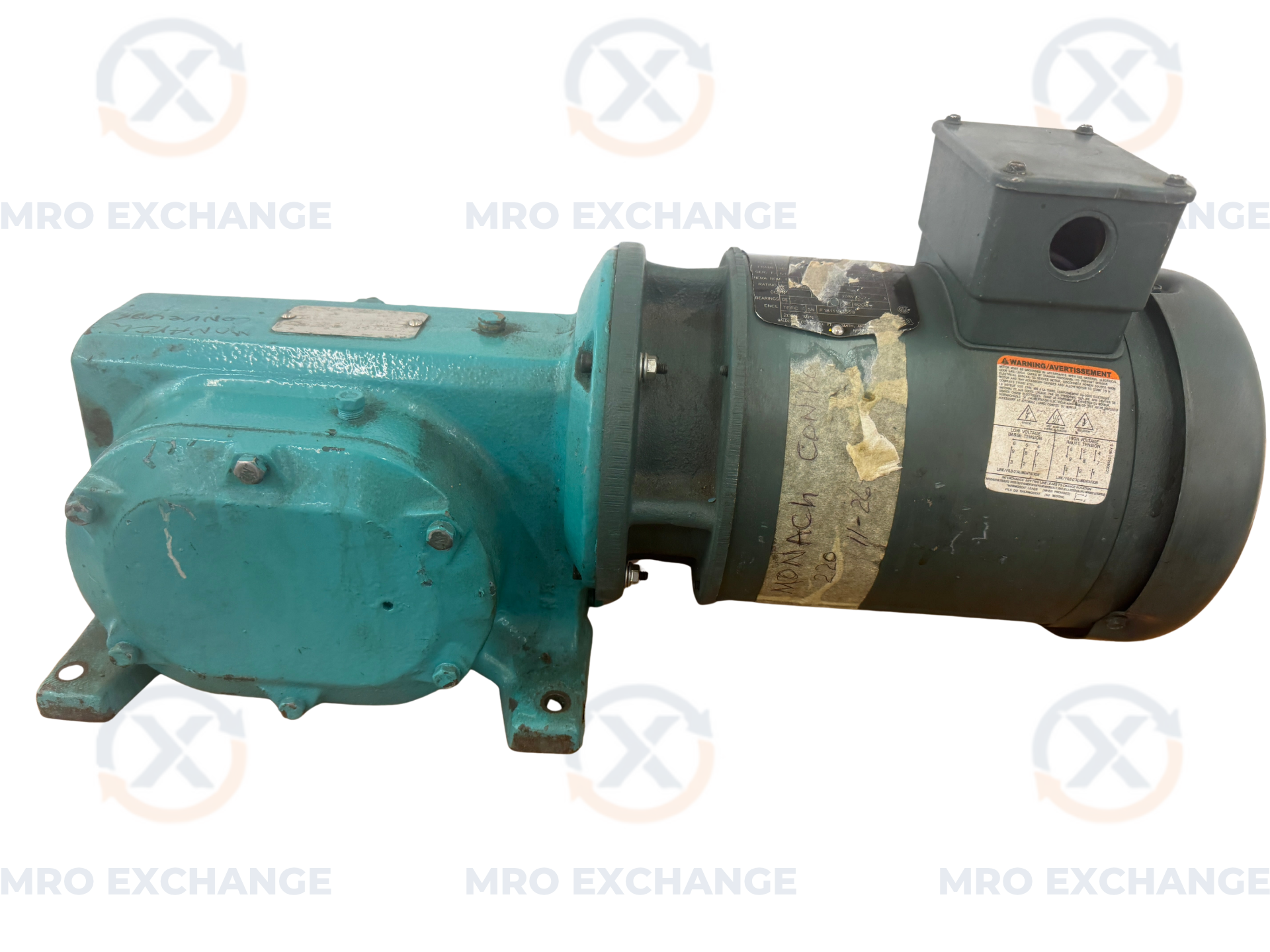

A Baldor Reliance industrial AC gearmotor assembly consisting of a .5 HP three phase motor coupled to a right angle worm gear reducer. The Baldor motor carries catalog number 35W590 0085G3 with MPN 6P56H3884, rated for 208 to 230 / 460 VAC operation at 1725 RPM. Electrical specifications from the nameplate include 2.5 to 2.4 / 1.2 amps full load current, 60 Hz frequency, Class F insulation, and a 1.15 service factor. The motor is built on a 56Y NEMA frame with TEFC totally enclosed fan cooled enclosure, three phase wiring, and a top mounted conduit box. The motor is manufactured in Fort Smith, Arkansas. Bearings called out on the nameplate include 6203 on the drive end. Serial number F1811193559 is stamped on the nameplate. The worm gear reducer attached to the motor is a cast iron right angle unit with a bolt mounted output cover and a foot mounted base. The gearbox nameplate on this unit is covered by tape and is not legible from the available photos, so the gearbox manufacturer, ratio, and output torque cannot be confirmed without further inspection. Typical applications for assemblies of this size include conveyors, mixers, packaging equipment, indexing tables, and other low speed, moderate torque industrial drive applications. The unit is sold as a complete assembly with motor and gear reducer joined as shown.
Stock # 0226-110
