Cipriani Harrison Pneumatic Actuated Butterfly Valve 9C440/72/22 4 In. Sanitary Clamp, AISI 316L
Cipriani Harrison Pneumatic Actuated Butterfly Valve 9C440/72/22 4 In. Sanitary Clamp, AISI 316L
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

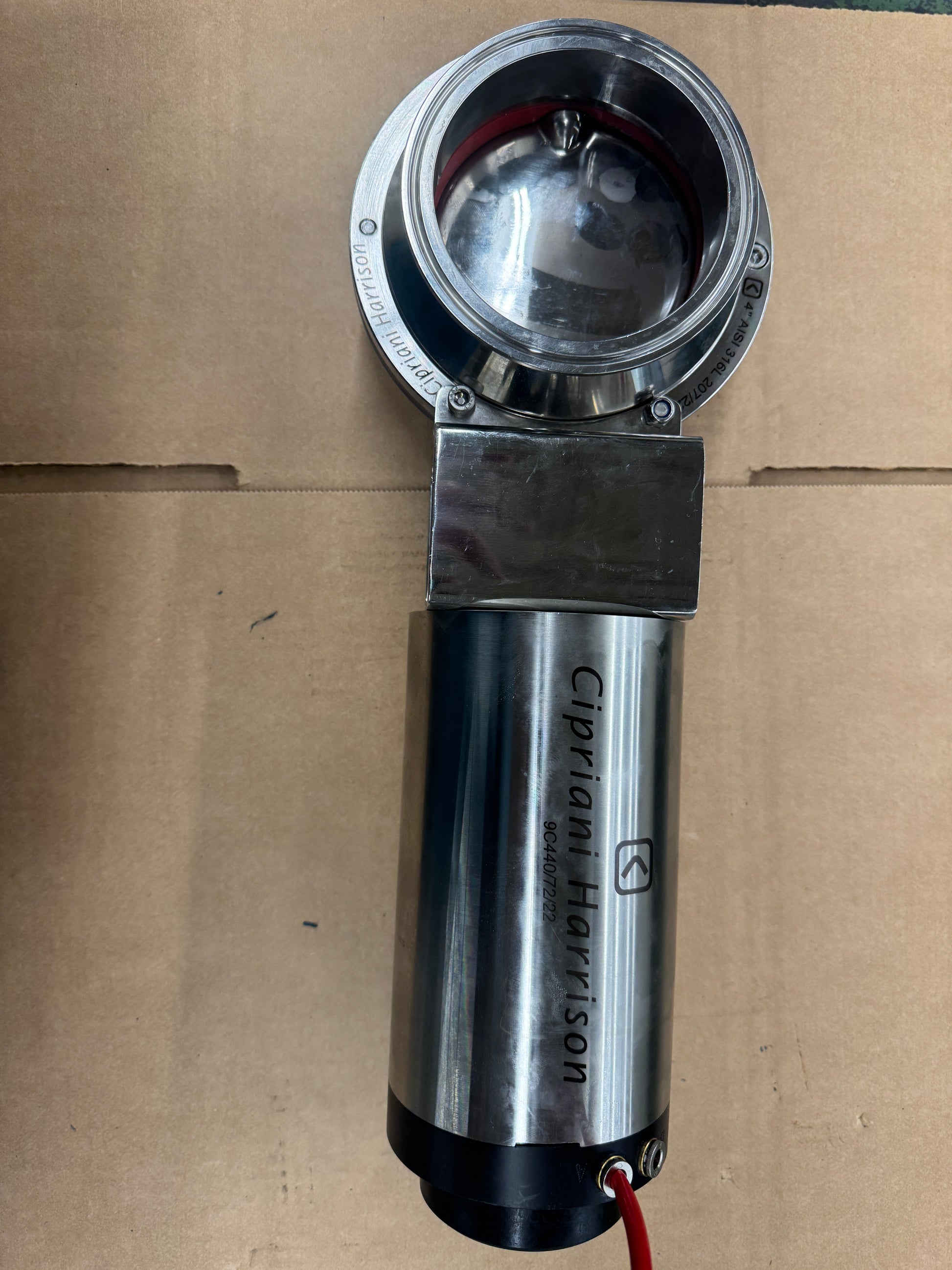

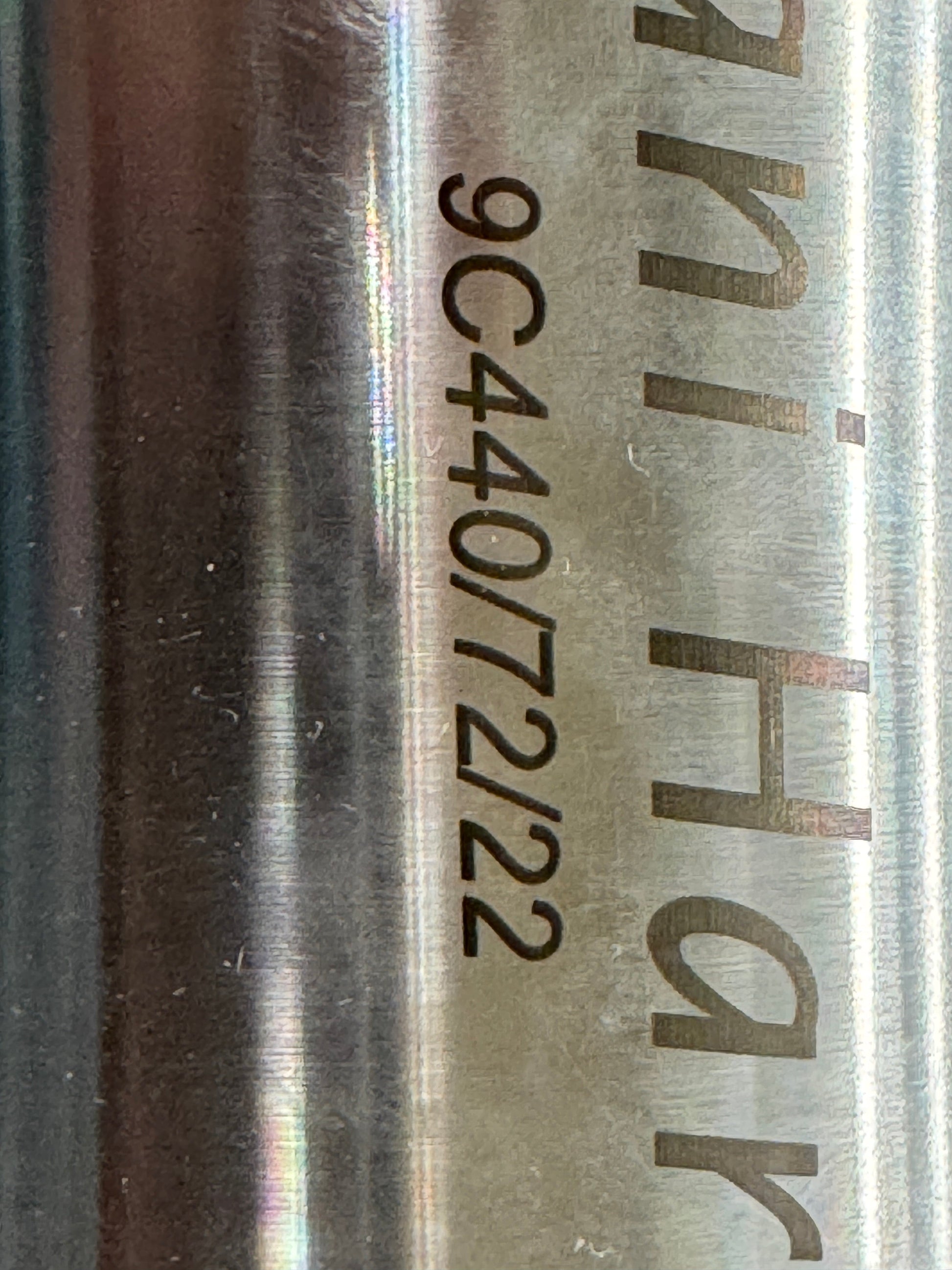

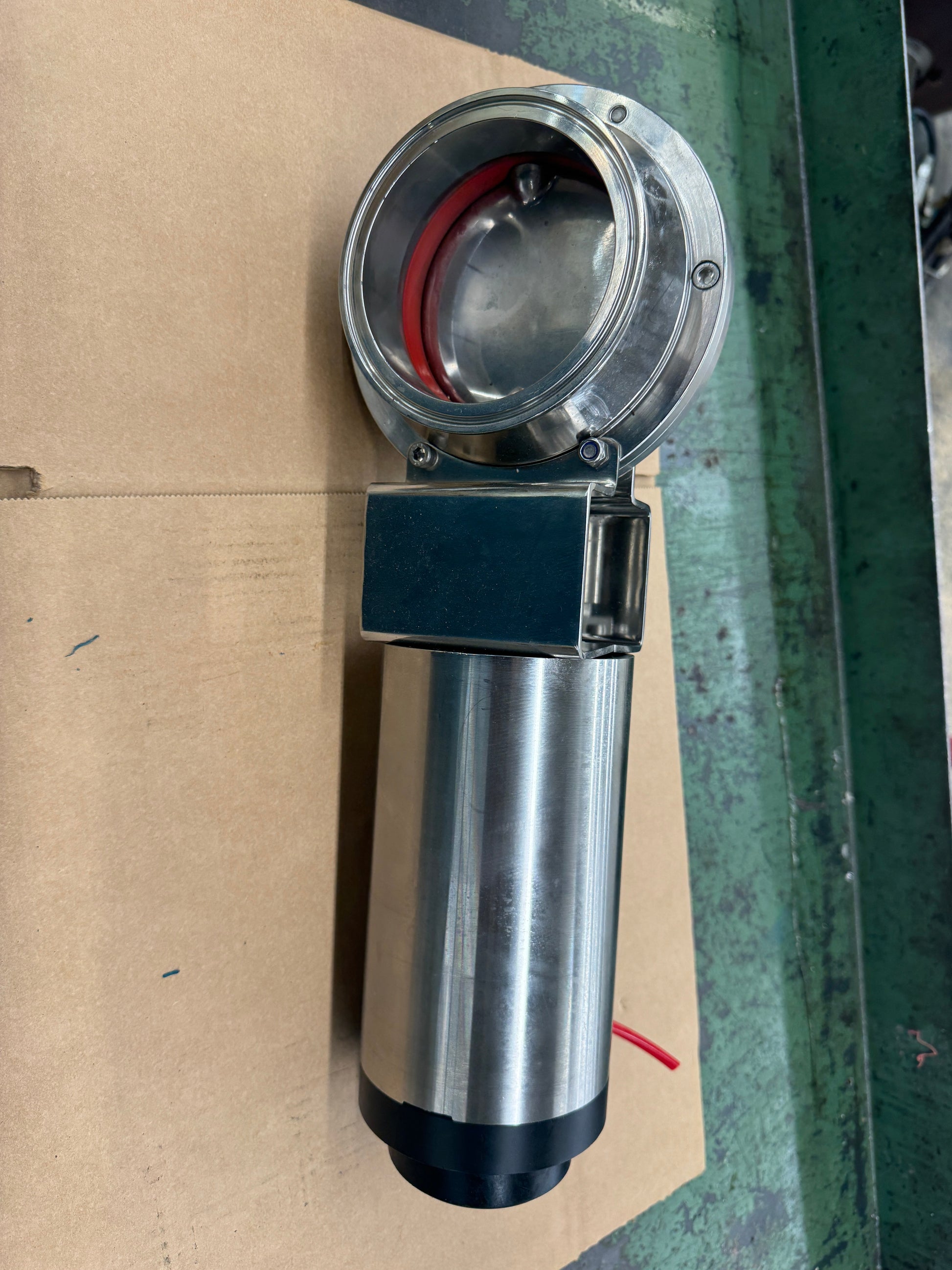

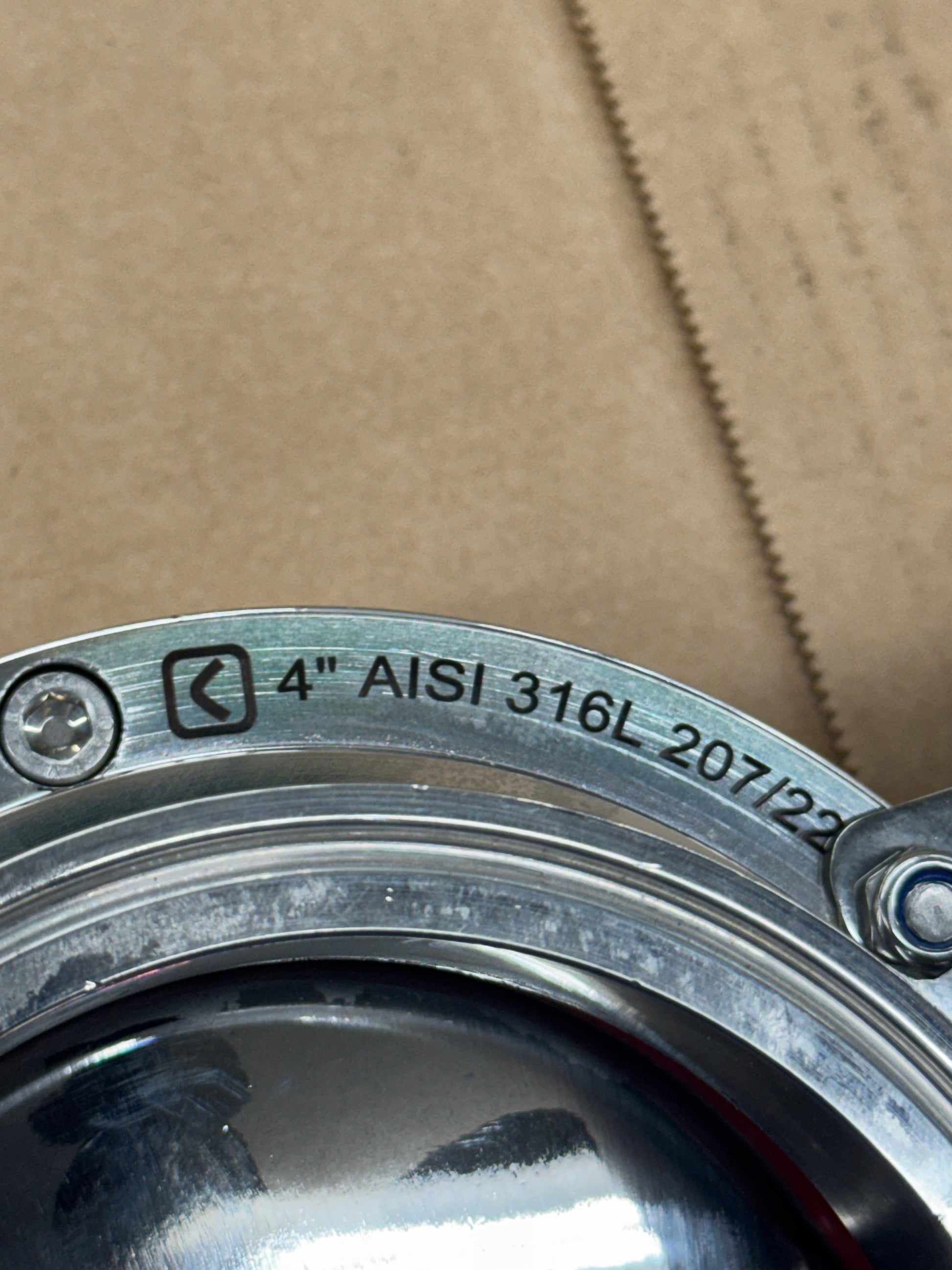

A pneumatic actuated sanitary butterfly valve from Cipriani Harrison, identified by part number 9C440/72/22 with a manufacture date of July 2022. The valve body and disc are constructed from AISI 316L stainless steel, a low-carbon austenitic alloy commonly specified in food, beverage, dairy, pharmaceutical, and biotech process piping for its corrosion resistance and cleanability. The 4-inch port interfaces with sanitary clamp end connections, consistent with Cipriani Harrison's 100 Series line, which uses forged stainless steel construction for a nonporous, dimensionally stable surface. A vertical pneumatic actuator provides automatic quarter-turn operation; compressed air supply opens or closes the disc depending on the actuator configuration. The valve body, yoke, and actuator are assembled using clamps, which enable quick disassembly for maintenance or inspection. A red elastomeric seat is visible in the photos. The polished internal surfaces and slim disc profile support high Cv flow characteristics. All seats and seals in the 100 Series line are made from FDA-approved materials, making these valves compatible with sanitary process standards. The nameplate also bears the Cipriani Harrison logo and the AISI 316L material designation alongside the 4-inch size marking.
Stock # 0326-927
