Cipriani Harrison Pneumatic Sanitary Shut-Off Valve 9C440/88/22 4 In. Tri-Clamp 150 PSI
Cipriani Harrison Pneumatic Sanitary Shut-Off Valve 9C440/88/22 4 In. Tri-Clamp 150 PSI
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

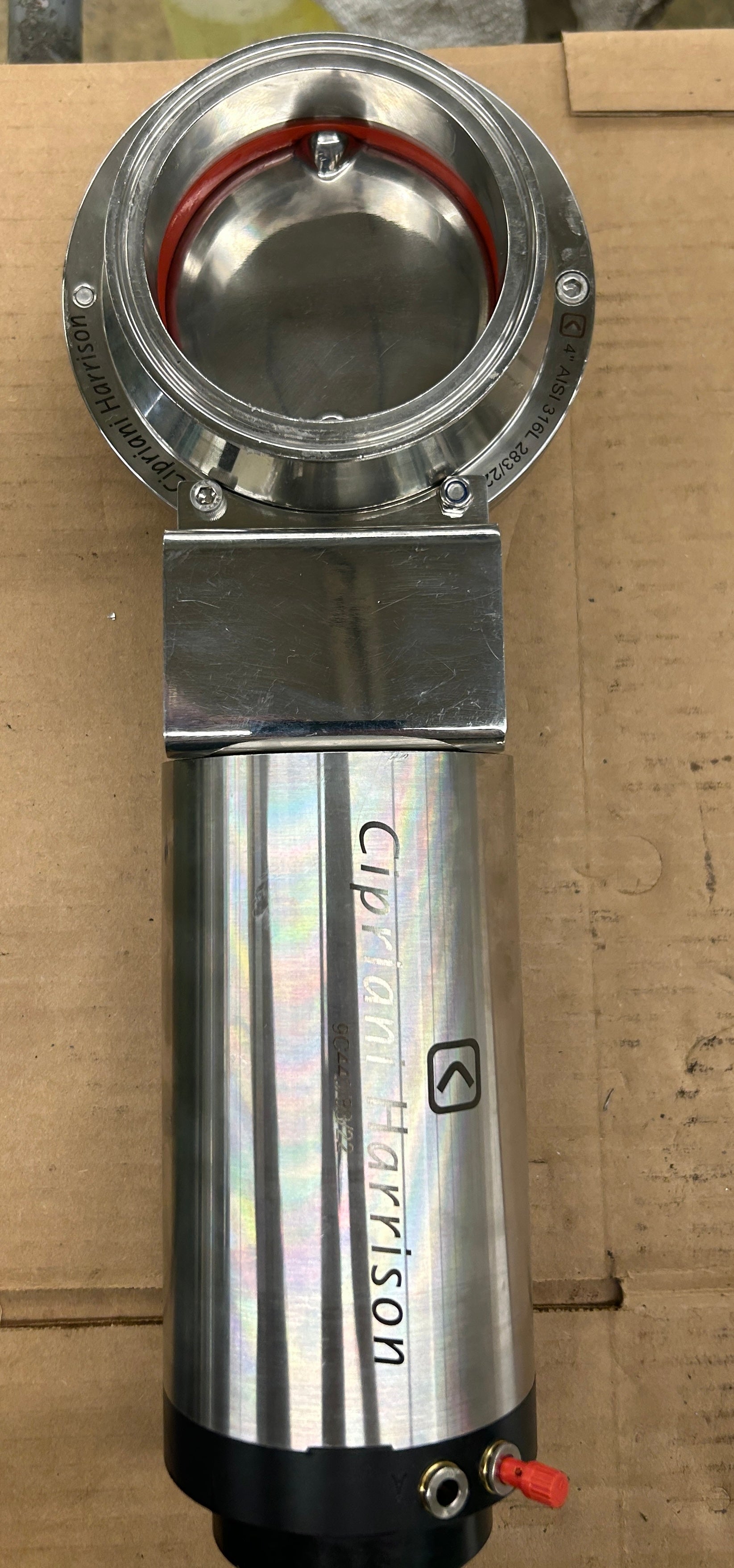

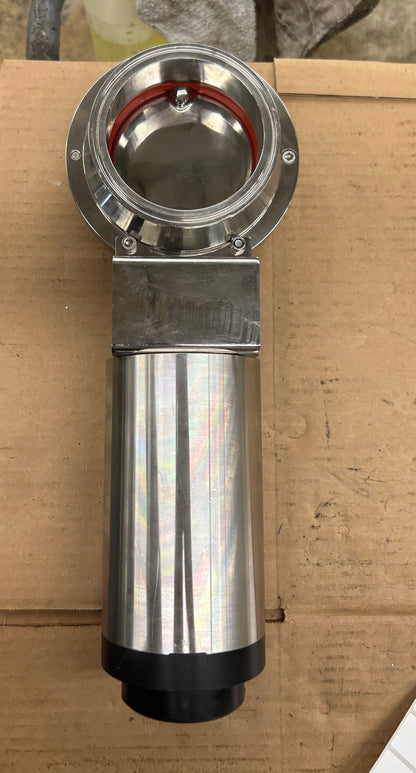

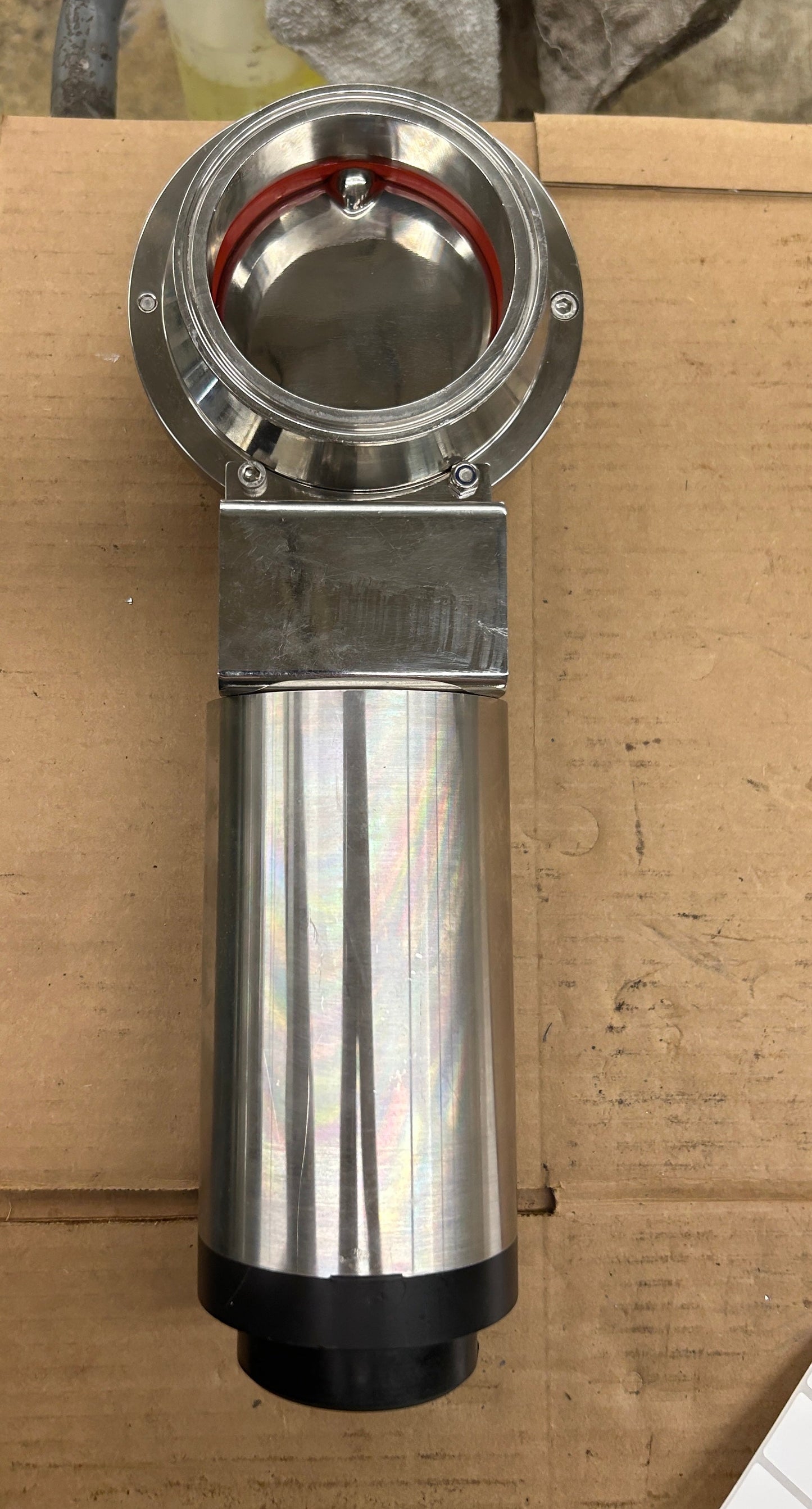

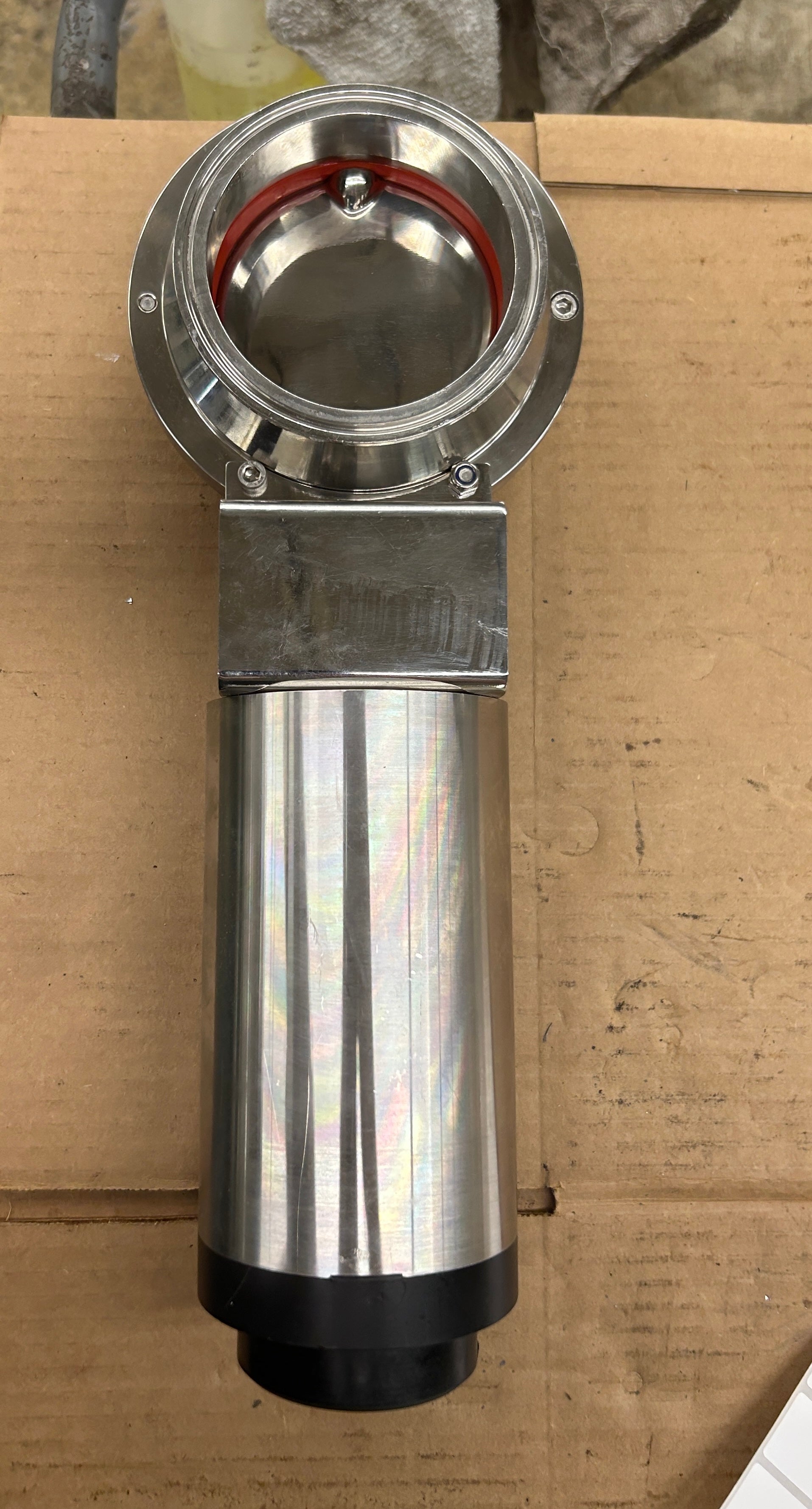

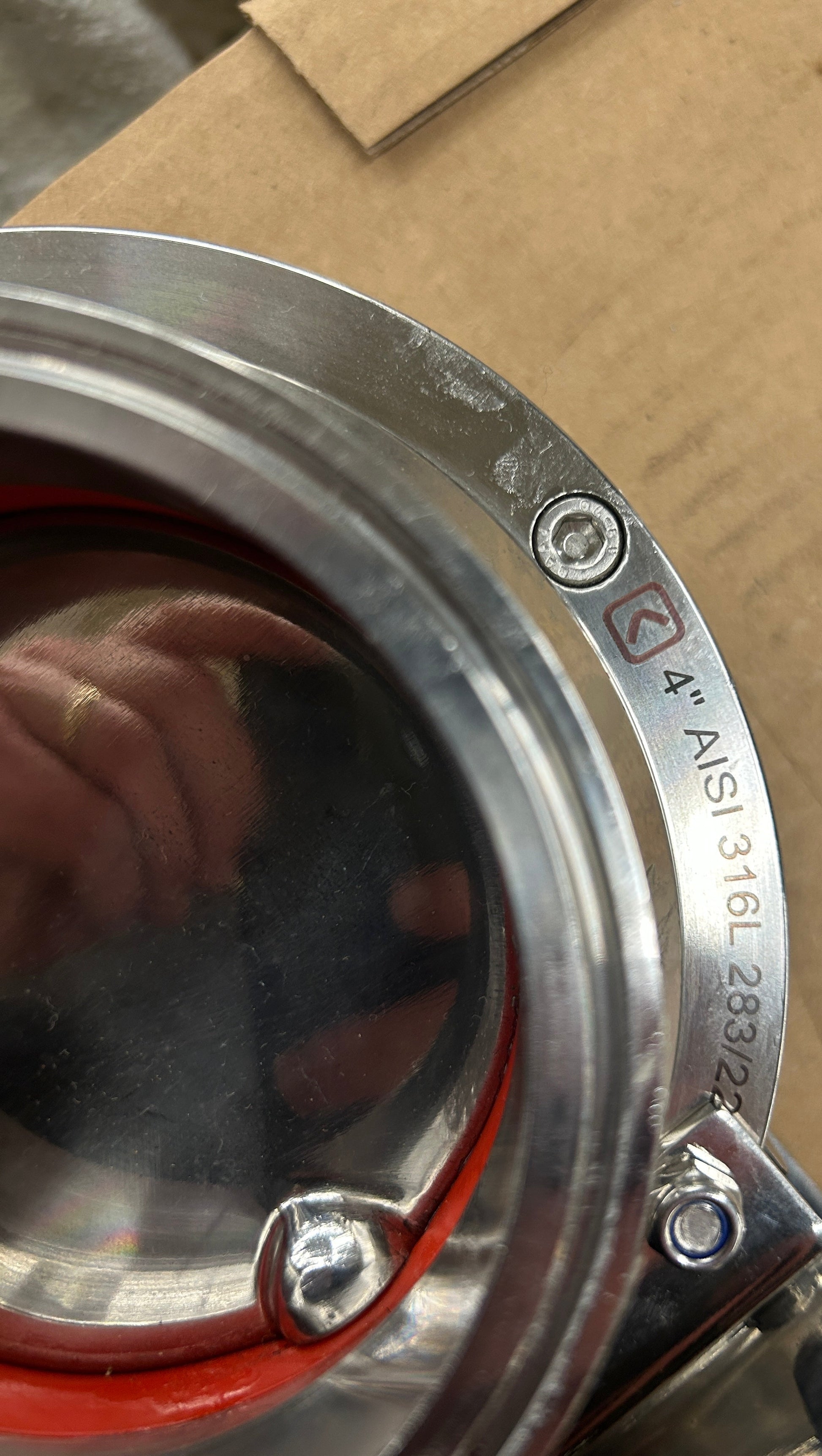

Used in food, beverage, dairy, pharmaceutical, and biotech process piping systems, the Cipriani Harrison 9C440/88/22 is a 4 in. pneumatic actuated sanitary shut-off valve constructed from AISI 316L stainless steel. The flange face is laser engraved "4 in. AISI 316L 283/22" and carries the Cipriani Harrison logo, confirming material grade and OEM origin. The body and actuator cylinder are machined and polished to a high sanitary finish consistent with Cipriani Harrison's single-seat valve product line, which is 3A authorized and designed to meet ASME BPE hygienic processing requirements.
The valve features a sanitary tri-clamp inlet flange with a red elastomeric seal ring visible at the process face, and a self-contained pneumatic actuator column terminating in a bottom port fitting. Cipriani Harrison's pneumatic single-seat valves in this size range operate via compressed air supply to open or close the valve plug depending on actuator configuration, with a built-in spring return function. The valve body, yoke, and actuator are assembled with clamps for tool-accessible disassembly.

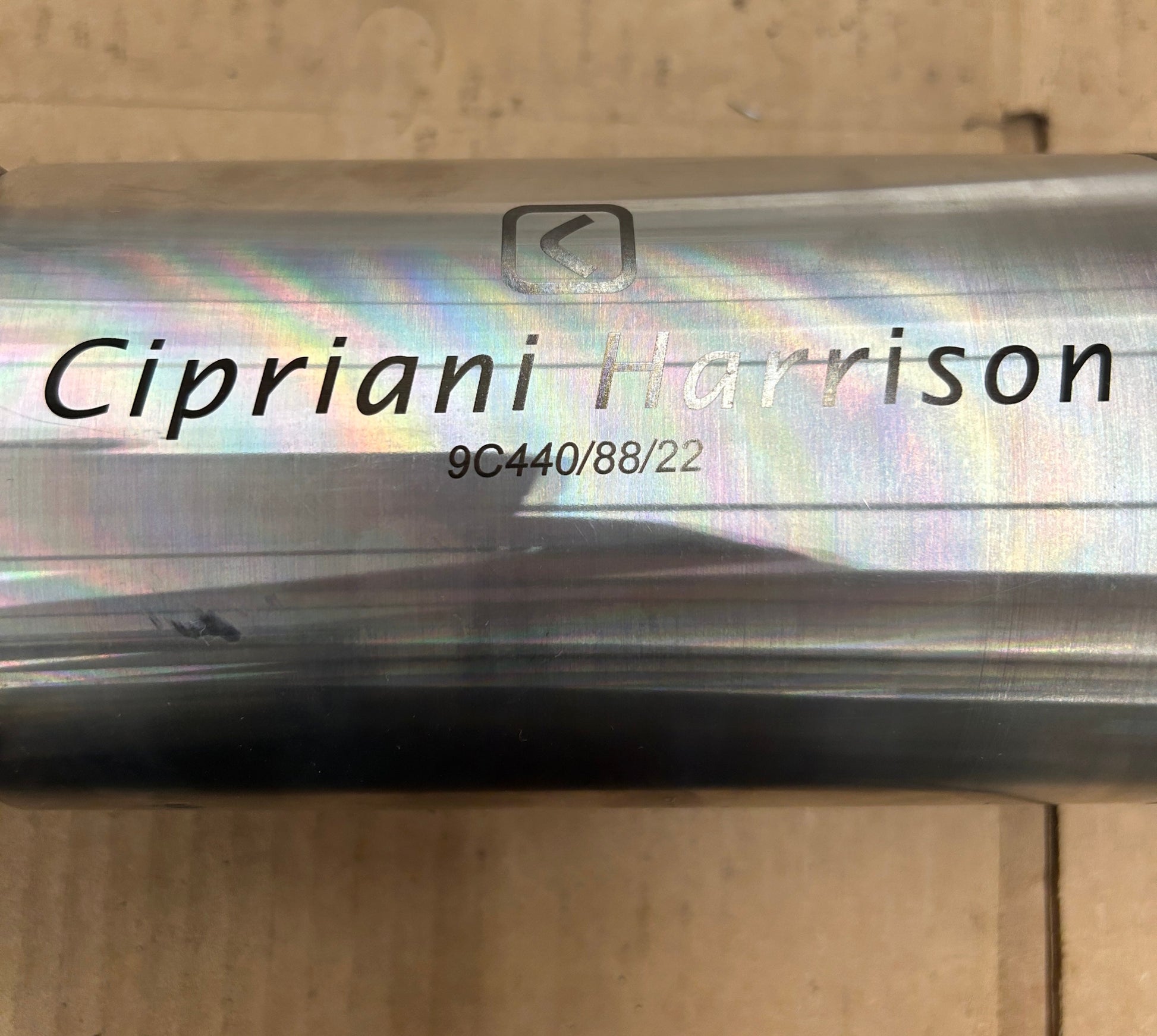

Per Cipriani Harrison published specifications for this valve series, wetted parts are AISI 316L stainless steel, non-wetted structural parts are AISI 304, and seals are EPDM with optional PTFE. Maximum working pressure for this series is 150 PSI (10 bar). Sanitary clamp end connections are standard. The "88/22" suffix in the part number is consistent with Cipriani Harrison's production lot encoding convention, indicating a 2022 manufacture period.
Stock # 0326-933
