Marathon Electric Inverter Duty AC Motor JVF 213TTFW4076DF L (CAT NO. E980) - 3 HP 1200 RPM
Marathon Electric Inverter Duty AC Motor JVF 213TTFW4076DF L (CAT NO. E980) - 3 HP 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

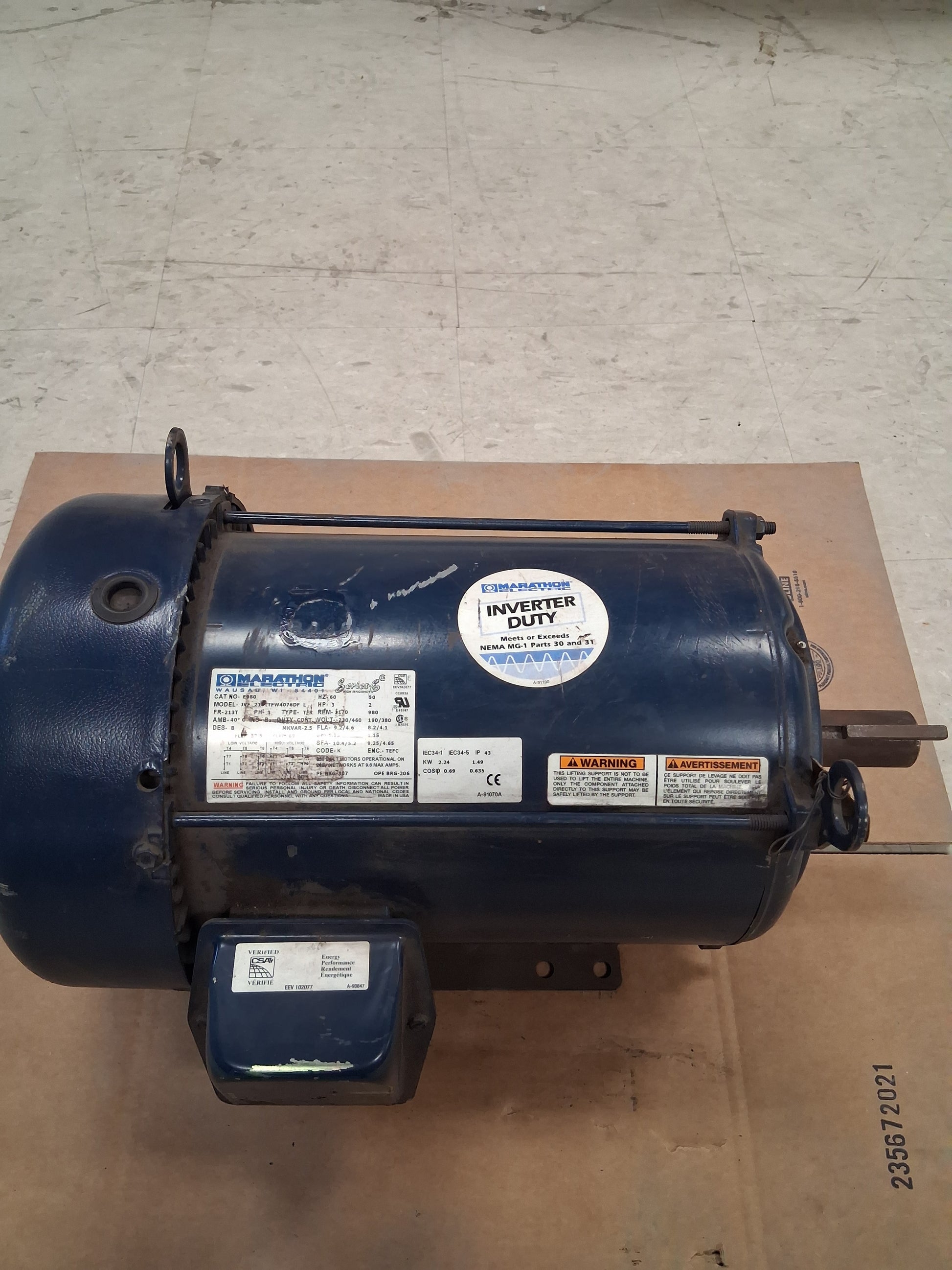

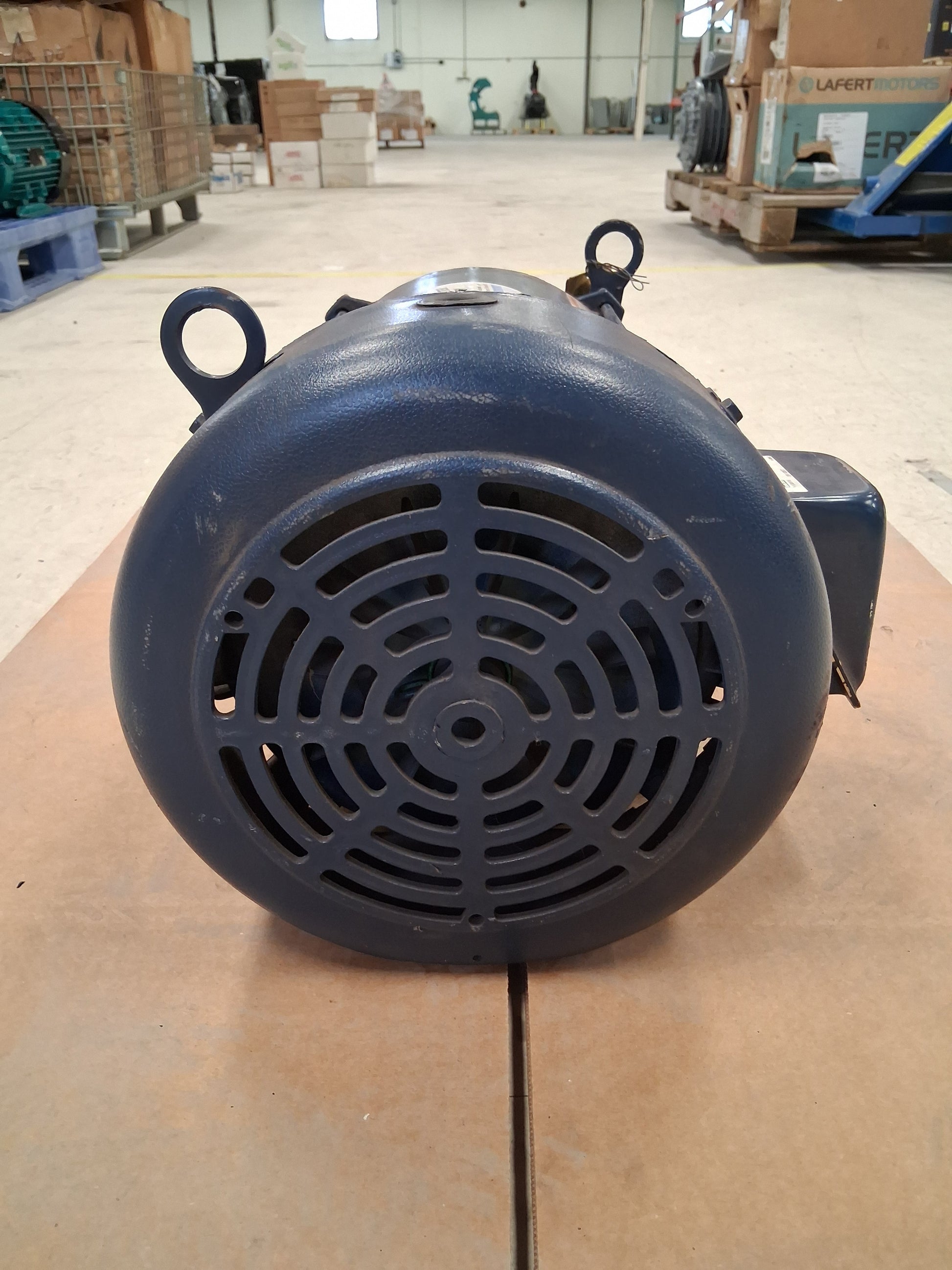

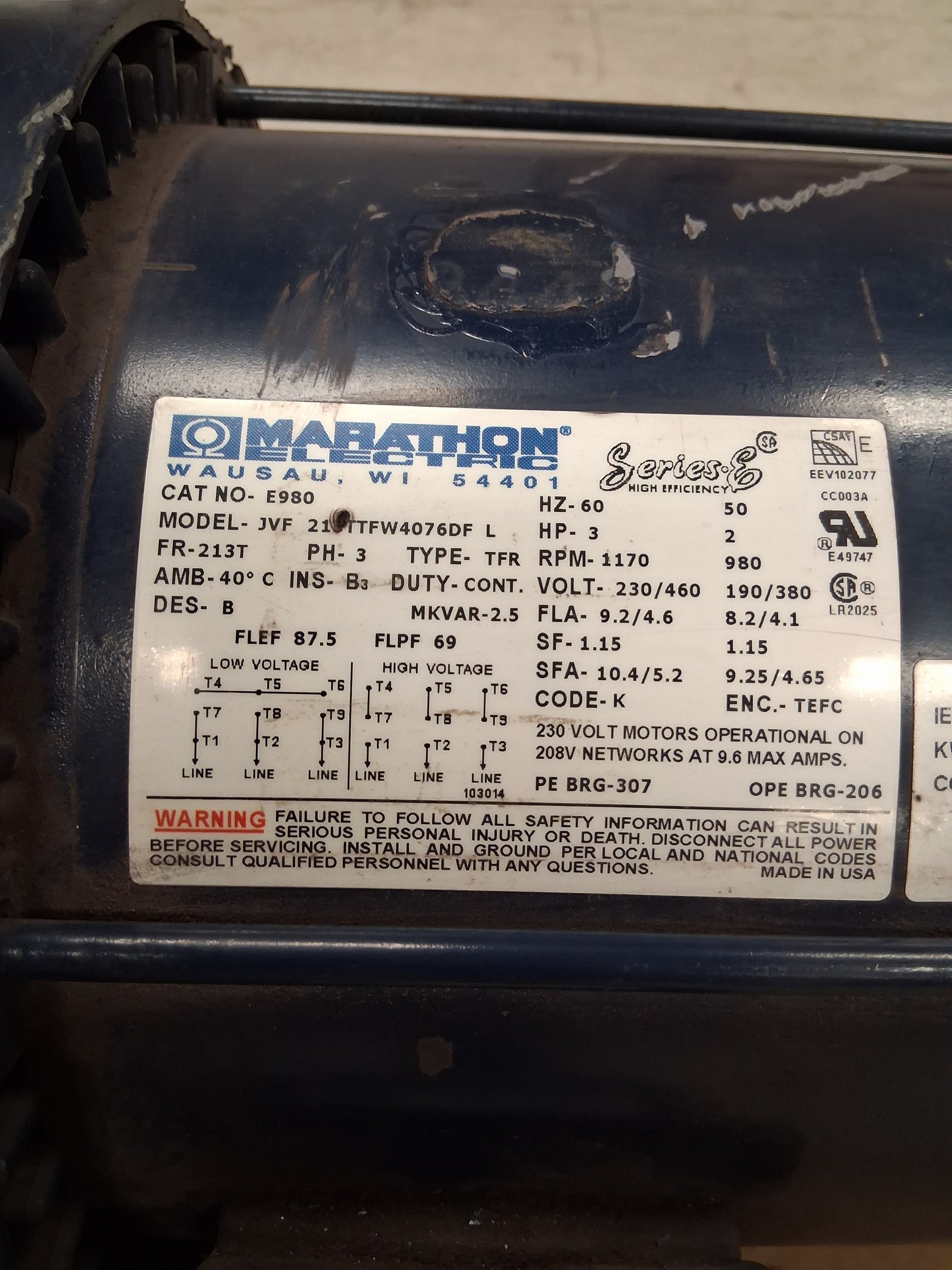

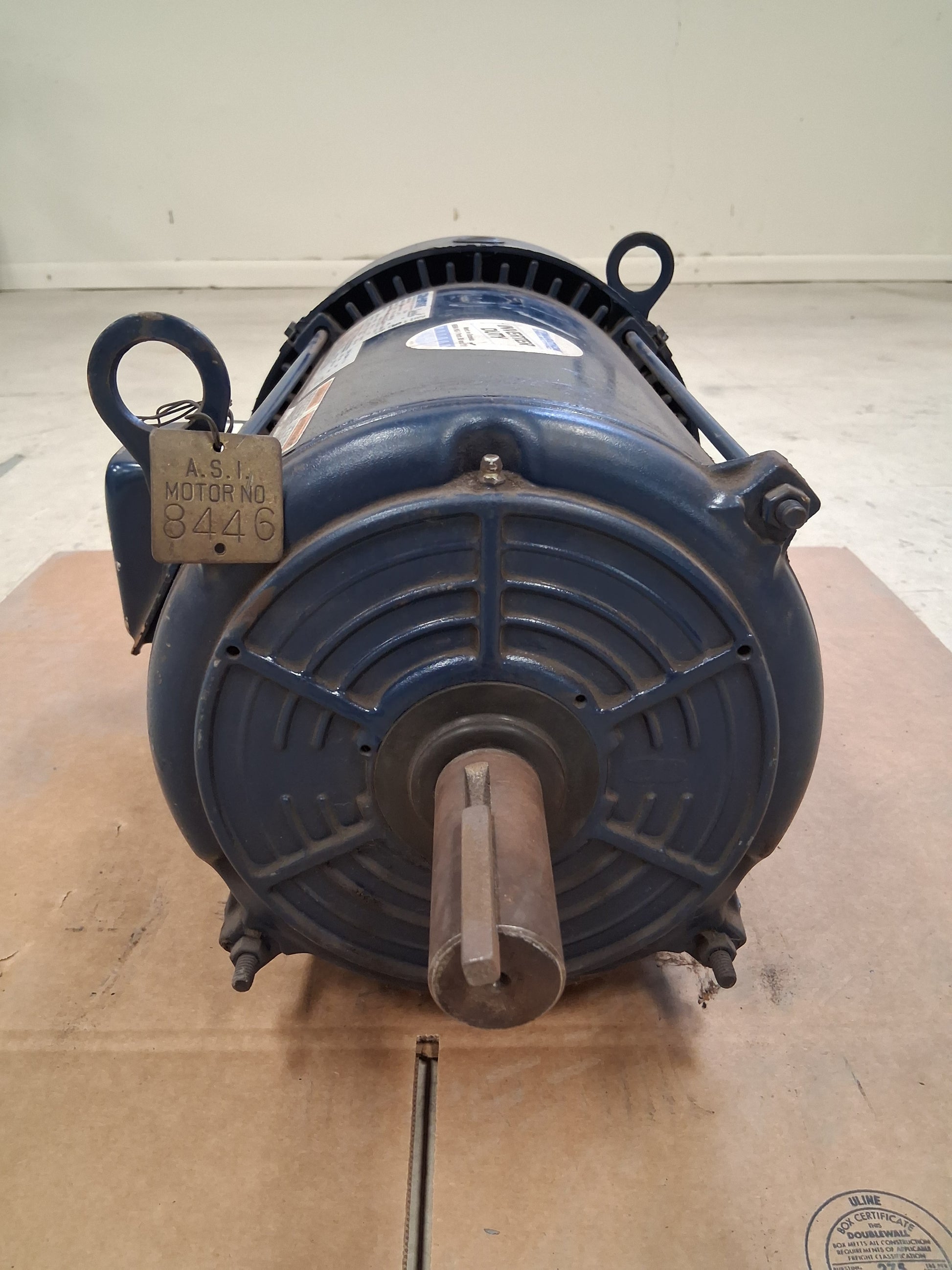

The Marathon Electric JVF 213TTFW4076DF L, CAT NO. E980, is a Series E high efficiency three phase AC induction motor rated for inverter duty service. Built in Wausau, Wisconsin, this 213T frame motor is rated at 3 HP on 60 Hz operation and 2 HP on 50 Hz operation, with a nameplate speed of 1170 RPM at 60 Hz. Dual voltage wiring supports 230/460 V operation in North American applications and 190/380 V at 50 Hz, with full load amps of 9.2/4.6 at 60 Hz. The motor is suitable for 208 V network operation at up to 9.6 maximum amps. Service factor is 1.15, with service factor amps of 10.4/5.2. Construction is TEFC, NEMA design B, KVA code K, insulation class B, and continuous duty rated at a 40 degrees C ambient. The inverter duty rating meets or exceeds NEMA MG 1 Parts 30 and 31, supporting use with variable frequency drives in conveyor, pump, fan, blower, and machine tool applications. Bearings are PE BRG 307 on the drive end and OPE BRG 206 on the opposite drive end. The motor includes integral lifting eyes, a 1.375 inch shaft with keyway, NEMA standard rigid base mounting, IP 43 protection per IEC 34 5, and a CSA verified energy performance rating per EEV 102077. Power factor is 0.69 at full load on 60 Hz and a published efficiency of 87.5 percent.
Stock # 0526-02298
