Marathon Motors Severe Duty Motor Model ZVJ 145TTTN16628AA J / Part No. E467A - 2 HP 1800 RPM

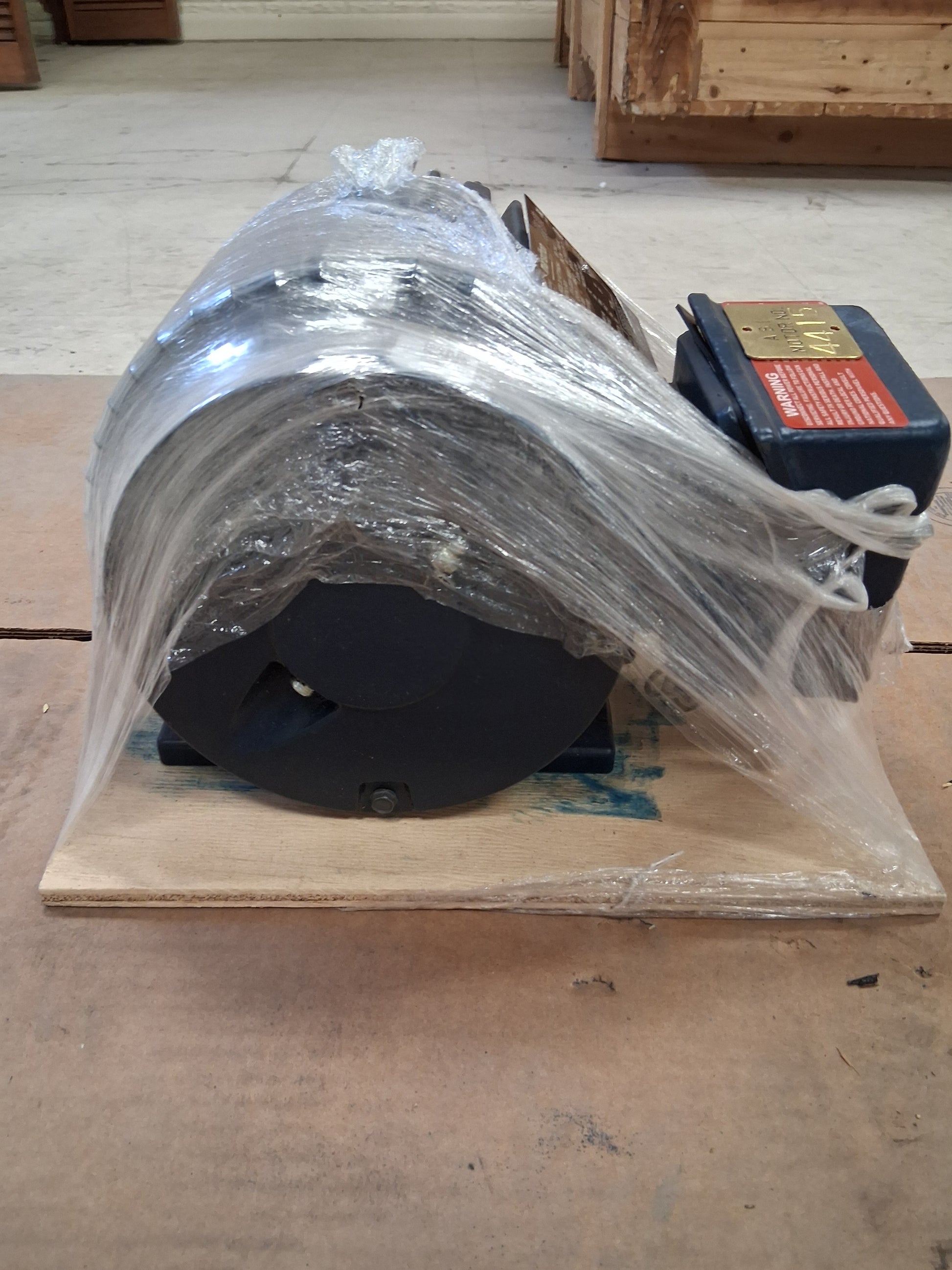

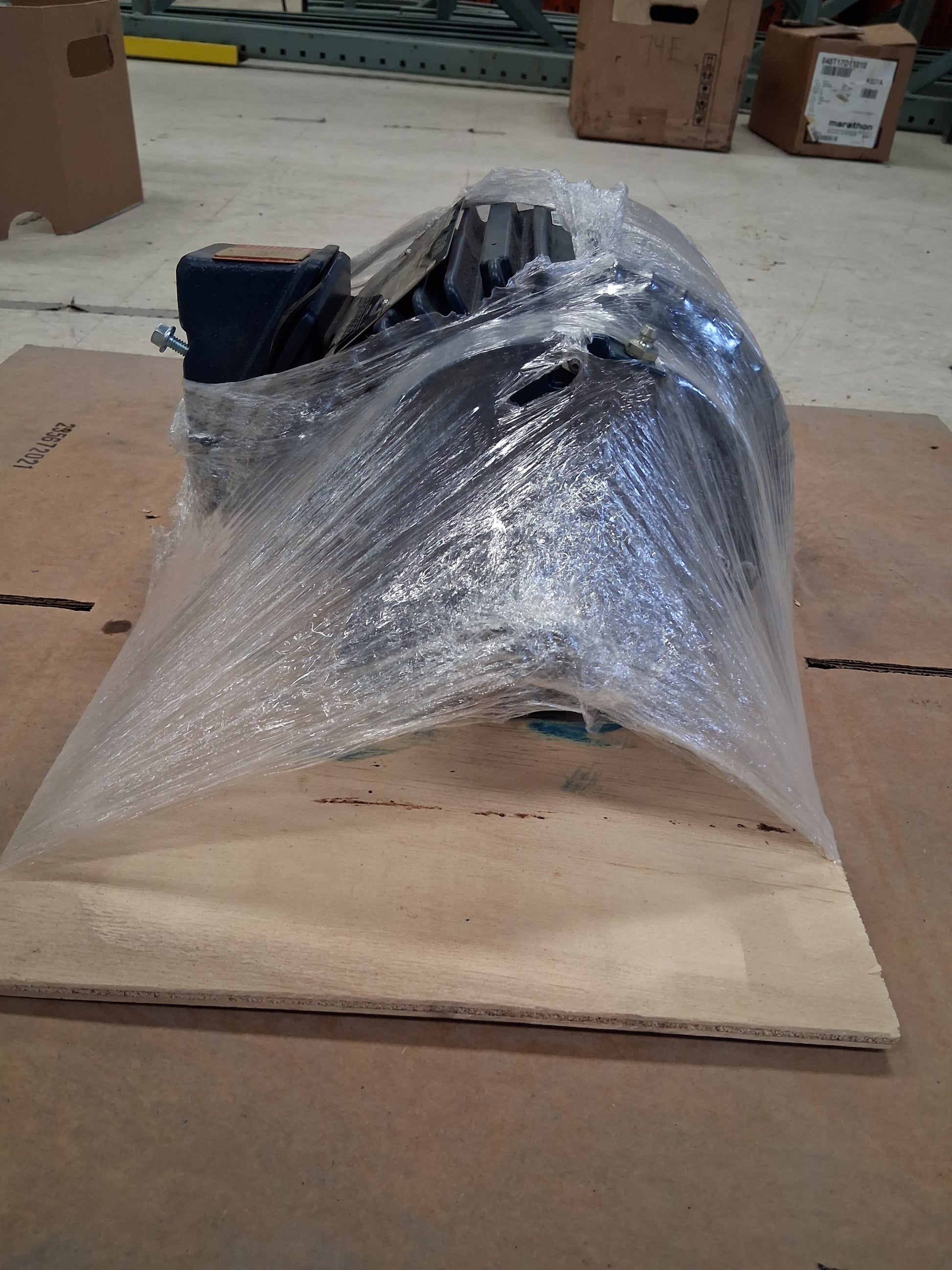

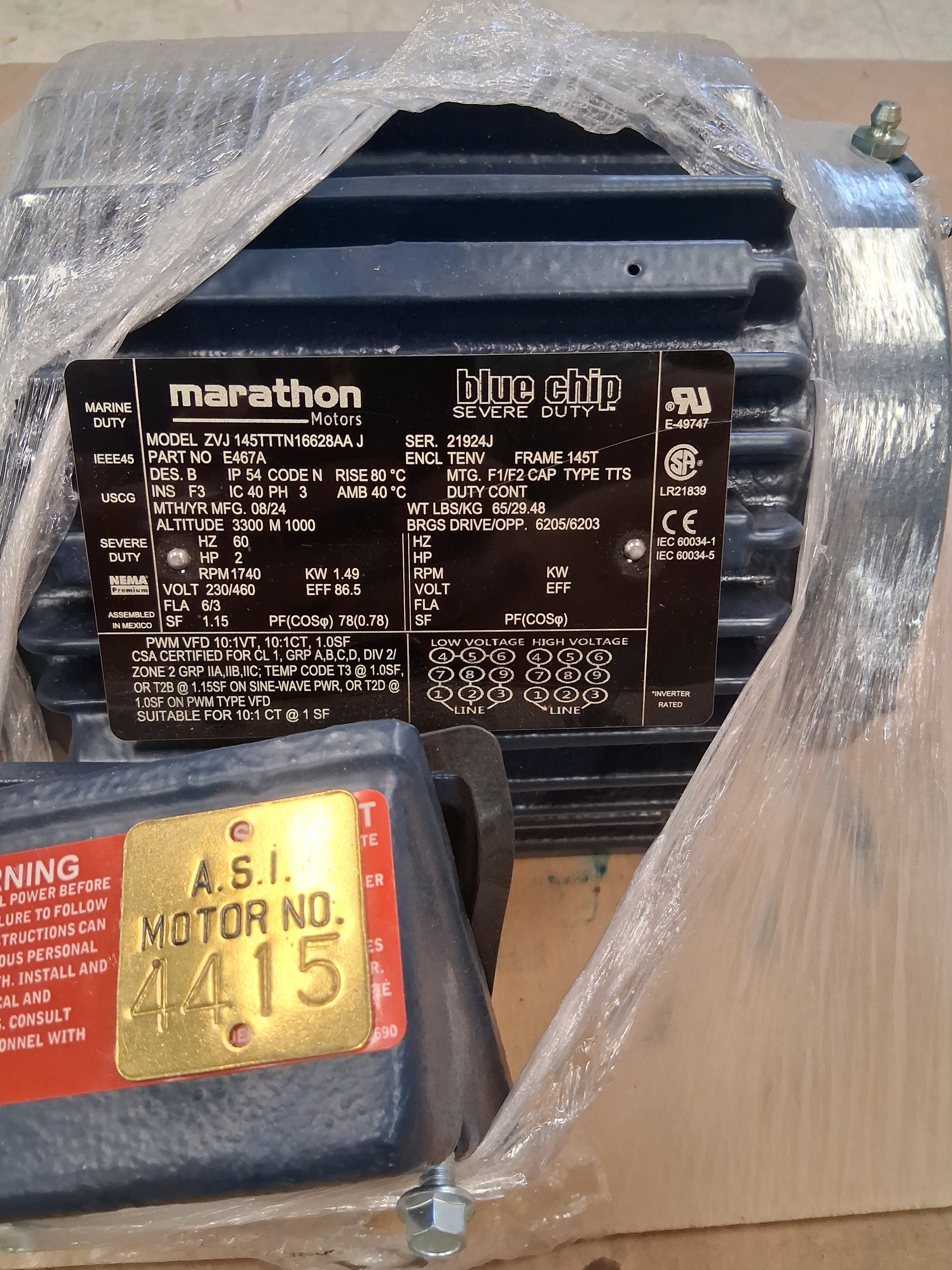

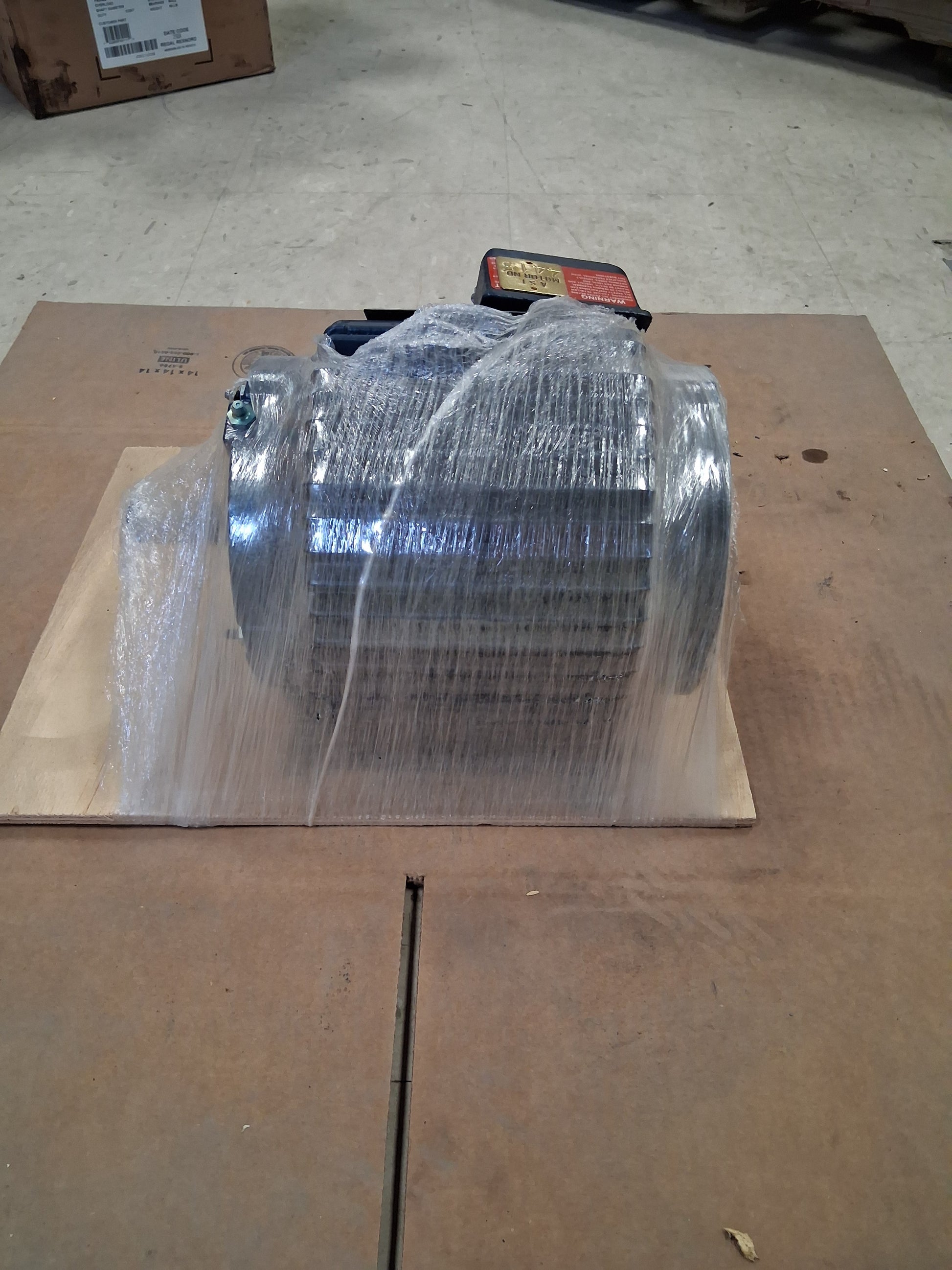

The Marathon Motors Blue Chip Severe Duty E467A is a 2 HP three phase AC induction motor built on a NEMA 145T frame with a TENV (totally enclosed non ventilated) enclosure. Model designation is ZVJ 145TTTN16628AA J, manufactured 08/24 in Mexico under serial 21924J. Rated for 230/460 VAC operation at 60 Hz with full load amps of 6/3, the motor runs at 1740 RPM with a service factor of 1.15 and a power factor of 0.78. Output is 1.49 kW with 86.5 percent efficiency, classified NEMA Premium. Design B, Code N, Class F3 insulation, IP54 ingress protection, ambient rating of 40 degrees C, temperature rise 80 degrees C. Mounting is F1/F2 (rigid base) with TTS shaft type. Drive end bearing 6205, opposite end bearing 6203. Suitable for PWM VFD operation at 10:1 variable torque, 10:1 constant torque, and 1.0 service factor. CSA certified for Class 1, Group A/B/C/D, Division 2 and Zone 2 Group IIA/IIB/IIC hazardous locations with temperature code T3 at 1.0 SF, T2B at 1.15 SF on sine wave power, or T2D at 1.0 SF on PWM type VFD. UL recognized (E 49747), CSA (LR21839), CE marked, and compliant with IEC 60034 1 and IEC 60034 5. Marine duty rated per IEEE 45 and USCG. Inverter rated. Weight 65 lbs. Applications include chemical plants, paper mills, refineries, mines, food processing, foundries, and other severe duty industrial environments.

Stock # 0526-02303
